Samsung ME11A7510DS – ME11A7510DS/AC
Over the Range Microwave, 30 inch Exterior Width, 1.1 cu. ft. Capacity, 400 CFM, 1,000 W Watts, Halogen , Stainless Steel colour
| Specification | Value |
|---|---|
| Capacity | 1.1 cu ft |
| Product Type | Over-the-Range Microwave |
| Style | Slim / Low Profile Over-the-Range |
| Color | Fingerprint Resistant Stainless Steel |
| Model | ME11A7510DS |
| Canadian Model Number | ME11A7510DS/AC |
| US Model Number | ME11A7510DS/AA |

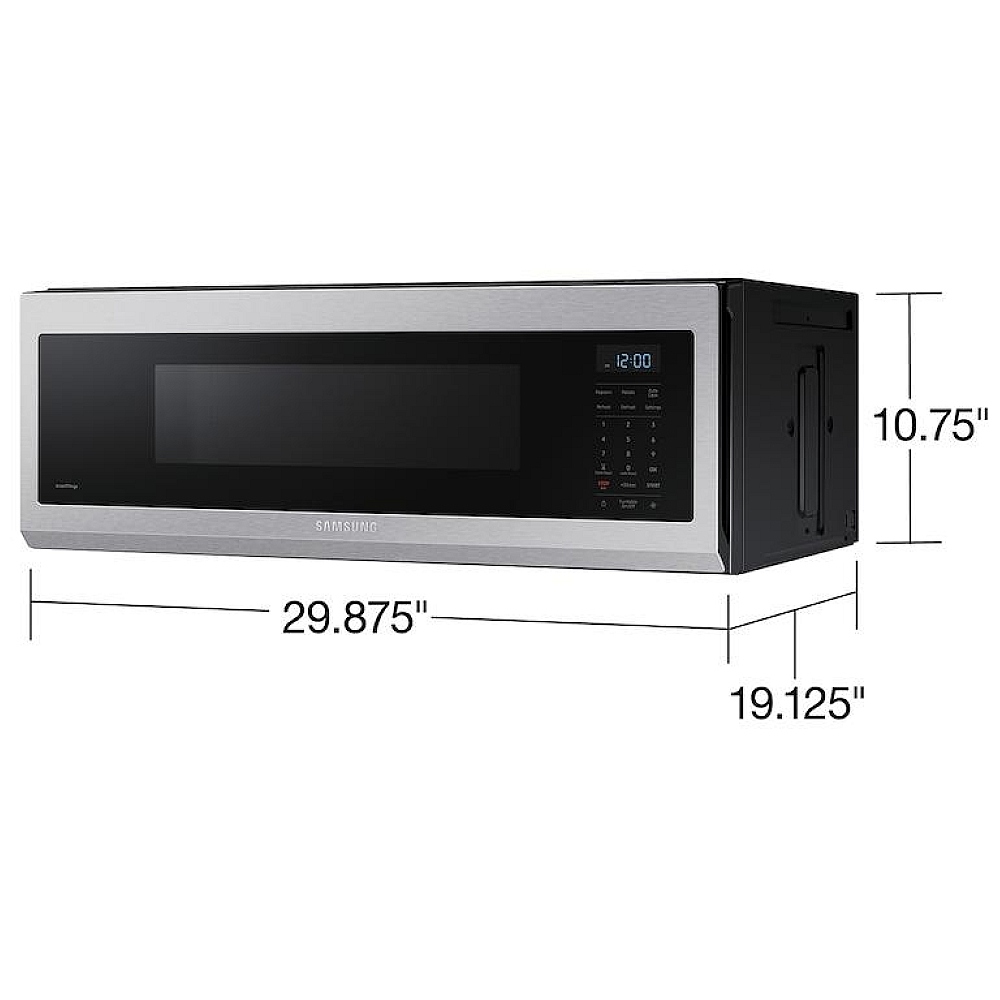

| Width | 29 7/8 inches (29.88 in / 29.87 in decimal) |
| Height | 10 3/4 inches (10.75 in) |
| Depth | 19 1/8 inches (≈19.1–19.13 in) |
| Max Cabinet Depth (Cutout Depth) | 12 inches |
| Depth with Door Open | 49 inches |
| Product Weight | ≈55.8–56.7 lb (spec sheet 55.8 lb) |
| Shipping / Listed Weight (some retailers) | ≈63.1 lb |
| Cavity Width | 18 1/2 inches |
| Cavity Height | 6 15/16 inches |
| Cavity Depth | 14 15/16 inches |
| Turntable Size | 11 1/2 inches |
| Microwave Power Output | 1100 W |
| Power Consumption (Microwave) | 1650 W (some listings 1500 W) |
| Power Supply | 120 V / 60 Hz |
| Rated Circuit / Amperage | 15 A dedicated circuit recommended (some retailers list 15–20 A) |
| Number of Power Levels | 10 |
| Ventilation Type | Built-in Hood / Over-the-Range Vent |
| Vent Power | 400 CFM |
| Vent Fan Speeds | 4 (Boost / Hi / Mid / Lo / Off) |
| Vent Filters | Dual wide grease filters |
| Vent Filter Type | Grease filters (with change filter reminder) |
| Interior Finish | Ceramic Enamel |
| Door Type | Recessed handle |
| Door Swing | Left swing |
| Control Location | Right side |
| Control Type / Material | Glass touch controls |
| Display Type | LED (Ice Blue) |
| Turntable | Yes |
| Turntable Material | Glass |
| Turntable Feature | Removable |
| Microwave Distribution | Turntable system |
| Interior Light | LED |
| Cooktop Lighting | Halogen |
| Cooktop Lighting Settings | Hi / Lo / Off (2 light levels) |
| Wi-Fi Connectivity | Yes |
| App Compatibility | SmartThings |
| Voice Control | Yes (via compatible assistants through SmartThings) |
| Sound On/Off | Yes (mute option) |
| Auto Defrost | Yes |
| Cooking Presets / Auto Cook | Yes |
| Kitchen Timer | Yes |
| Clock | 12/24 hr with Daylight Saving Time adjustment (varies by region listing) |
| Child Lock | Yes |
| Weight Option | lb / kg selection |
| Eco Mode | Yes (standby power reduction) |
| End of Cooking Signal | Yes |
| Low Profile / Slim Design | Yes (profile bas / slim) |
| Fingerprint Resistant Finish | Yes |
| ADA Compliant | No |
| Energy Star Rated | No |
| Base Warranty – Parts | 1 year |
| Base Warranty – Labor | 1 year |
| Magnetron Warranty | 10 years (parts) |
| Included Accessories | Turntable, grease filters, mounting hardware (per typical OTR package; may vary by retailer) |
• Bixby™, Amazon Alexa, and Google Assistant™ voice control – enables hands‑free operation so you can start, stop, or change settings using compatible voice assistants.
• Smart SLIM over‑the‑range design – combines a full‑function microwave and range hood in a slim profile to free up space above the cooktop while maintaining performance.
• 1.1 cu. ft. capacity – fits dinner plates, bowls, and medium‑size cookware, providing enough room for everyday meals and reheating without taking up excess space.
• 1100W high cooking power – delivers strong, even microwave performance to cook and reheat food quickly and thoroughly, saving time in busy kitchens.
• 10 power levels – allows precise control over cooking intensity, from gentle defrosting to full‑power heating, to suit different foods and recipes.
• Auto Defrost function – automatically sets time and power based on food weight to thaw meats, poultry, and other frozen items more evenly and safely.
• Auto Cook presets – offers one‑touch programs for common foods so you can achieve reliable results without manually setting time and power.
• 30‑second Plus option (if shown on your control panel) – adds extra time in quick 30‑second increments, ideal for fine‑tuning reheating without restarting a cycle.
• Ceramic Enamel interior – provides a durable, scratch‑resistant cavity that’s easy to wipe clean and helps resist staining and discoloration over time.
• Glass turntable – rotates food during cooking to promote more even heating and can be removed for cleaning or to fit certain dish shapes.
• Turntable on/off control (where available) – lets you disable rotation when using larger or rectangular dishes that need to remain stationary.
• Digital cooking timer – clearly displays remaining time so you can monitor progress at a glance and coordinate with other cooking tasks.
• Kitchen timer function – works independently of microwave cooking to time other tasks such as boiling pasta or baking in your range.
• 400 CFM hood ventilation – quickly removes steam, smoke, and cooking odors from the cooktop area to help keep kitchen air fresher.
• 4‑speed vent fan – offers Boost/High/Mid/Low settings so you can match ventilation power to what you’re cooking and reduce noise when full power isn’t needed.
• Dual wide grease filters – larger‑than‑standard filters capture more airborne grease and oil particles to improve hood performance and help protect cabinets.
• Change filter reminder – alerts you when it’s time to clean or replace the grease filters to maintain effective ventilation.
• Halogen cooktop lighting – provides bright, even illumination over the range so you can clearly see food on the burners while cooking.
• LED interior light – lights the microwave cavity for easy viewing of food during cooking and reheating.
• Fingerprint Resistant Stainless Steel finish – helps hide smudges and fingerprints, keeping the exterior looking cleaner with less frequent wiping.
• Slim, space‑efficient profile – low‑profile body design creates more headroom above the cooktop and a sleeker look compared with traditional over‑the‑range microwaves.
• Recessed handle door design – offers a streamlined appearance and reduces protrusions into the kitchen space while still providing a secure grip.
• Ice Blue LED display – delivers a modern, easy‑to‑read interface that clearly shows time, power level, and function selections.
• Hood Auto Connectivity (with compatible Samsung ranges) – allows the hood fan and lights to turn on or off automatically with the range controls for simplified operation.
• Wi‑Fi embedded – keeps the microwave connected to your home network for app control, status notifications, and integration with other smart devices.
• Sound on/off control – lets you mute audible beeps and alerts when you prefer quieter operation, such as at night.
• Child Lock function – disables the control panel to prevent accidental or unauthorized use by children and enhance kitchen safety.
• Weight option (lb/kg) – allows you to choose between pounds and kilograms when using weight‑based functions like Auto Defrost for greater flexibility.
• Eco Mode (standby power reduction) – reduces energy consumption by lowering standby power usage when the microwave is not actively in use.
• 1,500–1,650W power consumption – supports strong cooking performance while operating on a standard 120V/60Hz, 15‑amp household circuit.
• Four‑button vent fan control – provides simple access to fan speeds and on/off settings directly from the front control panel.
• Hi/Lo/Off cooktop lighting settings – lets you choose brighter light for cooking, softer light as a night‑light, or turn it off completely.
• Glass touch controls – offer a smooth, flat control surface that’s easy to wipe clean and contributes to a premium, modern appearance.
• Stainless steel exterior – coordinates with other stainless appliances for a cohesive kitchen look and long‑lasting durability.
• Standard 30″ width fit – designed to install over most 30″ ranges or cooktops, simplifying replacement of older over‑the‑range units.
• Max 12″ cabinet depth compatibility – fits standard upper‑cabinet depths, making it suitable for most typical kitchen layouts.
• Approx. 55–57 lb product weight – provides a solid, stable installation while remaining manageable for professional installers.
• 1‑year parts and labor warranty – covers the microwave against defects in materials and workmanship for added purchase confidence.
• 10‑year magnetron parts warranty – extends coverage on the key microwave heating component to support long‑term reliability.
Manufacturer’s Warranty: 1 year
Canadian model: ME11A7510DS
Canadian UPC: 887276582177
EAN: 0887276582177
Using a voice assistant with the SmartThings App, like Samsung Bixby, Amazon Alexa, or Google Assistant, you can tell your microwave what you want it to do.*
