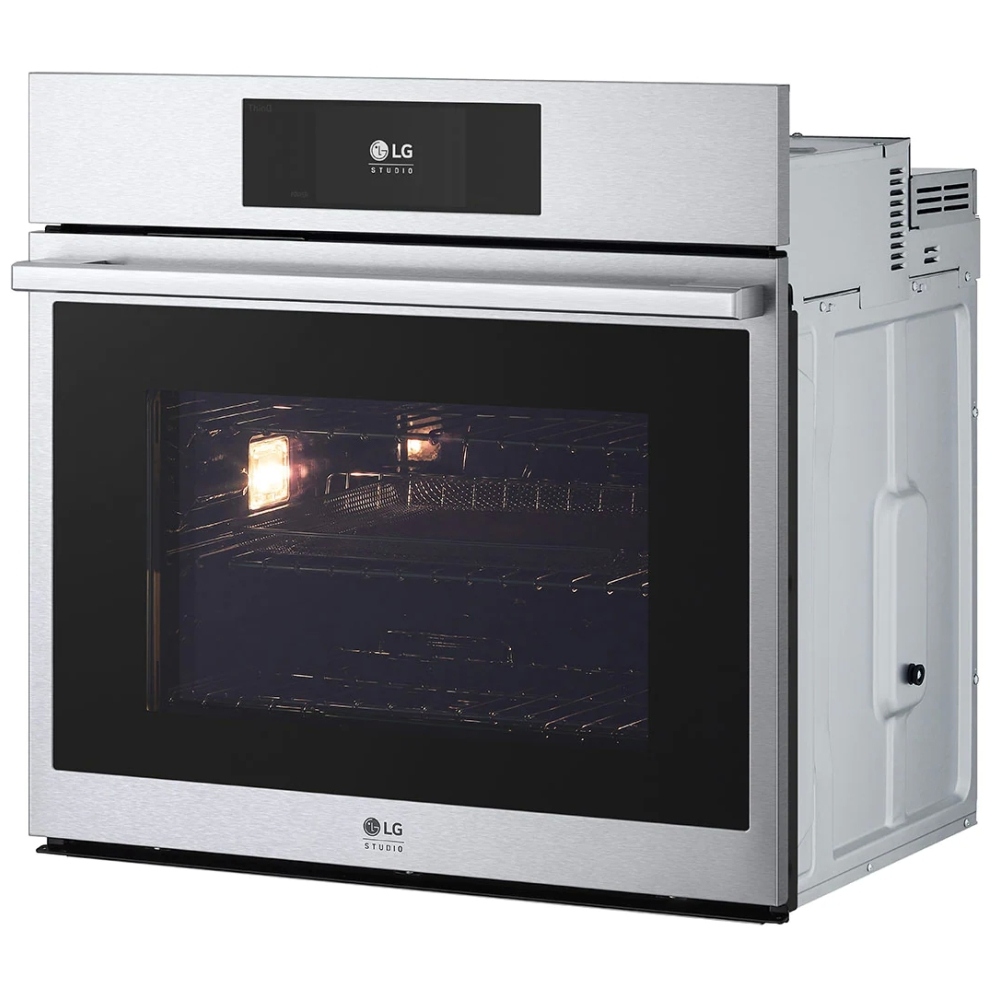

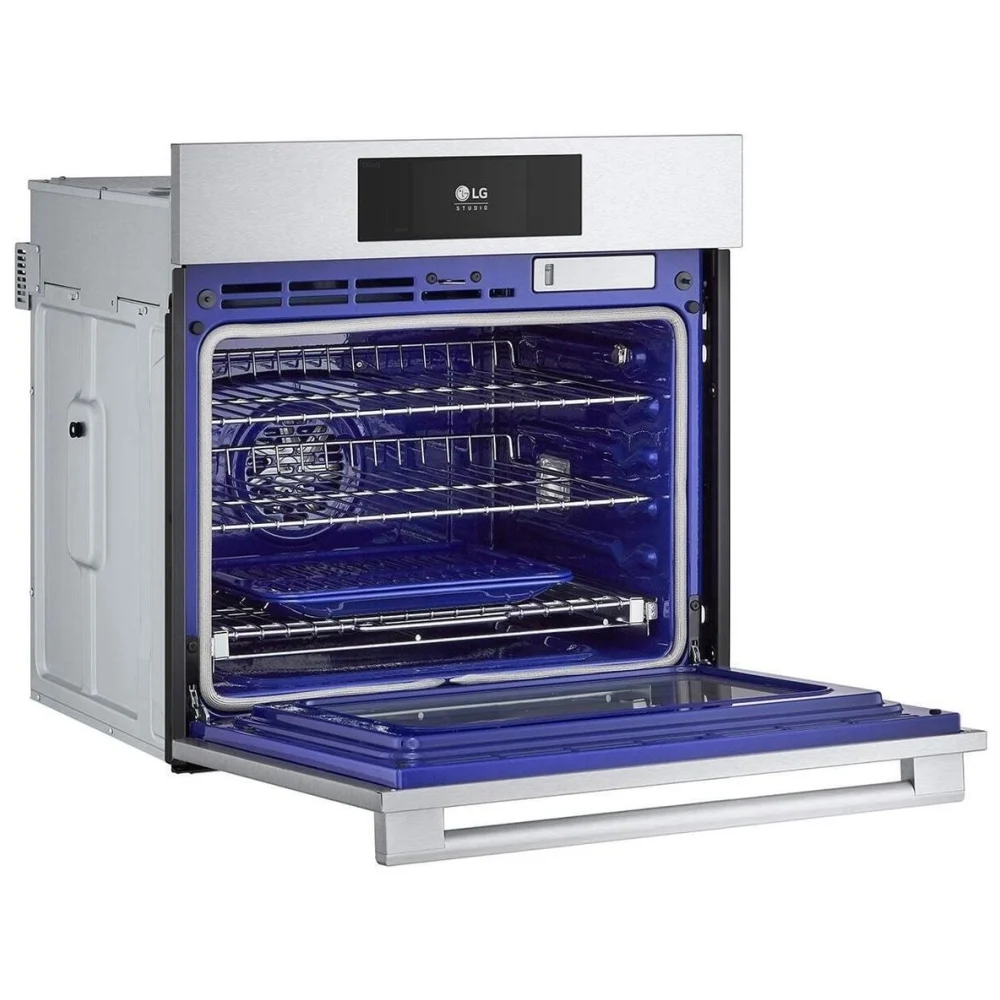

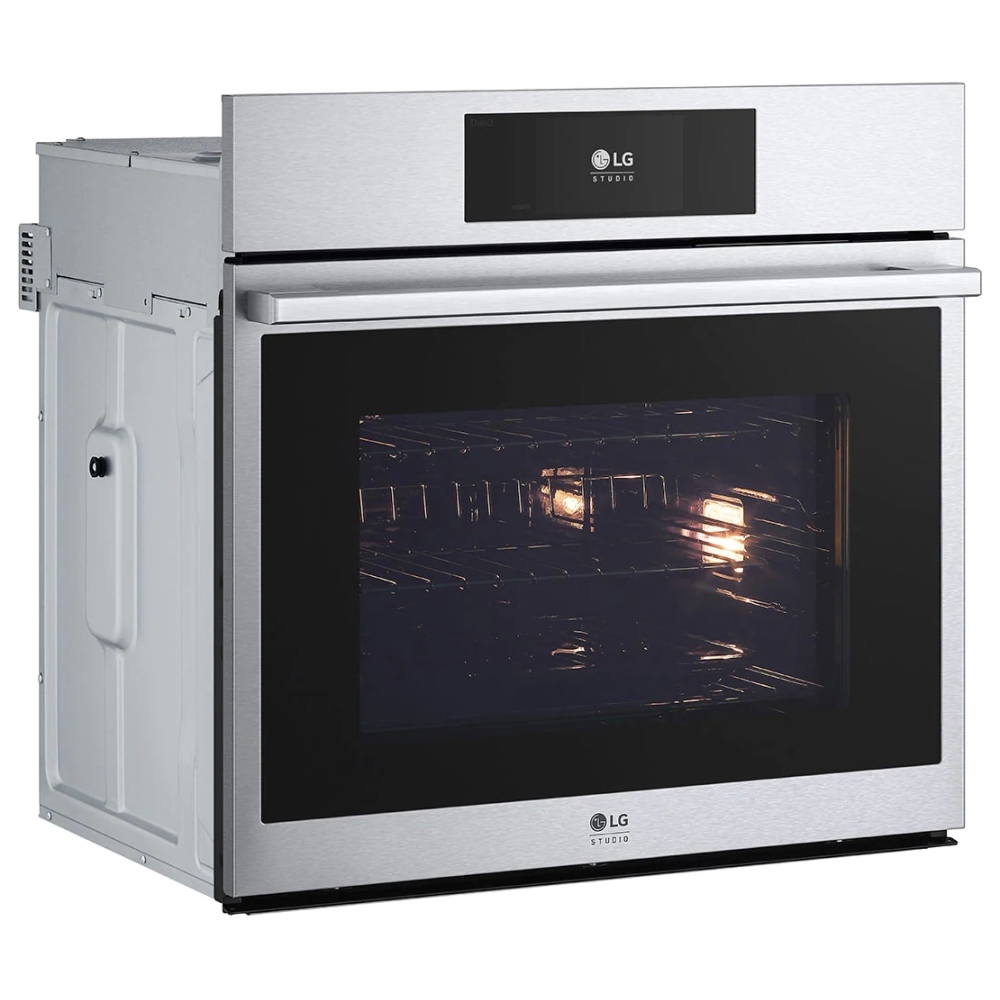

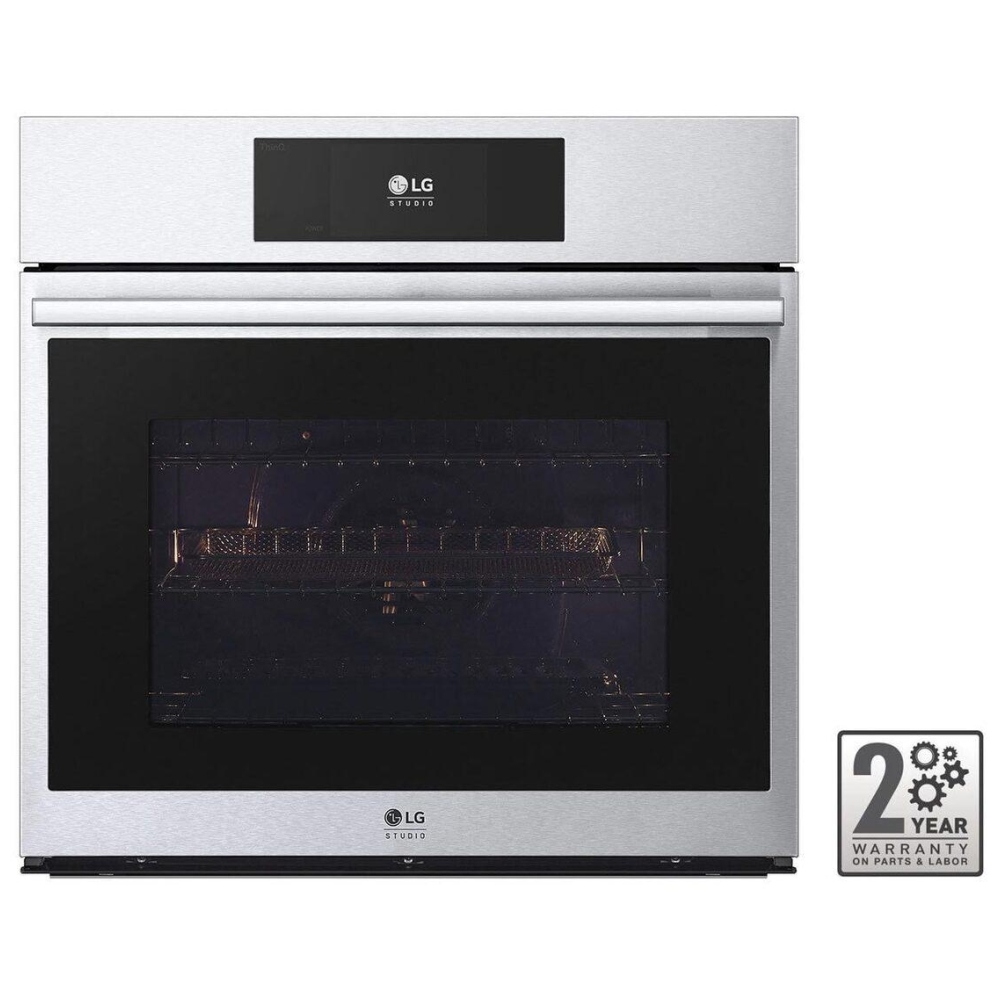

LG Studio WSES4728F Single Wall Oven,
30 inch Exterior Width, True Convection, 4.7 cu. ft. Capacity, Air Fry, Stainless Steel colour InstaView Window, Telescopic Gliding Extension Rack, Soft Close Door, True European Convection, Steam Sous Vide, Air Fry
| Specification | Value |
|---|---|
| Capacity | 4.7 cu ft |
| Width | 29.75 inches |
| Height | 29.44 inches |
| Depth (cabinet) | 26.9 inches |
| Depth (including door) | 24.46 inches |
| Depth (including handle) | 26.91 inches |
| Product Weight | 134 lbs |
| Shipping Weight | 164 lbs |
| Interior Dimensions (W x H x D) | 24.5 inches x 17.63 inches x 18.88 inches |
| Cutout Dimensions – Flush (W x H x D) | 30 inches x 29.63 inches x 25 inches |
| Cutout Dimensions – Standard (W x H x D) | Min. 28.5 inches x 29.13 inches x 24 inches / Max. 28.63 inches x 29.19 inches x 24 inches |
| Oven Type | Single Wall Oven |
| Fuel Type | Electric |
| Nominal Width | 30 inches |
| Brand Series | LG STUDIO |
| Finish | Smudge Resistant / PrintProof Stainless Steel |
| Handle Type / Material | Bar handle, Stainless Steel |
| Control Type | Glass Touch (SmoothTouch) |
| Display | 7-inch TFT LCD touch display |
| Oven Door Window | InstaView & WideView Window |
| Oven Capacity Type | True Convection Single Oven |
| Convection Type | True Convection |
| Convection Fan | Single speed |
| Convection Element Power | 2,000 W (sheath heater) |
| Bake Element Type | Hidden (8-pass) |
| Bake Element Power | 2,500 W |
| Broil Element Power | 2,500 W inner / 1,500 W outer |
| Steam Element Power | 1,960 W |
| Number of Rack Positions | 5 |
| Total Number of Oven Racks | 4 (varies by retailer listing; manufacturer configuration includes 1 gliding rack + 2 heavy-duty racks + air fry rack) |
| Oven Lights | 2 halogen |
| Lower Oven Lights | 5 (as listed in some retailer specs for internal lighting points) |
| Oven Cooking Modes | Bake, Convection Bake, Convection Roast, Broil (High / Low), Warm, Proof, Frozen Meal, Air Fry, Air Sous-Vide / Steam Sous Vide, Steam Bake, EasyClean, Self Clean, Steam Maintenance, Auto Cook, Favorite |
| Self Clean | Yes |
| EasyClean | Yes (approx. 10 minutes) |
| Variable Cleaning Time | Yes |
| Variable Broil | Yes |
| Variable Warm | Yes |
| Proof Mode | Yes |
| Air Fry | Yes |
| Steam / Sous Vide | Steam Sous Vide / Air Sous-Vide / Steam Bake |
| Wi-Fi Connectivity | Yes (ThinQ) |
| SmartDiagnosis | Yes |
| Voice Control (3rd Party) | Yes |
| Smart Recipe App | SideChef compatible |
| ThinQ Care / Proactive Monitoring | ThinQ Care supported (availability may vary by region) |
| Clock | 12-hour or 24-hour (selectable) |
| Kitchen Timer | Yes |
| Timed Cook | Yes |
| Cooking Complete Reminder Volume | High / Low / Mute (or Beeper Hi / Lo / Off) |
| Language Options | English, French, Spanish |
| Automatic Safety Shut-Off | After 12 hours |
| Sabbath Mode | Yes (Certified) |
| ADA Compliant | Yes |
| Energy Requirements | 240 V / 208 V, 60 Hz |
| kW Rating at 240 V | 6.1 kW |
| Amp Rating at 240 V | 25.4 A |
| Energy Star Certified | No |
| Accessories – Gliding Rack | 1 full-extension gliding rack |
| Accessories – Heavy Duty Racks | 2 |
| Accessories – Air Fry Rack | 1 |
| Accessories – Broiler Pan | Included |
| Accessories – Griddle / Griddle Plate | Included |
| Accessories – Meat Probe / Temperature Probe | Included |
| Colour | Stainless Steel |
| Smudge-Proof / PrintProof | Yes |
| LED / Interior Lighting | Halogen interior lighting with multiple points; LED indicators on controls |
| Venting System – Exhaust Grease Filter | 1 |
| UPC (Canada) | 195174022849 |
| UPC (USA) | 195174022832 |
| Manufacturer Warranty (Parts & Labour) | 2 years |
• Smart InstaView® window – knock twice on the glass to instantly illuminate the extra‑wide viewing window without opening the door or releasing heat.
• WideView™ oven window – oversized glass panel provides a broad, clear view of dishes on multiple racks.
• PrintProof™ smudge‑resistant stainless steel – special finish resists fingerprints and smudges and wipes clean easily to keep the oven looking new.
• ThinQ® smart technology – connect via Wi‑Fi to monitor and control the oven from your smartphone, receive notifications, and access smart features.
• ThinQ Care™ proactive maintenance – monitors appliance performance and sends alerts or tips to help prevent issues and extend product life.
• SmartDiagnosis™ support – transmits diagnostic data to LG customer service via the ThinQ app to help speed up troubleshooting.
• SideChef recipe app integration – access guided recipes and send cooking settings directly from a compatible SideChef app to the oven.

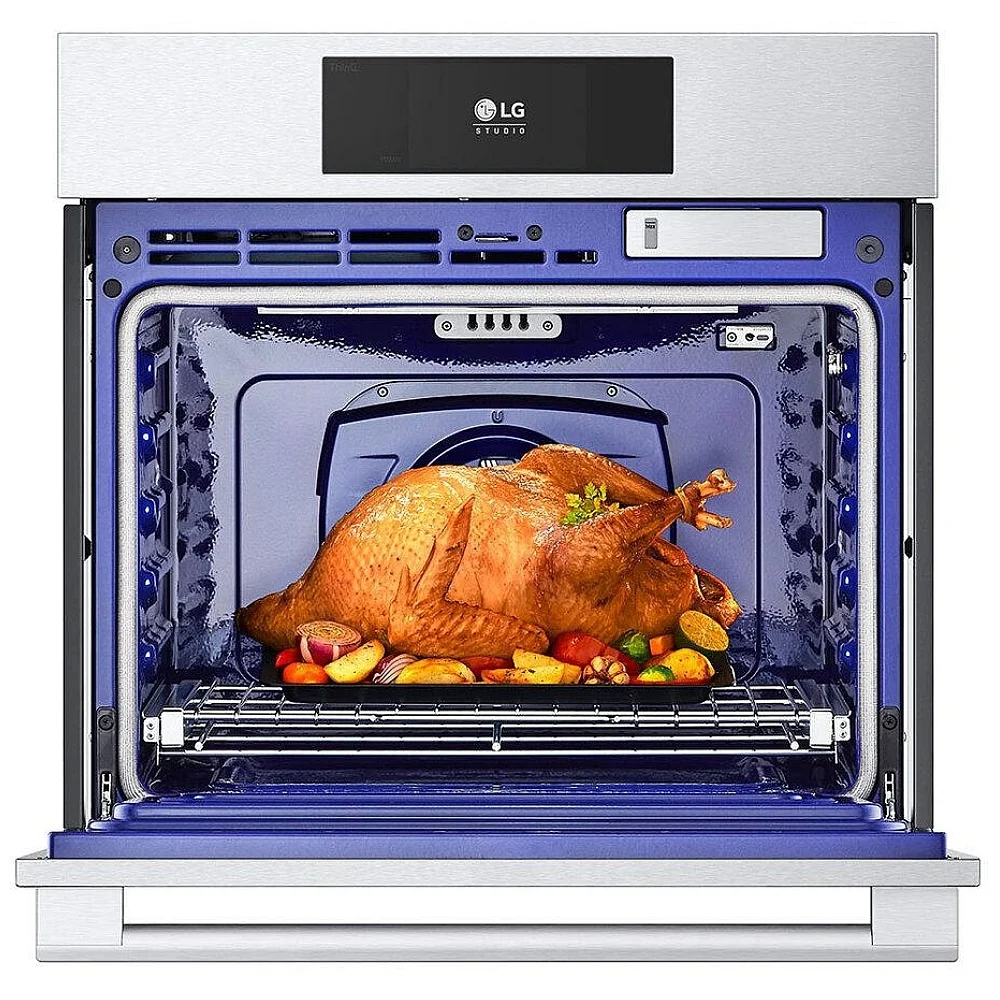

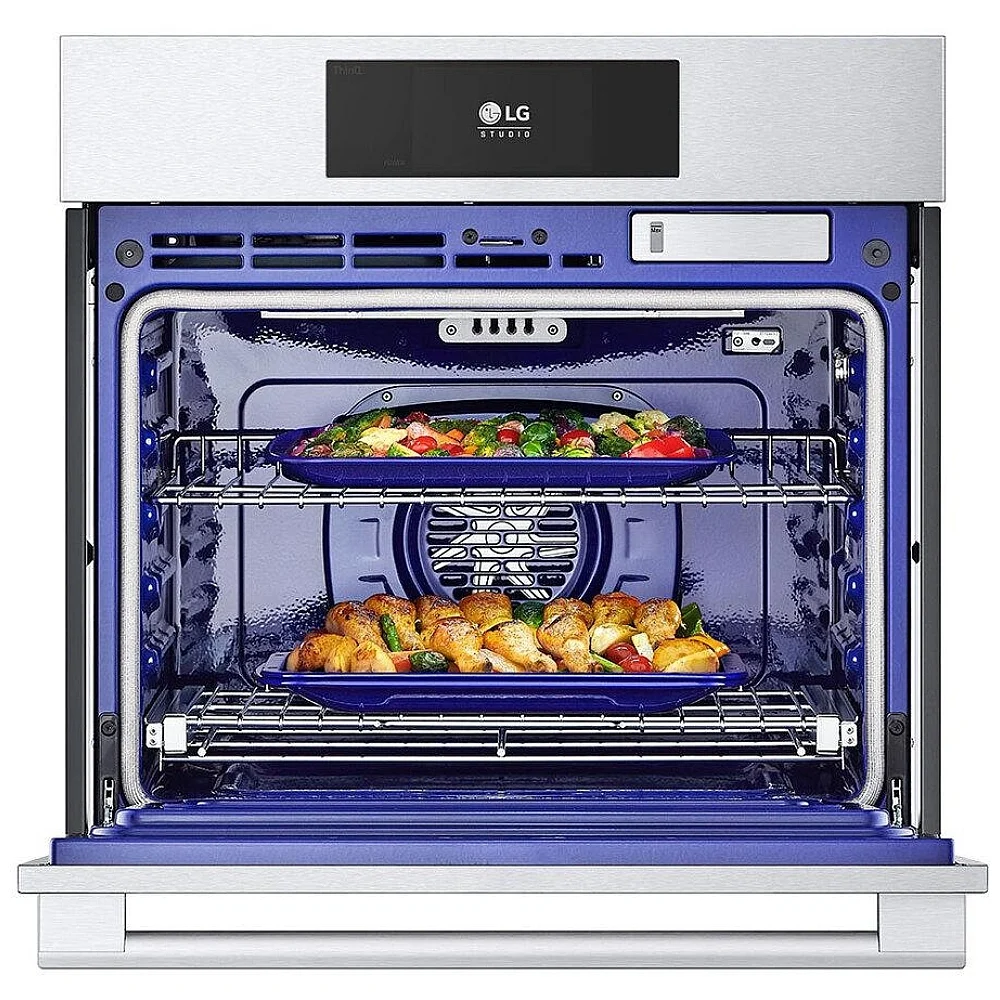

• 4.7 cu. ft. large‑capacity cavity – accommodates large roasts, multiple casserole dishes, or several baking trays at once for family meals and entertaining.

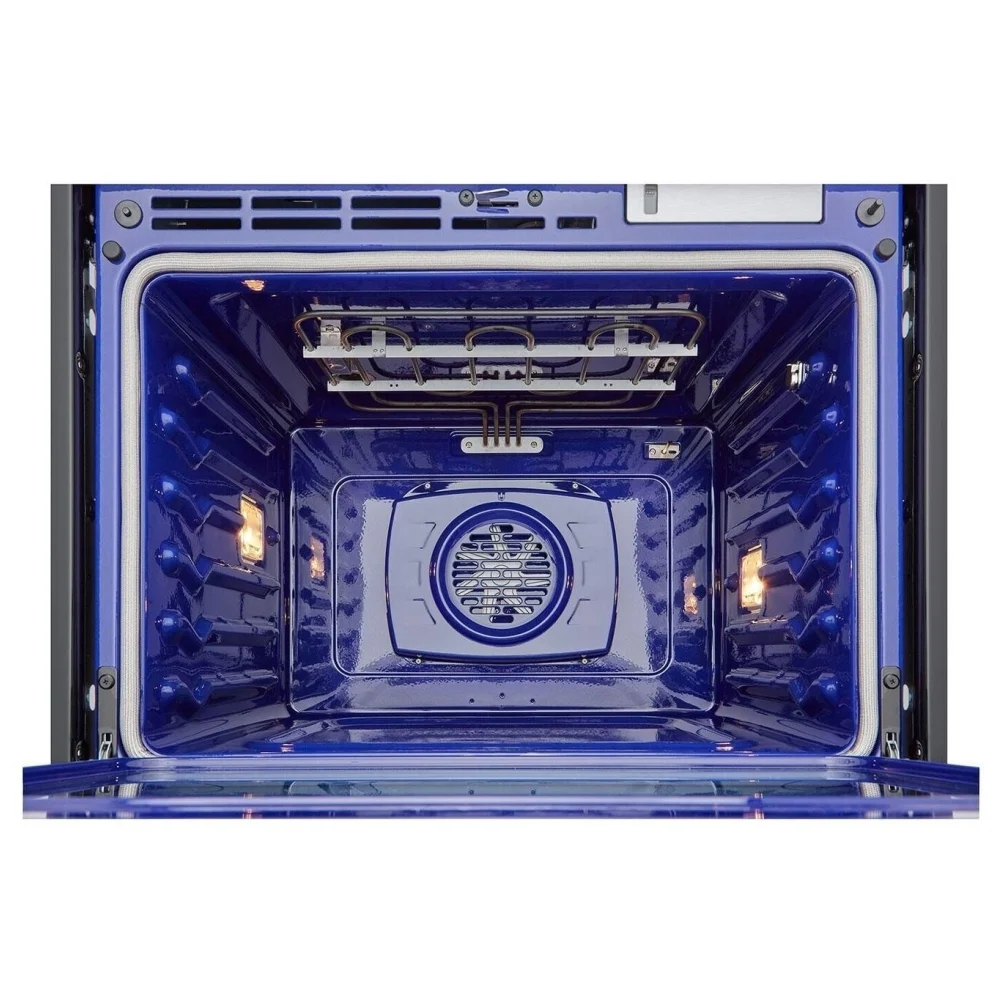

• True Convection – rear convection element and fan circulate hot air for faster, more even baking and roasting on multiple racks.
• Air Fry function – high‑temperature convection mode crisps foods like fries and wings with little or no added oil, eliminating the need for a separate air fryer.
• Steam Sous Vide / Air Sous‑Vide modes – low‑temperature, precise cooking options help lock in moisture and tenderness without using a water bath appliance.
• Steam Cook (Steam Bake) – adds moisture during baking to improve bread rise, crusts, and overall texture of baked goods.
• Integrated steam element (approx. 1,960 W) – dedicated steam heater delivers consistent steam for sous‑vide and steam‑assisted cooking.
• Multiple convection modes – Convection Bake and Convection Roast settings tailor fan and heat patterns for optimal results with baked goods or roasts.
• Versatile oven modes – Bake, Conv. Bake, Conv. Roast, Broil High, Broil Low, Warm, Proof, Frozen Meal, Air Fry, Air Sous‑Vide, Steam Cook, Auto Cook, Favorite, EasyClean, and Self Clean for a wide range of recipes.
• High‑performance bake element (approx. 2,500 W) – powerful hidden bake element delivers fast preheating and consistent bottom heat.
• Dual‑element broil system – 2,500 W inner and 1,500 W outer broil elements provide flexible, intense top heat for searing and browning.
• Hidden 8‑pass bake element – concealed element improves heat distribution and makes the oven floor easier to wipe clean.
• True Convection element (approx. 2,000 W) – dedicated rear element works with the fan for uniform temperature throughout the cavity.
• Single‑speed convection fan – maintains steady airflow for predictable, repeatable cooking performance.
• Steam Assist feature – adds moisture to the cavity to help prevent foods from drying out during certain cooking modes.
• EasyClean® 10‑minute cleaning cycle – low‑temperature, chemical‑free cleaning option for light soils that refreshes the cavity in about 10 minutes.
• Self Clean function – high‑heat pyrolytic cycle burns off heavy baked‑on residue for a deep clean with minimal scrubbing.
• Variable cleaning time options – choose different self‑clean durations based on how dirty the oven is to save time and energy.

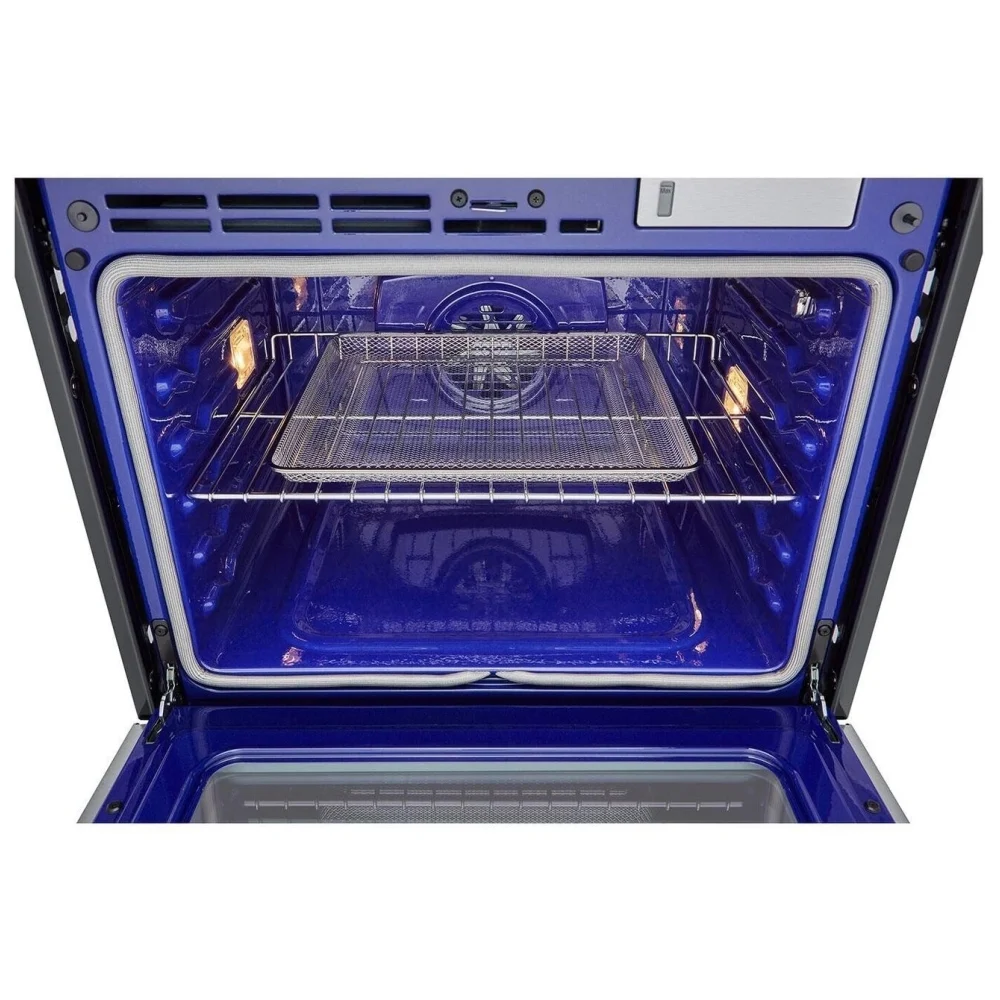

• Air Fry tray accessory – included perforated tray promotes air circulation around food for optimal crisping in Air Fry mode.

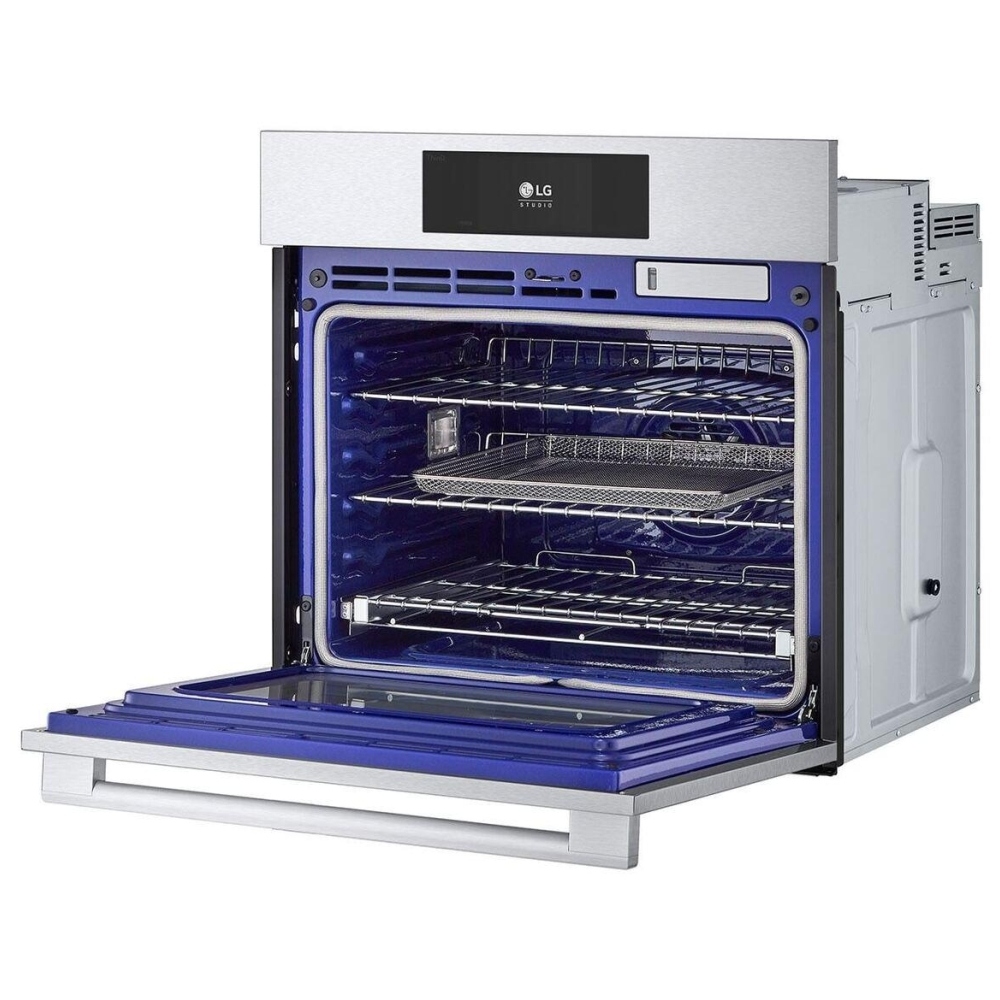

• Heavy‑duty gliding rack – smooth‑sliding rack extends fully for safe, easy access to heavy dishes and roasts.
• Two standard heavy‑duty racks – sturdy oven racks support multiple pans and can be arranged in several positions.
• Meat temperature probe – monitors internal temperature of roasts and poultry and alerts you when food reaches the set doneness.
• Cast‑iron griddle plate – included griddle accessory offers an additional cooking surface for items like breads or one‑pan dishes.
• Broiler pan accessory – dedicated pan for broiling meats and vegetables while collecting drippings.
• Five rack positions – multiple height options allow you to optimize rack placement for baking, roasting, broiling, or air frying.
• 7″ full‑color TFT LCD touch display – large, high‑resolution screen clearly shows modes, temperatures, and timers and simplifies navigation.
• Glass Touch (SmoothTouch™) controls – flat, touch‑sensitive control panel is easy to wipe clean and offers a modern, minimalist look.
• Over 40 auto‑cook recipes – built‑in presets automatically set temperature and time for popular dishes to reduce guesswork.
• Favorite settings memory – save frequently used cooking programs for quick, one‑touch recall.
• Timed Cook function – automatically turns the oven off at the end of a programmed cooking time for added convenience.
• Kitchen timer – independent timer tracks cooking or prep tasks without affecting oven operation.
• Automatic 12‑hour safety shut‑off – turns the oven off after extended use to help prevent accidental overheating.
• Cooking complete reminder with adjustable volume – beeper with High, Low, or Off settings lets you customize alerts.
• Keep Warm / Warm mode – maintains serving temperature for finished dishes without overcooking.
• Proof mode – provides a low, stable temperature ideal for proofing bread dough.
• Frozen Meal setting – optimized program for cooking or finishing frozen entrées and convenience foods.
• Variable broil control – High and Low broil options help you fine‑tune top heat for delicate or intensive browning.
• Sabbath Mode (certified) – disables certain functions and lights in accordance with Sabbath observance requirements.
• Interior halogen lighting – two bright halogen lamps illuminate the entire cavity for easy viewing through the window.
• Five interior lights (select models/specs) – additional lighting improves visibility on every rack level.
• Smudge‑resistant stainless‑steel exterior – durable finish resists everyday marks and complements modern kitchen décor.

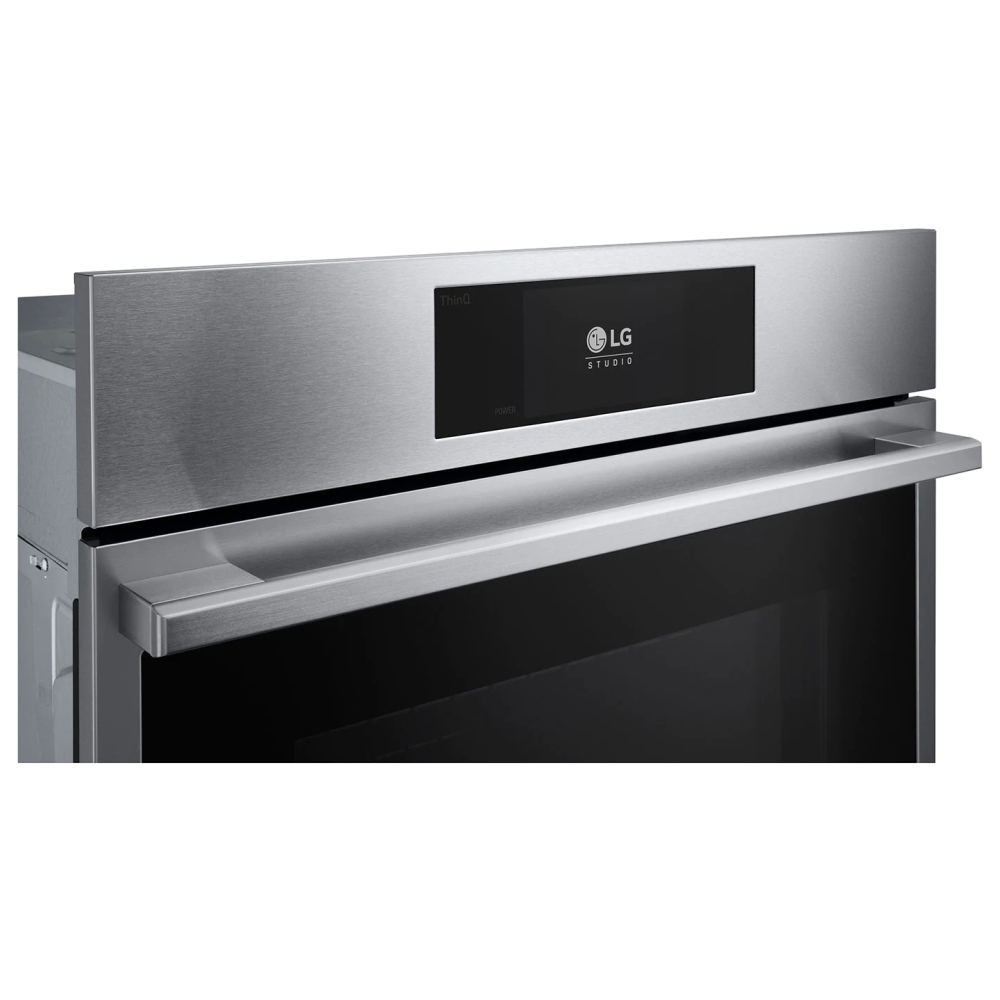

• Bar‑style stainless‑steel handle – robust, comfortable handle provides a secure grip and upscale appearance.
• Flush or standard installation options – designed to allow either a sleek, flush‑mount look or a traditional proud‑mount fit in cabinetry.
• Standard 30″ cutout compatibility – fits most 30‑inch wall‑oven openings for easier replacement of existing units.
• ADA‑compliant design – meets applicable accessibility guidelines for reach and operability when properly installed.
• Multi‑language interface – on‑screen prompts available in English, French, and Spanish for user convenience.
• Dual temperature units – supports both Fahrenheit and Celsius temperature settings.
• Wi‑Fi connectivity – enables remote start/stop, mode changes, and status checks from compatible smart devices.
• Voice control compatibility – works with select third‑party voice assistants (via ThinQ) for hands‑free control of basic functions.
• Check & Control monitoring – view oven status, remaining time, and notifications from the ThinQ app while away from the kitchen.
• Interior dimensions approx. 24 1/2″ W x 17 5/8″ H x 18 7/8″ D – provides ample usable space for large cookware and multiple racks.
• Standard 208/240 V, 60 Hz electrical connection – compatible with typical North American wall‑oven circuits.
• Approx. 6.1 kW power rating at 240 V – delivers strong heating performance for rapid preheat and high‑temperature cooking.
• Approx. 25.4 A current draw – designed for use on a dedicated 30‑amp circuit (check local codes and installation instructions).
• Included exhaust grease filter – helps capture grease particles from vented air to keep the oven cleaner over time.
Manufacturer’s Warranty: 1 year
Canadian model: WSES4728F
Canadian UPC: 195174022849
EAN: 0195174022849
