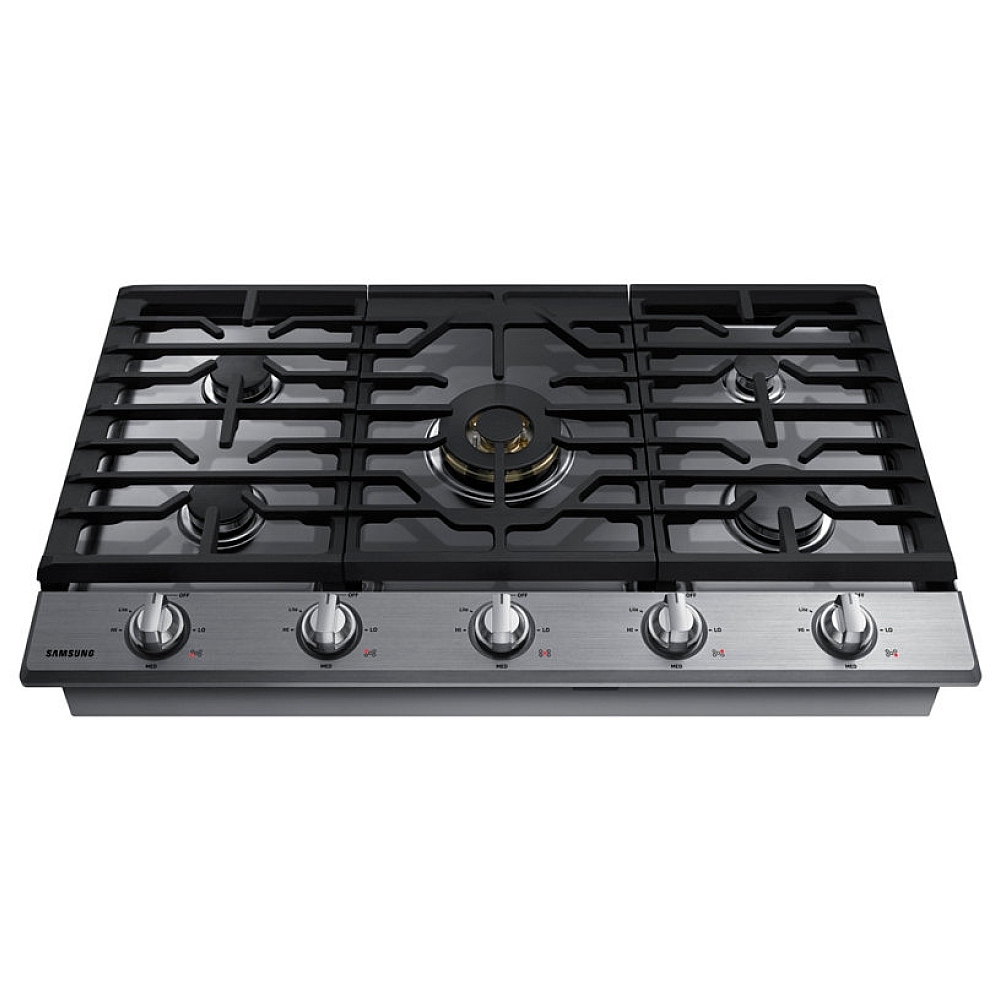

Samsung NA36N7755TS – NA36N7755TS/AA Gas Cooktop,
36 inch Exterior Width, 5 Burners, 22,000 BTU Highest Burner, Stainless Steel colour Wok Grate, Illuminated Knob
| Specification | Value |
|---|---|
| Product Type | 36″ Built-in Gas Cooktop |
| Model | NA36N7755TS / NA36N7755TS/AA |
| Finish | Stainless Steel |
| Fuel Type | Natural Gas (factory set) |
| Propane Convertible | Yes (LP Conversion Kit Included) |
| Number of Burners | 5 |
| Burner Type | Sealed Burners |
| Total Power | 59,000 BTU |
| Center Front Burner | 22,000 BTU Dual Brass (True Dual-Power Burner) |
| Left Front Burner | 9,500 BTU |
| Left Rear Burner | 9,500 BTU |
| Right Front Burner | 13,000 BTU |
| Right Rear Burner | 5,000 BTU (Precise Simmer) |
| Power Levels | Low / Medium / High |
| Ignition Type | Spark Ignition |
| Cooktop Surface | Stainless Steel |
| Grates | Continuous Cast Iron (3 pieces) |
| Included Griddle | Cast Iron Griddle (Removable) |
| Included Wok Grate | Yes, custom round-bottom wok grate |
| Wi-Fi Connectivity | Yes (SmartThings App Support) |
| Bluetooth Connectivity | Yes (Auto Connectivity with compatible hood) |
| Smart Compatible | Yes |
| Auto Connectivity (with Hood) | Yes |
| Wi-Fi Embedded / Smart Home Wi-Fi | Yes |
| Control Type | Weighted Rotary Knobs |
| Knob Lighting | Blue LED Illuminated Knobs |
| Display Type | Printed + LED indicators |
| ADA Compliant | Yes |
| Outdoor Approved | No |
| Commercial Use Approved | No |
| ENERGY STAR Certified | No |
| Voltage | 120 V |
| Frequency | 60 Hz |
| Amperage (Manufacturer) | 1 A |
| Amperage (Retail Listings) | 20 A (circuit rating commonly specified by retailers) |
| Power Supply | 120 V / 60 Hz, 1 A |
| Cooktop Features | Continuous Grates, Griddle Included, Wok Grate Included, LP Convertible, Wi-Fi Capable |
| Cooktop Surface Style | Burner Grate |
| Simmer / Melt Feature | Yes (Precise Simmer on right rear burner) |
| Ready2Fit™ Guarantee | Yes (as listed by some retailers) |
| Capacity | N/A (cooktop – no cu. ft. cavity) |
| Width | 36 inches |
| Product Width | 36″ (914.4 mm) |
| Product Depth | 22 1/3″ (22.33″ / 568 mm) |
| Product Height | 5.57″ (approx. 5 9/16″ / 139.7 mm) |
| Net Size (W x H x D) – Metric | 914.4 x 139.7 x 568 mm |
| Cutout Width | 33 7/8″ (860.4 mm) |
| Cutout Depth | 19 1/8″ (485.8 mm) |
| Cutout Height | 3 1/8″ |
| Package Dimensions (W x H x D) – Metric | 1,030 x 250–270 x 650 mm (varies slightly by listing) |
| Shipping Width | 40.56″ |
| Shipping Depth | 25.63″ |
| Shipping Height | 10.63″ |
| Net Weight | 39.8 kg (87.7 lbs) |
| Product Weight (Retail Variance) | 87.7–88.4 lbs (minor listing variation) |
| Shipping Weight | Approx. 43.3 kg (97–98 lbs, varies slightly by listing) |
| Loading Quantity (20 ft / 40 ft) | Approx. 152–162 / 328–360 units (varies by Samsung listing) |
| LP Conversion Kit | Included |
| Wok Grate | Included |
| Griddle | Included (Cast Iron) |
| Downdraft Ventilation | No |
| Outdoor Installation | Not approved |
| Manufacturer Warranty | 1 Year Parts and Labor |
| Manufacturer Warranty (Canada) | 1 year parts and labour |
| UPC / GTIN | UPC 887276281766 (as listed by retailers) |
• Ready2Fit™ Guarantee – offers a fitting guarantee from Samsung if the built‑in cooktop does not match your existing cutout, helping cover modification costs.
• SmartThings App Wi‑Fi Connectivity – lets you monitor if burners are on or off, set a timer, and receive alerts from your smartphone for added safety and convenience.
• Bluetooth® Connected Cooking – wirelessly syncs compatible Samsung range hoods so fan and lights automatically respond when burners are in use.

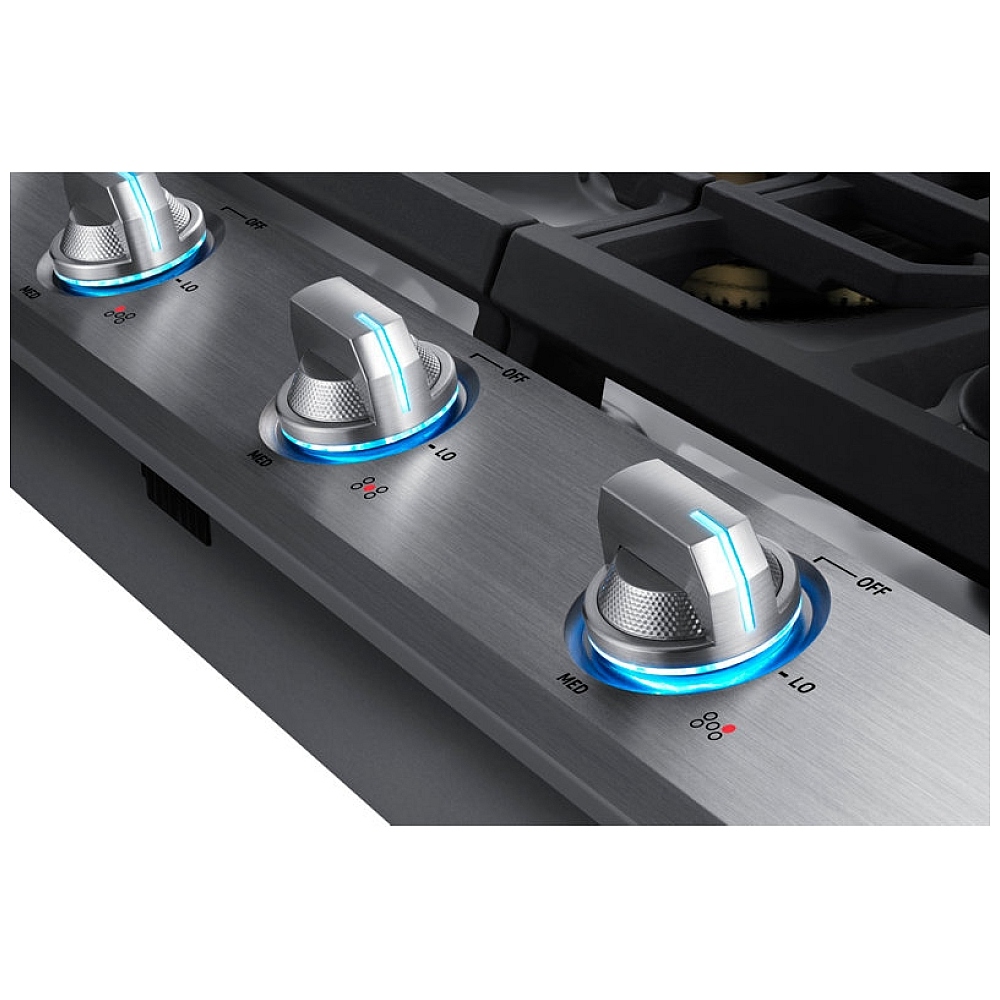

• Blue LED Illuminated Knobs – backlit knobs glow blue when a burner is on, making it easy to confirm cooktop status at a glance.
• ADA Compliant design – front‑mounted controls and accessible layout support easier operation for users with limited mobility.
• 36″ built‑in gas cooktop – fits standard 36‑inch cutouts, ideal for larger kitchens and multi‑pot cooking.
• Five sealed gas burners – provide versatile heat options for boiling, searing, sautéing, and simmering while containing spills for easier cleanup.
• High total power output – up to approximately 54,000–59,000 BTU across all burners to handle demanding cooking tasks.
• Dedicated simmer burner (5K BTU) – maintains low, consistent heat for delicate sauces, melting chocolate, or keeping food warm without scorching.
• Balanced mid‑range burners – 9,500 BTU and 13,000 BTU burners accommodate everyday cooking from gentle sautéing to rapid boiling.

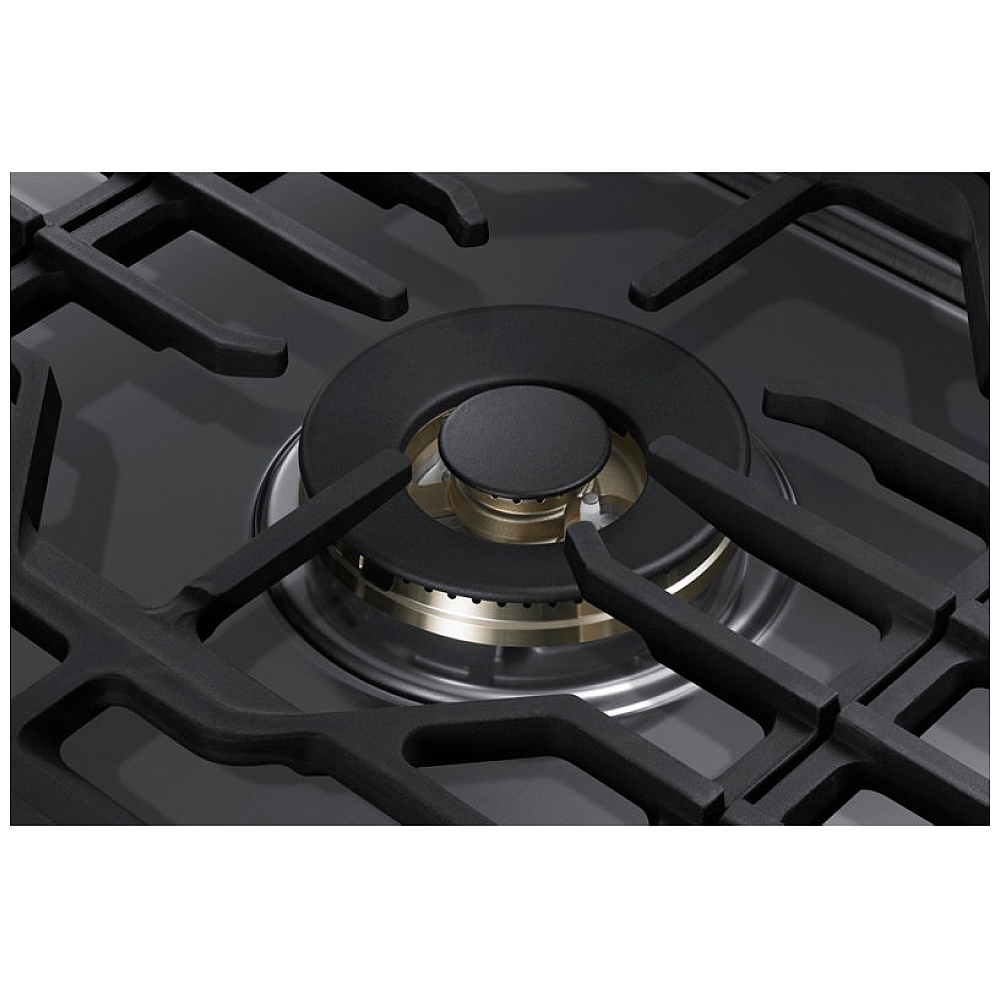

• Dual brass center burner construction – improves heat distribution and durability for frequent high‑heat use.
• Heavy‑duty cast iron 3‑piece grates – create a continuous, stable surface so you can slide heavy pots and pans between burners without lifting.
• Included cast iron griddle – removable griddle spans the center area for cooking breakfast foods, grilling sandwiches, or searing vegetables.
• Included wok grate – specially shaped grate cradles round‑bottom woks for safer, more efficient stir‑frying and even heat distribution.
• Sealed burner design – prevents spills from entering burner wells, making the surface easier to wipe clean and helping maintain performance.
• Stainless steel surface – durable, modern finish resists everyday wear and coordinates with other stainless appliances.
• Weighted, ergonomic control knobs – provide a solid, premium feel and precise flame adjustment for accurate cooking results.
• Clear burner layout – logical burner arrangement (high‑power center, strong front burners, simmer rear) supports efficient multi‑pan cooking.
• Burner on/off monitoring – status indication via illuminated knobs and app helps prevent accidentally leaving a burner running.
• Auto connectivity with compatible hood – allows one‑touch control of both cooktop and hood from the cooktop interface for streamlined operation.
• Natural gas factory setup – ships ready for standard natural gas installations in most homes.
• LP conversion kit included – allows conversion to liquid propane for homes without natural gas service.
• 120V power requirement – simple electrical connection powers ignition, Wi‑Fi, Bluetooth, and knob lighting.
• Cutout‑friendly dimensions – designed to fit common 36″ cooktop cutouts, simplifying replacement of older units.
• Compatible with Samsung built‑in ovens – coordinates visually and functionally with Samsung wall ovens for a cohesive built‑in kitchen suite.
• J.D. Power award recognition (brand) – Samsung’s appliance brand recognition for customer satisfaction supports buyer confidence in long‑term reliability.
• Safety‑enhancing remote monitoring – check burner status from outside the kitchen or away from home to reduce risk of leaving the cooktop on.
• Even heat for large cookware – continuous grates and powerful center burner support stockpots, griddles, and oversized pans without cold spots.
• Versatile cooking styles – supports everything from high‑heat searing and wok stir‑fry to low‑heat simmering and gentle warming on a single appliance.
Manufacturer’s Warranty: 1 year
Canadian model: NA36N7755TS
Canadian UPC: 887276281766
EAN: 0887276281766
