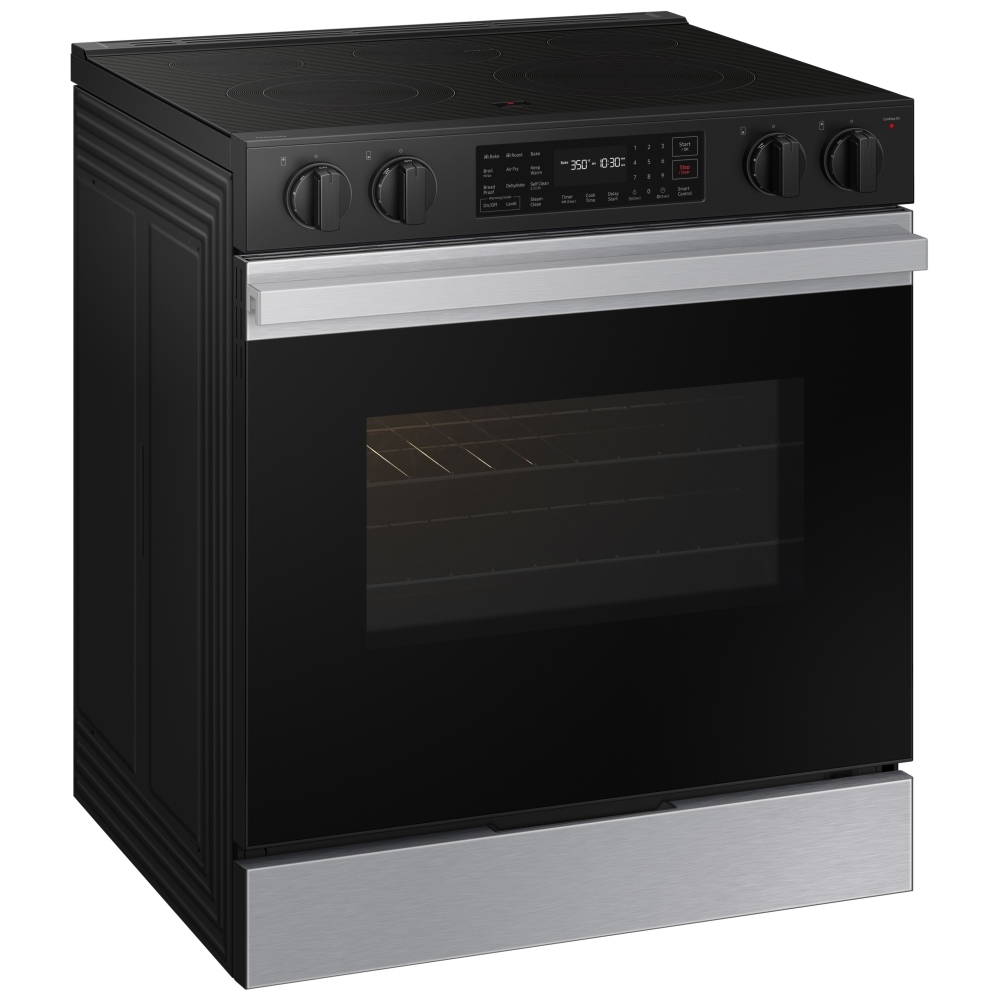

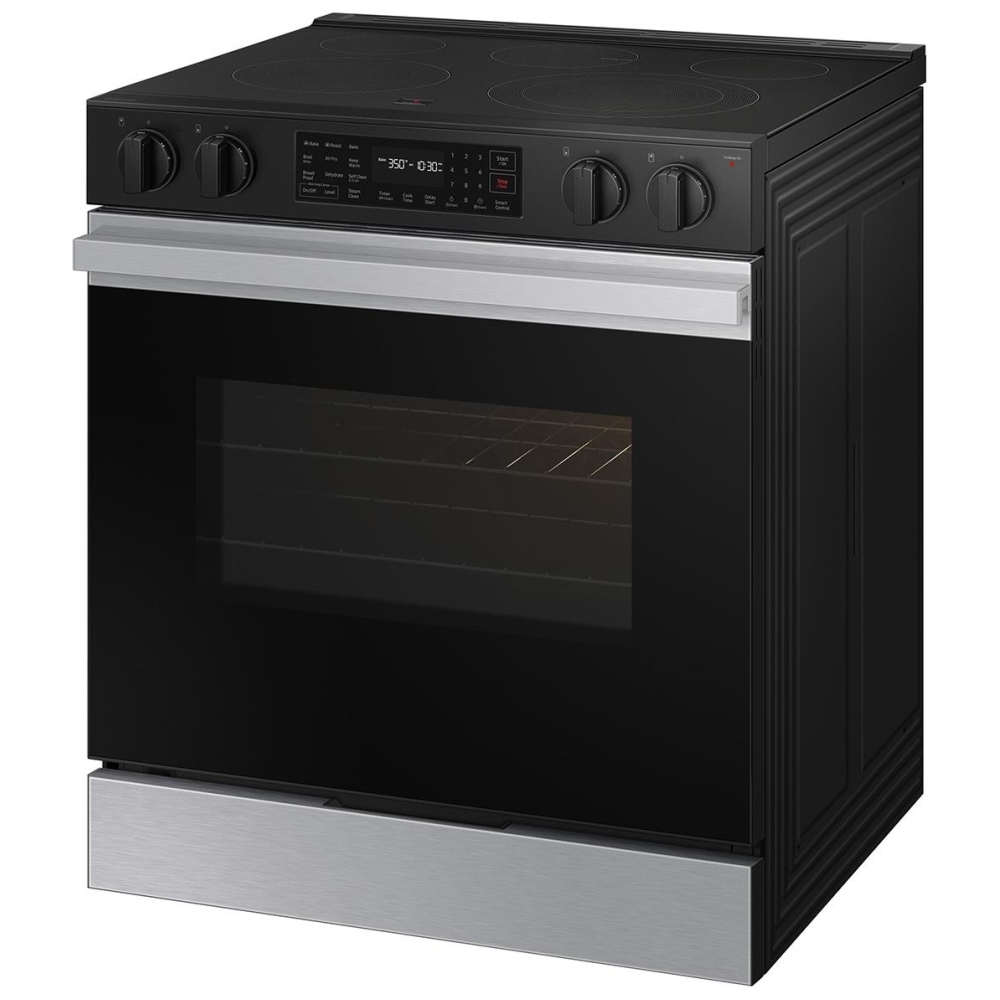

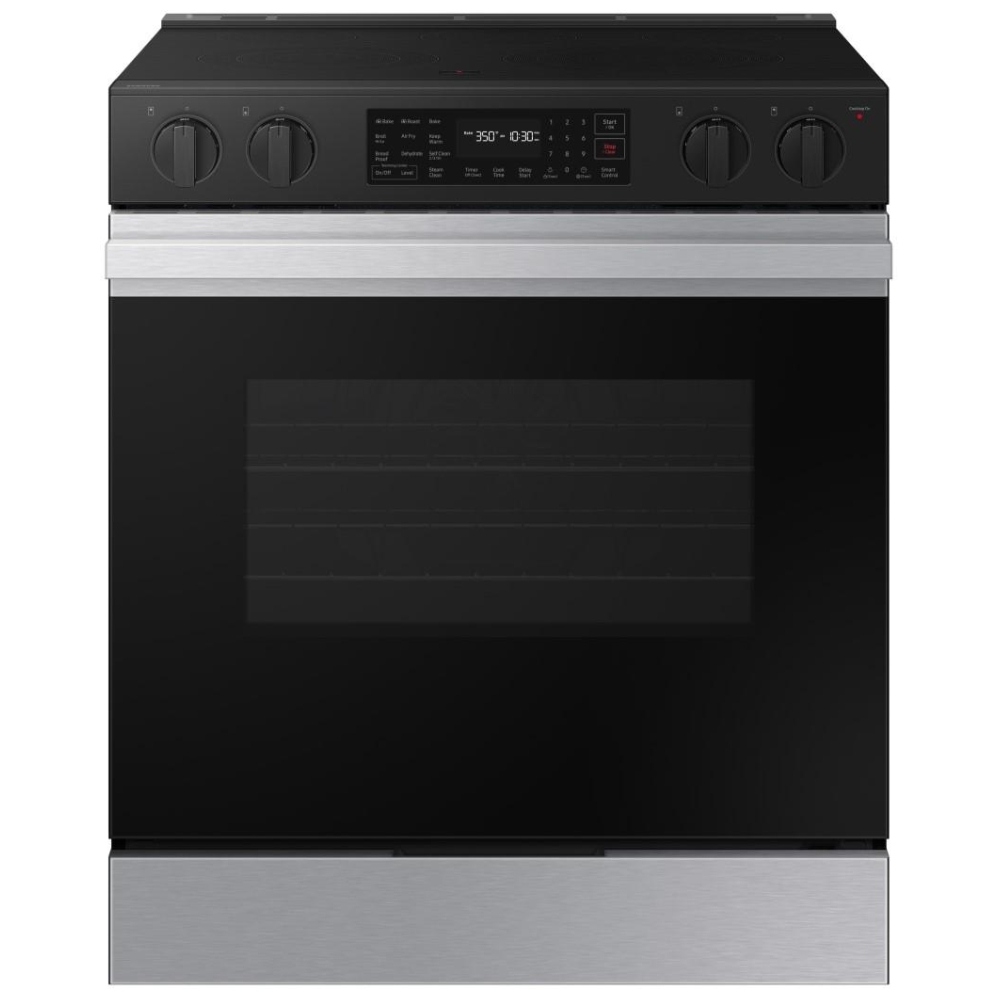

Samsung Bespoke NSE6DG8300SRAC Electric Range,
6.3 cu. ft. Capacity, 30 inch Exterior Width, Convection, 5 Burners, Storage Drawer, Yes, Self Clean, 3,000 W Highest Element, Stainless Steel colour Air Fry
| Specification | Details |
|---|---|
| Model | NSE6DG8300SRAC |
| Series Name | Bespoke |
| Fuel Type | Electric |
| Range Type | Slide-In |
| Installation Type | Slide In |
| Appliance Type | Single oven electric range |
| Colour / Finish | Stainless Steel |
| Manufacturer Colour | Stainless Steel |
| Door Panel Type | Glass |
| Handle Colour | Stainless Steel |
| Oven Colour | Stainless Steel |
| Capacity: Oven | 6.3 cu ft |
| Capacity: Drawer | 0.9 cu ft (storage drawer) |
| Number of Ovens | Single |
| Oven Interior Dimensions (W x H x D) | 24 13/16″ x 22 7/16″ x 19 3/4″ |
| Class Width | 30″ |
| Width | 29.94 inches |
| Height | 36.25 inches |
| Depth (Without Handles) | 27.87 inches |
| Depth (Overall) | 27.88 inches |
| Depth with Door Open 90° | 49.25 inches |
| Adjustable Height | Yes (approx. 36″ – 36 3/4″) |
| Cutout Width | 30 inches |
| Cutout Depth | 24 inches |
| Cutout Height | 35.88 inches |

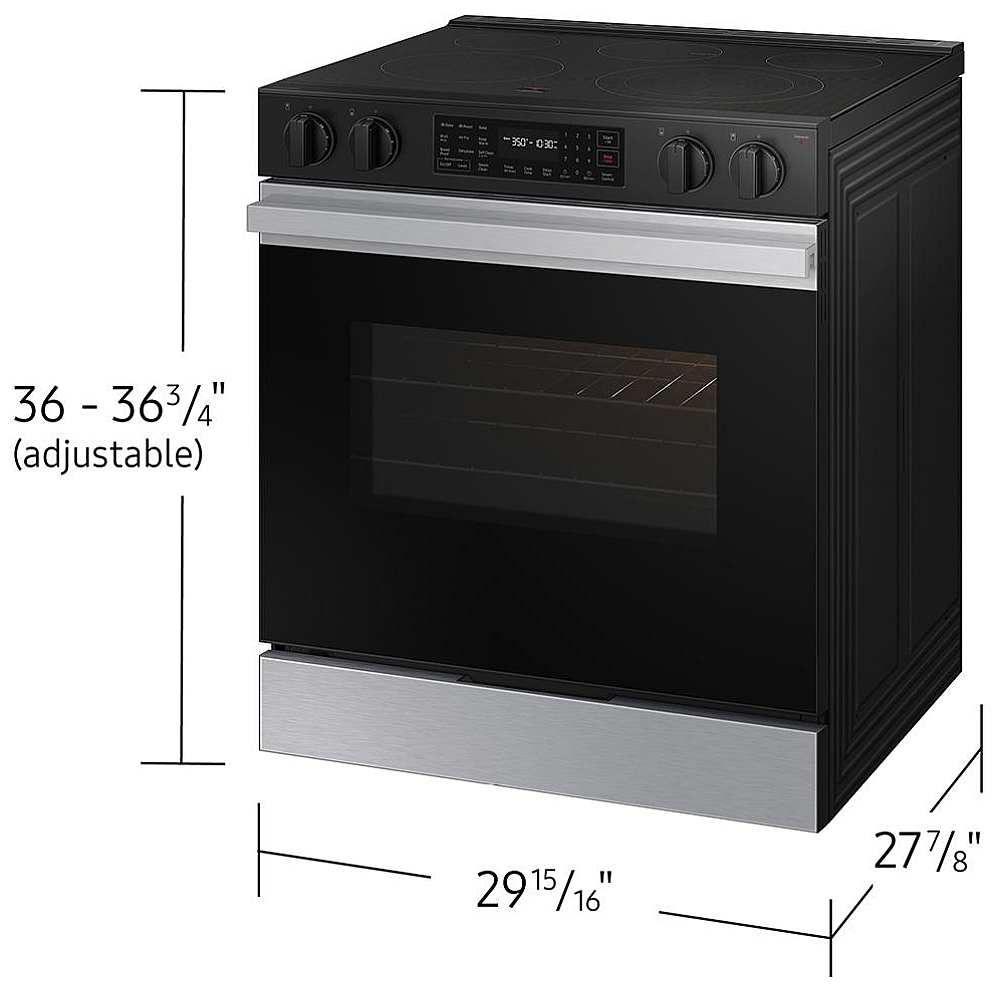

| Net Dimensions (W x H x D) | 29 15/16″ x 36″–36 3/4″ x 27 7/8″ |
| Shipping Dimensions (W x H x D) | 33.06″ x 41.13″ x 30.31″ |
| Net Weight | 160.5 lb (72.8 kg) |
| Shipping Weight | 180.1 lb (81.7 kg) |
| Number of Racks | 2 wire racks |
| Number of Rack Positions | 7 |
| Drawer Type | Storage |

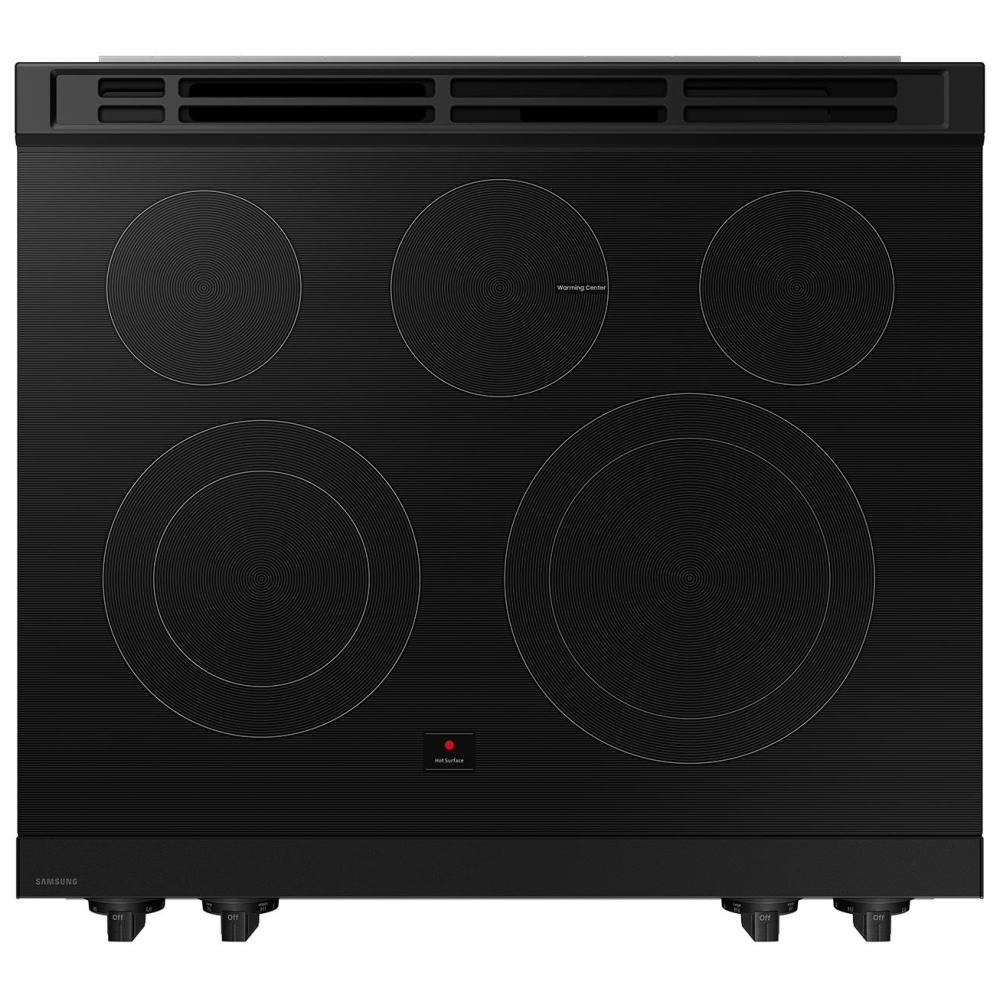

| Cooktop Type | Radiant smoothtop |
| Cooktop Surface | Glass top |
| Number of Elements / Burners | 5 |
| Heating Element 1 (Left Front) | 6″/9″, 3000 W |
| Heating Element 2 (Left Rear) | 6″, 1200 W |
| Heating Element 3 (Right Front) | 6″/9″/12″, 3000 W |
| Heating Element 4 (Right Rear) | 6″, 1200 W |
| Heating Element 5 (Center) | 6″ Warming Center, 100 W |
| Number of Burner Elements | 5 (including warming zone) |
| Bridge Element | No |
| Hot Surface Indicator | Yes |
| Booster | No |
| Induction Cooking | No |
| Cooktop Frame Colour | Black glass |
| Control Type (Oven) | Glass touch |
| Control Type (Cooktop) | Precision knobs with pinch-to-turn safety |
| Control Location | Front of elements |
| Display Type | LED |
| Display Colour | White |
| Door Type | Single door, stainless steel |
| Soft Closing Door | No |
| Oven Light Type / Position | 1 x 40 W incandescent, back |
| Light On/Off Control | Yes |
| Convection | Fan convection |
| Convection Element Type | Multi-fan European element |
| Convection Bake (Single) | 175°F – 550°F (80°C – 285°C) |
| Convection Roast (Single) | 175°F – 550°F (80°C – 285°C) |
| Bake (Single) | 175°F – 550°F (80°C – 285°C) |
| Variable Broil (Low–High) | Yes, Low–High |
| Bake Element Power | 3000 W |
| Broil Element Power | 4200 W |
| Oven Programs | Convection Bake, Convection Roast, Bake, Air Fry, Keep Warm, Bread Proof, Dehydrate |
| Air Fry | Yes (built-in Air Fry mode) |
| Self Clean | Yes |
| Steam Clean | Yes |
| Cleaning Method | Self-cleaning and steam cleaning |
| Hidden Bake Element | Yes |
| Keep Warm | Yes |
| Bread Proof | Yes |
| Dehydrate | Yes |
| Clock | Yes |
| Numeric Pad | Yes |
| Kitchen Timer | Yes |
| Delay Start / Delay Bake | Yes |
| Automatic Shut-Off | Yes |
| Sound On/Off | Yes |
| Clock System Option | 12H / 24H |
| Child Safety Lock / Control Lockout | Yes |
| Oven Temperature Probe | Yes (listed in some retailer specs) |
| Sabbath Mode | Yes (Sabbath / Star-K certified) |
| Auto Oven Light | Yes |
| Precision Knobs | Yes (pinch-and-push safety activation) |
| Convection Auto Conversion | Yes |
| Anti-Tip Device | Yes (included) |
| Divider | No |
| Air Fry Tray Included | No (uses standard racks / tray) |
| Gliding Rack | No |
| Wi‑Fi Embedded | Yes |
| Smart Compatible | Yes |
| App Connectivity | SmartThings app support |
| Voice Enabled | Yes (via compatible voice assistants) |
| Bluetooth Compatibility | No |
| Electrical Requirements | 208/240 V, 60 Hz, 40 A |
| Voltage | 208/240 V |
| Frequency | 60 Hz |
| Amperage | 40 A |
| Energy Source | Electric |
| Range Smart Features (Examples) | Wi‑Fi capable, app capable, voice control capable, automatic convection conversion, remote monitoring/control (via SmartThings) |
| Safety Features | Child lock, control lockout, automatic shut-off, anti-tip device, precision safety knobs |
| Accessories Included | 2 wire racks, anti-tip device |
| Warranty | 1 year parts and labour |
| UPC | 887276821597 |
• Bespoke™ design – contemporary Bespoke styling with recessed handle to give your kitchen a premium, built‑in look that coordinates with other Samsung Bespoke appliances.
• SmartThings® Wi‑Fi connectivity – monitor and control oven functions remotely, receive alerts, and integrate the range into your SmartThings smart home ecosystem.
• Voice‑enabled control – operate key oven functions hands‑free using compatible voice assistants such as Bixby, Amazon Alexa or Google Assistant.
• Air Fry function – cooks crispy “fried” foods in the oven with little or no added oil; ideal for healthier versions of fries, wings and snacks.
• 6.3 cu. ft. large oven capacity – spacious single oven cavity (Canadian spec) accommodates large roasts, multiple baking trays or holiday meals at once.

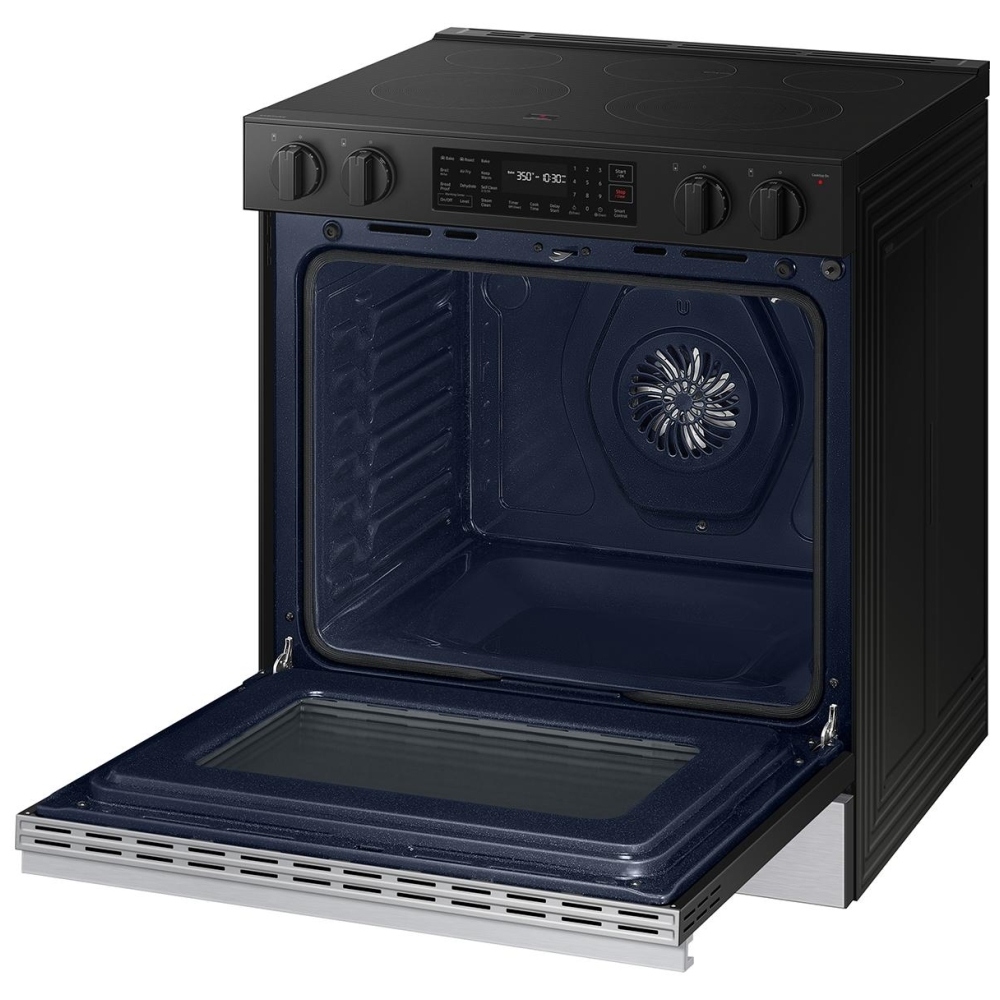

• Fan convection cooking – heated fan circulates hot air for faster, more even baking and roasting across all racks.
• Convection Auto Conversion – automatically adjusts traditional bake temperatures and times for convection cooking to help ensure consistent results.

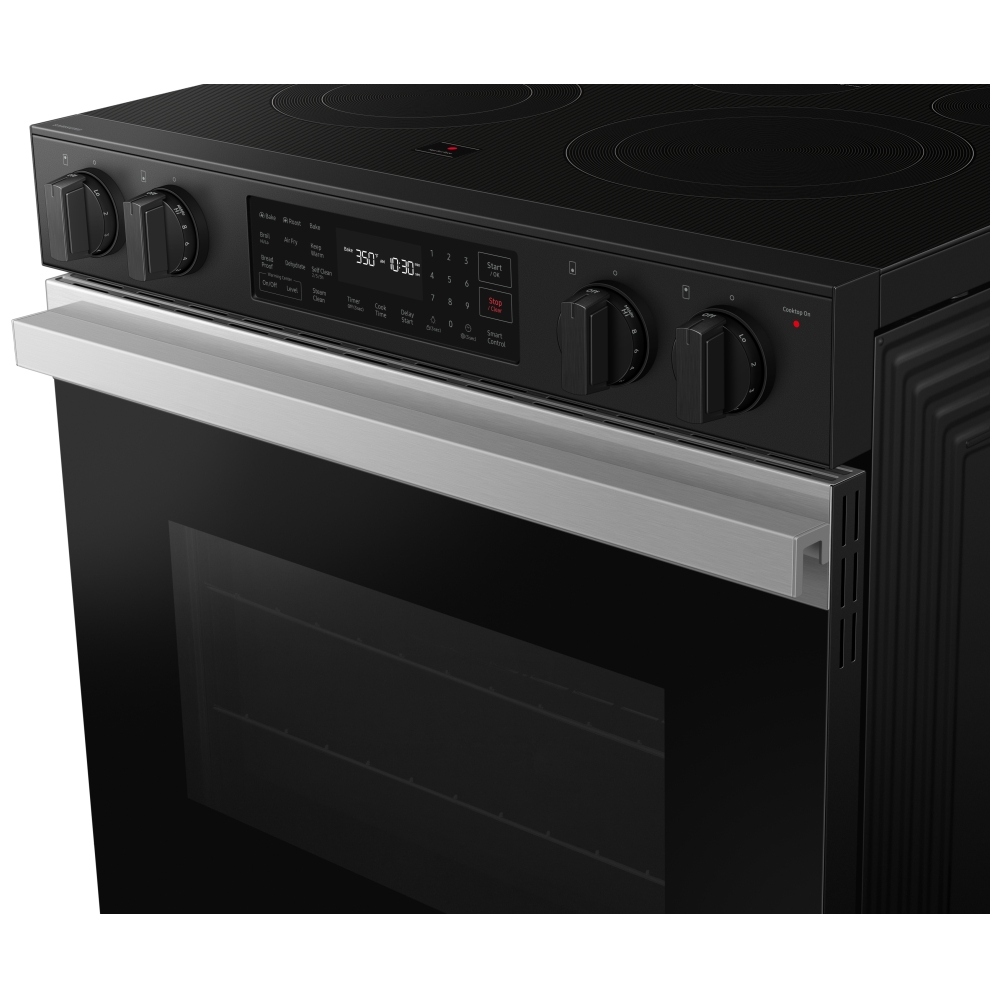

• Precision Knobs – front‑mounted knobs with integrated pinch‑to‑unlock buttons help prevent accidental activation and give precise control of cooktop elements.

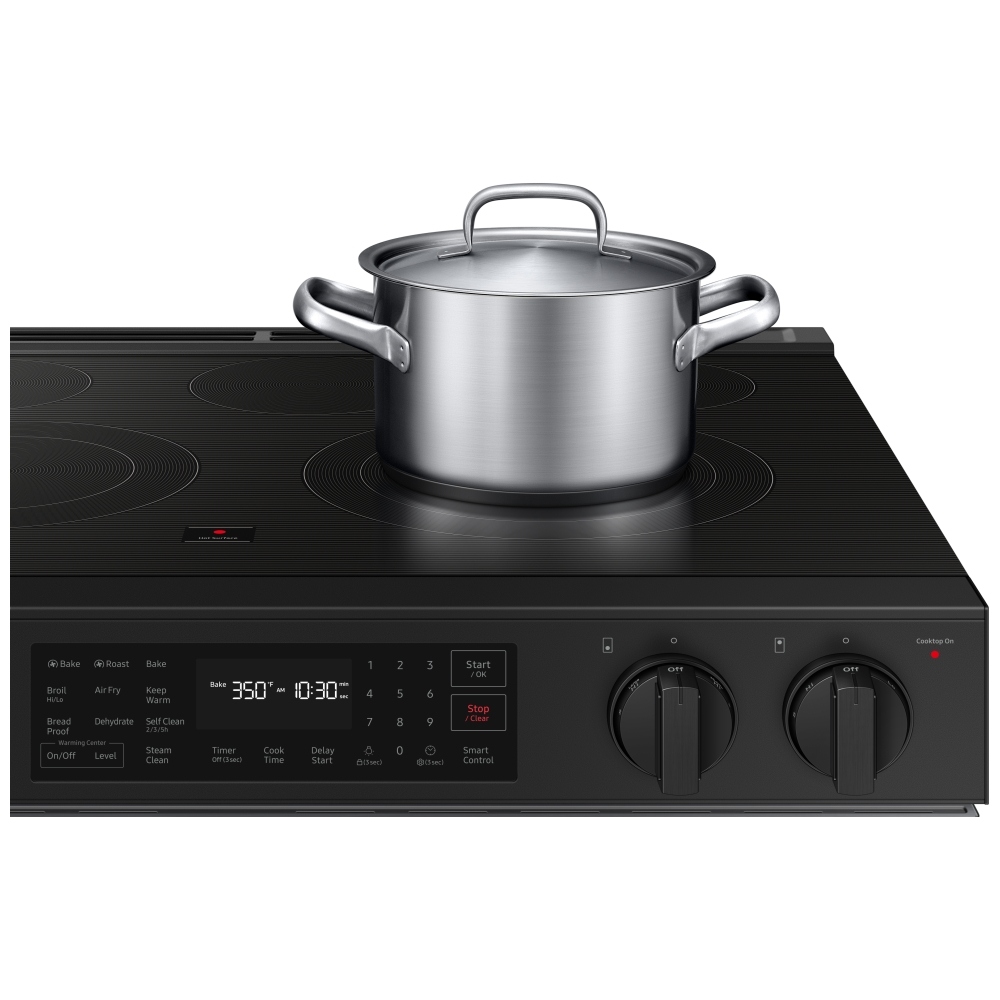

• Glass touch controls – smooth, easy‑to‑wipe touch panel for oven settings, timers and modes with a clean, modern look.

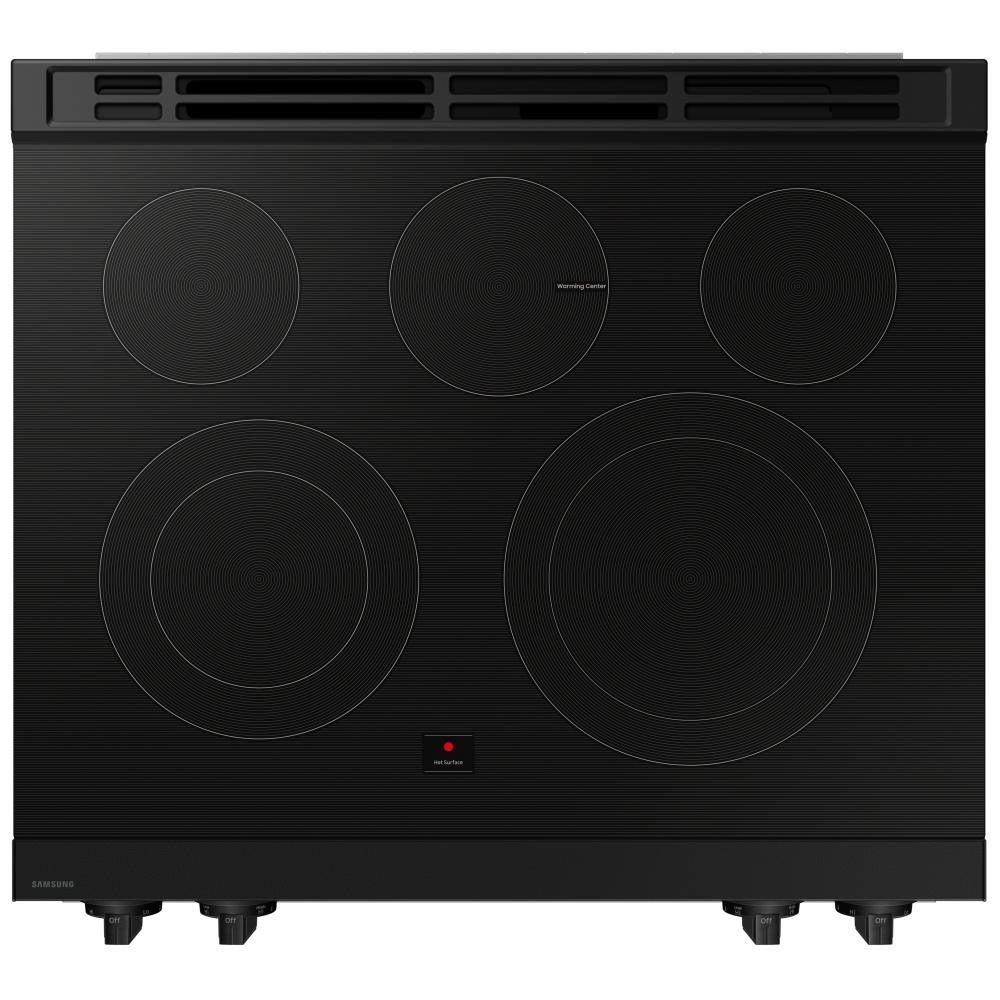

• Powerful, flexible 5‑element cooktop – radiant smoothtop with five elements including dual‑ring power burners and a warming zone to handle multiple pot and pan sizes.
• Dual‑ring power elements – 6″/9″ and 9″/12″ elements (up to 3,000 W) provide rapid heat for boiling, searing and high‑heat cooking.
• Central warming zone – dedicated low‑wattage center element keeps finished dishes warm without overcooking.
• Hidden bake element – concealed lower heating element creates a smooth oven floor that’s easier to wipe clean and protects the element from spills.
• Steam & Self Clean options – choose quick Steam Clean for light soils or high‑heat Self Clean for deep cleaning without harsh chemical oven cleaners.
• Self‑cleaning oven – high‑temperature cycle burns off baked‑on grease and residue, reducing the need for scrubbing.
• Steam Clean cycle – uses steam and lower heat for a fast, 20‑minute clean‑up of light splatters and everyday messes.
• Bake function – standard thermal baking mode for cakes, casseroles and everyday recipes.
• Convection Bake – uses fan‑assisted heat for evenly browned cookies, pastries and multiple‑rack baking.
• Convection Roast – circulates hot air around meats and vegetables for faster roasting and crisp exteriors.
• Variable Broil (Low/High) – adjustable broil settings let you gently melt and brown or use high heat for searing and grilling.
• Keep Warm setting – maintains serving temperature for finished dishes without further cooking.
• Bread Proof mode – provides a low, stable temperature ideal for proofing yeast doughs directly in the oven.
• Dehydrate function – low‑temperature setting for drying fruits, vegetables and herbs or making homemade snacks.
• Large viewing window & oven light – big glass door and interior light make it easy to check cooking progress without opening the door.
• Digital temperature display – clear readout of set and actual oven temperatures for precise cooking control.
• Child Safety Lock / Control Lock – disables oven controls to help prevent unintended use or changes by children.
• Auto oven light – oven light turns on automatically when the door opens and can be switched on or off from the control panel.
• Kitchen timer – built‑in timer tracks cooking or prep times independently of the oven clock.
• Delay Start / Delay Bake – programs the oven to begin cooking at a later time to fit your schedule.
• Sabbath Mode (Star‑K certified) – adjusts oven operation to meet the needs of Sabbath and holiday observance.
• ADA compliant design – front controls and accessible features support easier operation for users with limited mobility.
• Storage drawer – full‑width lower drawer provides convenient storage for baking sheets, pans and accessories.
• Fingerprint resistant stainless steel finish – resists smudges and fingerprints to keep the exterior looking clean with minimal wiping.
• Slide‑in configuration – front‑control, slide‑in design creates a built‑in look and overlaps the countertop for a seamless fit.
• Edge‑to‑edge glass cooktop – smooth, continuous surface maximizes usable cooking area and simplifies cleaning.
• Hot surface indicator – lights alert you when the cooktop surface is still hot to the touch, even after elements are turned off.

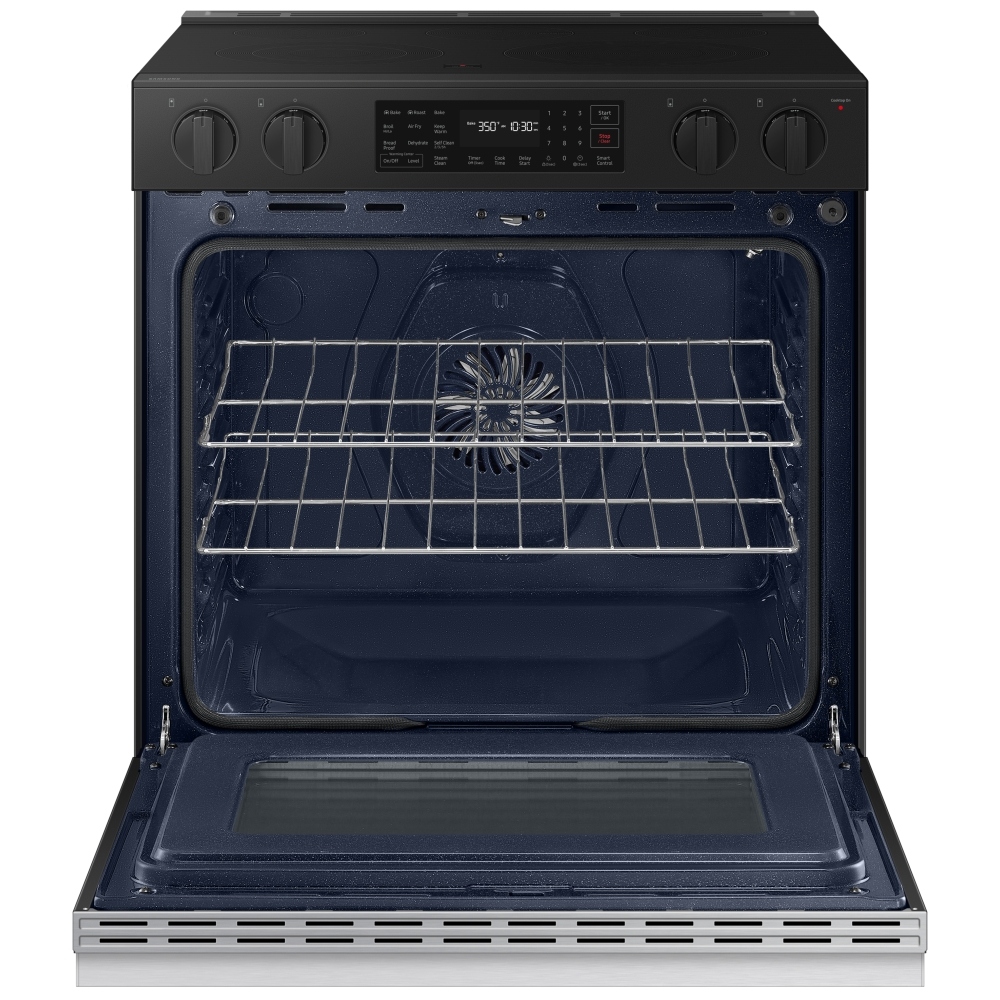

• Multiple rack positions – seven rack levels offer flexible placement for different pan sizes and cooking needs.
• Two heavy‑duty wire racks – durable oven racks support heavy cookware and can be repositioned easily.
• Anti‑tip bracket included – helps secure the range to the floor or wall to reduce the risk of tipping.
• Standard 30″ width – designed to fit most existing 30‑inch range cutouts for easier replacement.
• 240/208 V, 60 Hz, 40 A electrical requirement – compatible with typical North American electric range circuits (3‑ or 4‑prong cord connection).
• 1‑year parts and labour warranty – manufacturer’s limited warranty coverage for peace of mind.
Manufacturer’s Warranty: 1 year
Canadian model: NSE6DG8300SRAC
Similar to USA model: NSE6DG8300SR
Canadian UPC: 887276821597
Similar to USA UPC: 887276817293
EAN: 0887276821597
Similar to NSE6DG8310SRAC.
