KitchenAid KVUB600DSS Range Hood,
30 inch Exterior Width, Under-Cabinet, 600 CFM, LED, Aluminum Mesh Filter, Stainless Steel colour Blower Included
| Specification | Value |
|---|---|
| Model | KVUB600DSS |
| Product Type | Under-the-Cabinet Range Hood |
| Brand | KitchenAid |
| Capacity / Airflow | 585 CFM Motor Class |
| Maximum CFM (some retailers) | 600 CFM |
| BTU Threshold / Rating | 65,000 BTU total burner output |
| Hood Type | Under-the-Cabinet |
| Venting Type | Exterior or Recirculating (Convertible) |
| Ventilation Type | Perimeter Ventilation |
| Blower Type | Centrifugal |
| Auto Function | Auto On |
| Number of Fan Speeds | 4 |
| Control Type | 4-Speed Electronic Touch Control with LCD / LED Display |
| Task Lighting | Two LED Task Lights |
| Night Light | Yes |
| Number of Task Light Settings | 1 |
| Number of Night Light Settings | 0 (per manufacturer spec) |
| Filters | Removable Grease Filters (Dishwasher-Safe Grease Filters) |
| Filter Type | Grease Filters |
| Easy In-line Conversion | Yes (metal box required, sold separately) |
| Programmable Off Function | Yes (automatic turn-off after a period of time) |
| Automatic Turn On | Yes (sensor-based, with Power Boost) |
| Whisper Quiet System (Low Speed) | 44 dBA (approx. 1.3 sones) |
| Sound Level at Max Speed (Vertical) | 68 dBA (approx. 7.0 sones) |
| Sound Level at Max Speed (Horizontal, some Canadian retailers) | Approx. 8 sones (7.5 sones vertical) |
| Width | 30 inches |
| Depth | 19-3/4 inches (19.75 in / 50.17 cm) |
| Height | 9 inches (22.86 cm) |
| Common Size | 30 in |
| Appliance Fit Width | 30 in |
| Duct Direction | Vertical or Horizontal |
| Duct Outlet Size | 6 in round |
| Duct Type | Round (with horizontal rectangular option via transition) |
| Installation | Under-Cabinet |
| Range / Cooktop Compatibility | Pairs with 30 in and 36 in ranges or cooktops up to 65,000 BTU total output |
| Material | Stainless Steel |
| Color | Stainless Steel |
| Color Finish Name | Stainless Steel |
| Positioning | Stationary |
| Range Hood Type (retailer description) | Standard Under-Cabinet Range Hood |
| Venting | Exterior or Recirculating (Convertible) |
| Number of Vent Speeds | 4 |
| Energy Star Certified | No |
| Electrical Requirements | 120 V |
| Amps | 15 A |
| Gross Weight | Approx. 39.9–40 lbs (18.1 kg) |
| Net Weight (manufacturer) | 33.1 lbs (approx.) |
| Shipping Width | Approx. 34 in (86.36 cm) |
| Shipping Height | Approx. 24 in (60.96 cm) |
| Shipping Depth | Approx. 13 in (33.02 cm) |
| UPC | 883049328157 |
| Warranty | Limited 1-year parts and labor (typical) |
| Key Features (summary) | Perimeter Ventilation; Automatic Turn On; Programmable Off Function; 585 CFM Motor Class; 65,000 BTU Rating; Two LED Task Lights; 4-Speed Electronic Touch Control with LCD/LED Display; Easy In-line Conversion; Dishwasher-Safe Grease Filters; Whisper Quiet System |
• Perimeter Ventilation – pulls air from the edges of the hood and accelerates airflow through the center to efficiently clear smoke and steam from high-heat cooking.
• Automatic Turn On with Power Boost – built-in sensor detects high-heat cooking on multiple burners and automatically starts the fan, ramping up to a higher speed to prevent smoke buildup.
• Programmable Off Function – lets you set the hood to turn itself off after a selected time so you can leave the kitchen without worrying about shutting it down.

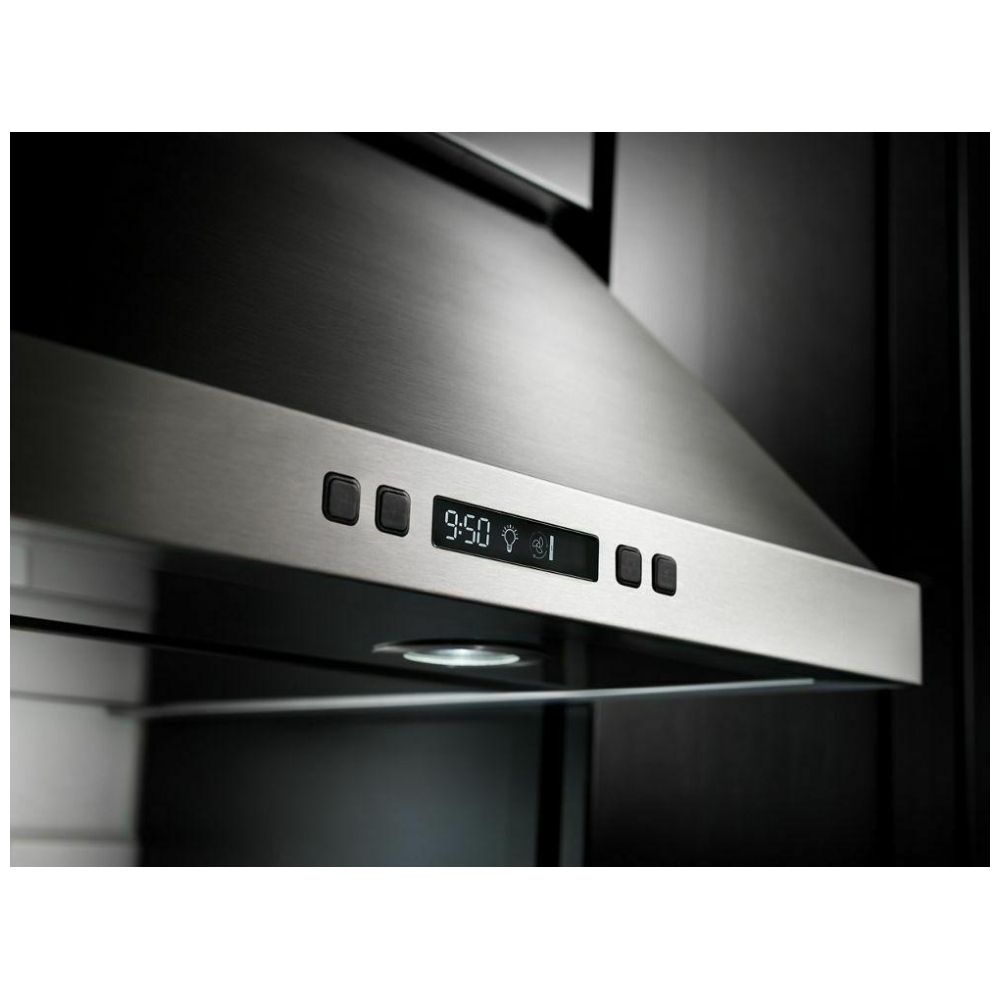

• 4-Speed Electronic Touch Control with LCD/LED Display – offers four precise fan speeds and a clear digital display for fan level, lighting, and filter status at a glance.
• Under-the-Cabinet Design – mounts neatly beneath standard cabinetry, hiding ductwork for a built-in, streamlined look above your cooktop.
• Exterior or Recirculating Venting – supports both ducted installation to the outside or recirculating setup with filters when exterior venting is not possible.
• Centrifugal Blower System – uses a powerful internal blower to move air efficiently through the hood and ductwork for consistent ventilation performance.
• Vertical or Horizontal Ducting Options – accommodates either roof/ceiling (vertical) or wall (horizontal) vent runs to suit different kitchen layouts.
• 6″ Round Duct Outlet – standard duct size simplifies connection to common residential ventilation ductwork.

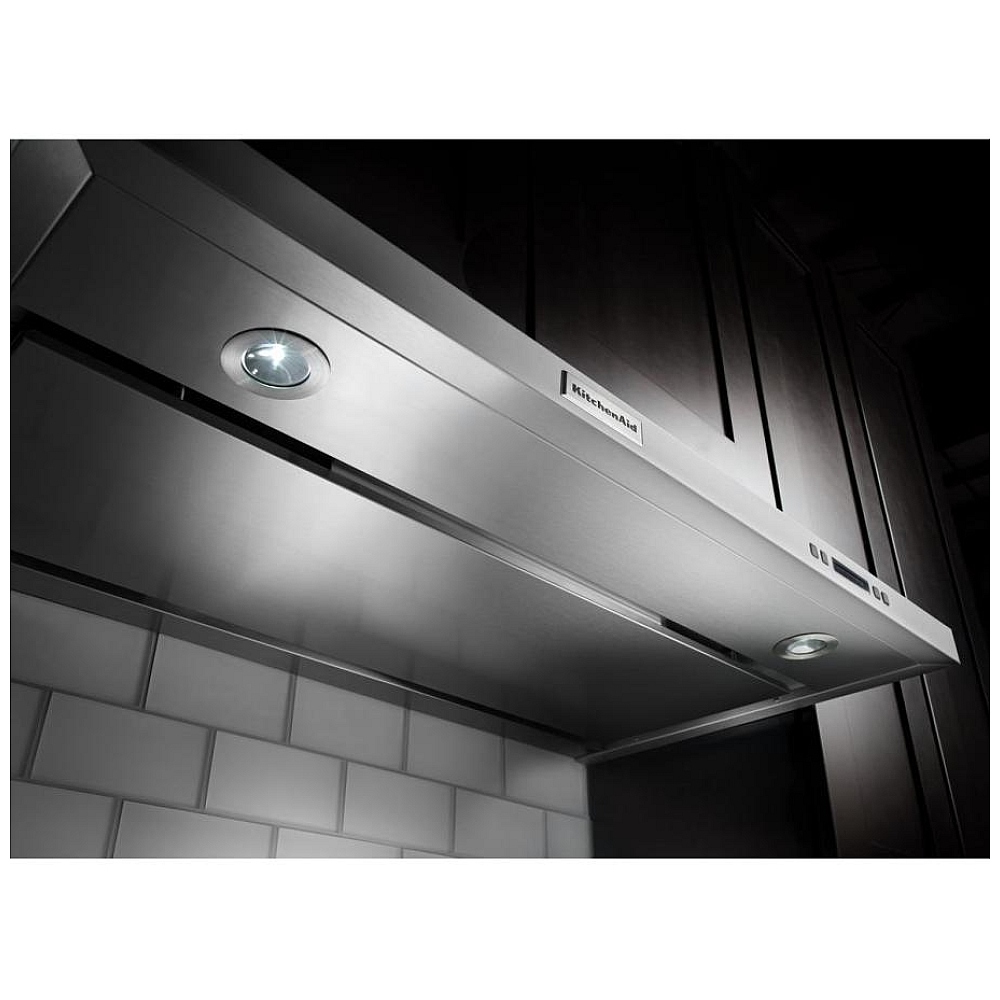

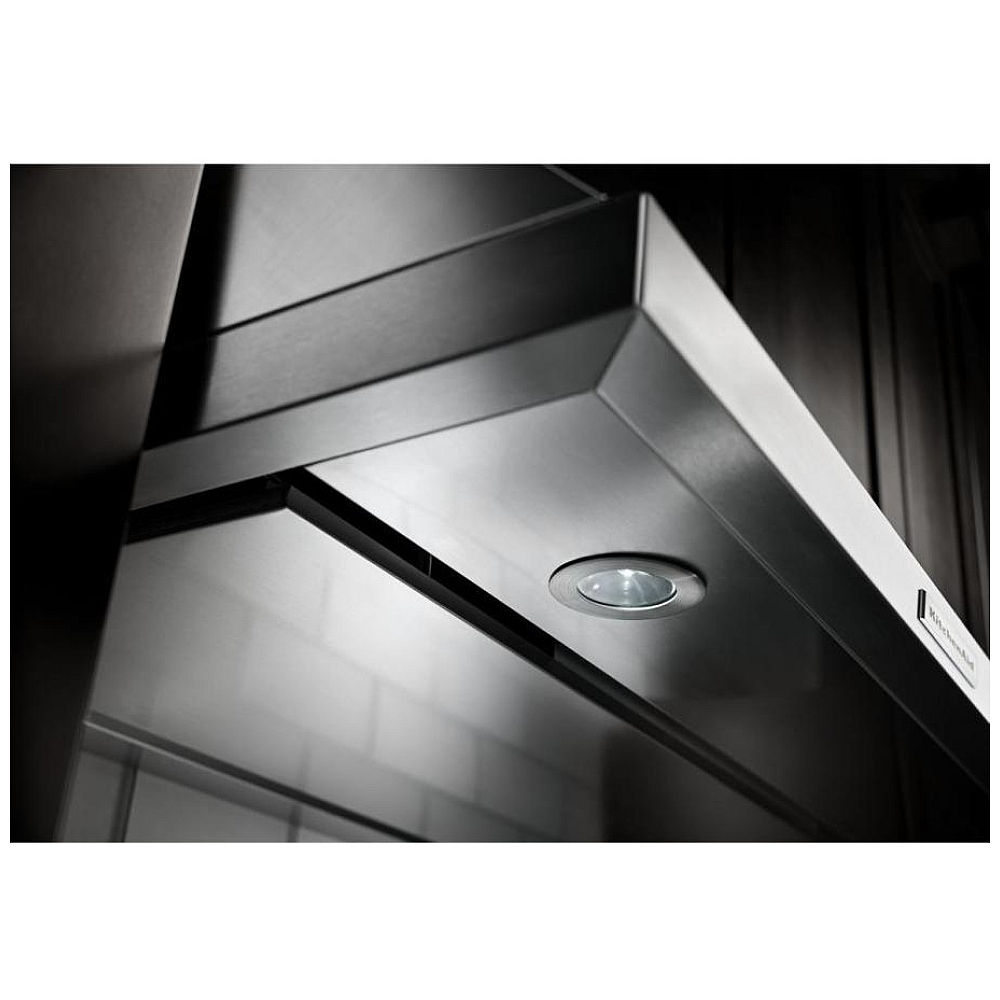

• Two LED Task Lights – provide bright, natural-looking illumination over the cooking surface to improve visibility while preparing meals.
• Dedicated Task Lighting Setting – single, focused light level is optimized for cooking, reducing glare while still clearly lighting pots and pans.
• Dishwasher-Safe Grease Filters – removable metal filters capture grease, steam, and odors and can be cleaned easily in the dishwasher.
• Grease and Odor Reduction – filtration system helps keep ceilings, cabinets, and countertops cleaner by trapping airborne grease and cooking smells.
• Whisper-Quiet Operation at Low Speed – engineered to run quietly on lower settings so you can ventilate while entertaining or conversing in the kitchen.
• High-Speed Venting for Heavy Cooking – higher fan levels quickly clear smoke and strong odors from searing, frying, or wok cooking.
• Four Distinct Fan Speeds – lets you match ventilation power to the cooking task, from gentle simmering to intense high-heat cooking.
• Electronic Touch Controls on Front Edge – front-mounted control panel is easy to see and reach without leaning over the cooking surface.
• Filter Status Indication – display provides visual feedback to remind you when it’s time to clean or check the grease filters.
• Stainless Steel Construction – durable, corrosion-resistant finish coordinates with other stainless steel appliances and wipes clean easily.
• 30″ Width – sized to fit above most standard 30-inch cooktops and ranges for full coverage of the cooking surface.
• Low-Profile 9″ Height – compact vertical dimension helps the hood fit under standard cabinetry while still housing a powerful blower.
• 19-3/4″ Depth – extends far enough over the cooktop to effectively capture rising smoke and steam from front and back burners.
• Auto-On Safety and Convenience – helps protect cabinets and kitchen air quality by ensuring ventilation starts automatically during intense cooking, even if you forget to turn it on.
• Easy In-Line Conversion Capability – can be adapted for use with an in-line blower (with additional kit) to move the motor further away for even quieter operation.
• LED Lighting Energy Efficiency – uses less energy and lasts longer than traditional halogen bulbs, reducing replacement and operating costs.
• Simple Cleaning Surfaces – smooth stainless steel and minimal crevices make it easier to wipe away fingerprints, grease, and splatters.
• Electronic Reliability – solid-state touch controls reduce mechanical wear compared to traditional rocker or slider switches.
• Compatible with Make-Up Air Kits – can be paired with an appropriate make-up air system where required by local building codes for higher CFM installations.
• Designed for North American Electrical Standards – operates on 120V, 15A household circuits for straightforward installation in typical kitchens.
Manufacturer’s Warranty: 1 year
Canadian model: KVUB600DSS
Canadian UPC: 883049328157
EAN: 0883049328157
