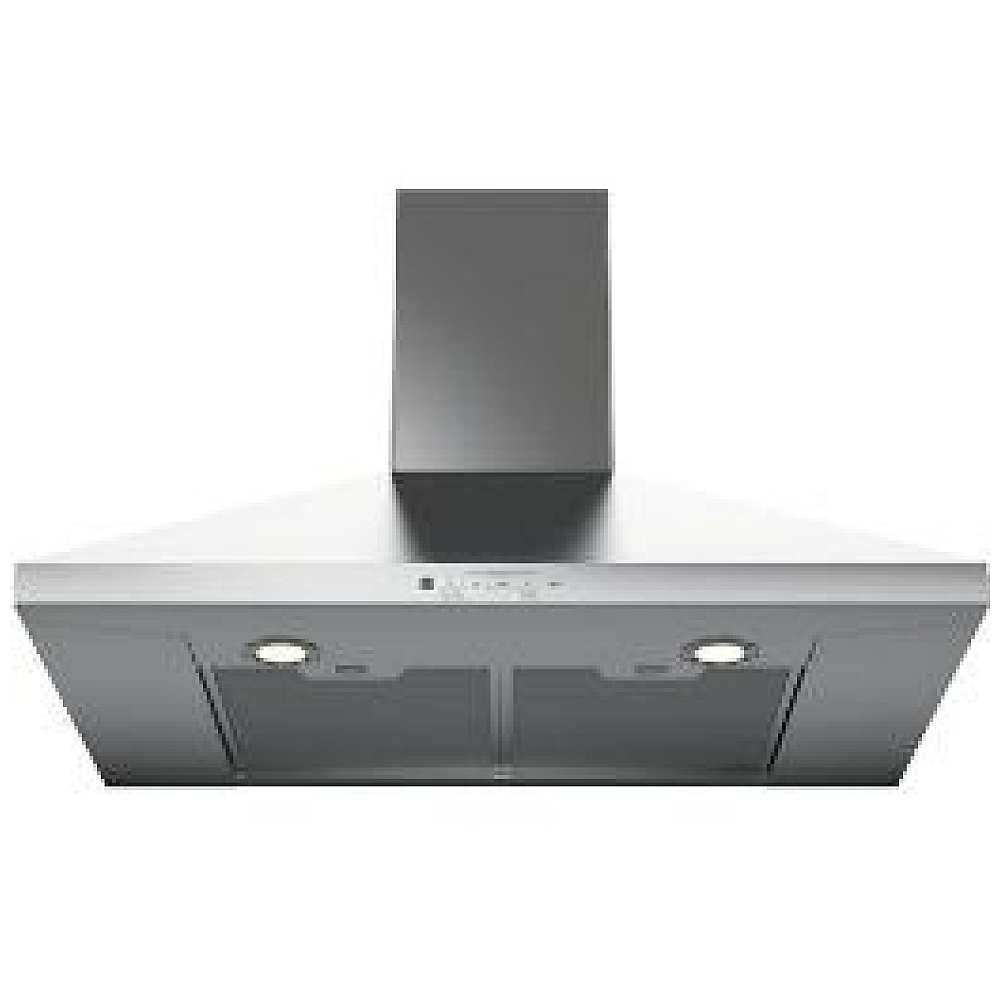

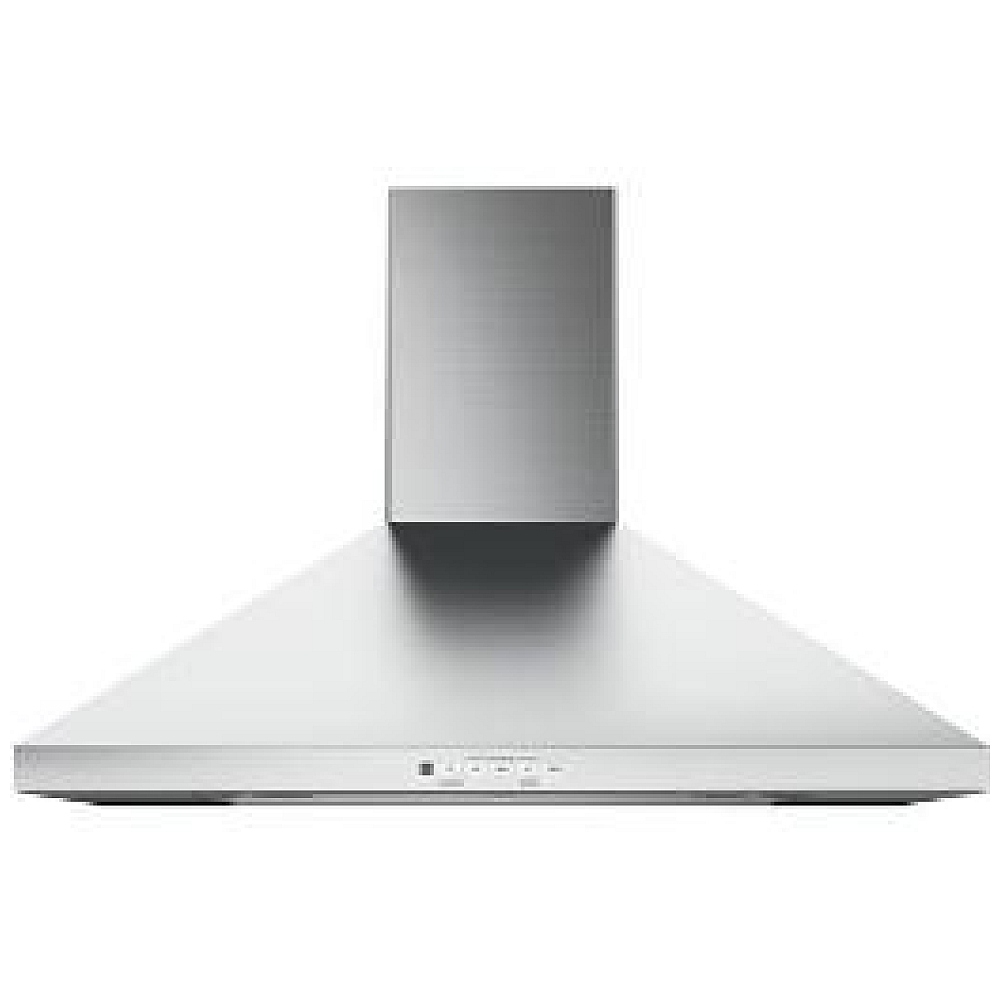

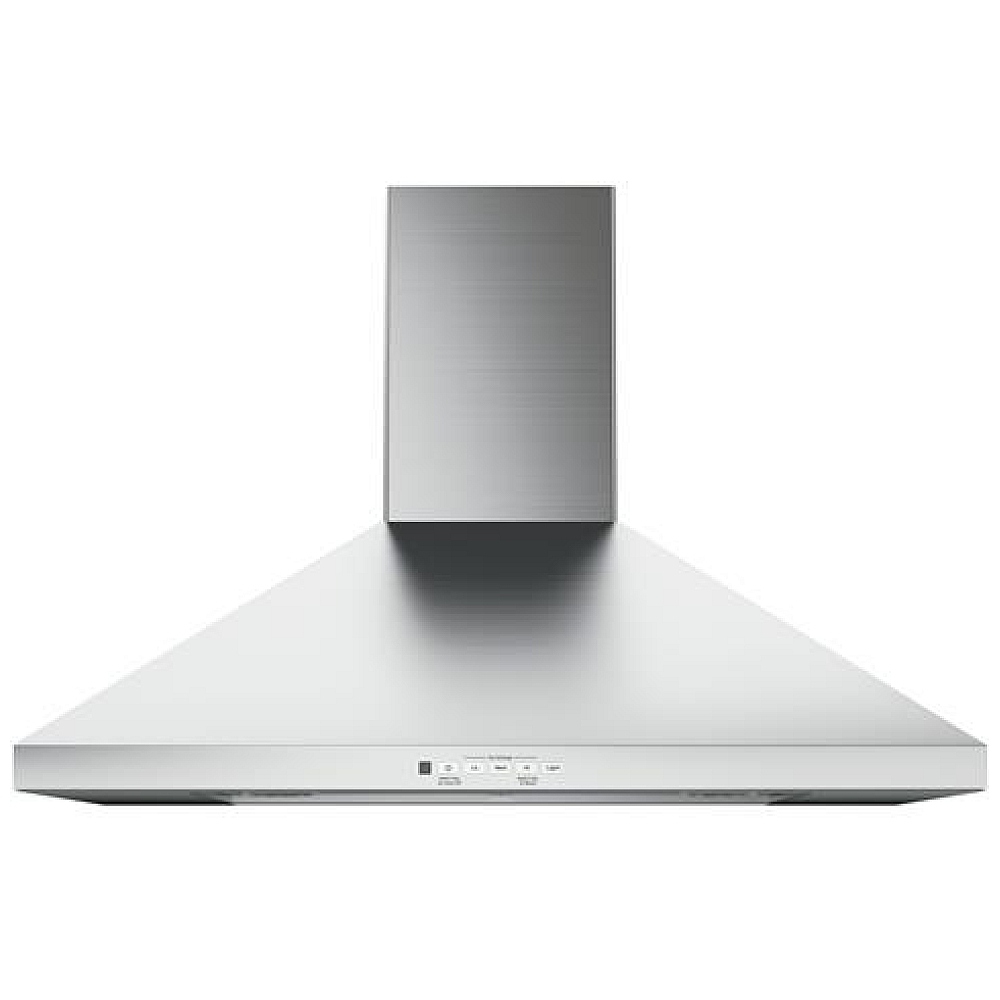

GE JVW5301SJSSC Range Hood,
30 inch Exterior Width, 350 CFM, Halogen , Aluminum Mesh Filter, Stainless Steel colour Blower Included
| Specification | Value |
|---|---|
| Product Type | Wall-mount pyramid chimney range hood |
| Brand | GE |
| Series / Collection | Profile |
| Model | JVW5301SJSSC |
| Appliance Color / Finish | Stainless Steel |
| Color Family | Stainless Steel |
| Range Hood Type | Wall Mounted / Chimney Style |
| Installation Type | Wall Mount |
| Venting Type | Convertible (Ducted or Recirculating) |
| Vent Ducted or Ductless | Recirculating or External |
| Vent Duct Shape | Round |
| Duct Size | 6 inches diameter |
| Blower Included | Yes |
| Engine Included | Yes |
| Maximum Air Flow Capacity | 350 CFM |
| CFM (Canadian retailer listings) | 350 CFM |
| Fan Speeds | 4 |
| 4-Speed Fan Control | Yes |
| Boost / High-Speed Venting | 350-CFM venting system with boost |
| Sones Rating (Working Speed) | 1.0 Sones (quiet, low speed) |
| Sones (High, some US spec listings) | 6.6 Sones |
| Noise Level Category | Quiet (Low) |
| Control Type | Electronic push buttons / backlit controls |
| Backlit Controls | Yes |
| Auto-Off Feature | Yes, automatic shut-off after 15 minutes |
| Number of Filters | 2 mesh filters |
| Filter Type | Removable mesh grease filters |
| Dishwasher-Safe Filters | Yes |
| Charcoal Filter (for recirculating) | Yes, optional charcoal filter (e.g., JXCF72 compatible) |
| Lighting Type | Dual halogen cooktop lighting |
| Number of Lights | 2 |
| Bulb Type | Halogen |
| Lighting Controls | On / Off / Night Light |
| Night Light | Yes |
| Width | 30 inches |
| Width (cm) | 76.2 cm |
| Appliance Fit Width | 30 inches |
| Appliance Fit Width (cm) | 76 cm (approx.) |
| Height | 9.75 inches |
| Height (cm) | ≈ 24.76–26.03 cm (varies slightly by listing) |
| Depth | 18.5 inches |
| Depth (cm) | ≈ 46.99–48.78 cm (varies slightly by listing) |
| Width Class | 30″ (24–30″ class in some listings) |
| Weight | ≈ 43 lb (≈ 19.5–22.7 kg depending on listing) |
| Material | Stainless Steel |
| Voltage | 120 V |
| Frequency | 60 Hz |
| Amperage | 2.5 A (typical US spec) |
| Energy Star Certified | No |
| ADA Compliant (Canada) | Yes (per some Canadian retail listings) |
| ADA Compliant (US spec listing) | No (per some US spec listings) |
| Wi-Fi / Smart Connectivity | No (no app, Alexa, Google, or HomeKit support) |
| Remote Control Compatibility | Compatible with optional remote control (JXRC70) in some US specs |
| Warranty (Manufacturer) | 1-year limited, parts and labour |
| Manufacturer Warranty (Canada) | 1 Year Parts & Labor |
| UPC / GTIN | 00067732151516 (GTIN from Canadian retailer) |
| Country / Market | Canadian model designation JVW5301SJSSC (GE Canada) |
• Dual halogen cooktop lighting – two bright halogen lights clearly illuminate the cooking surface for better visibility while preparing meals.
• Night light setting – low-level lighting option provides a soft glow over the cooktop for safety and convenience during nighttime use.
• Automatic shut-off (Auto-Off) – allows you to set the hood to turn itself off automatically after 15 minutes, helping clear lingering smoke and odors without needing to return to the controls.
• Convertible venting options – supports both external venting and recirculating (ductless) installation, offering flexibility for different kitchen layouts and building constraints.
• 350 CFM venting system with boost – powerful blower moves up to 350 cubic feet of air per minute to quickly remove smoke, steam, and cooking odors from the kitchen.
• 4-speed fan control – multiple fan speeds let you match ventilation power to your cooking needs, from gentle simmering to high-heat searing.
• Quiet performance at working speed – designed for low sones at normal operating levels, helping maintain a more comfortable, quieter kitchen environment.
• Dishwasher-safe metal grease filters – durable aluminum mesh filters capture grease and can be removed and cleaned in the dishwasher for easy maintenance.
• Removable grease filter design – filters are simple to access and remove, making routine cleaning quick and helping maintain optimal airflow.

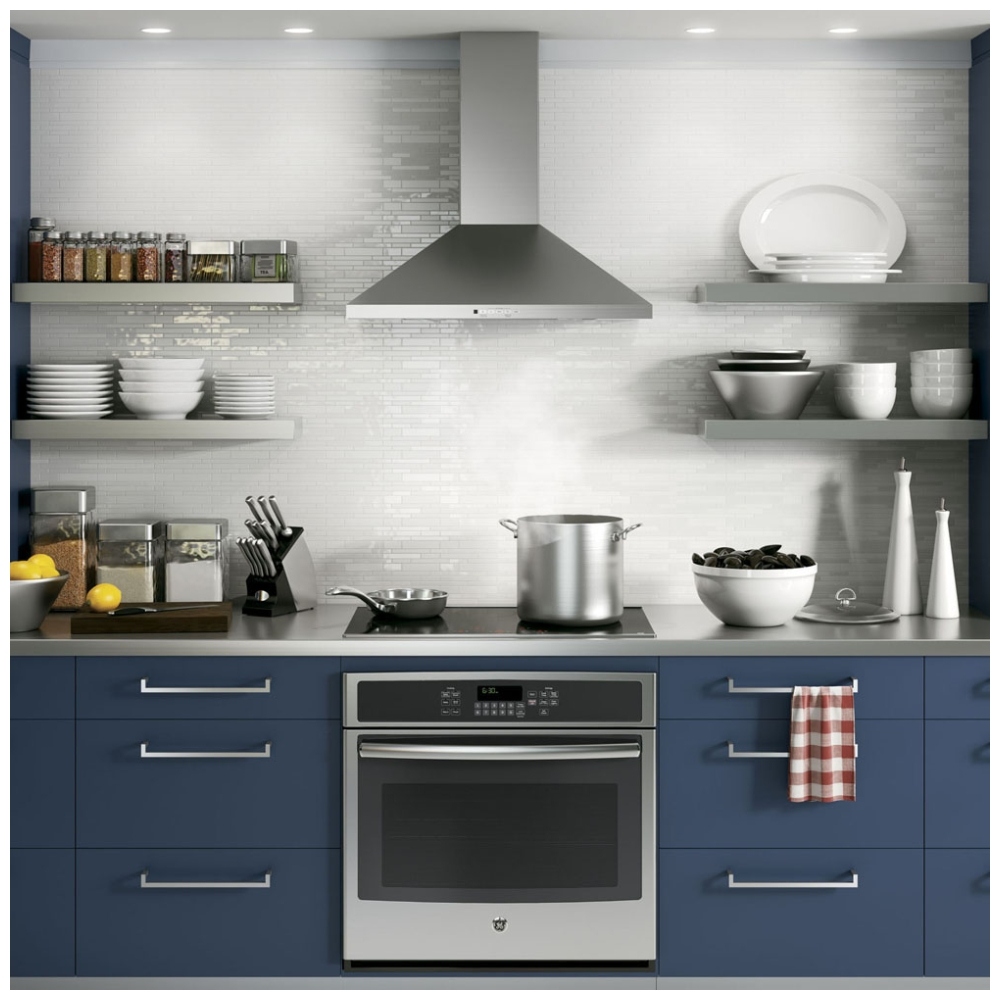

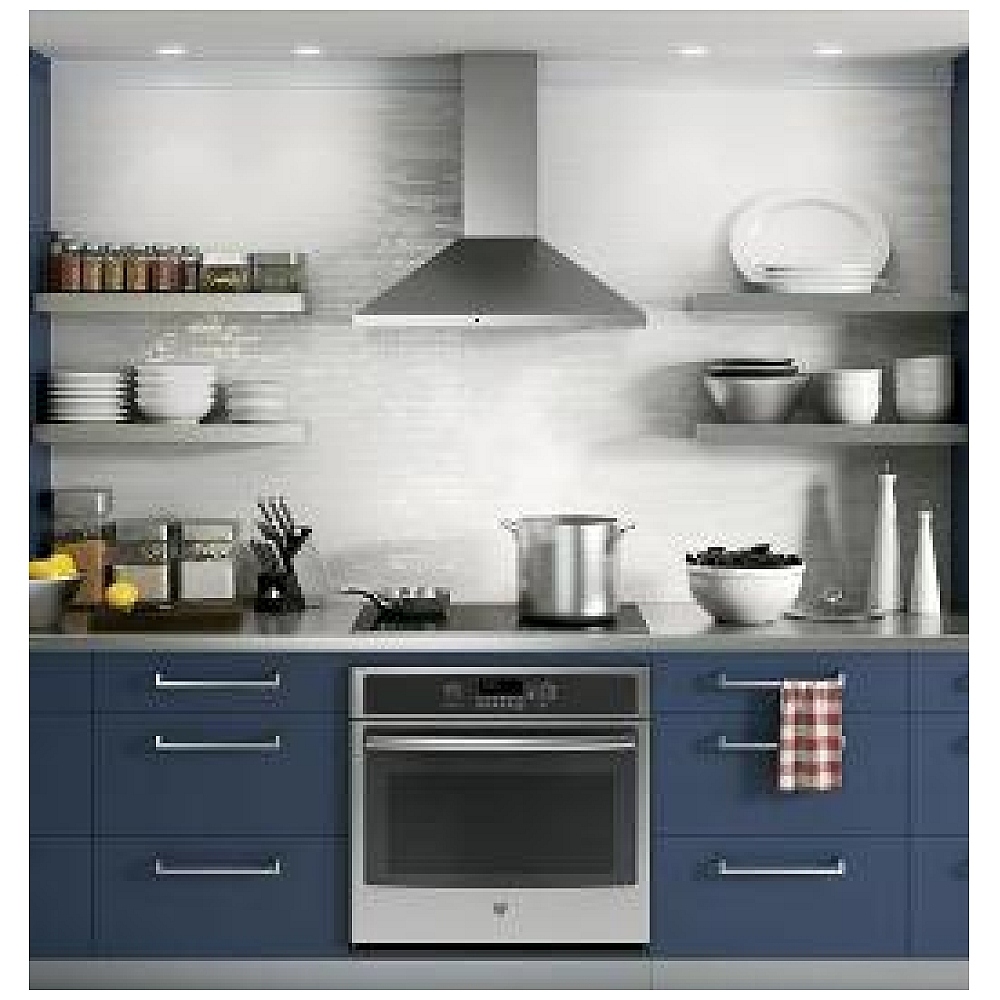

• 30″ wall-mount pyramid chimney design – modern, chimney-style profile creates a focal point above a 30-inch cooktop or range and complements contemporary kitchen décor.
• Adjustable chimney – telescoping chimney section accommodates a range of ceiling heights for a custom-looking installation.
• Stainless steel finish – sleek, neutral stainless surface coordinates with a wide variety of appliance styles and is easy to wipe clean.
• Electronic push-button operation – simple, tactile buttons provide reliable control of fan speeds and lighting without complex menus.
• On/Off/Night light controls – dedicated lighting buttons let you quickly choose full illumination, night light mode, or turn lights off entirely.
• Vertical 6″ round ducting – designed for vertical venting with a standard 6-inch round duct, simplifying planning and installation for most wall-mount applications.
• Blower included – integrated internal blower eliminates the need to purchase a separate fan unit, reducing total installation cost and complexity.
• 30″ class width – sized to fit standard 30-inch ranges and cooktops, making it suitable for most typical residential kitchens.
• Standard 120V, 60 Hz electrical connection – plugs into common household power, simplifying electrical requirements for installation.
• Digital-style display feedback – indicator lights around the controls provide clear visual confirmation of selected fan speed and lighting status.
• Convertible exhaust (recirculating or vented) – can be configured to vent outdoors or to recirculate air through optional charcoal filters when exterior ducting is not possible.
• Optional charcoal filter compatibility – supports an add-on charcoal filter kit for improved odor removal in recirculating installations.
• Optional extended chimney / duct cover kit – accessory kit available for higher ceilings, allowing the chimney to reach taller installations for a built-in look.
• Optional remote control compatibility – can be paired with an optional remote control accessory, enabling operation from a distance for added convenience.
• Two-light configuration – dual light placement helps distribute illumination more evenly across the cooking surface.
• Wall-mounted installation – mounts securely to the wall above the range, freeing up cabinet space and creating an open, airy feel.
• Standard height-above-cooktop range – designed to be installed within a typical 24″–36″ height range above the cooktop for effective capture of smoke and steam.
• Durable metal construction – robust housing and chimney structure provide long-term stability and resistance to heat and moisture.
• Non-ENERGY STAR design – prioritizes strong ventilation performance and lighting over ENERGY STAR certification, focusing on effective air movement.
• 1-year parts and labor warranty – manufacturer-backed coverage provides peace of mind against defects in materials and workmanship during the first year of use.
Overview
Ventilate your kitchen with ease and style using the GE 30″ wall-mount pyramid chimney hood. This built-in over-the-range hood circulates air at up to 350cu. ft. per minute to effectively remove cooking odours, smoke, and grease. Backlit controls and halogen lighting provide the illumination you need when cooking day or night.
More Information
- 4-speed fan delivers airflow at up to 350cu. ft. per minute to help eliminate smoke, odours, grease, and moisture
- Halogen light provides the illumination you need when cooking
- Backlit controls make it easy to see in dim lighting conditions
- Convertible venting allows external or recirculating venting capabilities
- Dishwasher-safe filters mean effortless cleaning
- Stainless steel finish brings a sleek look to your kitchen
Manufacturer’s Warranty: 1 year
Canadian model: JVW5301SJSSC
Canadian UPC: 067732151516
EAN: 0067732151516
