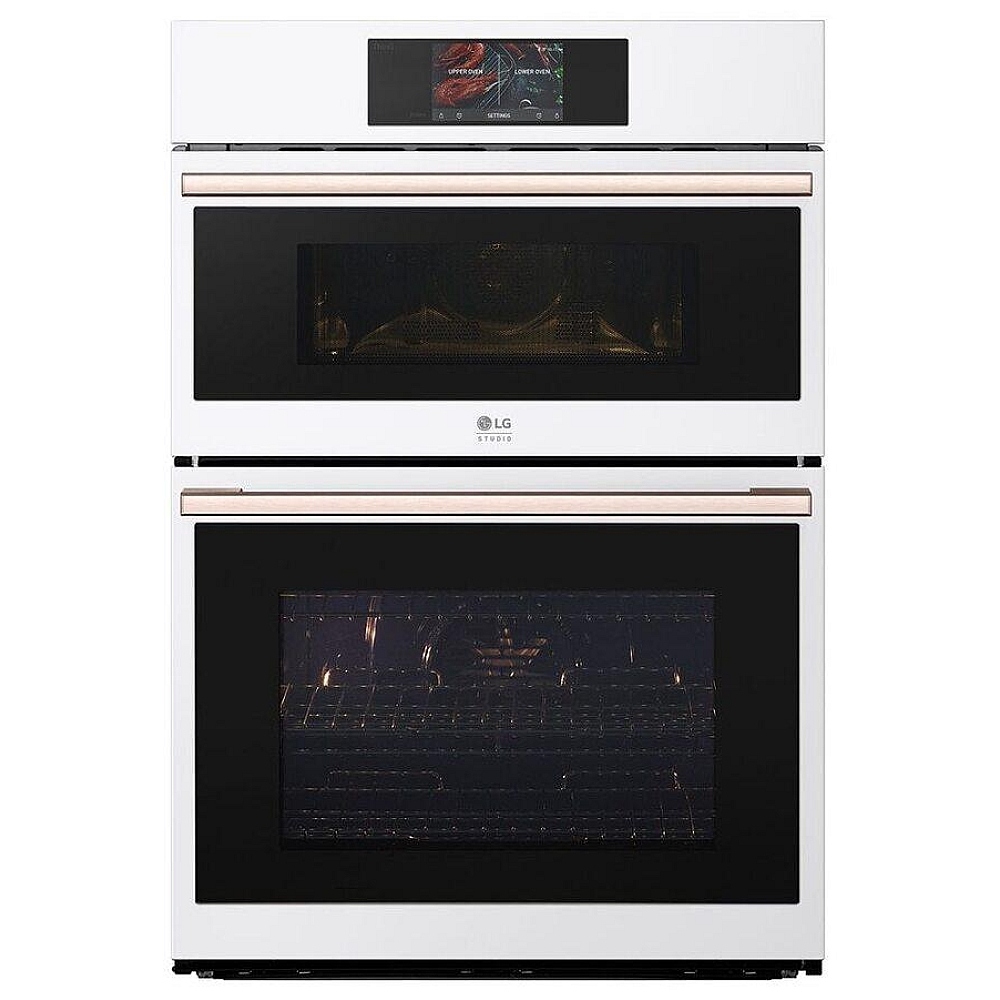

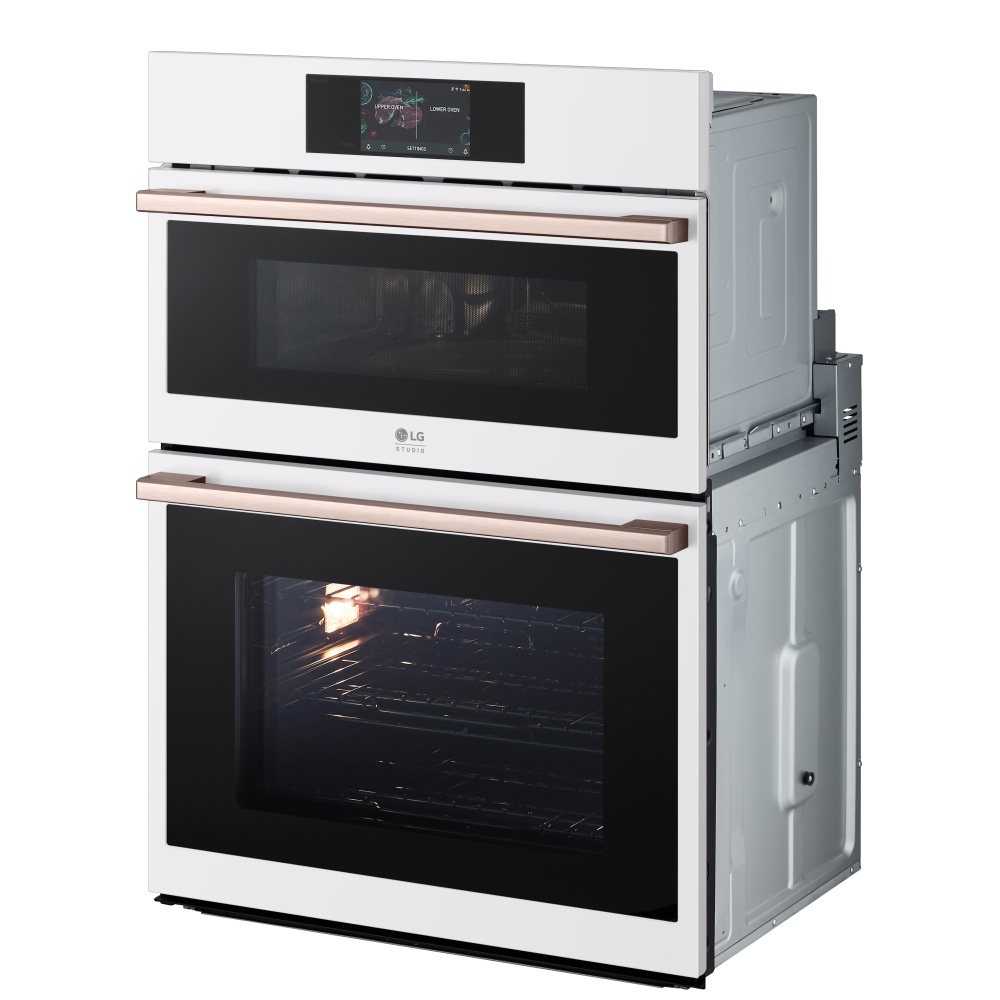

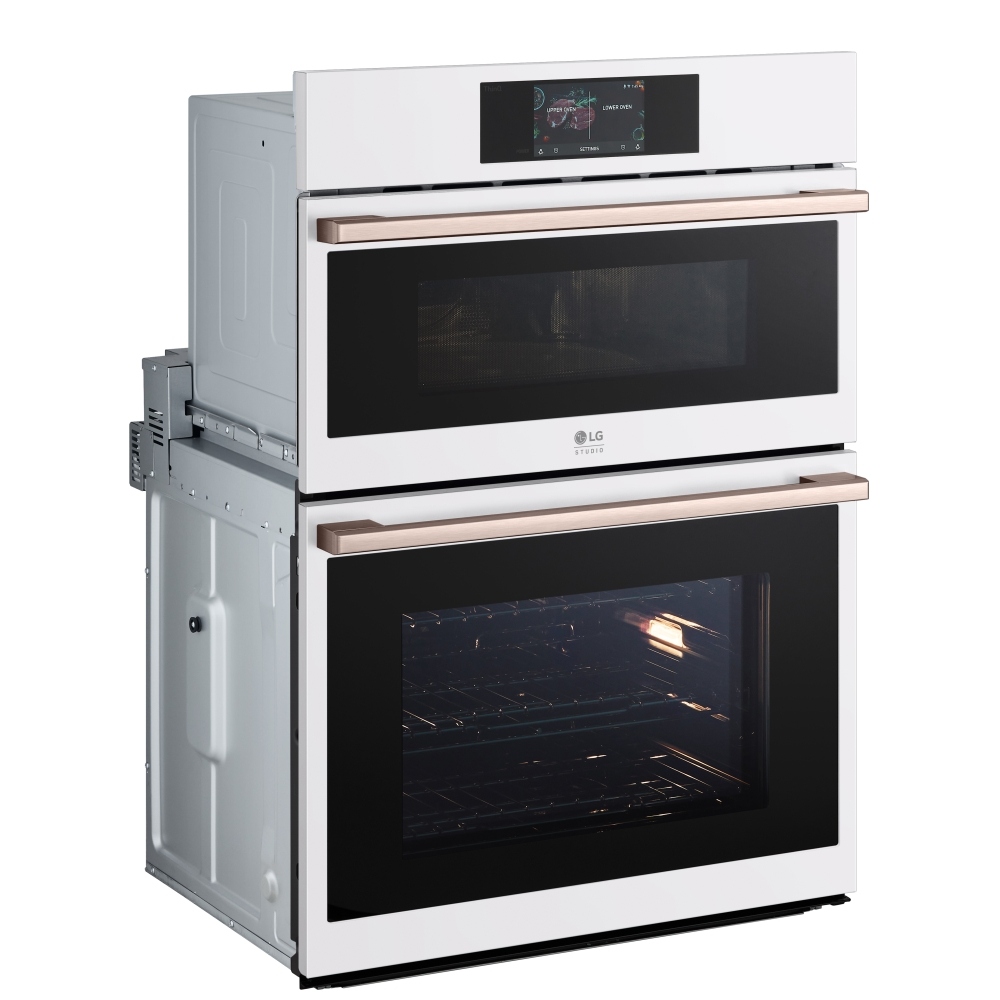

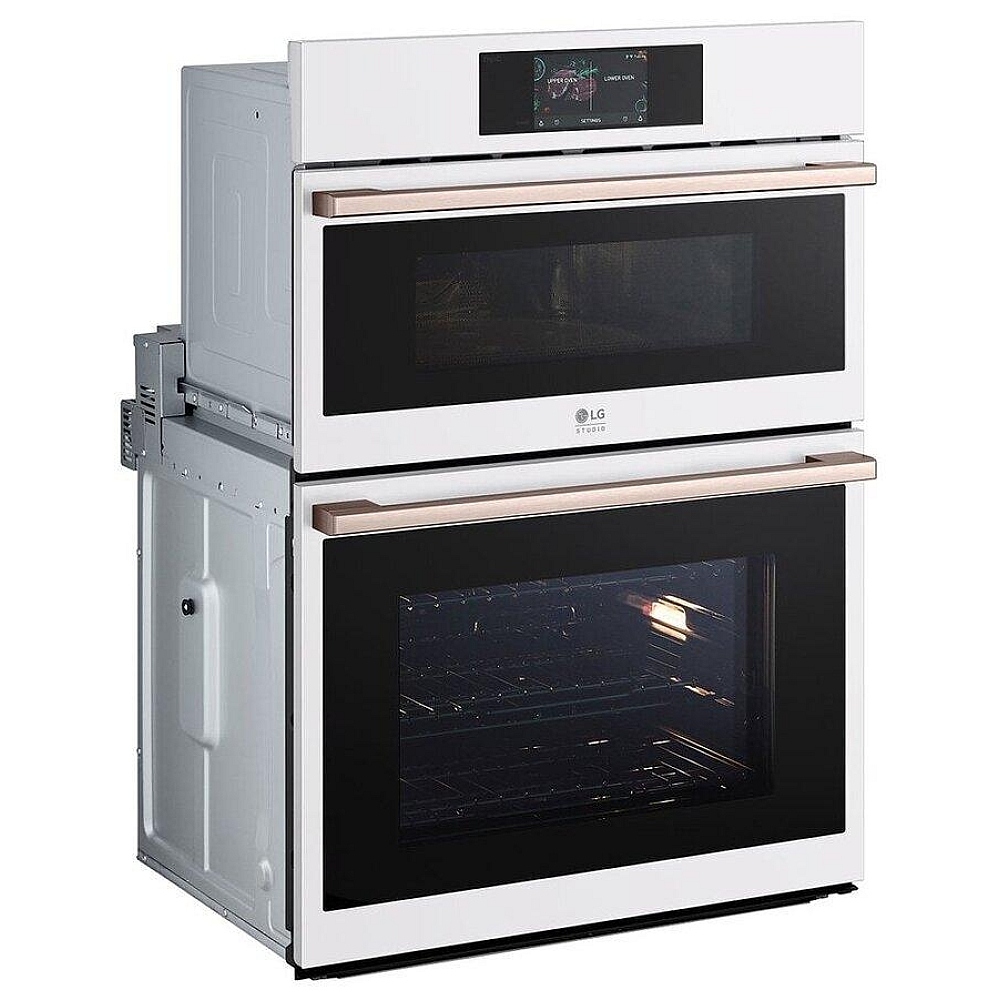

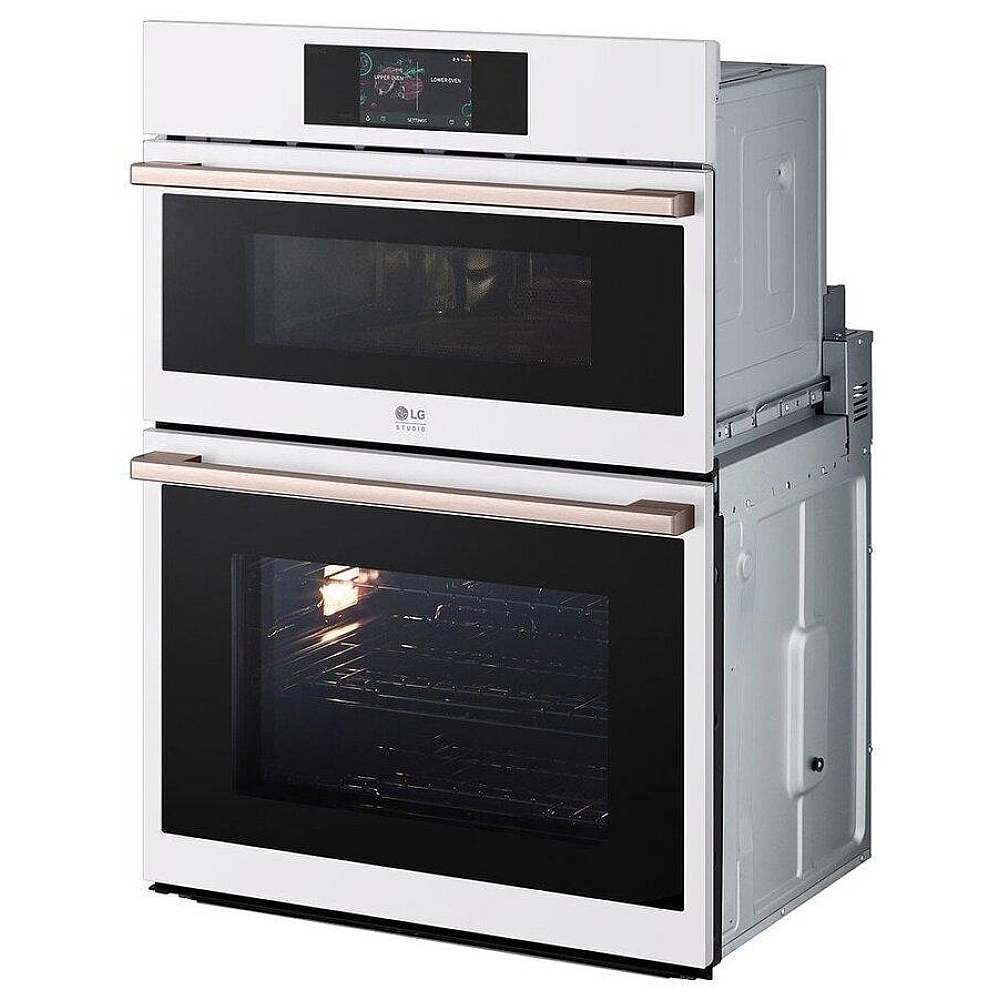

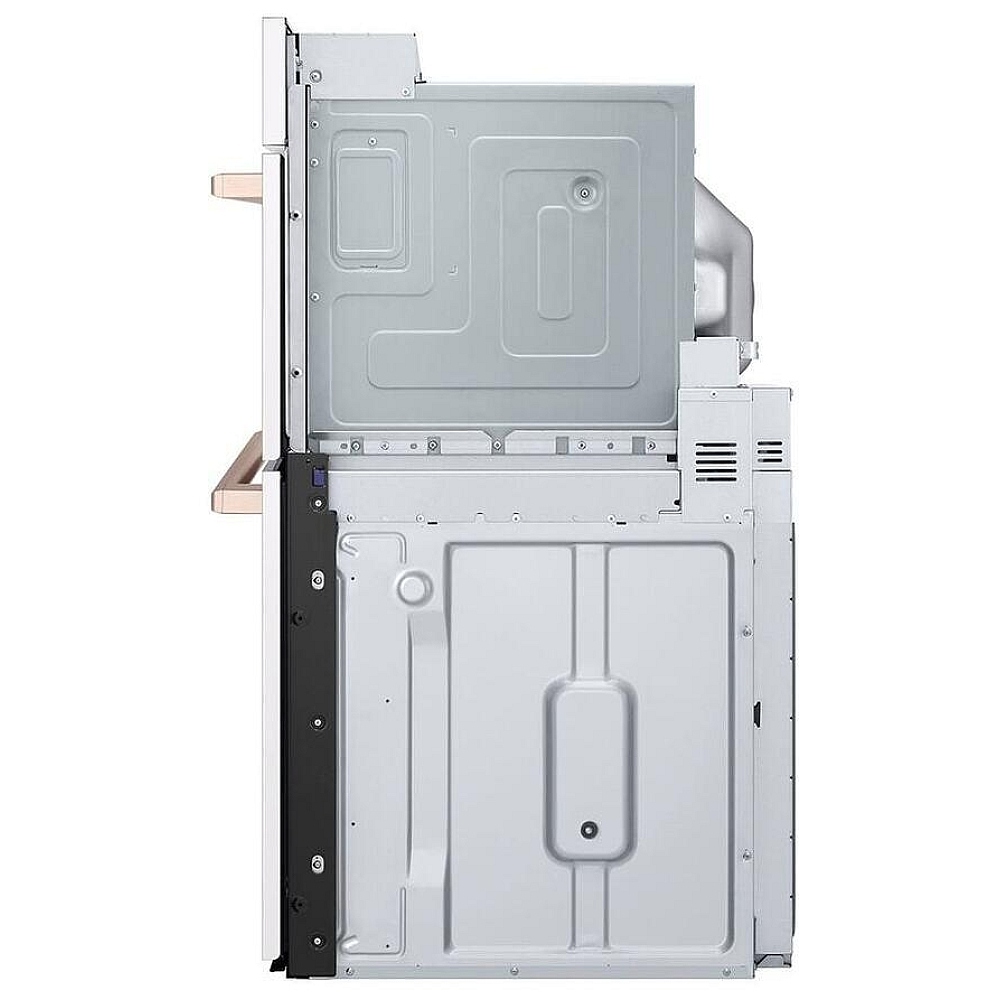

LG WCES6428N Microwave Wall Oven Combo,
30 inch Exterior Width, True Convection, Self Clean, 6.4 cu. ft. Capacity, Temperature Probe, Wifi Enabled, Air Fry, Essence White colour
| Specification | Value |
|---|---|
| Brand | LG Studio |
| Model | WCES6428N |
| Series | LG Studio |
| Type | Electric wall oven / microwave combination |
| Style | Built-in double (oven / microwave combo) |
| Fuel Type | Electric |
| Built-In | Yes |
| Color | Essence White |
| Color Family | White |
| Handle Color / Finish | Color Stainless Steel (Light Bronze) |
| Handle Type | Bar |
| Handle Design | Contemporary |
| Handle Shape | Flat |
| Knobs | No |
| Door Style | Drop down |
| Oven Door Feature | WideView™ Window |
| Total Capacity | 6.4 cu. ft. |
| Lower Oven Capacity | 4.7 cu. ft. |
| Upper Oven Capacity | 1.7 cu. ft. |
| Width | 29.75 in |
| Nominal Width | 30 in |
| Exterior Width | 30 in |
| Height | 43.81 in (43 13/16 in) |
| Depth (overall) | 26 29/32 in |
| Depth (cabinet) | 24.46 in |
| Cutout Width | 28 1/2 in |
| Cutout Height | 43 7/16 in |
| Cutout Depth | 24 in |
| Carton Dimensions (W x H x D) | 33 in x 50 in x 30 in |
| Oven Interior Dimensions (Lower) (W x H x D) | 24 1/2 in x 17 5/8 in x 18 7/8 in |
| Oven Interior Dimensions (Upper) (W x H x D) | 20 8/11 in x 8 9/25 in x 17 5/13 in |
| Product Weight | 204 lb |
| Shipping Weight | 239 lb |
| Flush Installation | Yes |
| Energy Star Rated | No |
| ADA Compliant | No |
| Voltage | 240 V / 208 V |
| Frequency | 60 Hz |
| Required Power Supply | 60 Hz / 240 V, 208 V |
| Max. Amp Load | 40 A |
| Rating (Power) | 7.8 kW |
| Lower Oven Bake Element Power | 2500 W |
| Lower Oven Bake Element Type | Hidden (8-pass) |
| Lower Oven Broil Element Power | 2,500 W inner / 1,500 W outer |
| Lower Oven Broil Element Pass | 8 |
| Lower Oven Convection Element Power | 2000 W |
| Lower Oven Number of Lights | 2 |
| Lower Oven Rack Positions | 5 |
| Number of Racks (total) | 3 |
| Gliding Rack System | Yes |
| Upper Oven Function | Microwave / Speed Oven / Convection |
| Upper Oven Bake Element Power | 375 W |
| Upper Oven Broil | Yes |
| Upper Oven Broil Element Power | 1200 W (500 W Infrared Heating™ + 700 W Miraclon heater) |
| Upper Oven Convection Bake | Yes |
| Upper Oven Convection Element Power | 1500 W (sheath heater) |
| Microwave | Yes |
| Microwave Mode Power Consumption | 1650 W |
| Microwave Power Output | 950 W |
| Speed Cook | Yes |
| Speed Cook – Defrost Menus | 4 (Meat / Poultry / Fish / Bread) |
| Speed Cook – Melt Menus | 5 (Butter / Caramel / Cheese / Chocolate / Marshmallow) |
| Speed Cook – Sensor Cook Menus | 9 (Beverage / Casserole / Chicken / Pasta / Pizza / Plate of food / Rice / Soup / Vegetable) |
| Speed Cook – Soften Menus | 4 (Butter / Cream Cheese / Frosting / Ice Cream) |
| Convection | Yes |
| Convection Type | True Convection |
| Convection Fan | Single speed |
| Convection Power | 2000 W |
| Convection Conversion | Yes |
| Oven Modes | Bake / Convection Bake / Convection Roast / Broil / Air Fry / Warm / Proof / Steam Cook (Steam Bake, Sous-Vide) / Auto Cook / Favorite / Clean (Self Clean, EasyClean, Steam Maintenance) |
| Air Fry | Yes |
| Proof | Yes |
| Variable Broil | Yes |
| Variable Cleaning Time | Yes |
| Variable Warm | Yes |
| Oven Cleaning Type | Self Clean and Steam Clean |
| Self Clean | Yes |
| EasyClean® Interior | Yes |
| Steam-Clean | Yes |
| Steam Function | Yes |
| Steam Sous-Vide | Yes |
| Water Reservoir | Yes |
| Plumbed | Not plumbed |
| Control Style | Touch pad |
| Oven Control Type | TFT LCD film touch + glass touch |
| Display | 7 in TFT LCD |
| Clock | 12 hr or 24 hr (option) |
| Kitchen Timer | Yes |
| Timer | Yes |
| Cooking Complete Reminder Volume | Beeper (Hi, Lo, Off) |
| Language Options | English / Spanish / French |
| Temperature Unit of Measure | Fahrenheit / Celsius |
| Timed Cook | Yes |
| Weighted LED Knobs | No |
| Digital Clock | Yes |
| Digital Temperature Display | Yes |
| Smart Appliance | Yes |
| Wi‑Fi | Yes |
| ThinQ® Smart Technology | Yes |
| Voice Control | Yes |
| Works with Brand-Specific App | Yes (LG ThinQ®) |
| 3rd Party Recipe Apps | Innit, SideChef |
| Remote Monitoring | Yes |
| Remote Diagnostics | Yes (SmartDiagnosis™) |
| NFC Tag On | No |
| WiFi Connected | Yes |
| Sabbath Mode | Yes |
| Proof Mode | Yes |
| Accessories – Broiler Pan | Yes |
| Accessories – Glass Tray (Upper) | Yes |
| Accessories – Meat Probe | Yes |
| Accessories – Metal Tray (Upper) | Yes |
| Accessories – Rack (Upper) | Yes |
| Accessories – Spray Bottle | No |
| Accessories – Temp Probe | Yes |
| Appliance Category | Wall oven |
| Drawer | None |
| Parts & Labor Warranty | 2 years (standard) |
| UPC | 195174070079 |
• TurboCook™ Speed Oven – upper oven combines microwave and convection with instant-on Infrared Heating™ to cook up to 4x faster than a traditional oven, often without preheating.
• True Convection – powerful convection fan and heating element circulate hot air for more even baking and roasting on multiple racks.
• Steam Sous Vide – lower oven steam function helps you cook foods gently and evenly, locking in moisture and flavor similar to sous-vide style.
• Air Fry setting – crisps favorites like fries or wings with hot air circulation, reducing the need for added oil compared to deep frying.
• EasyClean® + Self Clean – dual cleaning system lets you choose quick, low‑heat EasyClean® for light messes or high‑heat Self Clean for deep cleaning.
• ThinQ® smart technology – built‑in Wi‑Fi lets you monitor and control the oven from your smartphone, receive notifications, and access smart recipes via the ThinQ® app.
• ThinQ® voice control compatibility – works with supported voice assistants so you can start, stop, or adjust settings hands‑free.
• SmartDiagnosis™ support – helps troubleshoot issues quickly by sending diagnostic data to LG customer support via the ThinQ® app.
• InstaView™ / WideView™ window – large viewing window lets you check cooking progress without opening the door and losing heat.
• LG STUDIO design hardware – elevated light bronze handles and trim add a premium, designer accent to the Essence White finish.
• Flush installation capable – designed for a sleek, built‑in look that can sit more flush with surrounding cabinetry.

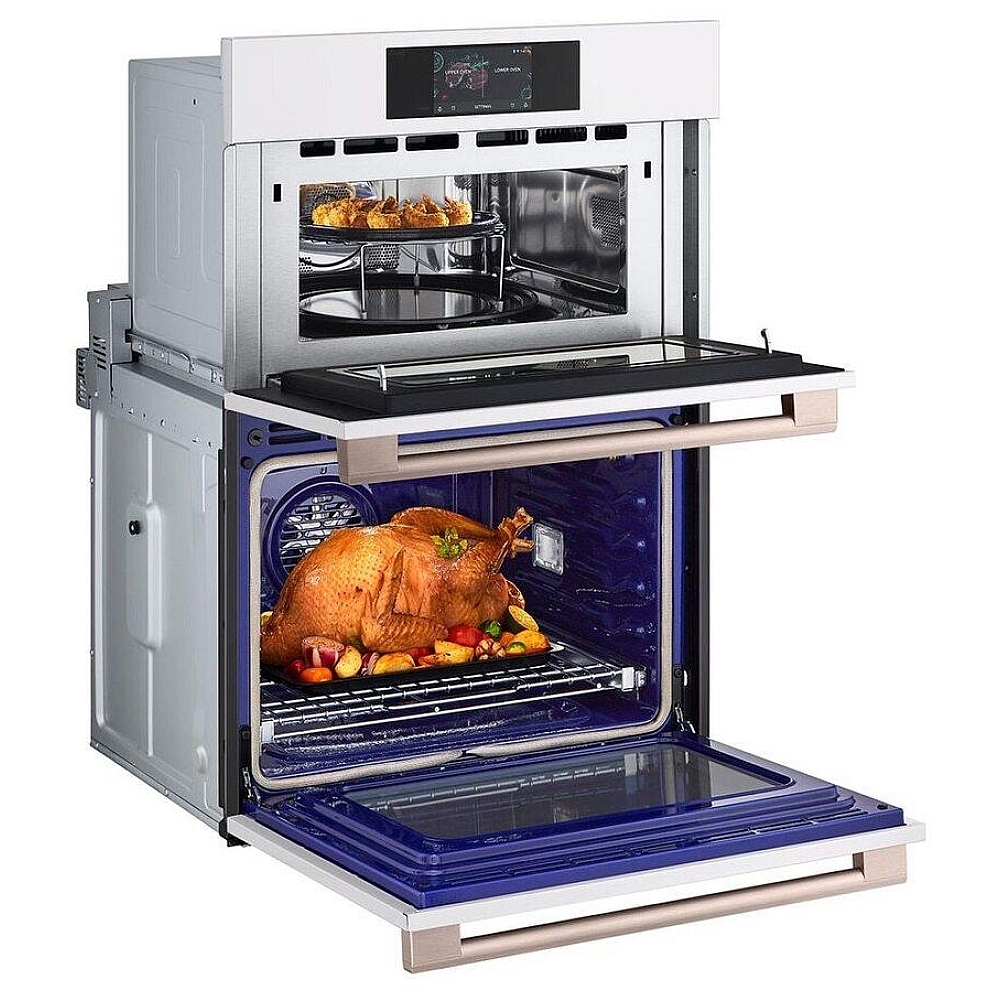

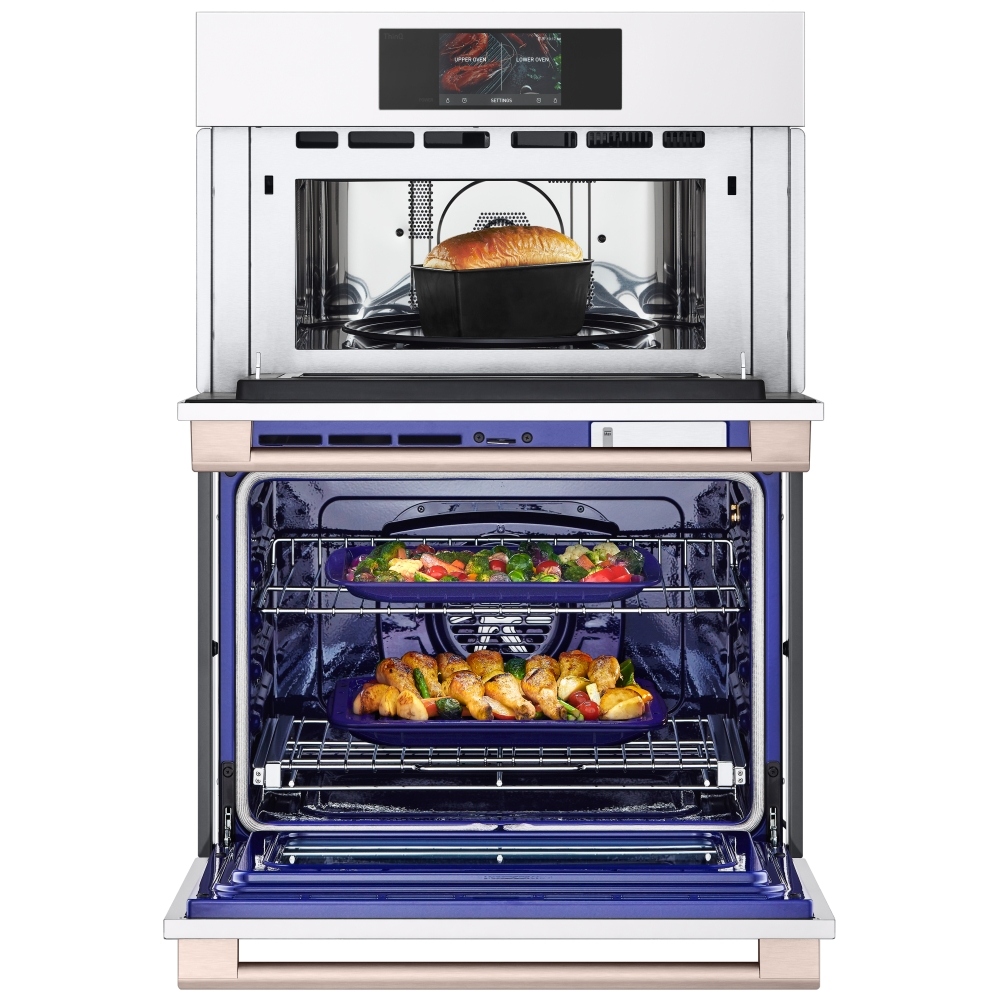

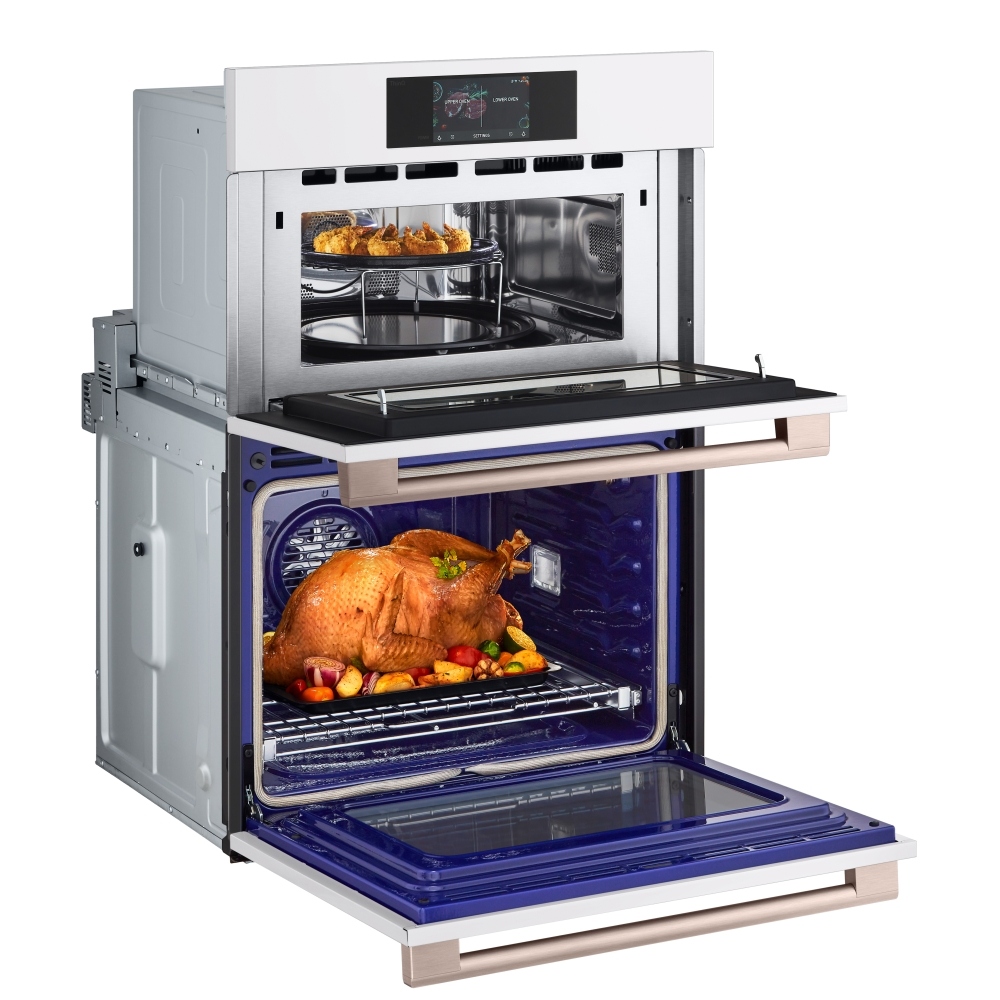

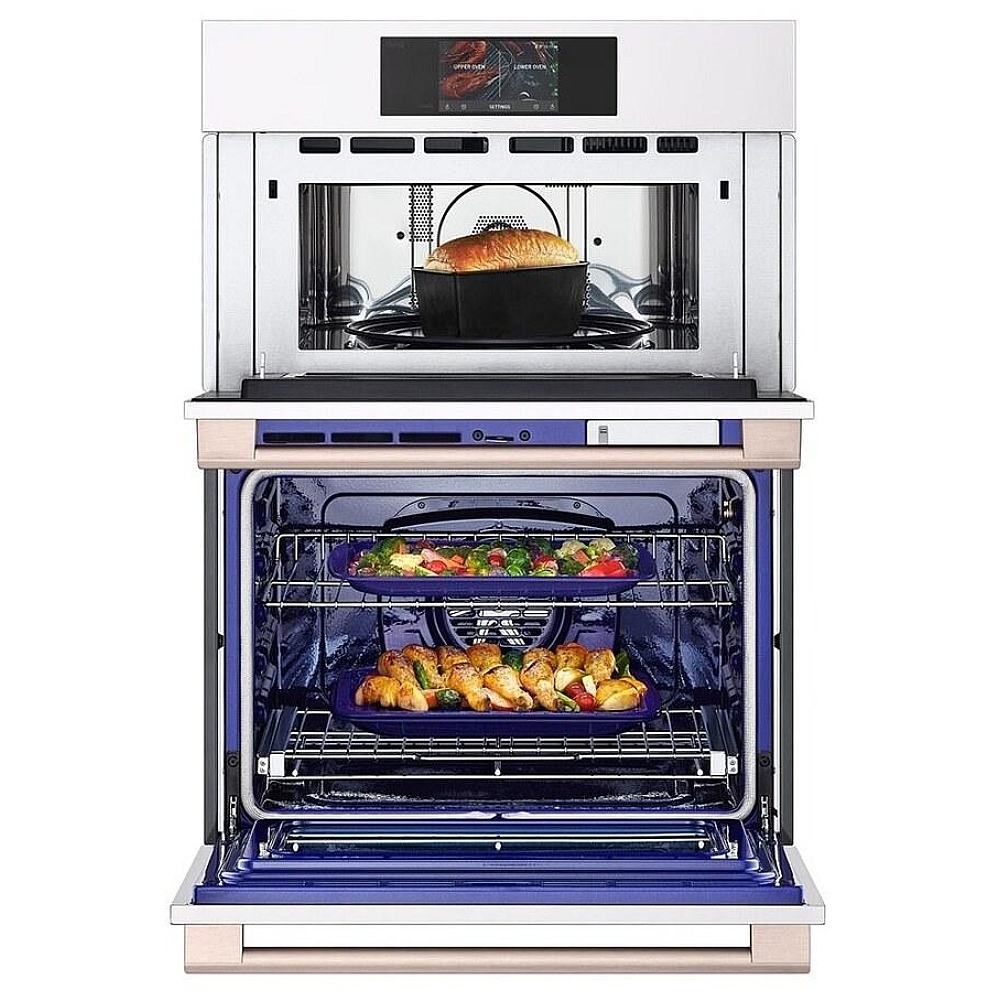

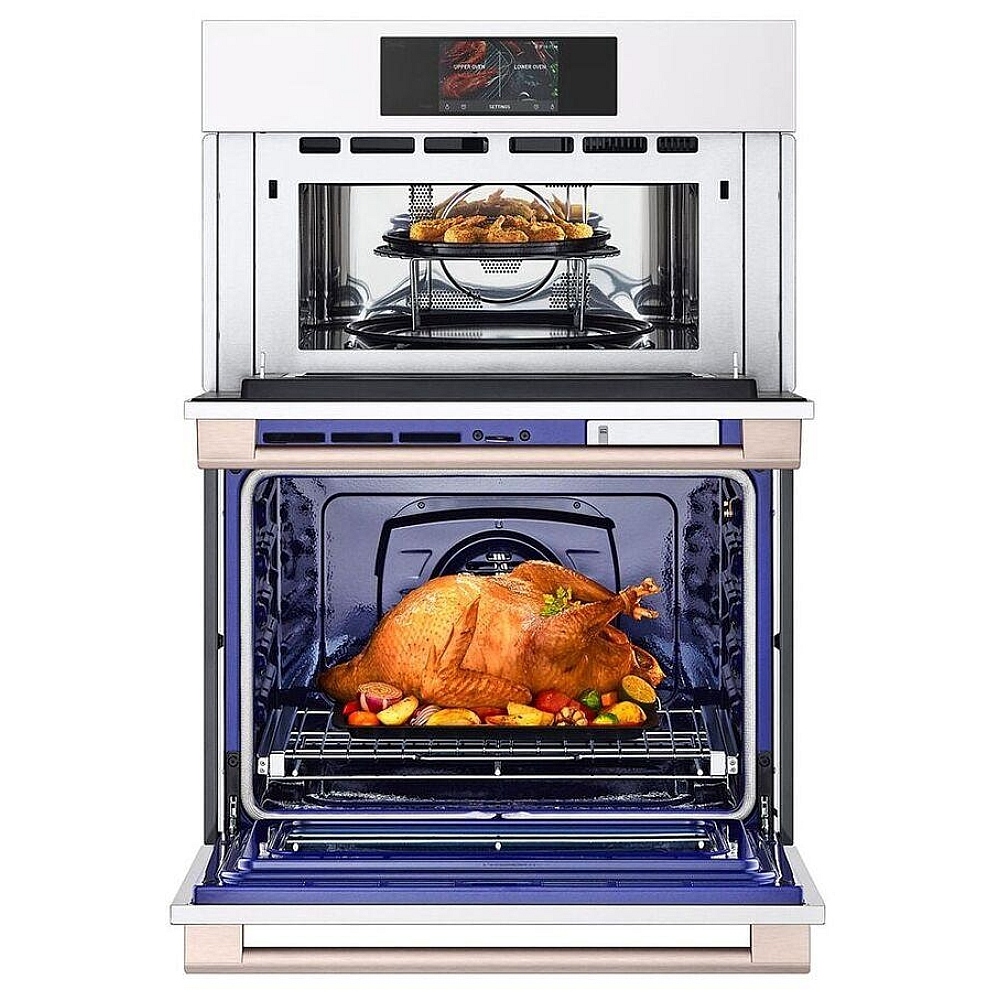

• 6.4 cu. ft. total capacity (1.7 + 4.7 cu. ft.) – combination of a 1.7 cu. ft. upper speed/microwave oven and a 4.7 cu. ft. lower oven to handle everyday meals and large holiday dishes.
• 30″ built‑in combination wall oven – replaces separate wall oven and microwave with a single integrated unit to save space and streamline the look.
• Upper TurboCook™ / microwave convection oven – use as a traditional microwave, convection oven, or combined speed‑cook oven for flexible meal prep.
• Microwave power up to ~950–975 W – delivers strong microwave performance for fast reheating, defrosting, and cooking.
• Speed Cook programs – preset options for common foods (meats, poultry, fish, bread, pizza, casseroles, etc.) to simplify quick cooking.
• Sensor Cook functions – automatically adjusts time and power based on humidity levels for better results when reheating or cooking certain foods.
• Defrost, Melt & Soften menus – dedicated settings for gently defrosting meats, melting butter or chocolate, and softening items like ice cream or cream cheese.

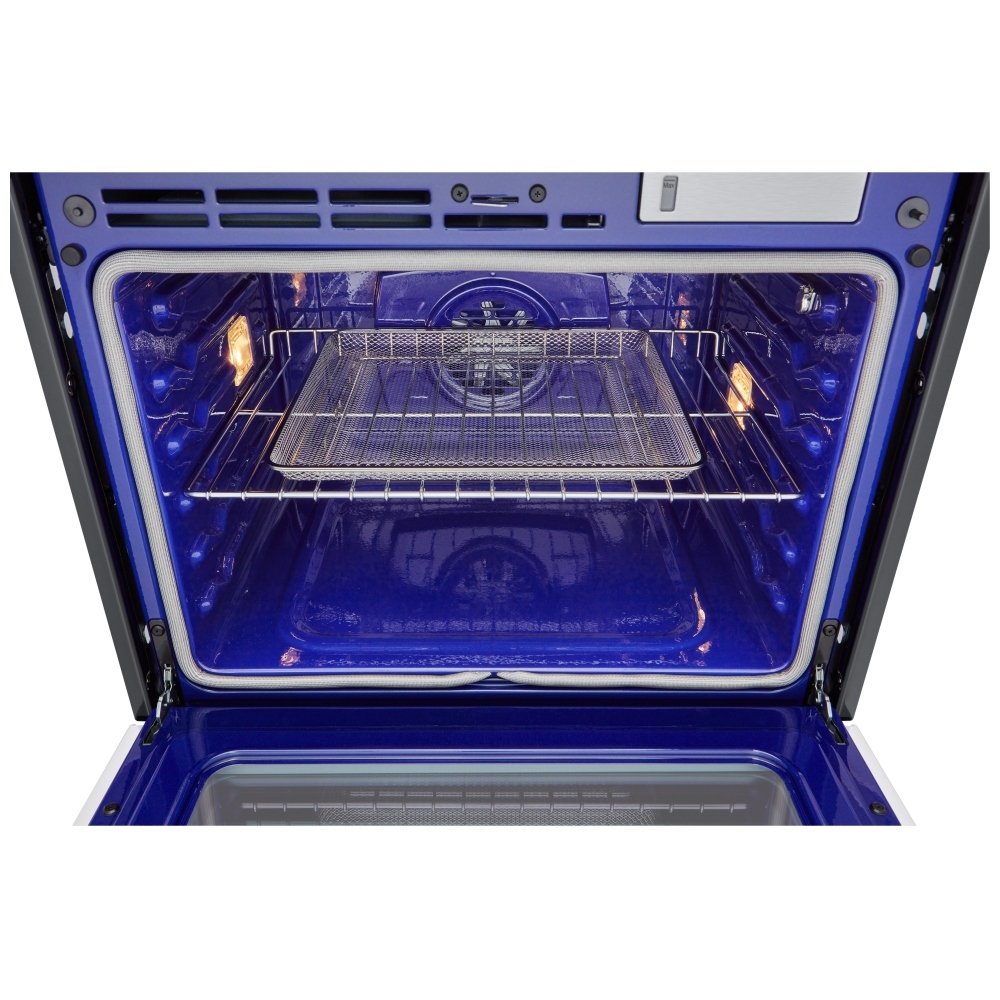

• Lower true convection oven – full‑size 4.7 cu. ft. oven with dedicated convection element for even baking, roasting, and air frying.
• Multiple oven modes – Bake, Convection Bake, Convection Roast, Broil, Air Fry, Warm, Proof, Steam Cook (Steam Bake, Steam Sous Vide), Auto Cook, and Favorites for versatile cooking.
• Proof mode – maintains low, consistent temperatures ideal for proofing bread dough.
• Warm / Keep Warm function – keeps cooked dishes at serving temperature without overcooking.
• Hidden bake elements (upper and lower) – concealed heating elements create a smooth interior floor that’s easier to wipe clean.
• High‑power broil elements – powerful upper and lower broilers (including Infrared Heating™ in the upper) for fast searing and browning.
• Steam Assist (lower oven) – adds moisture during baking or roasting to help improve texture and prevent foods from drying out.
• Automatic safety shut‑off – turns the oven off after a set period to help prevent accidental overcooking or energy waste.
• Soft‑closing oven door – gently closes to reduce slamming, noise, and wear on the hinges.
• Control Lock / Child Lock – disables the control panel to help prevent unintended use or changes to settings.
• Certified Sabbath Mode – adjusts certain functions and lights to meet Sabbath observance requirements.
• 7″ color TFT LCD touch display – large, full‑color screen with intuitive touch controls and clear cooking information.
• Film Touch + Glass Touch controls – smooth, modern control surface that’s easy to wipe clean.
• Multi‑language display – on‑screen prompts available in English, Spanish, or French.
• 12‑ or 24‑hour clock option – lets you choose your preferred time format.
• Kitchen timer and timed cook – built‑in timer and automatic shut‑off cooking to help prevent overcooking.
• Cooking complete beeper with volume control – audible alerts with adjustable volume (High/Low/Off) so you can tailor notifications.
• Temperature unit selection – switch between Fahrenheit and Celsius depending on your preference.
• Oven temperature probe / meat probe – monitors internal food temperature and alerts you when your roast or poultry reaches the desired doneness.
• Included accessories – comes with broiler pan, upper oven glass tray, upper metal tray, upper rack, and temperature probe for immediate out‑of‑box usability.

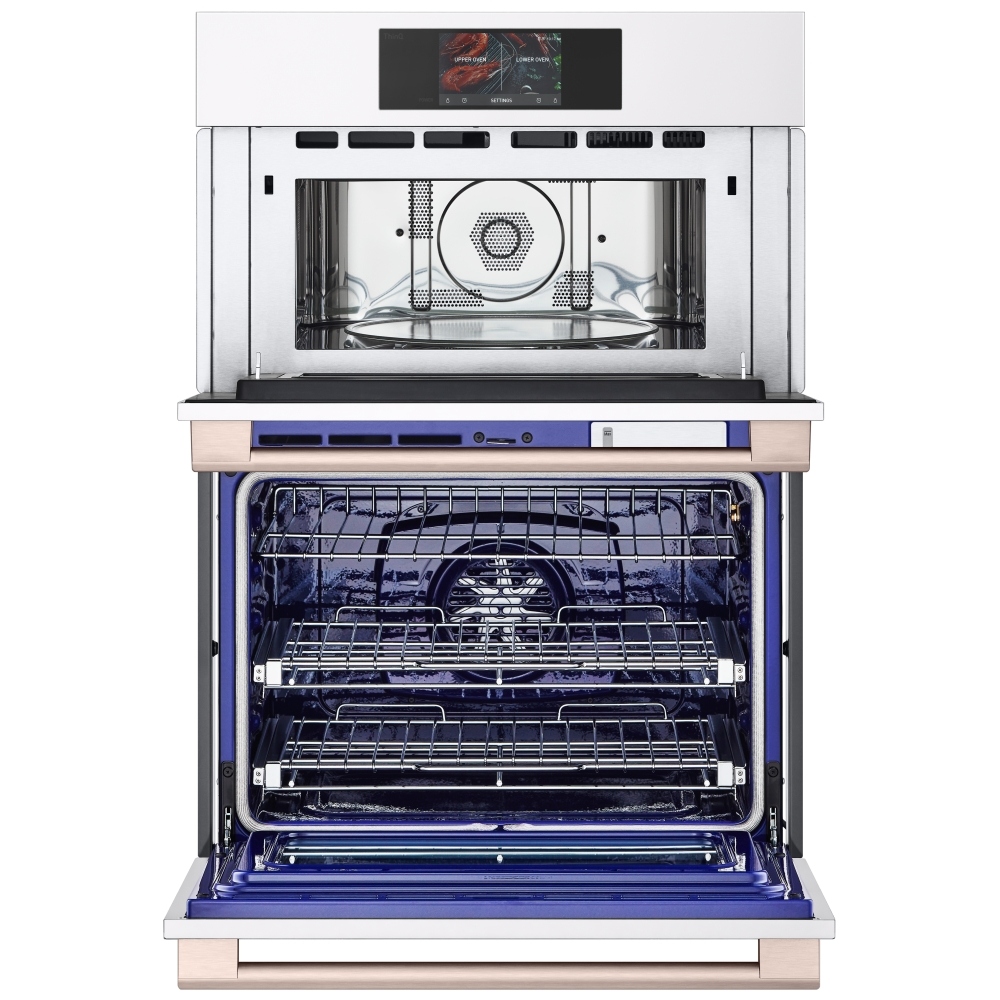

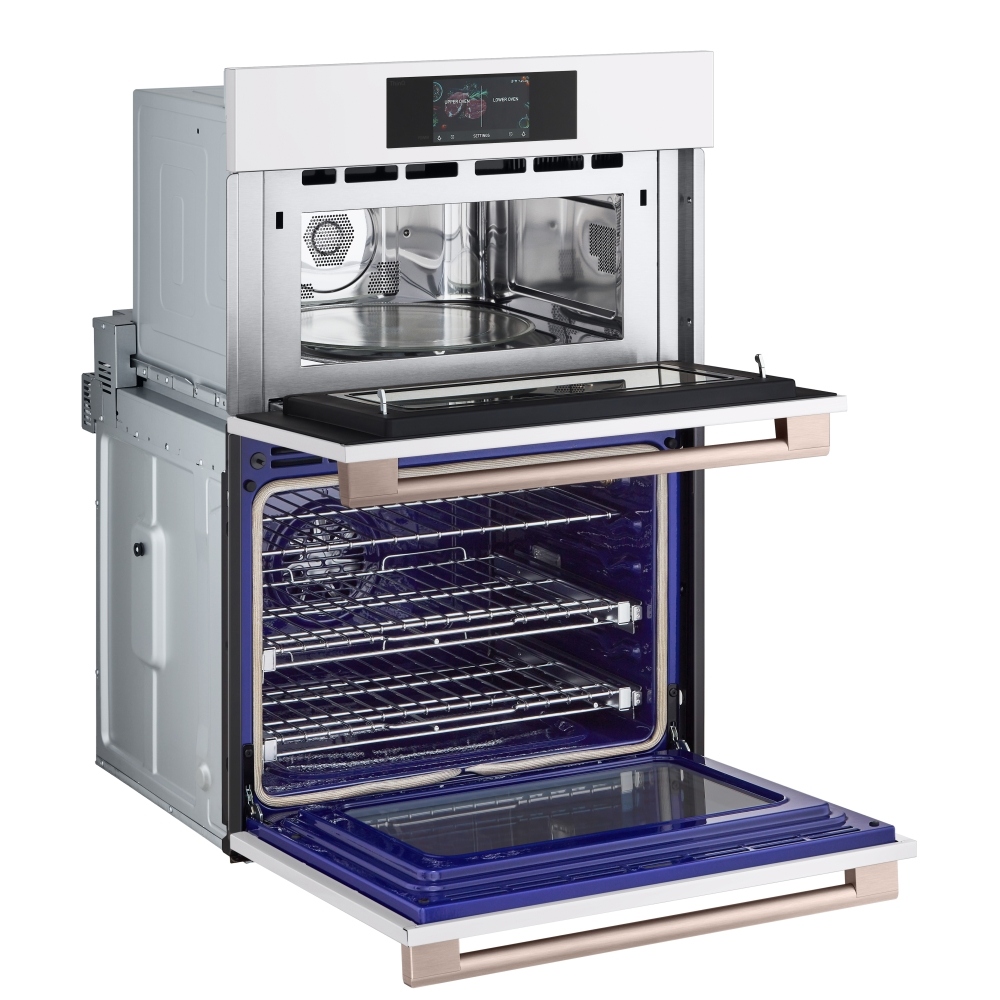

• Multiple rack positions – several rack levels in the lower oven to accommodate tall roasts, multiple baking sheets, or large cookware.
• Gliding / roll‑out rack (select models/positions) – makes it easier and safer to access heavy dishes like turkeys or large casseroles.
• Essence White glass door with WideView™ window – large glass panel complements the finish and improves visibility into both cavities.
• Wi‑Fi and app capable – start preheating, change modes, or check remaining time from your phone, and receive alerts when cooking is done.
• ThinQ Care / maintenance alerts – smart monitoring can send notifications about usage patterns or potential issues to help extend appliance life.
• Voice‑assistant and smart‑home integration – compatible with select smart‑home platforms for integrated routines (like preheating when you arrive home).
• Electric fuel type – provides consistent, even heat and simpler installation compared to gas wall ovens.
• Standard 30″ cutout fit – designed to fit most 30‑inch wall oven openings for easier replacement of older units.
• Energy‑efficient convection cooking – faster, more even cooking can help reduce overall cook times and energy use compared to non‑convection ovens.
• 2‑year parts and labor warranty – extended manufacturer coverage (compared to many 1‑year warranties) for added peace of mind.
Manufacturer’s Warranty: 1 year
Canadian model: WCES6428N
Canadian UPC: 195174070079
EAN: 0195174070079
