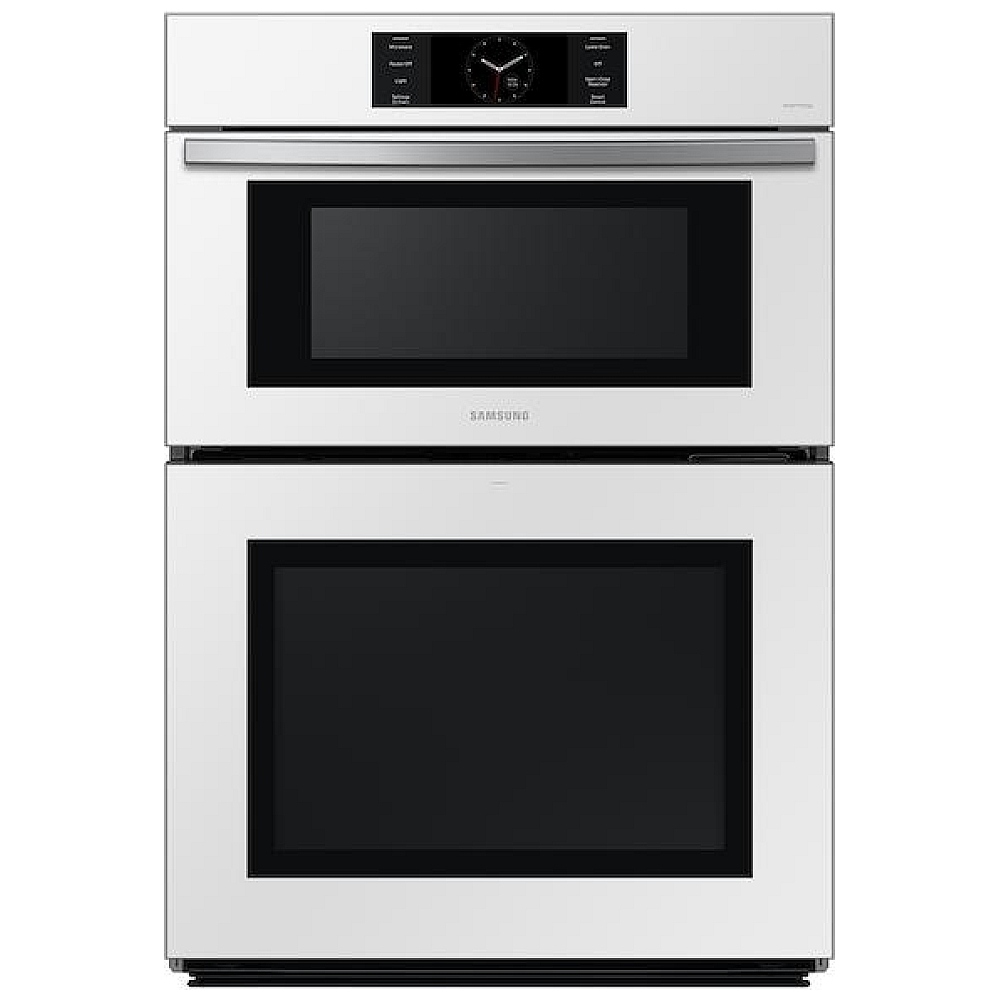

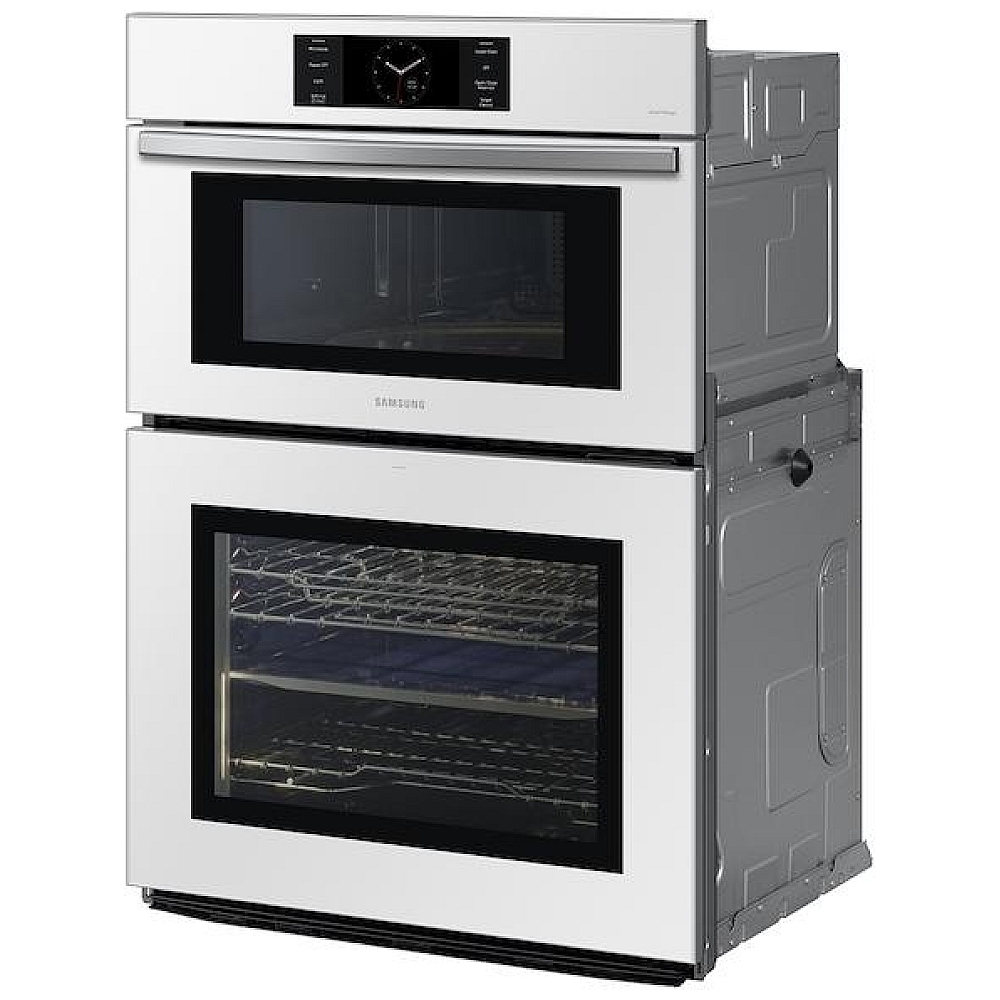

Samsung Bespoke NQ70CB700D12AA Microwave Wall Oven Combo,
30 inch Exterior Width, Convection, Self Clean, 7 cu. ft. Capacity, Temperature Probe, Wifi Enabled, Air Fry, White colour FlexDuo, Air Fry, Air Sous Vide, Steam Cooking, True European Convection, Telescopic Gliding Extension Rack
| Specification | Value |
|---|---|
| Product Type | Built-in electric microwave combination wall oven |
| Series | Bespoke 7 Series Combination Wall Oven |
| Model | NQ70CB700D12AA |
| Oven Type | Combi oven (microwave + wall oven) |
| Installation Type | Built-In |
| Fuel Type | Electric |
| Color / Finish | Clean White / White Glass |
| Door Panel Type | Glass |
| Door Type | Drop down |
| Oven Door Glass | 3-layer (microwave) / 4-layer (oven) |
| Display Type | 7″ TFT LCD |
| Control Method | Touch / Digital touch controls |
| Collection | BESPOKE |
| Capacity | |
| Microwave Capacity | 1.9 cu ft |
| Oven Capacity | 5.1 cu ft |
| Total Oven Capacity | 7.0 cu ft |

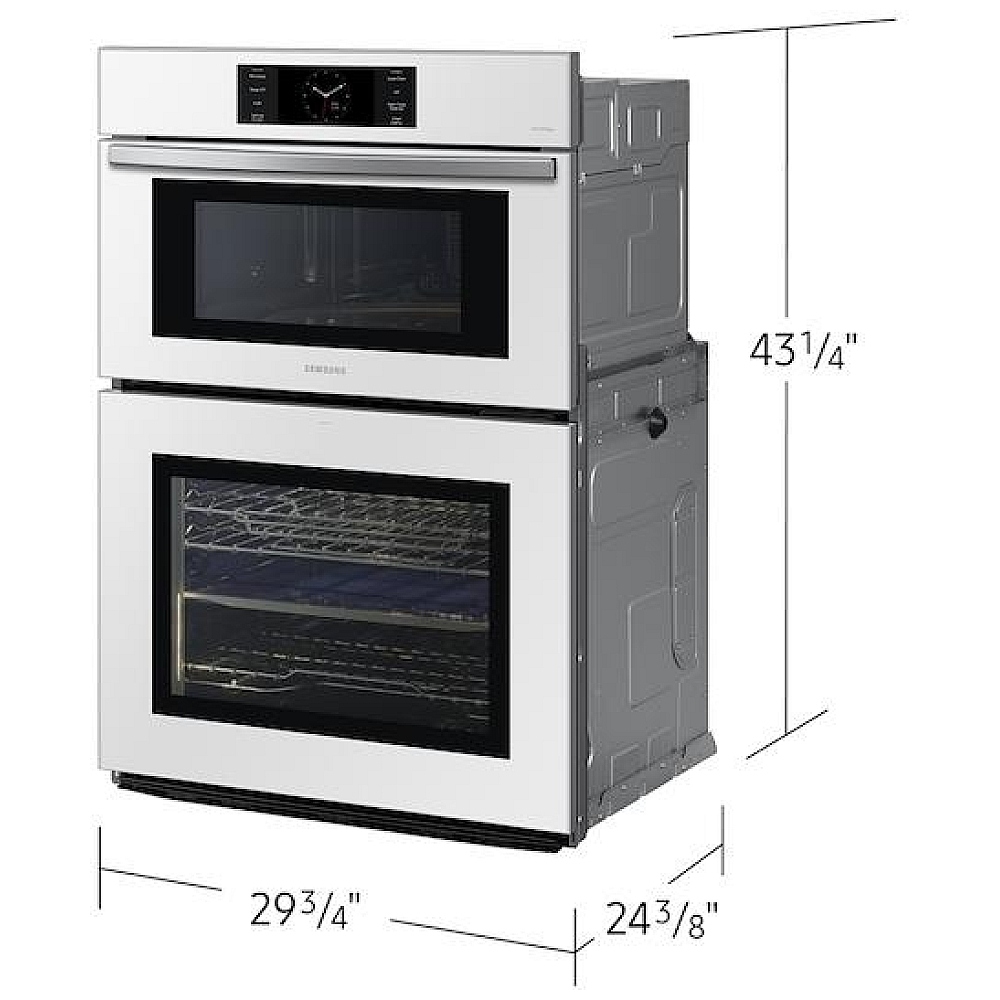

| Dimensions & Weight (Product) | |
| Outside Width | 29.75 inches (approx. 756 mm) |
| Outside Height | 43.25 inches (approx. 1099 mm) |
| Outside Depth | 24.38 inches (approx. 620 mm) |
| Nominal Width | 30 inches |
| Net Weight | 126.5 kg (approx. 278.9 lb) |
| Cutout Dimensions | |
| Cutout Width | 28.63 inches (approx. 727 mm) |
| Cutout Height | 42.25 inches (approx. 1073 mm) |
| Cutout Depth | 23.5 inches (approx. 597 mm) |
| Rear Clearance Recommendation | Minimum 5 inches between product and rear wall for vent duct installation |
| Shipping Dimensions & Weight | |
| Shipping Width | 33.75 inches (approx. 855 mm) |
| Shipping Height | 48.25 inches (approx. 1222 mm) |
| Shipping Depth | 29.44 inches (approx. 757 mm) |
| Shipping Weight | 140 kg |
| Oven Performance | |
| Cooking System | Convection / Dual Convection |
| Convection Power | 1300 W (microwave) / 1300 W (oven) |
| Bake Heater | 3000 W |
| Broil Heater | 4400 W |
| Convection Bake Temperature Range | 175°F (80°C) – 550°F (285°C) |
| Steam Bake Temperature Range | 230°F (110°C) – 550°F (285°C) |
| Steam Roast Temperature Range | 230°F (110°C) – 550°F (285°C) |
| Air Fry | Yes (No-preheat Air Fry) |
| Air Fry Auto Cook Programs | 20 programs |
| Healthy Cook Programs | 15 programs |
| Sensor Cook Programs | 11 programs |
| Auto Cook Programs | 29 programs |
| Defrost Programs | 4 programs |
| Defrost (Auto / Power / Sensor) | Auto |
| Keep Warm | Yes |
| Proofing | Yes |
| Dehydrator | Yes |
| Temperature-Sensor Baking | Yes (temperature probe) |
| Microwave Performance | |
| Microwave Power Levels | 10 |
| Microwave Output (MWO Watts) | 950 W |
| Microwave Features | Defrost setting, Sensor Cook, Auto Cook programs |
| Microwave Door Release | Pull handle |
| Cleaning | |
| Cleaning Method | Self Clean + Steam Clean |
| Oven Cleaning Type | Self-Clean & Steam Clean |
| Light Self-Clean Option | Yes |
| Adjustable Cleaning Levels | Yes |
| Materials & Interior | |
| Cavity Material | Ceramic Enamel |
| Interior Light (Position) | Top |
| Interior Lamp Type & Power | 2.5 W × 2 (LED) / 40 W × 2 (Halogen) |
| Interior Lights (qty) | Halogen (oven), LED (microwave) |
| Hidden Bake Element | Yes |

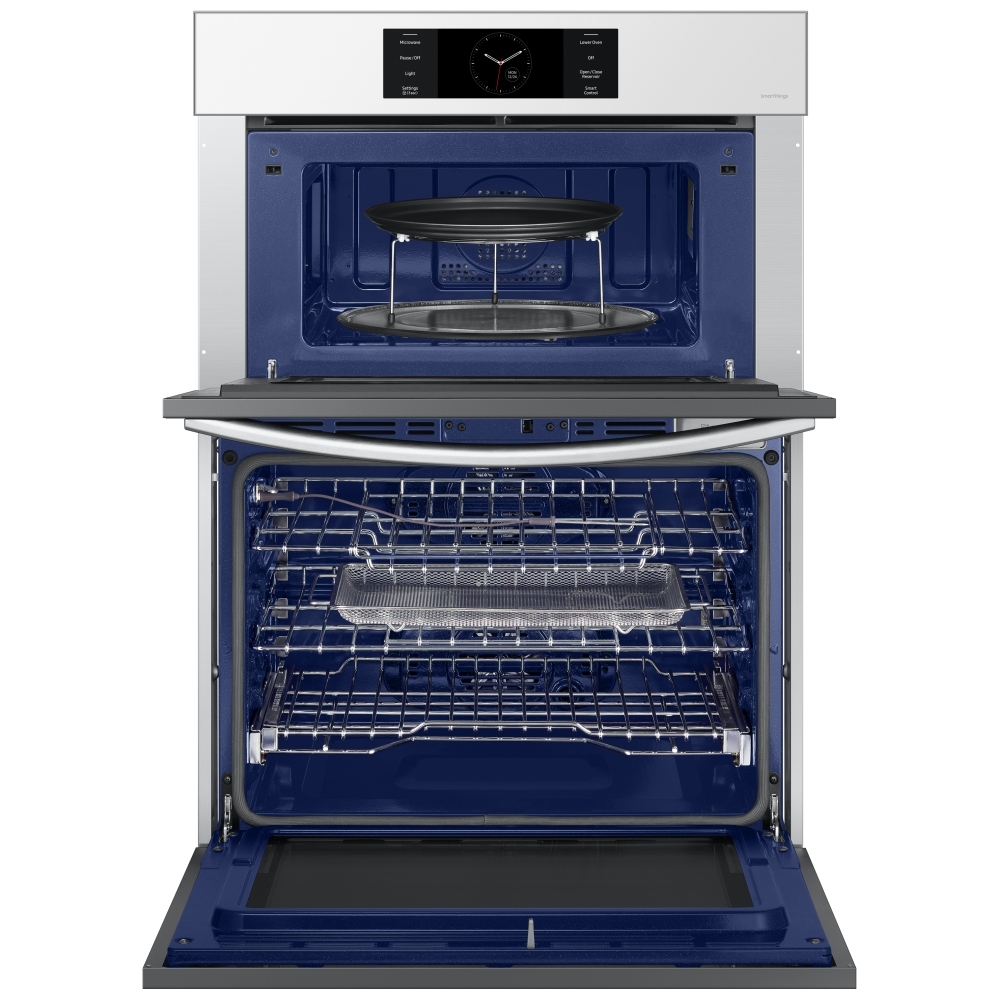

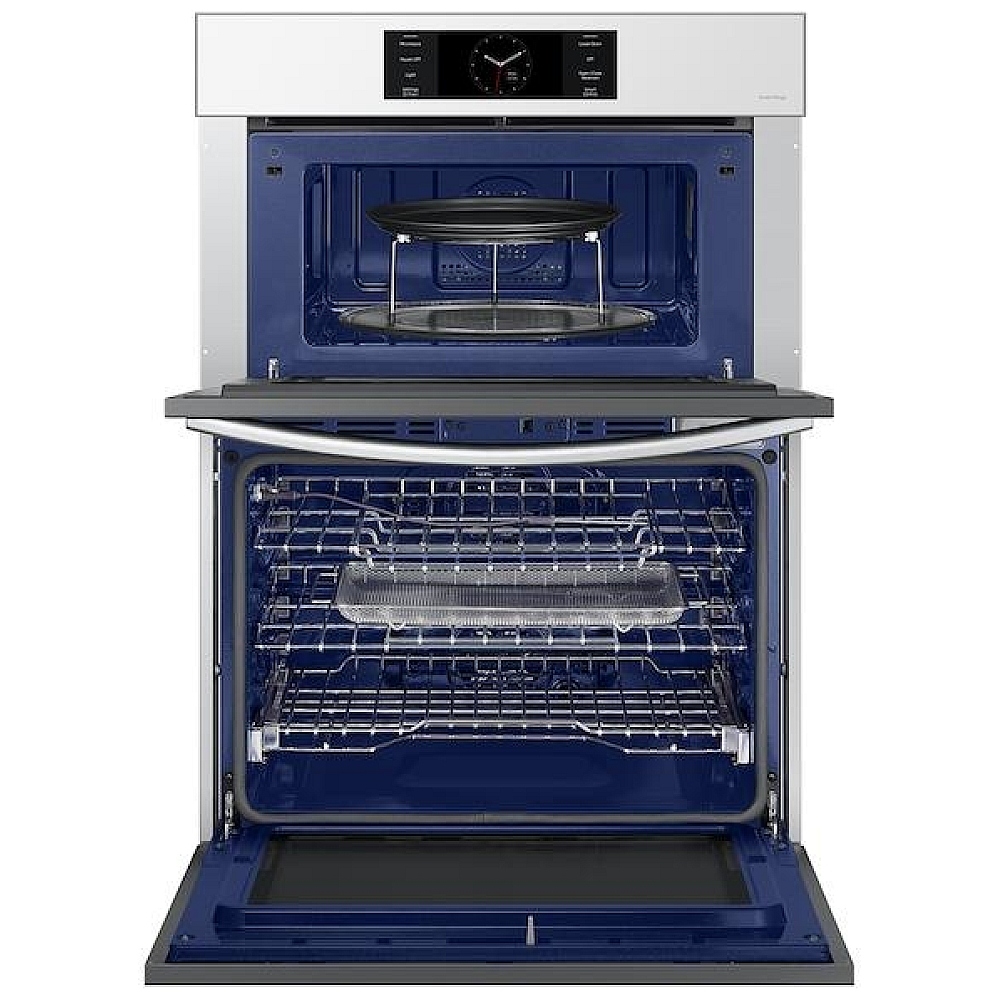

| Racks & Accessories | |
| Total Number of Oven Racks | 3 |
| Number of Rack Positions | 6 |
| Wire Rack (Microwave) | 2 |
| Wire Rack (Oven) | 1 |
| Square Wire Rack | 1 |
| Wire Rack Steam | 1 |
| Gliding Rack | Yes (1) |
| Air Fry Tray | Yes |
| Crusty Plate | Yes |
| Temperature Probe | Yes |
| Divider (Flex Duo) | Yes (bottom oven only) |
| Key Features & Modes | |
| Flex Duo | Yes (bottom oven only, cook two dishes at different temperatures simultaneously) |
| Air Fry | Yes (No-preheat Air Fry) |
| Air Sous Vide | Yes |
| Steam Cook / Steam Cook Plus | Yes |
| Steam Oven Functionality | Yes (Steam Bake, Steam Roast) |
| Dual Convection | Yes (two heated fans) |
| Sensor Cook | Yes |
| Delay Bake / Delay Start | Yes |
| Time Bake | Yes |
| Dehydrator | Yes |
| Proofing Mode | Yes |
| Keep Warm Setting | Yes |
| Favorite Setting | Yes |
| Smart & Connectivity | |
| Wi-Fi Embedded / Wi-Fi Connectivity | Yes |
| Smart Compatible | Yes |
| App Compatibility | Yes |
| Works with SmartThings | Yes |
| Works with Android | Yes |
| SmartThings App Support | Yes |
| Controls & Convenience | |
| Kitchen Timer | Yes |
| Timer | Yes |
| Delay Start | Yes |
| Clock System Option | 12H / 24H selectable |
| Sound On/Off | Yes |
| Light (Lamp) On/Off | Yes |
| Language Option | Yes |
| Safety & Compliance | |
| Child Safety Lock / Child Lock | Yes |
| Microwave Child Safety Locks | Yes |
| Oven Door Lock | Yes |
| Sabbath Mode | Yes |
| ADA Compliant | No |
| Power & Ratings | |
| Power Source | 240 V ~ 60 Hz (also listed 208/240 V) |
| Voltage | 208/240 V |
| Amps | 40 A |
| Total Power | 9500 W |
| Energy Consumption | 405 kWh/year |
| Energy Star Rated | No |
| Other | |
| Common Oven Size | 30 inches |
| Appliance Fit Width | 30 inches |
| Appliance Color | White |
| Color Finish Name | White Glass |
| MPN | NQ70CB700D12AA |
| Manufacturer Warranty | 1 Year Parts & Labor |
What truly sets the NQ70CB700D12AA apart are its premium cooking technologies that you typically only find in high‑end professional appliances. The integrated Flex Duo™ feature in the lower oven lets you convert one large cavity into two separate cooking zones, each with its own temperature and time settings, so you can bake delicate pastries on one level while roasting vegetables or meats on another. For health‑conscious cooks, Air Fry is built right into the oven, allowing you to enjoy crispy, “fried” favorites with little to no added oil and without the clutter of a separate countertop appliance; an included tray is optimized to circulate hot air for even, golden results. Another standout is Air Sous Vide, which uses precisely controlled heat and airflow to mimic traditional sous vide cooking—without the need for a water bath—helping you achieve tender, juicy fish, poultry, and vegetables with restaurant‑quality consistency.
To support these advanced modes, dual convection fans in the lower oven help maintain even temperatures across every rack, reducing hot spots and cutting down on cook times. Steam Cook Plus adds the option to cook with added steam, helping retain moisture and nutrients while enhancing texture and flavor, especially for breads, roasts, and delicate dishes. Smart connectivity through SmartThings™ lets you preheat, monitor, and adjust settings from your compatible smartphone, as well as access guided recipes and energy‑use insights. With self and steam cleaning options, intuitive digital touch controls, and a bright, easy‑to‑read display, the Samsung NQ70CB700D12AA delivers a premium, built‑in look and a powerful, future‑ready cooking experience tailored to busy modern kitchens.
• Flex Duo™ dual oven – uses a removable divider and independent temperature controls to convert the lower oven from one large cavity into two separate cooking zones for different dishes at once.
• SmartThings connectivity – lets you search recipes, preheat, adjust settings, and monitor the oven remotely from your smartphone, and receive alerts and energy-usage insights.
• Air Sous Vide – circulates precise, low-temperature air to deliver sous vide–style results without a water bath, helping preserve natural flavor and prevent overcooking of fish, poultry, and vegetables.
• No-preheat Air Fry – uses high-speed hot air and an included Air Fry tray to create crispy “fried” foods with less oil and no preheating, eliminating the need for a separate air fryer.

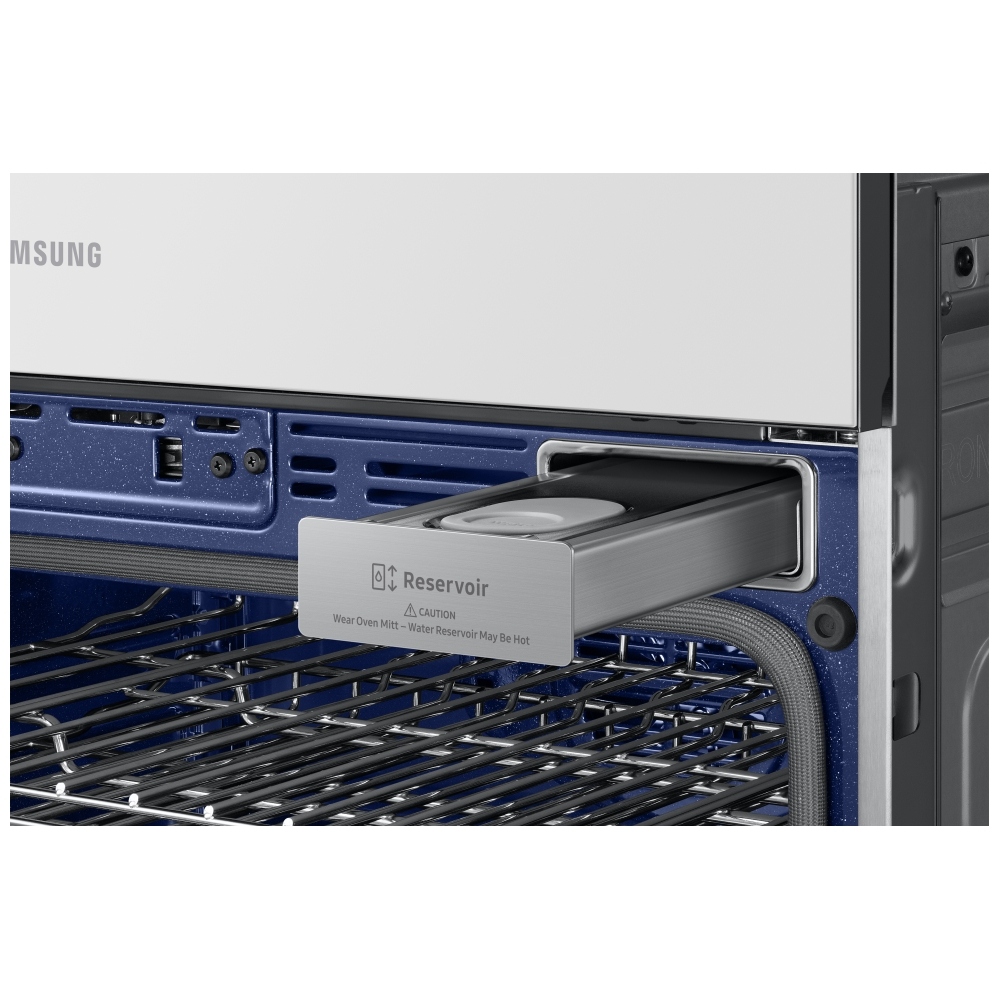

• Steam Cook / Steam Cook Plus – uses an easy-fill water tray to bake, roast, and broil with added steam so foods stay moist and flavorful, and can be fully cooked using only steam to better retain nutrients.
• Power Convection (microwave) – combines convection, microwave, and grill heat sources in the upper cavity to cook faster and more evenly, producing crispy exteriors and juicy interiors.

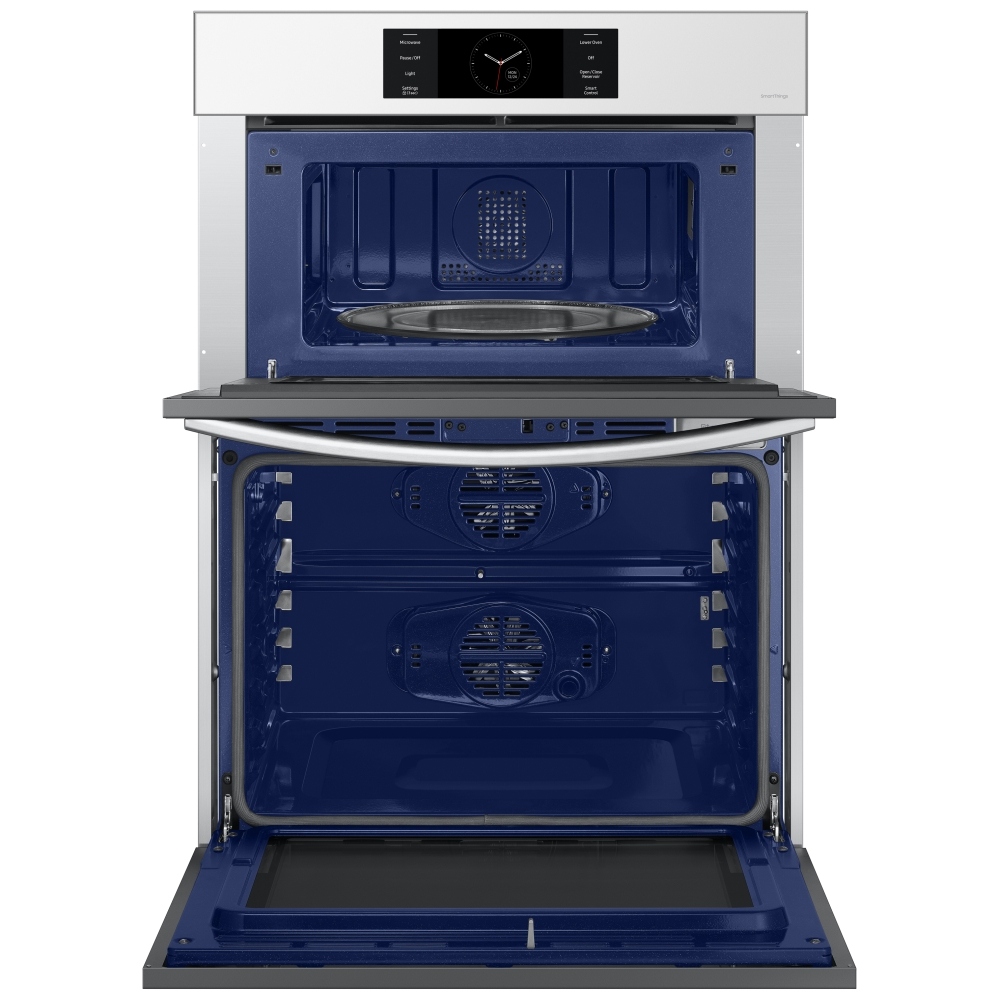

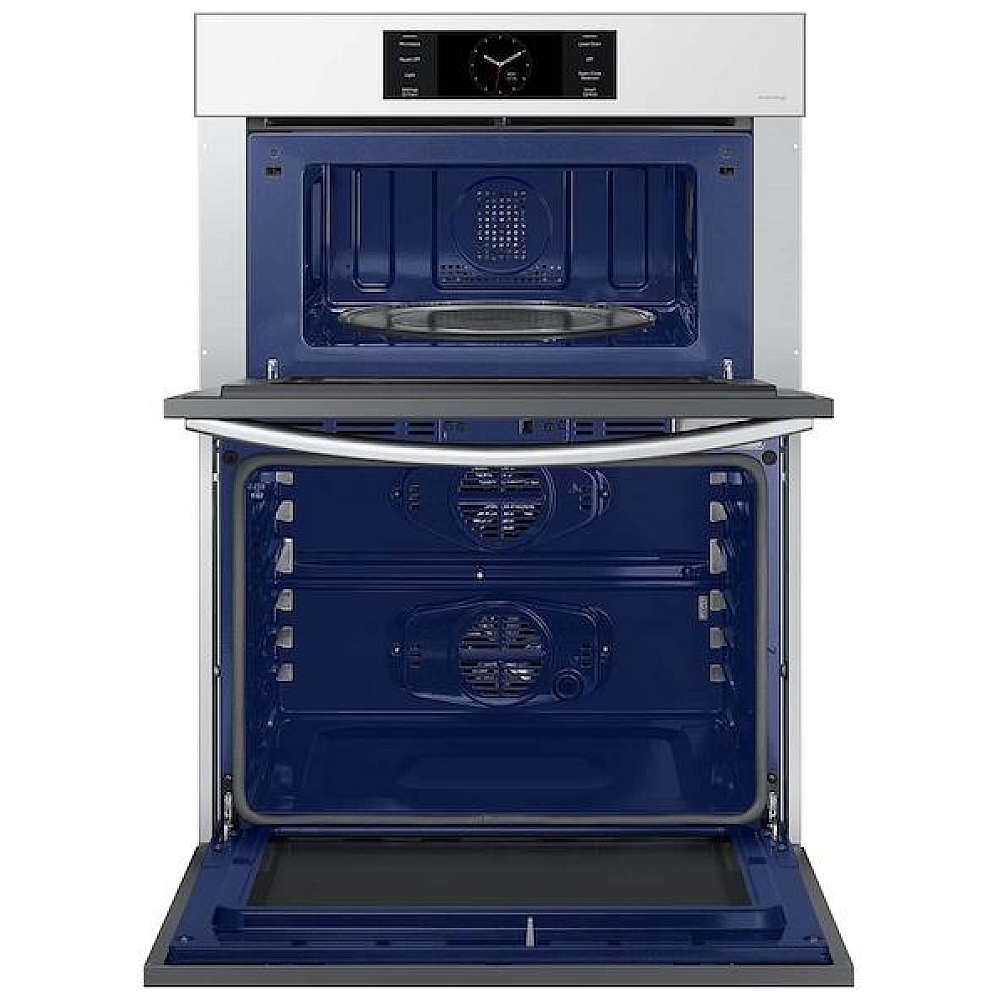

• Dual Convection (lower oven) – employs two heated fans to distribute heat evenly throughout the oven for consistent baking, roasting, and broiling on multiple racks.
• 7.0 cu. ft. total capacity (1.9 / 5.1 cu. ft.) – offers a 1.9 cu. ft. convection microwave on top and a 5.1 cu. ft. convection oven below, providing ample space for large roasts, multiple trays, and family-size meals.
• Microwave Speed Cook – combines microwave and convection power to significantly reduce cooking times while still browning and crisping foods.
• Convection Vegetable mode – optimizes temperature and airflow to quickly cook vegetables so they’re crisp-tender and flavorful, with no preheating required.
• Gourmet / Auto Cook programs – offers preset cooking algorithms for common dishes to automatically adjust time and temperature for reliable results.
• Full Steam function – works with Samsung’s Steam Cook Tray (sold separately) to cook foods entirely with steam for healthier, nutrient-retaining meals.
• Self and Steam Clean – provides a high-heat self-clean cycle to burn off baked-on residue and a quick steam-clean option (about 20 minutes) for lighter cleaning tasks.

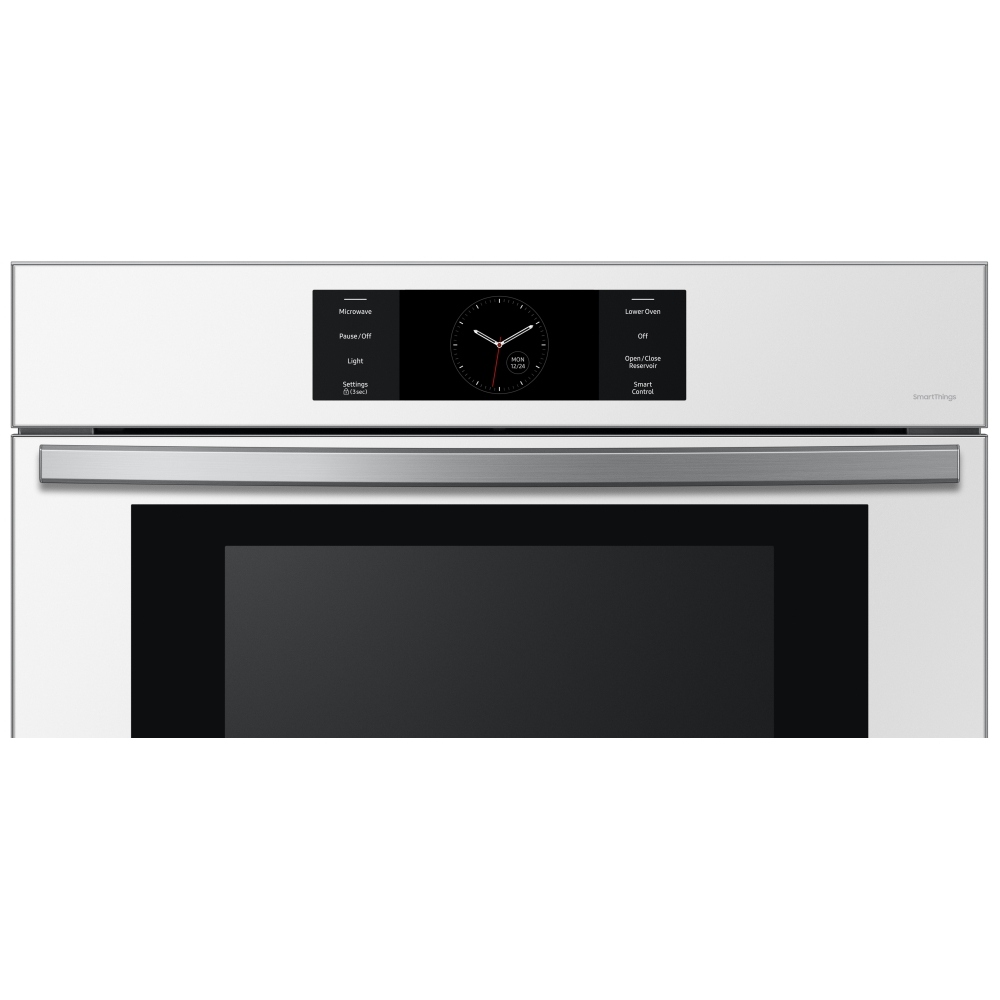

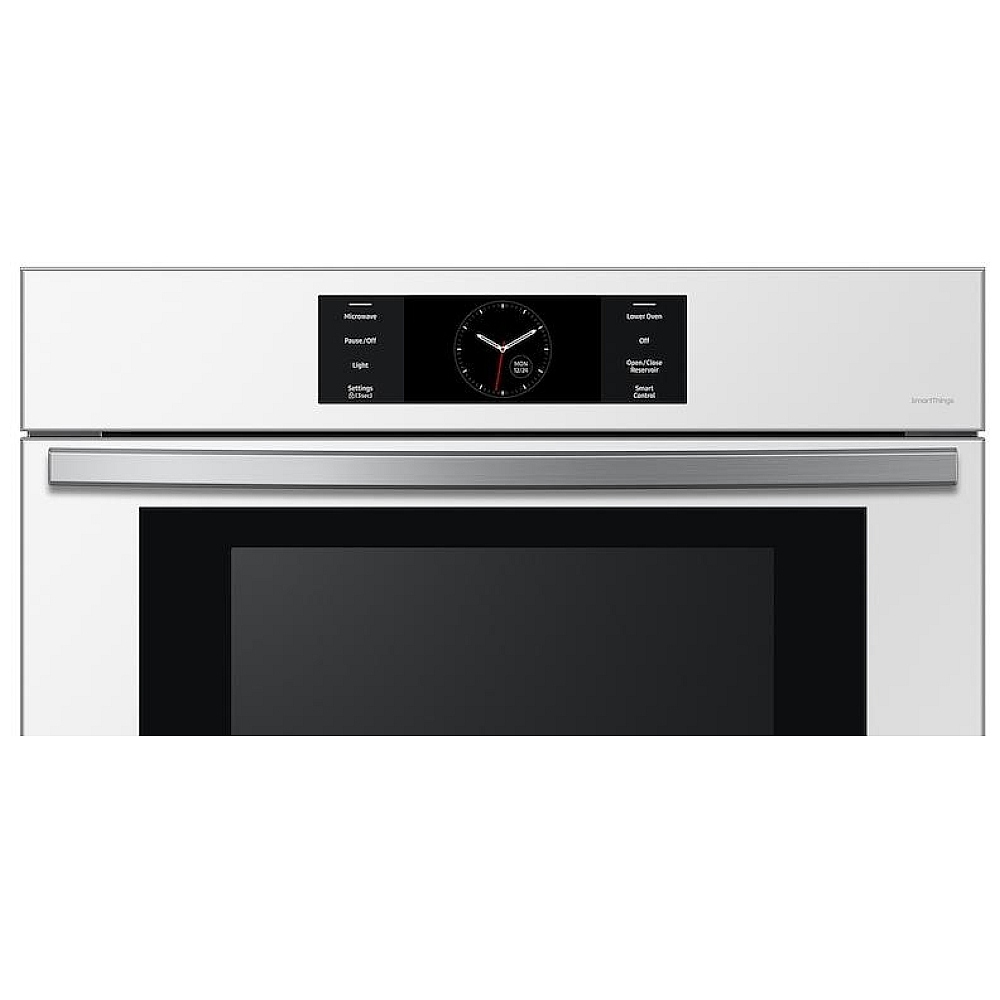

• Digital Touch Controls with 7″ LCD display – large, easy-to-read touch panel with clear text and icons for intuitive control and at-a-glance monitoring from across the kitchen.
• Wi‑Fi enabled wall oven – connects to home Wi‑Fi for remote control, status notifications, and integration with compatible voice assistants via SmartThings.
• Energy monitoring via SmartThings – tracks the oven’s power usage and provides tips and alerts to help manage and potentially reduce energy consumption.
• Handle-free door design – push-to-open lower oven door creates a seamless, handleless front and opens with a light press for a clean, modern appearance.
• Cool-touch exterior door – keeps the outer surface of the door cooler to the touch during operation for added safety around children and pets.
• Child Safety Lock / Child Lock function – disables controls and prevents the door from opening in certain modes to help keep children from changing settings or accessing a hot oven.
• Sabbath Mode – adjusts oven operation to meet Sabbath and religious observance requirements by limiting certain automatic functions.
• Temperature probe – monitors internal food temperature so you can cook meats and casseroles to precise doneness without constant checking.
• Hidden bake element – conceals the lower heating element beneath the oven floor for easier cleaning and a smoother interior surface.

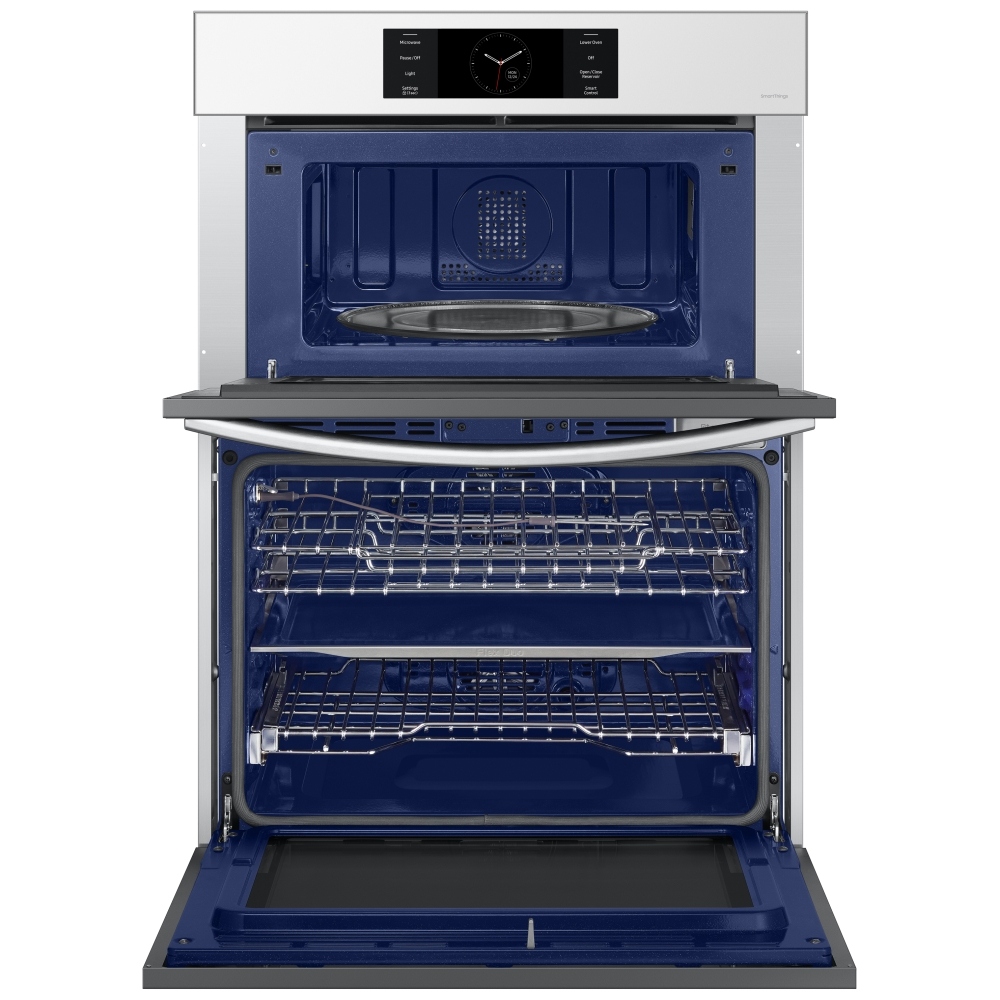

• Gliding rack – includes a ball-bearing roll-out rack in the lower oven that slides smoothly for safer, easier access to heavy dishes.
• Multiple rack positions – offers six rack positions and a combination of standard and gliding racks to accommodate tall items and multi-rack cooking.
• Sensor Cook (microwave) – automatically adjusts cooking time and power based on steam and humidity levels for more consistent microwave results.
• Auto Defrost (microwave) – uses preset programs to thaw foods evenly by weight or type, reducing guesswork and partial cooking.
• Variable broil – provides adjustable broil settings from low to high for everything from gentle browning to intense searing.
• Keep Warm function – maintains cooked dishes at serving temperature without overcooking while you finish other components of the meal.
• Delay Start – lets you program the oven to begin cooking at a later time, useful for coordinating meals with your schedule.
• Kitchen timer and clock – built-in timer and 12/24‑hour clock help coordinate cooking times and daily kitchen tasks.
• Sound on/off setting – allows you to mute or adjust alert tones for a quieter kitchen environment.
• Interior halogen lighting – bright top-positioned halogen lights illuminate the oven cavity so you can check progress through the window without opening the door.
• Electric built-in design – 30″ electric wall oven/microwave combo installs flush or nearly flush into cabinetry for a custom, integrated look.
• Convection cooking system – supports convection bake and roast modes for faster, more even cooking compared with traditional radiant-only ovens.
• Time Bake / programmable cooking – lets you set specific cook times and temperatures so the oven automatically turns off when the cycle is complete.
• Safety lock for controls – prevents accidental changes to settings during operation, reducing the risk of unintended temperature or mode adjustments.
• 1-year parts and labor warranty – provides manufacturer coverage for repair or replacement of defects in materials and workmanship during the first year of ownership.
Manufacturer’s Warranty: 1 year
Canadian model: NQ70CB700D12AA
Canadian UPC: 887276757582
EAN: 0887276757582
