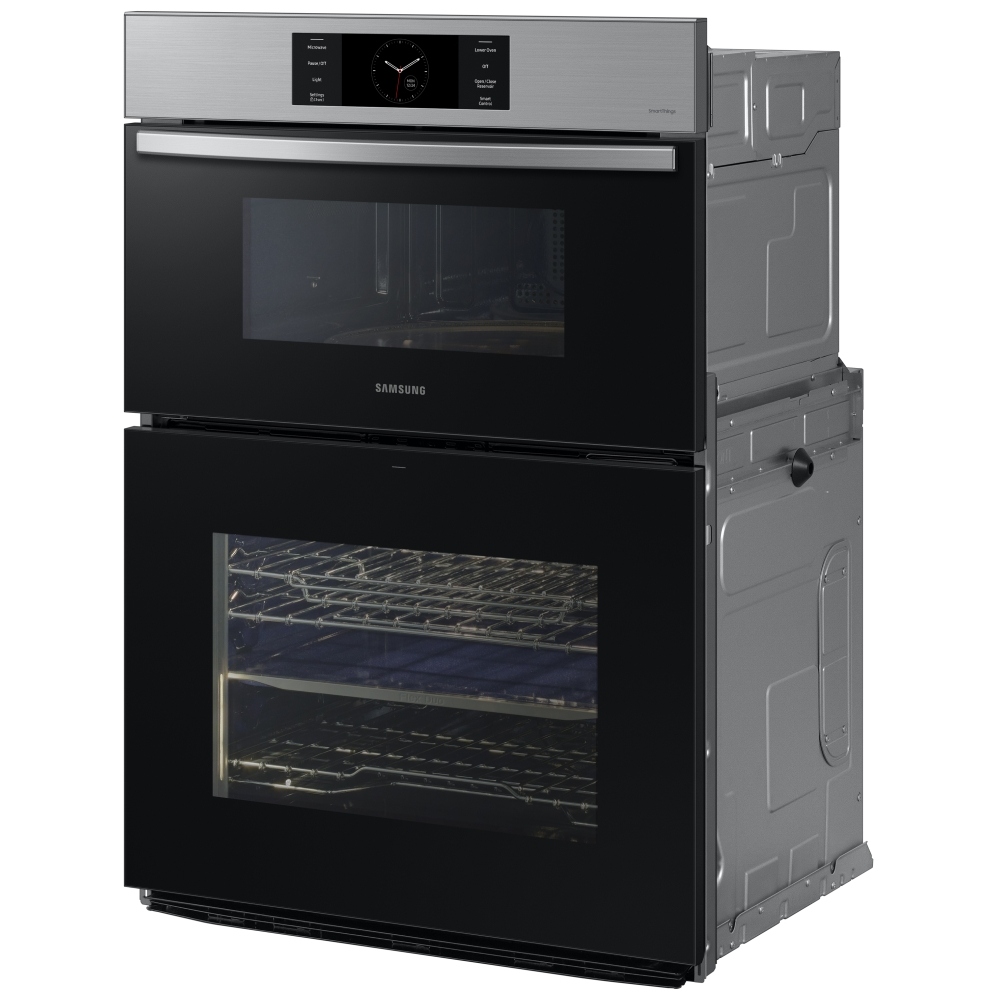

Samsung Bespoke NQ70CG700DSRAA Microwave Wall Oven Combo,
30 inch Exterior Width, Convection, Self Clean, 7 cu. ft. Capacity, Temperature Probe, Wifi Enabled, Air Fry, Stainless Steel colour FlexDuo, Air Fry, Air Sous Vide, Steam Cooking, True European Convection, Telescopic Gliding Extension Rack
| Specification | Value |
|---|---|
| Product Type | 30″ Built-In Microwave Combination Wall Oven |
| Series | 7.0 cu. Ft. 7 Series Combination Wall Oven with Air Fry, Air Sous Vide, and Flex Duo |
| Model | NQ70CG700DSRAA |
| Configuration | Upper microwave / lower electric wall oven (Combi Oven) |
| Total Capacity | 7.0 cu ft |
| Microwave Capacity | 1.9 cu ft |
| Oven Capacity | 5.1 cu ft |
| Fuel Type | Electric |
| Cooking System | Dual Convection (lower oven) + Power Convection (upper microwave) |
| Air Fry | Yes (Air Fry mode with dedicated programs) |
| Air Sous Vide | Yes (100°F – 205°F) |
| Steam Cook | Yes (Steam Cook, Steam Roast) |
| Steam Cook Plus | Yes |
| Flex Duo | Yes (oven divider with Dual Convection) |
| No Preheat Mode | Yes (on Convection Bake / Convection Roast) |
| Self Clean | Self-Clean & Steam Clean |
| Oven Cleaning Method | Self Clean + Steam Clean |
| Control Type | Digital Touch Controls |

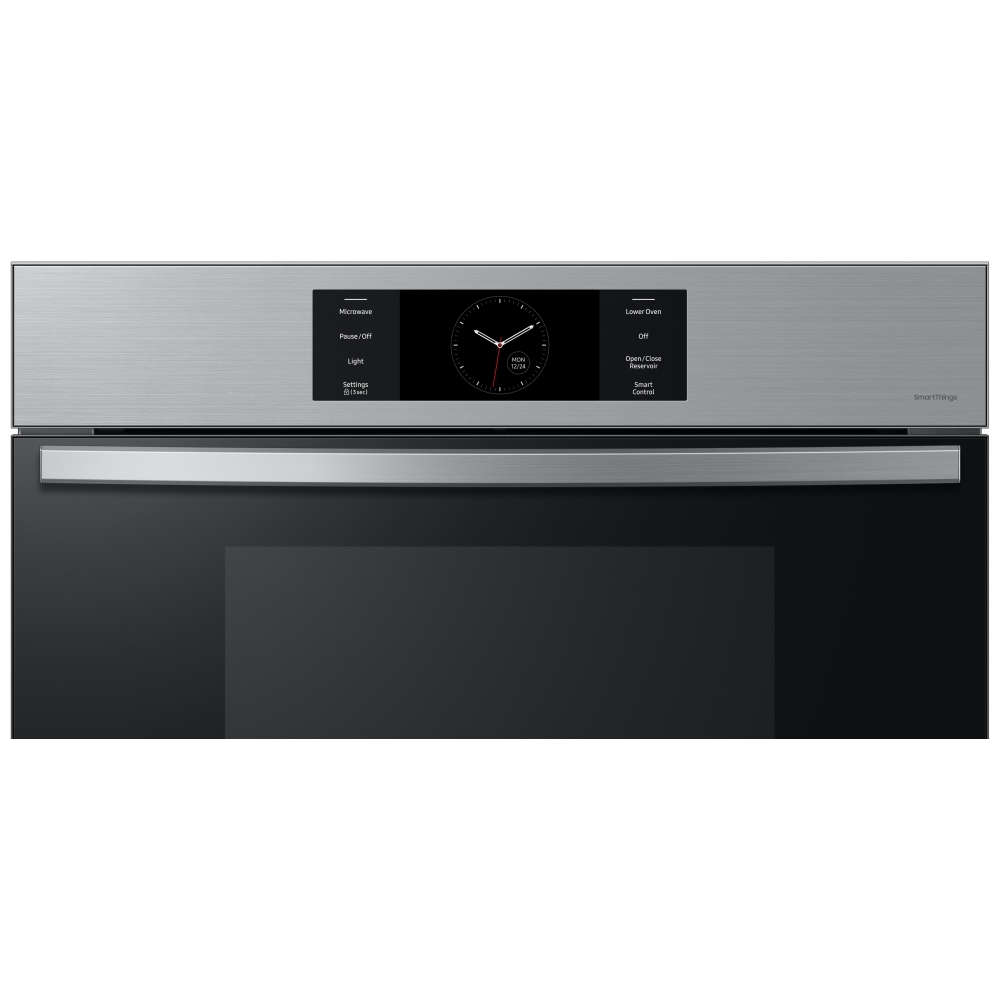

| Display Type | 7″ TFT LCD (Ice Blue style display) |
| Wi-Fi | Wi-Fi Embedded, SmartThings App Support |
| Smart Features | Wi-Fi Connected, SmartThings, Guided Cook, App Capable |
| AI Cooking Camera | Yes (in-oven camera) |
| Clock / Timer | Kitchen Timer, Clock (12H/24H option) |
| Child Safety Lock | Yes |
| Sabbath Mode | Yes |
| Keep Warm | Yes |
| Sound On/Off | Yes |
| Language Option | Yes (multi-language display support) |
| Interior Lights | LED + Halogen (2.5 W × 2 LED / 40 W × 2 Halogen) |
| Interior Light Position | Top |
| Oven Light Control | Light On/Off button |
| Oven Door Type | Drop-down door, full glass, handle-free push-to-open design |
| Oven Door Glass | 3-layer (microwave) / 4-layer (oven) |
| Cavity Material | Ceramic Enamel |
| Color | Stainless Steel (Bespoke finish) |
| Collection | Bespoke |
| Handle Design | Handle-free, seamless touch-controlled door |

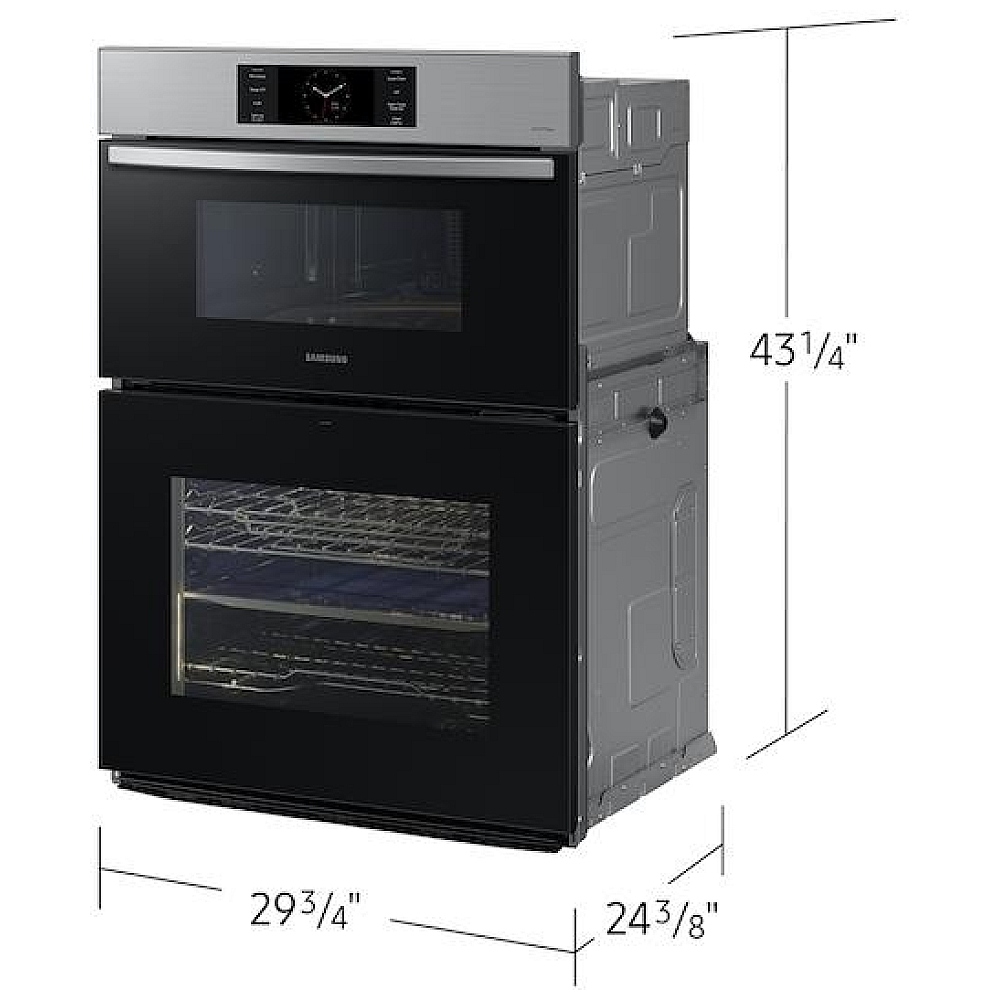

| Overall Width | 29.75 in (approx. 29.76″) |
| Overall Height | 43.25 in |
| Overall Depth | 24.37 – 24.38 in |
| Nominal Width | 30 in |
| Outside Dimensions (WxHxD) | 756 × 1099 × 620 mm |
| Cutout Width | 28.63 in (727 mm) |
| Cutout Height | 42.25 in (1073 mm) |
| Cutout Depth | 23.5 in (597 mm) |
| Minimum Rear Clearance | 5 in between product and rear wall for vent duct |
| Product Weight | Approx. 278.9 lb (net weight ~126.5 kg) |
| Shipping Dimensions (WxHxD) | 855 × 1222 × 757 mm |
| Shipping Weight | Approx. 140 kg |
| Power Source | 240 V ~ 60 Hz (208/240 V compatible) |
| Amperage | 40 A |
| Microwave Power Levels | 10 power levels |
| Microwave Output | 950 W |
| Convection Power (Oven) | 1300 W (dual convection fans) |
| Convection Power (Microwave) | 1300 W (Power Convection) |
| Bake Heater (Oven) | 3000 W |
| Broil Heater (Oven) | 4400 W |
| Total Power | Up to approx. 9500 W |
| Energy Consumption | Approx. 400 kWh/year |
| Oven Temperature Range – Bake | 175°F – 550°F (80°C – 285°C) |
| Oven Temperature Range – Convection Bake | 175°F – 550°F |
| Oven Temperature Range – Convection Roast | 175°F – 550°F |
| Steam Bake Temperature Range | 230°F – 550°F |
| Steam Roast Temperature Range | 230°F – 550°F |
| Convection Vegetables | 350°F – 450°F |
| Air Fry Temperature Range | 350°F – 500°F |
| Air Sous Vide Temperature Range | 100°F – 205°F |
| Installation Type | Built-In Wall Oven Combo |
| Wall Oven Type | Microwave Combination Wall Oven |
| ADA Compliant | No |
| Smart Compatible | Yes (Wi-Fi, SmartThings) |
| Sensor Cook | Yes (microwave sensor cooking programs) |
| Defrost Functions | Auto Defrost, multiple defrost programs |
| Auto Programs | Multiple Auto Cook, Sensor Cook, Air Fry Auto Cook, Healthy Cook programs |
| Air Fry Auto Cook Programs | Dedicated Air Fry auto menus |
| Healthy Cook Programs | Dedicated healthy cooking auto menus |
| Delay Start | Yes (Delay Bake/Start) |
| Dehydrator | Yes (dehydrate mode) |
| Warming Mode | Yes |
| Hidden Bake Element | Yes |

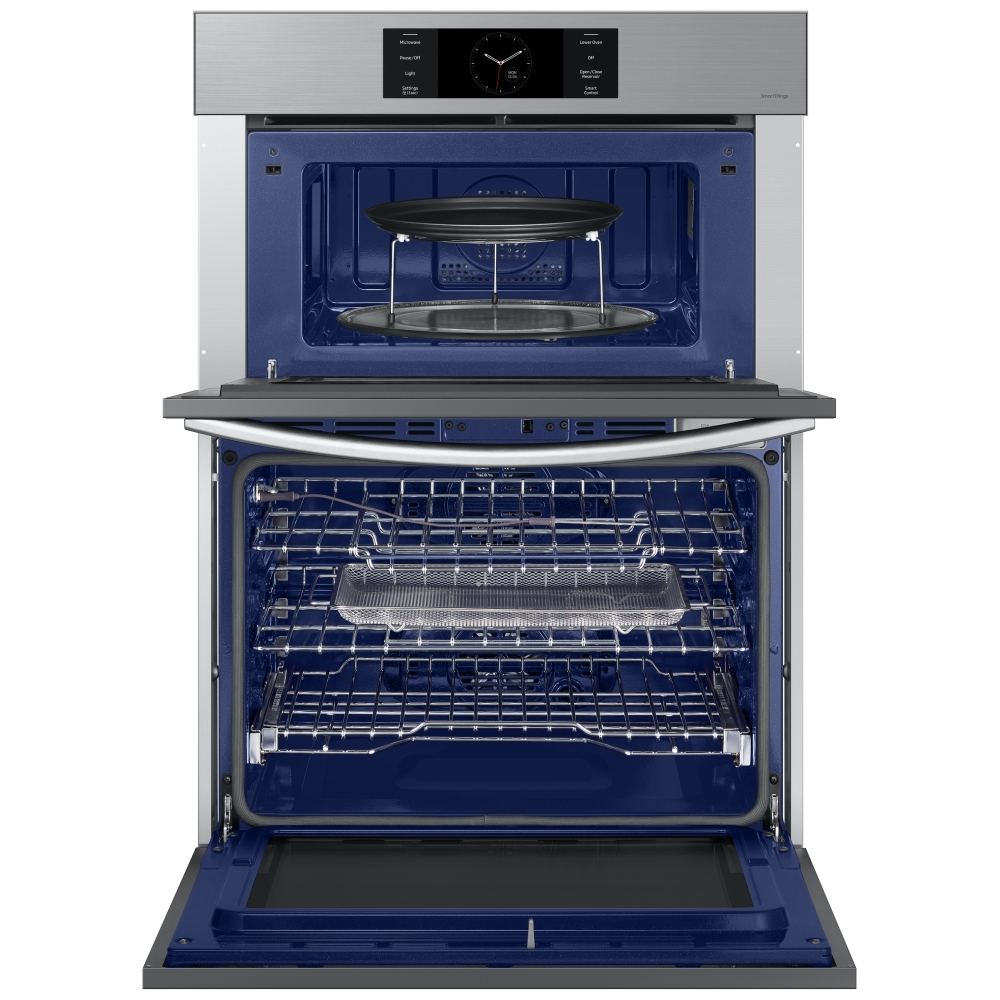

| Oven Racks (Total) | 3 total oven racks (including 1 gliding rack; heavy-duty racks) |
| Microwave Racks | 2 wire racks (upper microwave) |
| Rack Positions | 6 rack positions (oven) |
| Included Accessories | Square wire rack(s), wire rack(s), gliding rack, Air Fry tray, crusty plate, temperature probe, divider (Flex Duo) |
| Microwave Door Release | Pull handle |
| Manufacturer Warranty | 1 Year Parts and Labor |
• Flex Duo™ oven technology – lets you use the lower oven cavity as one large 5.1 cu. ft. oven or divide it into two independent cooking zones to bake different dishes at different temperatures at the same time.
• SmartThings connectivity – connects to the SmartThings app so you can monitor, control, and receive notifications from your wall oven remotely using your compatible smart device.
• Bespoke AI features – uses intelligent presets and guidance to help optimize cooking modes and temperatures for more consistent results with less guesswork.

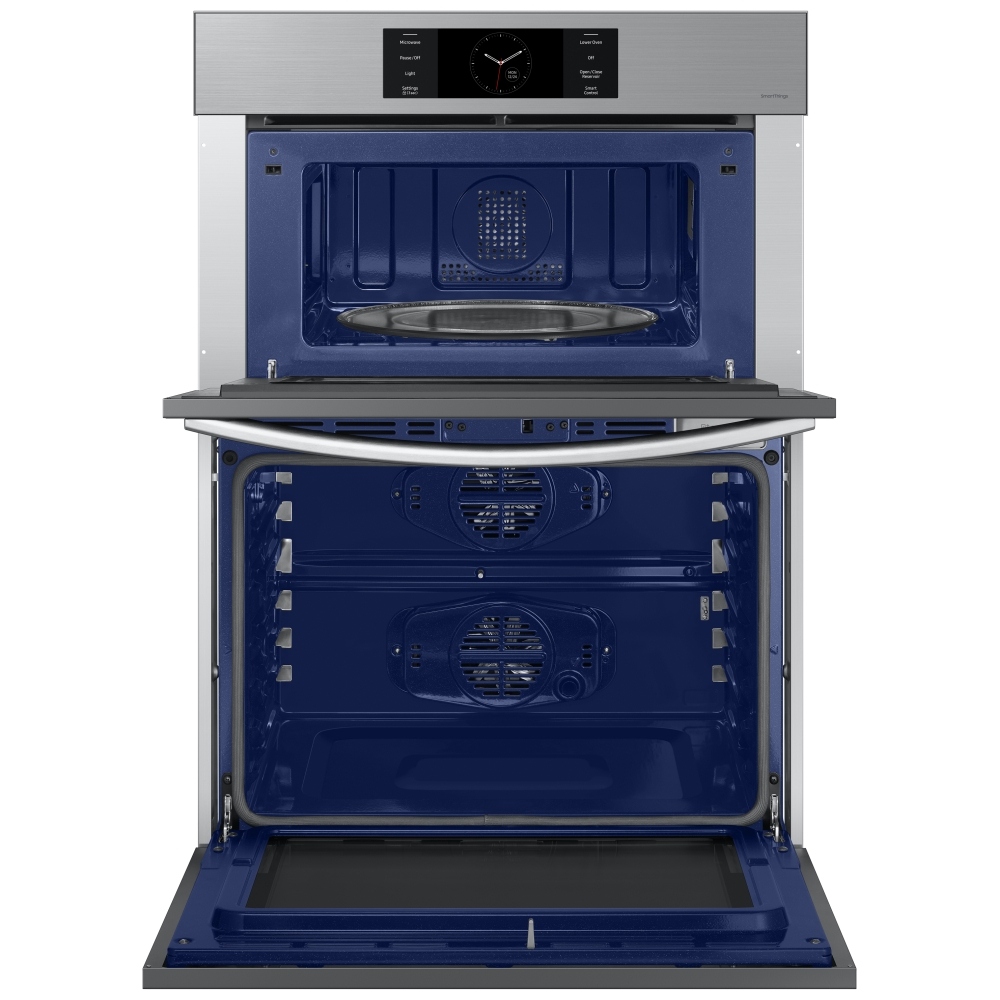

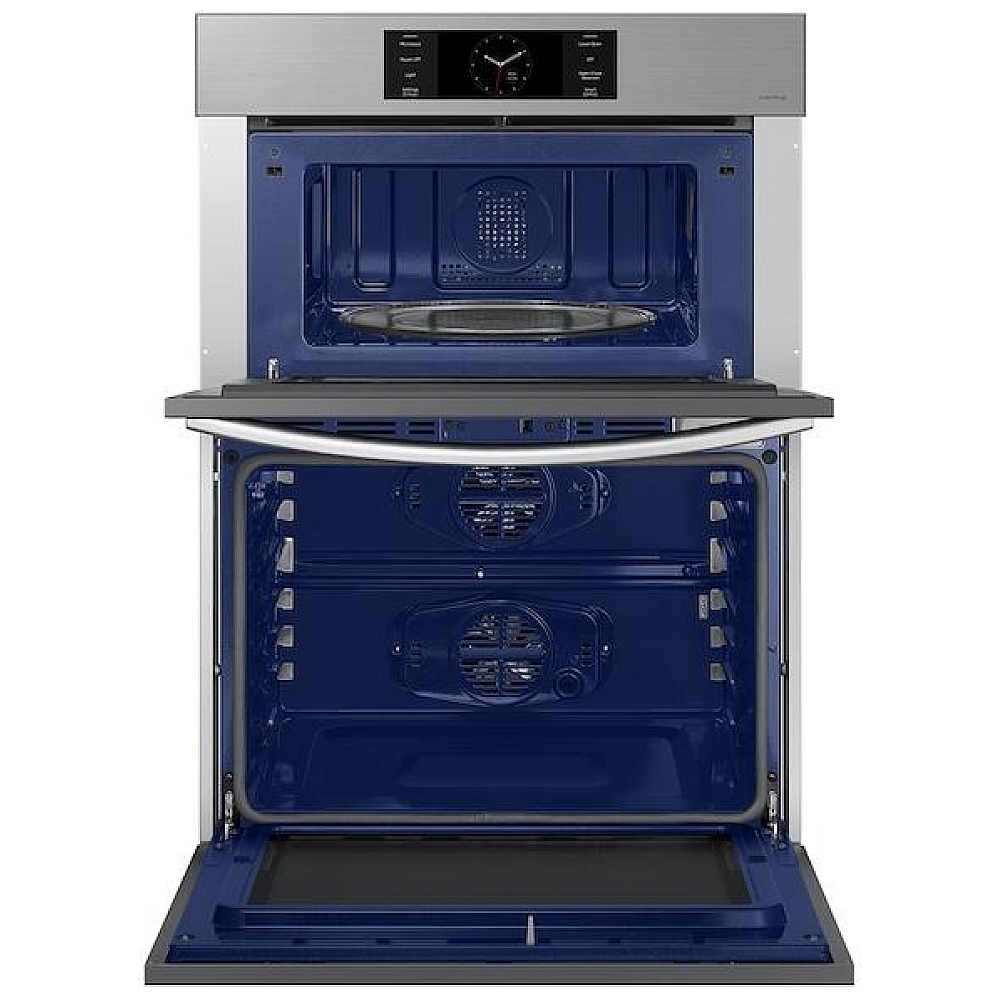

• Dual Convection cooking system – two convection fans circulate hot air evenly throughout the oven for faster preheating, more even baking, and improved roasting performance.
• Air Fry mode with included tray – uses high‑temperature convection air to crisp foods with little or no added oil, eliminating the need for a separate countertop air fryer; dedicated Air Fry tray is included.
• Air Sous Vide function – maintains precise low temperatures and airflow (100°F–205°F) to deliver sous‑vide‑style results on meats, fish, and vegetables without a water bath.
• Steam Cook Plus – adds powerful steam during cooking to help keep roasts, casseroles, and baked goods moist and tender while enhancing browning.

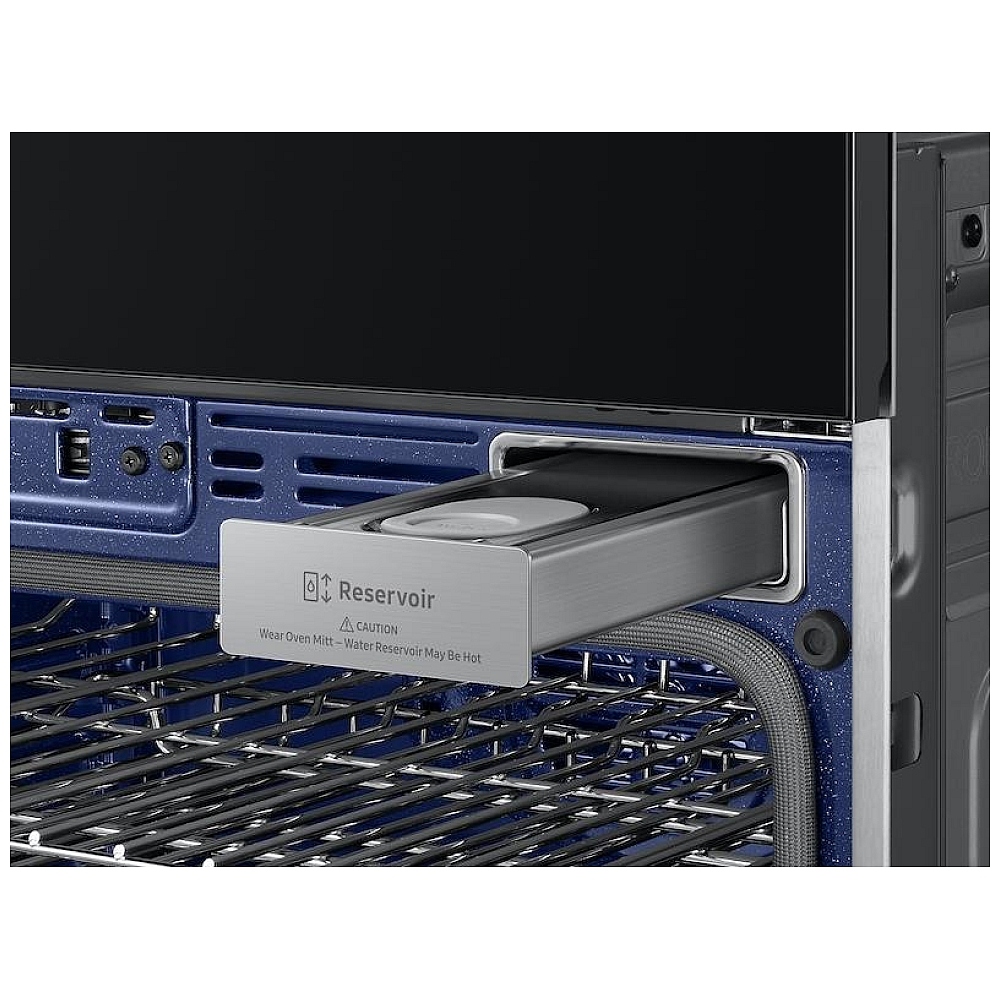

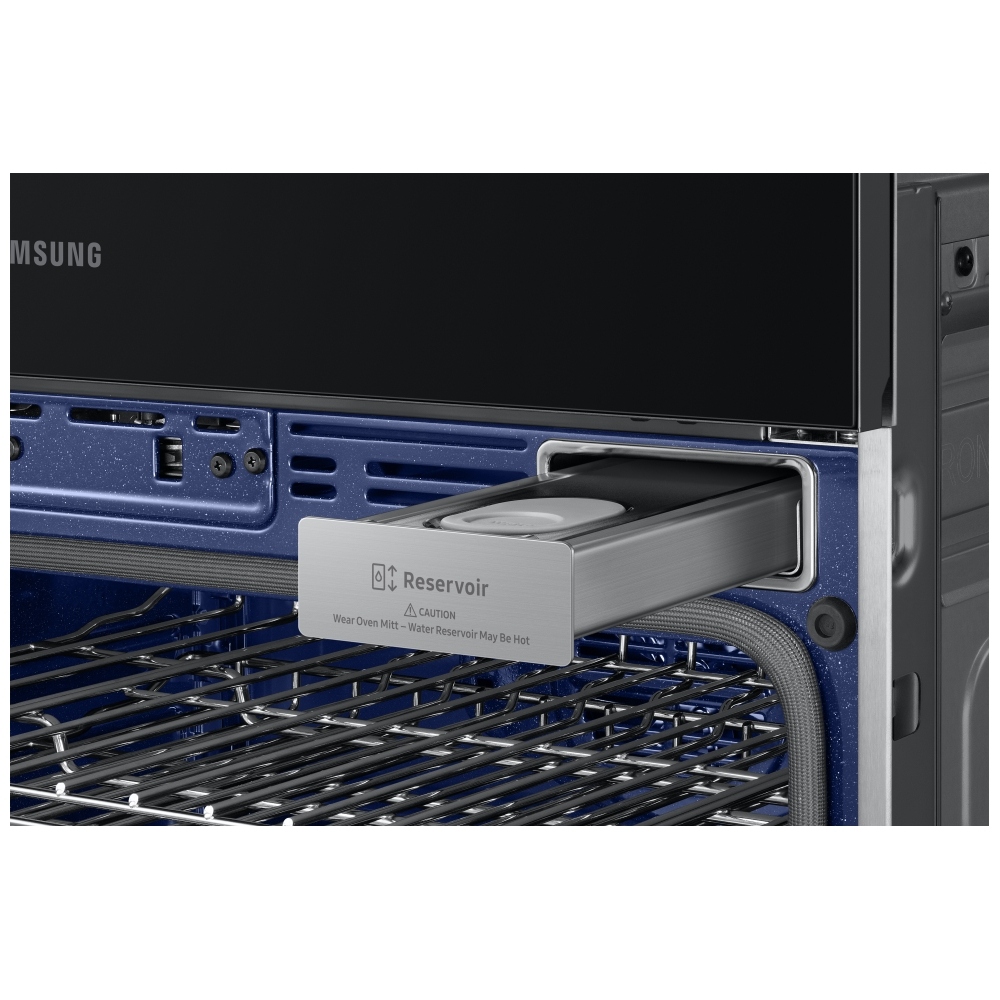

• Steam Cook (standard steam) – uses an easy‑fill water tray to introduce steam for baking, roasting, and broiling, improving texture and flavor while reducing dryness.
• Steam Bake mode – combines heat and steam (230°F–550°F) to produce breads and baked goods with crisp crusts and soft, moist interiors.
• Steam Roast mode – adds steam to roasting cycles (230°F–550°F) to keep meats juicy while still achieving a browned, caramelized exterior.
• Steam Proof function – provides a warm, humid environment ideal for proofing bread dough and other yeast‑based recipes.
• Dehydrate setting – uses low, consistent heat and airflow to dry fruits, vegetables, herbs, and snacks directly in the oven without a separate dehydrator.
• No Preheat option – allows you to start cooking immediately in certain convection modes without waiting for the oven to preheat, saving time on busy days.
• Gourmet Cook auto programs – offers preset cooking algorithms that automatically adjust time and temperature for common dishes to simplify meal preparation.
• Convection Bake mode – circulates hot air (175°F–550°F) for evenly baked cookies, cakes, and pastries on multiple racks at once.
• Convection Roast mode – uses moving hot air (175°F–550°F) to roast meats and vegetables more quickly while promoting even browning.
• Convection Vegetable mode – optimized convection range (350°F–450°F) for crisp‑tender roasted vegetables with minimal oil.
• Traditional Bake function – provides standard bottom‑heat baking (175°F–550°F) for recipes that call for conventional oven settings.
• Variable Broil control – adjustable broil levels from Low to High so you can gently melt toppings or intensely sear and caramelize foods.
• Speed Power Convection (microwave) – combines microwave energy with convection heat (100°F–450°F) to cook foods faster than a traditional oven while still browning and crisping.
• Speed Broil (microwave) – uses microwave assistance with broil heat to quickly brown and finish dishes, ideal for gratins and casseroles.
• Microwave Sensor Cook programs – automatically adjust time and power based on steam and humidity levels for more accurate reheating and cooking.
• Microwave Auto Defrost options – dedicated defrost programs that calculate time and power levels to thaw foods evenly without partially cooking them.
• Air Fry Auto Cook programs (microwave) – preset air‑fry settings in the microwave cavity for popular items, simplifying crisping and reheating.
• Large 7.0 cu. ft. total capacity – combines a 5.1 cu. ft. lower oven with a 1.9 cu. ft. upper microwave/convection cavity to handle multi‑course meals and large bakeware.
• 5.1 cu. ft. main oven capacity – accommodates large roasts, multiple casserole dishes, or several baking sheets at once.
• 1.9 cu. ft. microwave capacity – roomy upper cavity for family‑size microwave dishes, large bowls, and combination convection cooking.
• Six rack positions – multiple rack levels in the oven cavity to optimize placement for baking, roasting, broiling, and multi‑rack cooking.
• Gliding rack – heavy‑duty roll‑out rack that slides smoothly, making it easier and safer to access heavy pans and large roasts.
• Heavy‑duty oven racks – sturdy racks designed to support heavy cookware and large dishes without flexing.

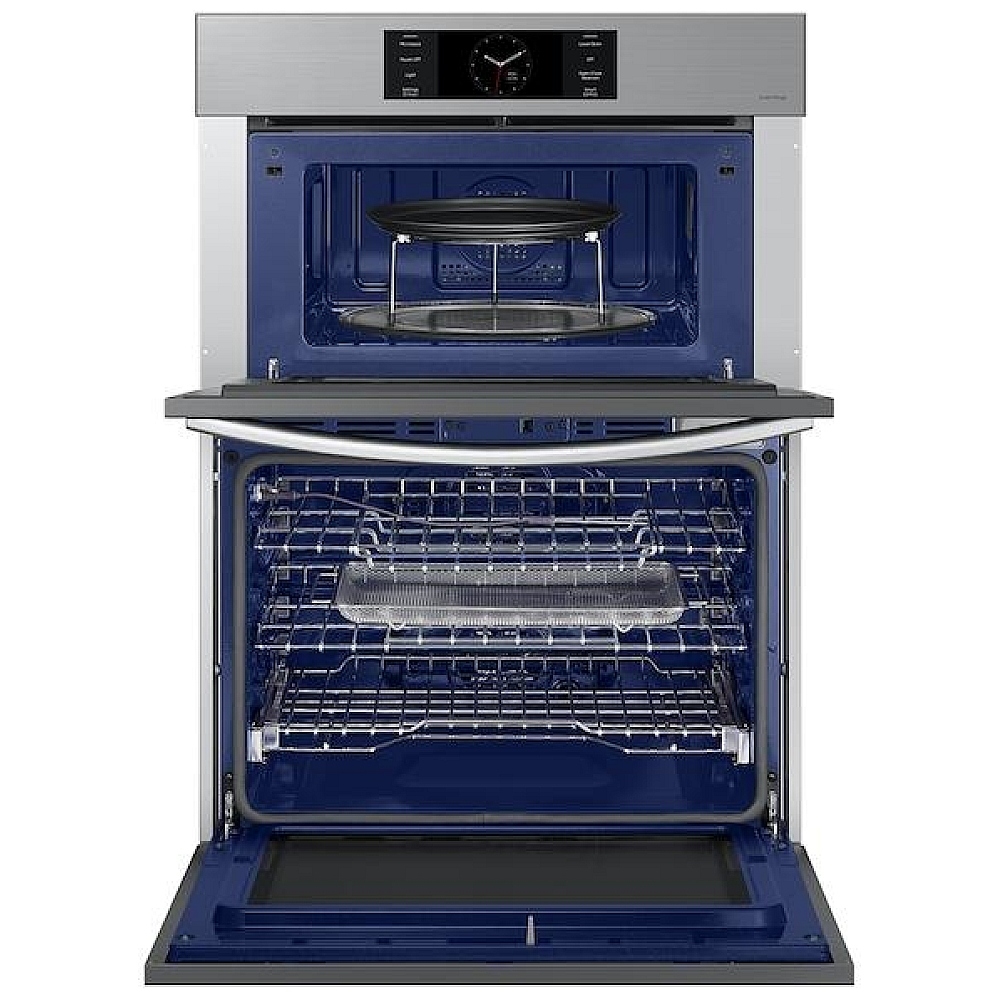

• Included Air Fry tray – specially designed tray that maximizes airflow around food for better crisping in Air Fry mode.
• Steam rack / steam accessories – dedicated rack or tray configuration to position water and food correctly for steam‑assisted cooking.
• Temperature probe – built‑in meat probe that monitors internal food temperature and alerts you when your roast or poultry reaches the desired doneness.
• Guided Cook assistance – on‑screen prompts and step‑by‑step guidance that help you choose the right mode, temperature, and rack position for various recipes.
• Wi‑Fi connectivity – allows remote start/stop, temperature adjustments, and status checks from your smartphone, plus integration with compatible voice assistants.
• App‑capable smart control – supports software updates, cooking notifications, and recipe integration through the connected app for an enhanced smart‑kitchen experience.
• Self Clean cycle – heats the oven to very high temperatures to burn off baked‑on grease and residue, reducing the need for scrubbing.
• Steam Clean option – uses steam in about 20 minutes to loosen light soils so they can be wiped away easily, ideal for quick cleanups.
• Combination Self‑Clean & Steam Clean system – offers both deep‑clean and quick‑clean options so you can choose the best method based on soil level.
• Hidden bake element – conceals the lower heating element beneath the oven floor for a smooth surface that’s easier to wipe clean and improves interior appearance.
• Ceramic enamel oven cavity – durable, scratch‑resistant interior surface that resists staining and is easier to clean than standard porcelain.
• Full glass door design – sleek, modern glass front that provides a clear view of the oven interior while complementing contemporary kitchen styles.
• Push‑to‑open door mechanism – streamlined handle‑free design that opens with a gentle push for a minimalist, built‑in look.
• Drop‑down door configuration – traditional oven‑style doors that open downward, providing a stable surface for loading and unloading heavy dishes.
• 7‑inch TFT LCD display – large, high‑resolution touch display that clearly shows modes, temperatures, and timers for intuitive control.
• Digital touch controls – smooth, easy‑to‑wipe control panel with responsive touch buttons instead of mechanical knobs.
• Ice Blue display color – distinctive Samsung display color that enhances readability and matches other Samsung appliances.
• LED and halogen interior lighting – bright multi‑source lighting that illuminates every corner of the oven so you can check doneness without opening the door.
• Oven temperature probe readout – displays real‑time internal food temperature on the control panel, helping prevent overcooking.
• Keep Warm function – maintains cooked dishes at serving temperature without overcooking, ideal for entertaining or delayed meals.
• Warming mode – dedicated low‑heat setting to keep plates or side dishes warm until the rest of the meal is ready.
• Kitchen timer – built‑in timer that operates independently of the oven settings to track cooking or prep tasks.
• Delay Bake/Start feature – lets you program the oven to begin cooking at a later time, convenient for pre‑scheduled meals.
• Time Bake programming – allows you to set both cooking time and temperature so the oven automatically turns off when the cycle is complete.
• Clock with 12‑/24‑hour options – configurable time display to match your preferred time format.
• Sound on/off control – enables you to mute or adjust alert tones for a quieter kitchen environment.
• Child Safety Lock / Child Lock function – disables the control panel to prevent accidental or unauthorized use by children.
• Control Lock for cleaning – locks the controls while you wipe the panel so settings aren’t changed accidentally.
• Sabbath Mode – modifies certain functions and disables automatic shutoff to comply with Sabbath‑observant cooking practices.
• Safety lock on microwave – prevents unintended microwave operation, adding an extra layer of safety in households with children.
• Language selection options – allows you to choose the on‑screen language for easier navigation and use.
• Top‑mounted interior light position – places lights at the top of the cavity to reduce shadows and improve visibility of food.
• Dehydrator function – specialized low‑heat oven mode for making jerky, dried fruit, and other preserved snacks.
• Defrost settings (oven and microwave) – multiple defrost options to gently thaw frozen foods using either microwave power or low oven heat.
• Keep Warm in microwave – low‑power microwave setting that keeps food warm without overcooking or drying it out.
• Electric wall‑oven combo design – integrates a full‑size electric oven and microwave/convection unit into a single 30″ built‑in appliance to save space.
• 30″ class width – designed to fit standard 30‑inch wall‑oven cutouts for straightforward replacement or new installation.
• Standard 29.75″ exterior width – fits most cabinetry openings while providing a flush, built‑in appearance.
• Cut‑out compatibility – engineered for typical cut‑out dimensions (approx. 28‑5/8″ W x 42‑1/4″ H x 23‑1/2″ D) to simplify planning and installation.
• 208/240V, 40‑amp electrical requirement – supports high‑power cooking modes and self‑clean cycles on a dedicated circuit.
• Modern stainless steel finish – neutral, fingerprint‑resistant stainless exterior that coordinates with a wide range of kitchen styles.
• Glass door panel – smooth glass surface that’s easy to wipe clean and enhances the premium look of the appliance.
• Convection microwave capability – allows the upper cavity to function as a small convection oven for baking and roasting without using the main oven.
• Broiler in main oven – powerful broil element for searing steaks, finishing casseroles, and browning toppings.
• Multi‑rack cooking support – convection system and rack configuration designed to cook on multiple racks simultaneously with even results.
• Smart‑compatible voice control – works with supported voice assistants (via Wi‑Fi and app) so you can adjust settings hands‑free.
• Manufacturer parts and labor warranty – includes limited coverage on parts and labor for added peace of mind after installation.
Manufacturer’s Warranty: 1 year
Canadian model: NQ70CG700DSRAA
Canadian UPC: 887276757629
EAN: 0887276757629
