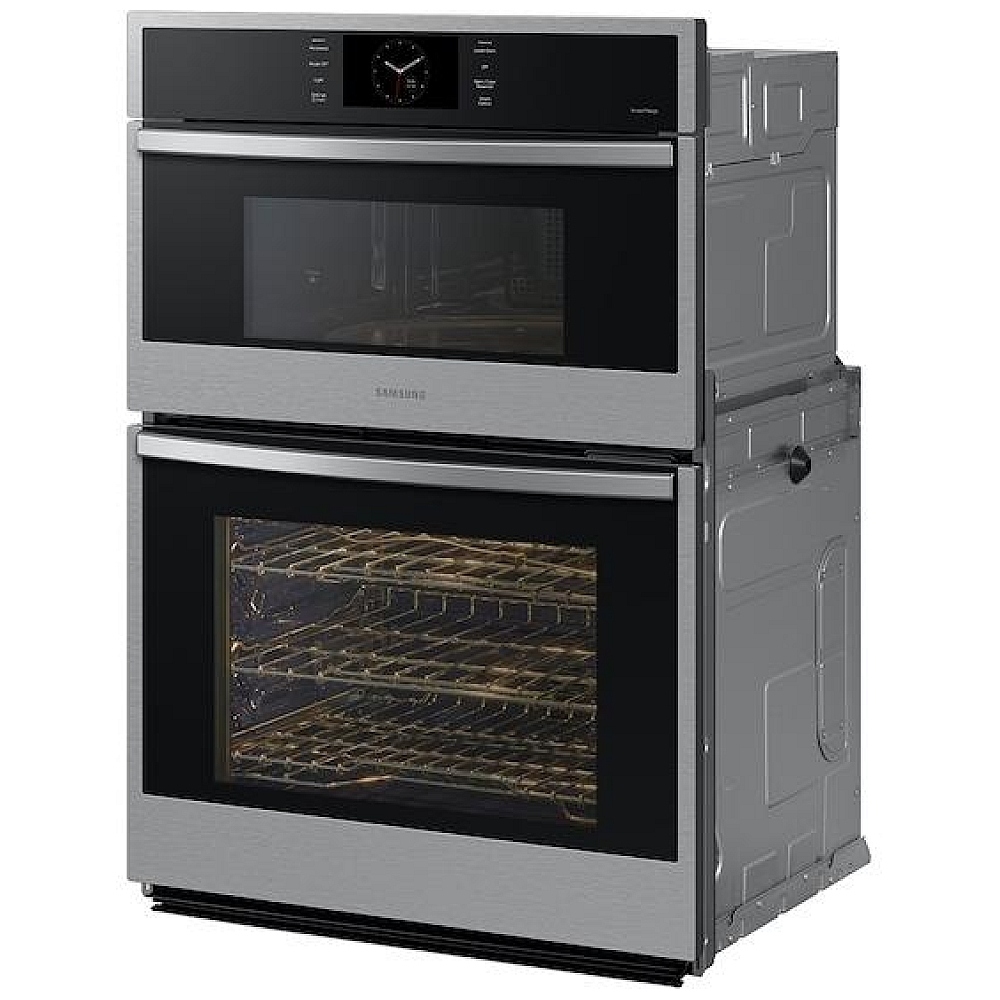

Samsung NQ70CG600DSRAA Microwave Wall Oven Combo,
30 inch Exterior Width, Convection, Self Clean, 7 cu. ft. Capacity, Temperature Probe, Wifi Enabled, Air Fry, Stainless Steel colour Air Fry, Air Sous Vide, Temperature Probe, Steam Cooking, True European Convection, Telescopic Gliding Extension Rack
| Specification | Value |
|---|---|
| Product Type | 30″ Built-in Combination Wall Oven with Microwave |
| Series | 6 Series / Bespoke (Combination Wall Oven) |
| Fuel Type | Electric |
| Color / Finish | Stainless Steel |
| Door Panel Type | Glass, Drop-Down Door |
| Control Type | Touch Controls with 7″ TFT LCD Display |
| Installation Type | Built-In Wall Oven Combo |
| Capacity | |
| Upper (Microwave / Speed Oven) Capacity | 1.9 cu. ft. |
| Lower Oven Capacity | 5.1 cu. ft. |
| Total Capacity | 7.0 cu. ft. |

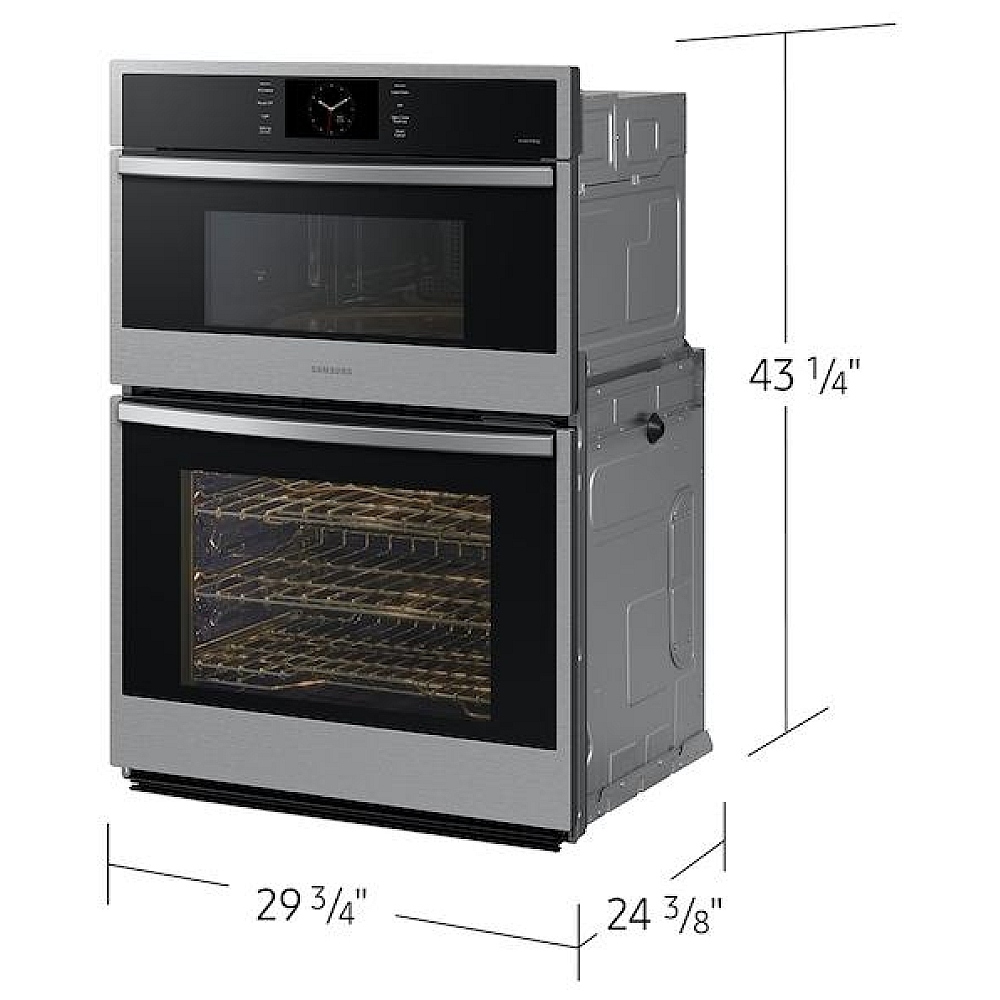

| Dimensions & Weight (Product) | |
| Width | 29.75 inches |
| Height | 43.25 inches |
| Depth | 24.37–24.38 inches |
| Product Weight | Approx. 270 lb (≈122.5 kg) |
| Outside Dimensions (WxHxD, metric) | 756 x 1099 x 620 mm |
| Cutout / Cabinet Dimensions | |
| Cutout Width | 28.63 inches (28 5/8″) |
| Cutout Height | 42.25 inches (42 1/4″) |
| Cutout Depth | 23.5 inches (23 1/2″) |

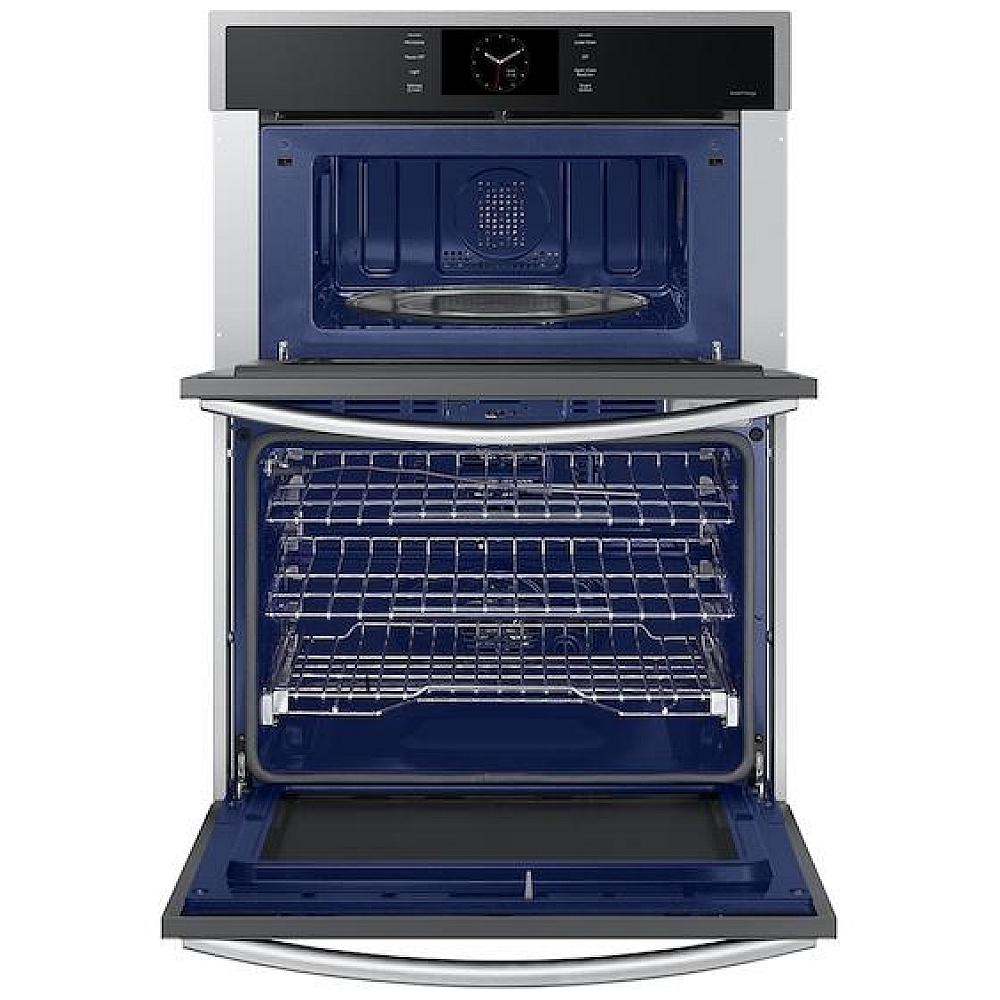

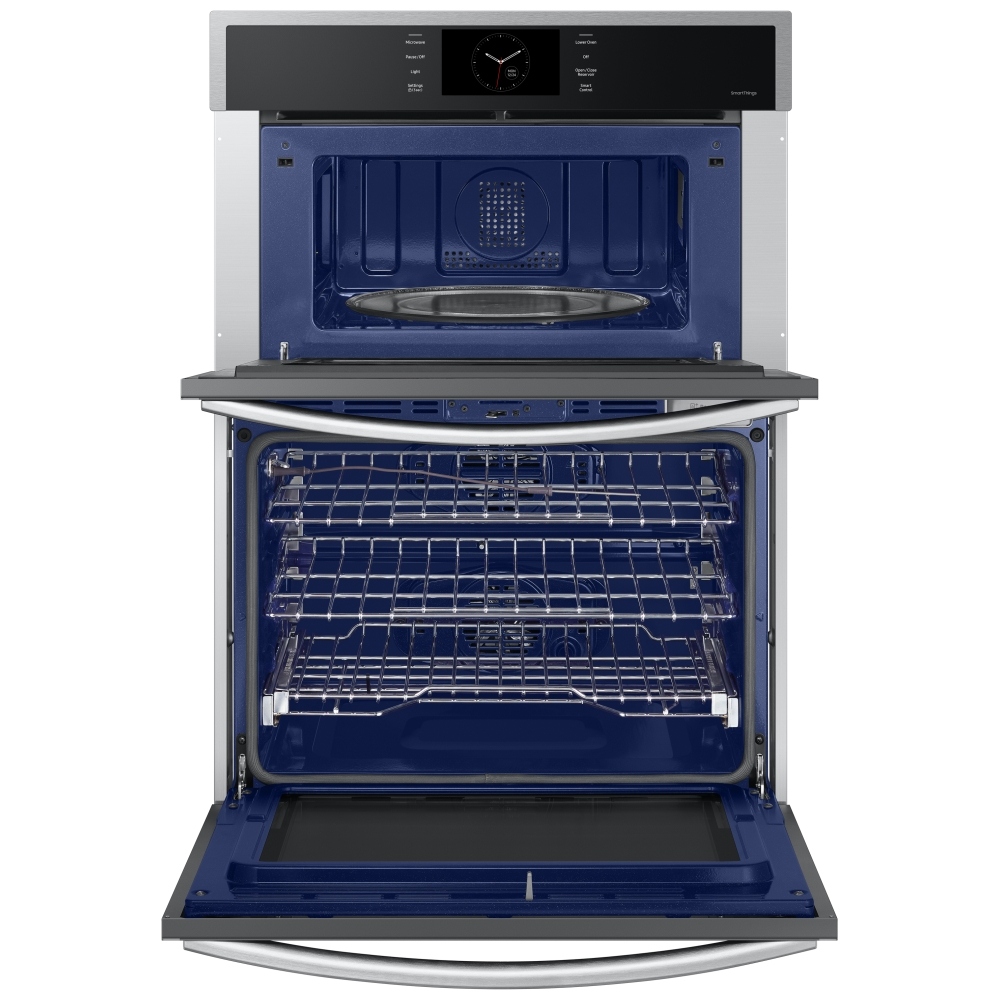

| Oven Cavity & Interior | |
| Cavity Material | Ceramic Enamel |
| Oven Interior Color | Blue |
| Microwave Interior Color | Blue |
| Oven Door Glass | 4-layer (oven), 3-layer (microwave) |
| Number of Oven Rack Positions | 6 |
| Total Number of Oven Racks | 2 heavy-duty racks + 1 gliding rack (3 total) |
| Oven Light Type | 2.5 W × 2 (LED) / 40 W × 2 (Halogen) |
| Interior Light Position | Top |
| Heating Elements & Power (Oven) | |
| Bake Heater Power | 3000 W |
| Broil Heater Power | 4400 W |
| Convection Heater Power | 1300 W |
| Cooking System | Dual Convection |
| Hidden Bake Element | Yes |
| Microwave / Speed Oven | |
| Microwave Capacity | 1.9 cu. ft. |
| Microwave Power | 950 W |
| Microwave Power Levels | 10 |
| Microwave Features | Convection, Sensor Cook, Speed Convection, Speed Broil, Defrost |
| Sensor Cook Programs | 11 programs |
| Auto Cook Programs | 20 programs |
| Defrost Programs | 4 programs |
| Cooking Modes & Features (Oven) | |
| Air Fry | Yes (Air Fry tray included) |
| Air Fry Temperature Range | 350°F – 500°F |
| Air Fry Auto Cook Programs | 10 programs |
| Air Sous Vide | Yes (100°F – 205°F) |
| Bake Temperature Range | 175°F – 550°F |
| Broil Temperature Range | Low – High |
| Convection Bake Temperature Range | 175°F – 550°F |
| Convection Roast Temperature Range | 175°F – 550°F |
| Steam Bake Temperature Range | 230°F – 550°F |
| Steam Roast Temperature Range | 230°F – 550°F |
| Convection Vegetables (Oven) | 350°F – 450°F |
| Dehydrate | Yes |
| Steam Proof | Yes |
| Keep Warm | Yes |
| Warming Mode | Yes |
| Delay Bake / Start | Yes |
| Timer / Kitchen Timer | Yes |
| Time Bake | Yes |
| Proofing | Yes |
| Cleaning | |
| Cleaning Method | Self Clean + Steam Clean |
| Steam Clean Cycle | Yes (approx. 20 minutes for light cleaning) |
| Smart & Connectivity | |
| Wi-Fi Embedded | Yes |
| SmartThings App Support | Yes |
| Smart Compatible | Yes (remote monitoring & control) |
| Safety & Convenience | |
| Child Safety Lock | Yes |
| Oven Temperature Probe / Temp Probe | Yes |
| Sabbath Mode | Yes (CSA safety listing in Canada) |
| Sound On/Off | Yes |
| Clock System Option | 12H / 24H selectable |
| Light (Lamp) On/Off | Yes |
| Language Option | Yes |
| Electrical & Energy | |
| Power Source | 240 V ~ 60 Hz (208/240 V compatible) |
| Total Power | 8200 W |
| kW Rating (240V / 208V) | 8.2 kW / 6.2 kW |
| Breaker Size | 40 A (240 V) / 30 A (208 V) |
| Amps | 40 A |
| Energy Consumption | 400 kWh/year |
| Accessories Included | |
| Square Wire Racks | 2 (heavy-duty) |
| Gliding Rack | 1 (oven) |
| Air Fry Tray | Yes (oven) |
| Crusty Plate | Yes |
| Temperature Probe | Yes |
| Shipping & Packaging | |
| Shipping Width | 33.75 inches |
| Shipping Height | 48.25 inches |
| Shipping Depth | 29.44 inches |
| Shipping Weight | Approx. 299.8 lb (≈136 kg) |
| Certifications & Warranty | |
| Safety Listing | CSA (Canada) |
| Warranty | 1 Year Parts and Labor |
• Air Sous Vide – uses precise, low-temperature airflow (100°F–205°F) to deliver sous-vide‑like results for tender meats, fish, and vegetables without a water bath.
• Air Fry mode – crisps foods with hot air circulation (350°F–500°F) so you can enjoy “fried” textures with little or no added oil, eliminating the need for a separate air fryer.

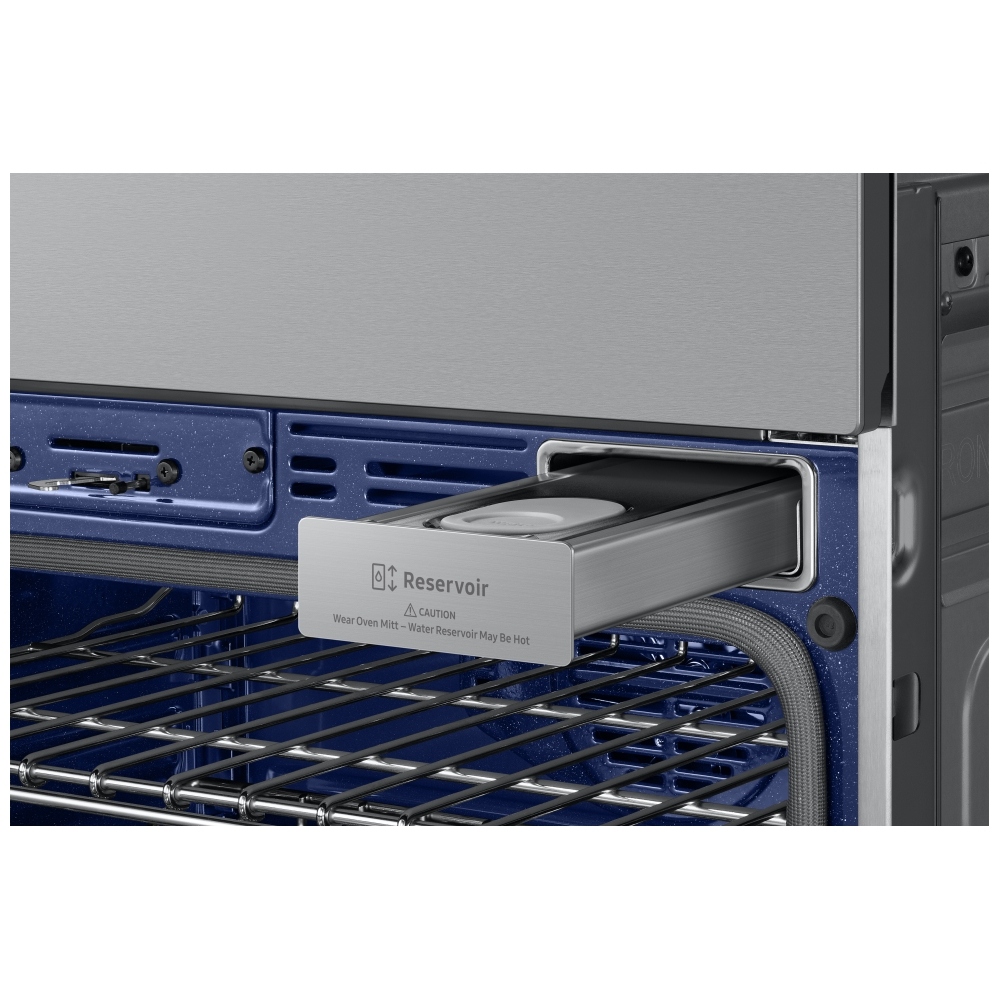

• Steam Cook (Steam Bake/Roast) – injects steam while baking or roasting to help keep meats juicy and breads moist with a tender interior and crisp crust.
• Self Clean & Steam Clean options – offers both high‑heat self‑clean and gentler steam clean cycles to loosen and burn off residue for easier oven maintenance.

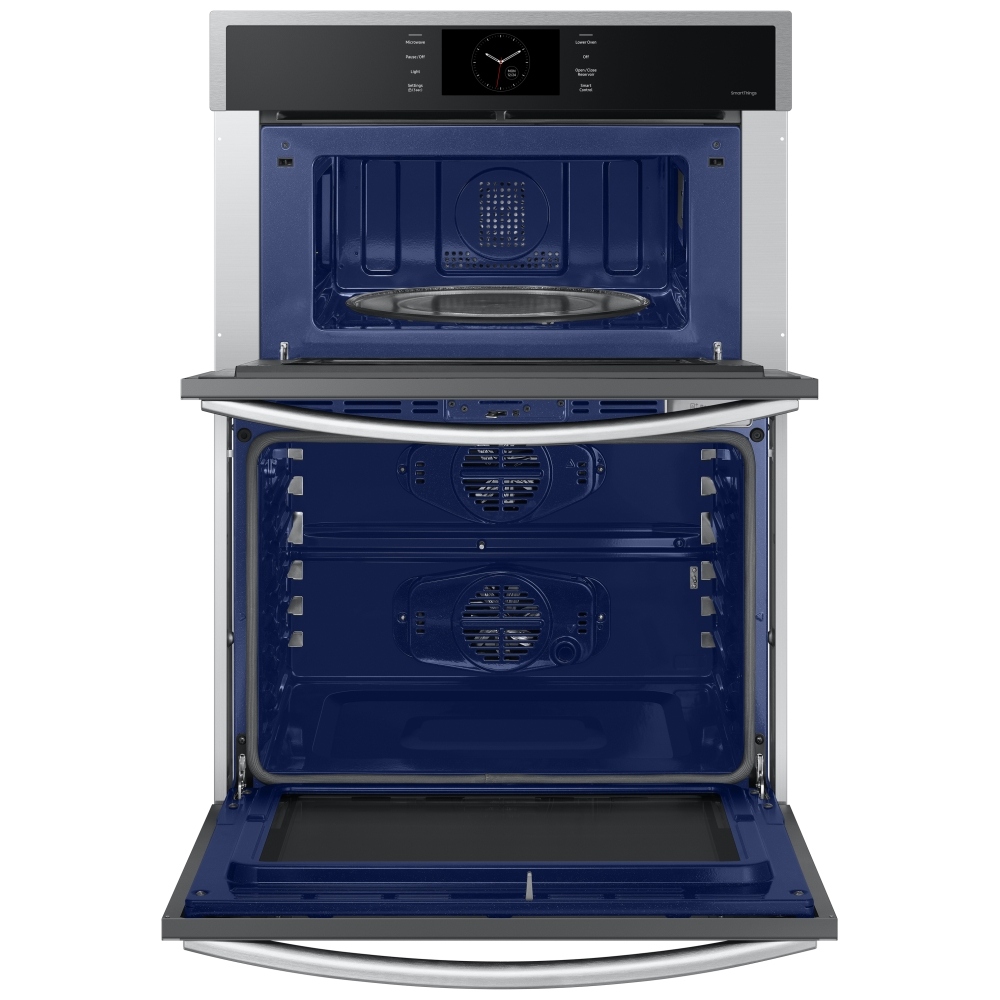

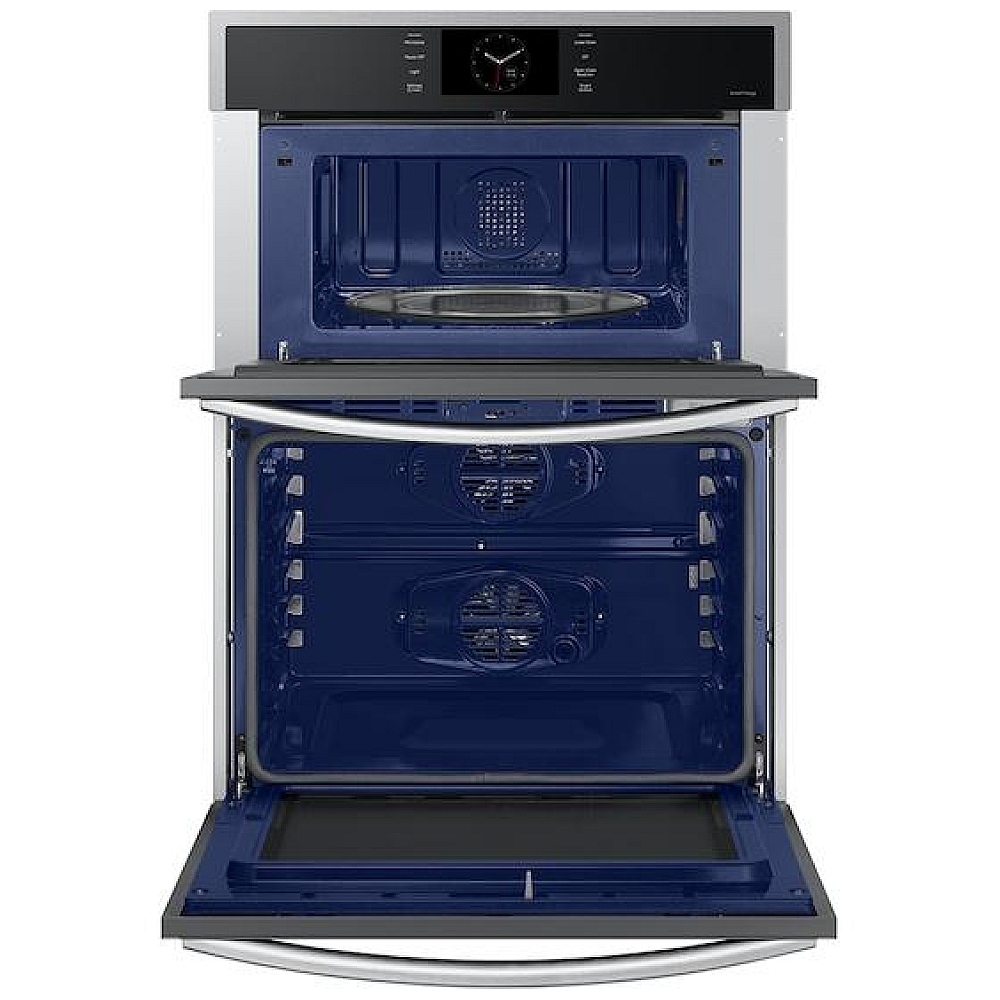

• Dual Convection system – uses two heated fans to circulate air for faster, more even baking, roasting, and broiling across multiple racks.
• Convection Microwave (upper oven) – 1.9 cu. ft. convection microwave lets you reheat, bake, or roast smaller dishes quickly using microwave plus convection heat.

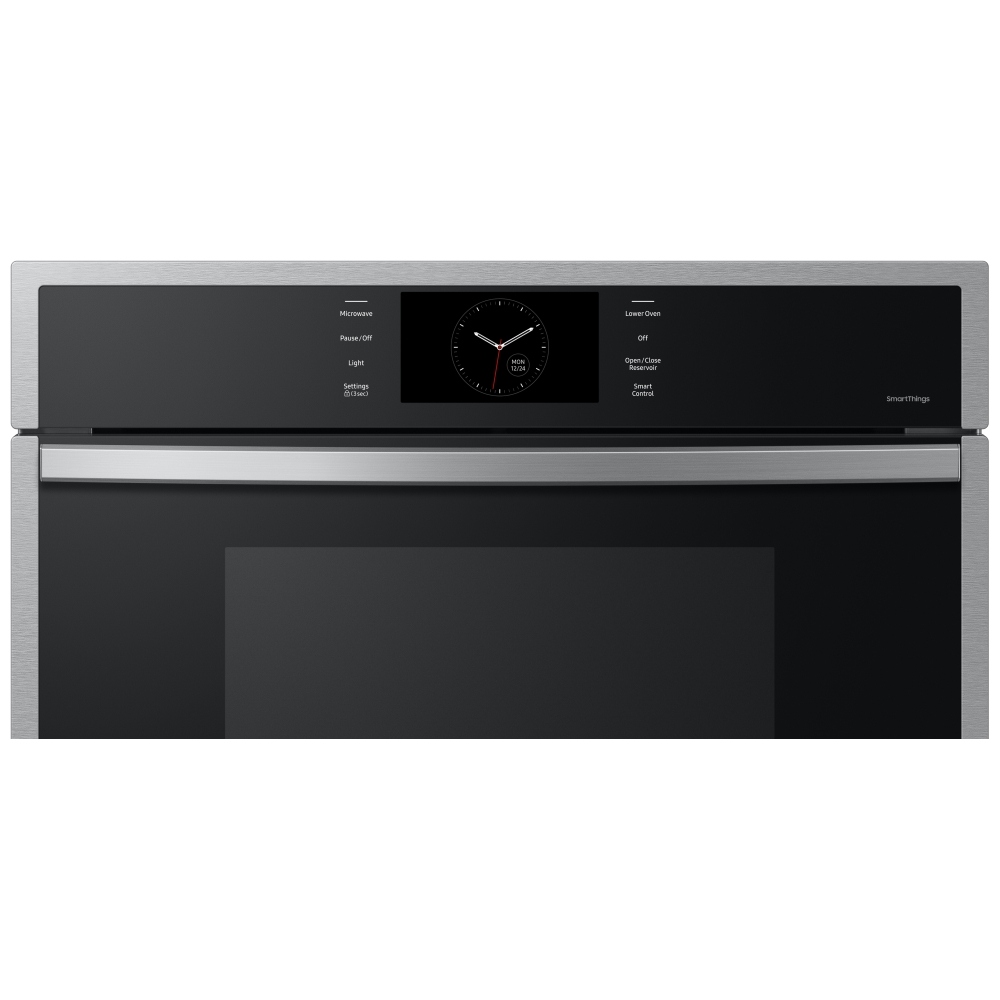

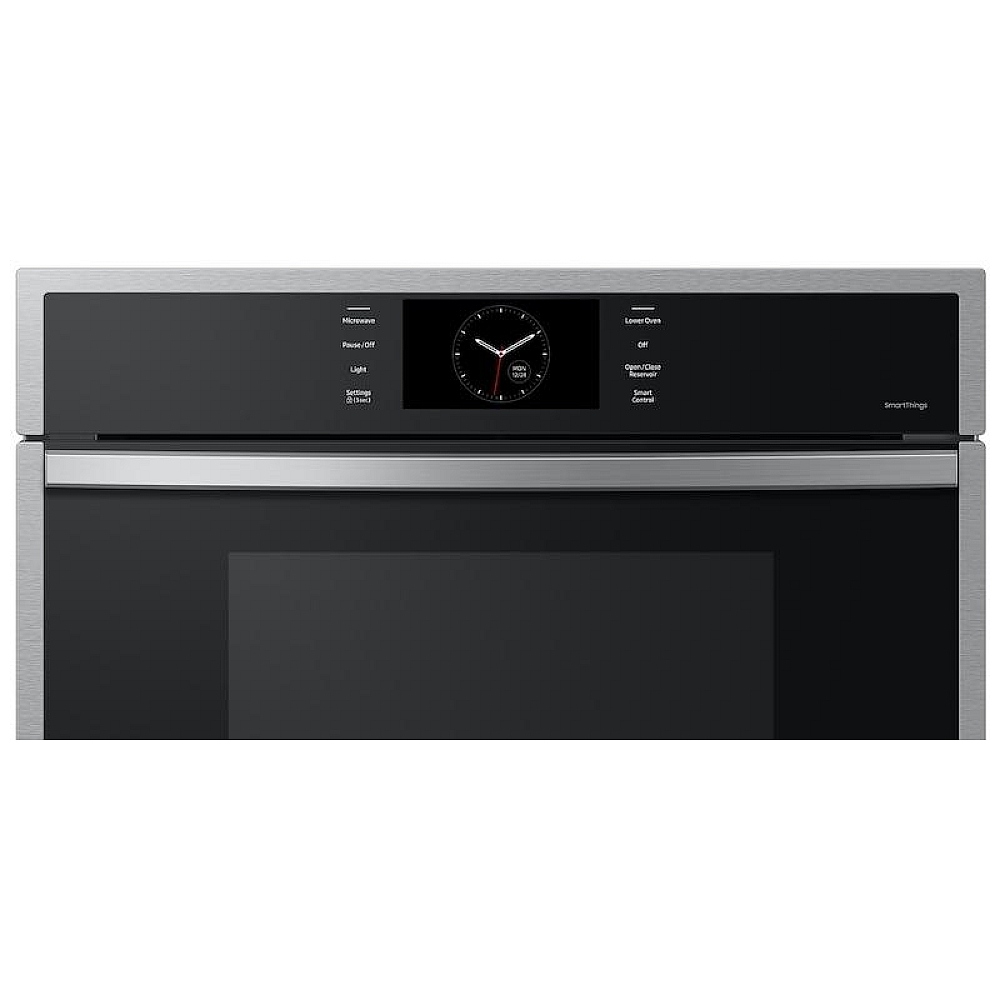

• 7″ TFT LCD display – large, full‑color touch screen makes it easy to select modes, adjust settings, and monitor cooking progress at a glance.
• No Preheat mode – allows you to start cooking immediately on Convection Bake or Convection Roast without waiting for the oven to preheat.
• Child Safety Lock – disables the control panel to prevent accidental operation or changes by children.
• Sabbath Mode – adjusts oven operation to meet Sabbath observance requirements by disabling certain automatic functions.
• Keep Warm function – maintains a low, steady temperature to keep cooked dishes warm until serving time.
• Dehydrate mode – slowly circulates low heat to dry fruits, vegetables, and meats for homemade snacks.
• Steam Proof mode – creates an ideal warm, humid environment for proofing bread dough directly in the oven.
• Convection Bake – uses fan‑circulated heat (175°F–550°F) for evenly baked cakes, cookies, and casseroles.
• Convection Roast – combines top and bottom heat with a fan (175°F–550°F) to brown roasts and poultry while keeping interiors juicy.
• Convection Vegetable mode – dedicated setting (350°F–450°F) optimized to quickly cook vegetables to a crisp‑tender texture.
• Standard Bake function – provides traditional bottom‑heat baking (175°F–550°F) for recipes that don’t require convection.
• Variable Broil (Low–High) – adjustable broil intensity for everything from gentle melting to high‑heat searing and browning.
• Speed Convection (microwave) – combines microwave energy with convection heat to cook foods faster than conventional baking alone.
• Speed Broil (microwave) – uses microwave plus broil elements to quickly brown and finish dishes.
• Sensor Cook programs (microwave) – automatically adjusts time and power based on steam and humidity levels for optimal reheating and cooking.
• Air Fry Auto Cook programs (microwave) – preset air‑fry settings simplify cooking popular fried foods with one‑touch convenience.
• Auto Cook programs – multiple preset options in the microwave and oven help you cook common dishes without manual time/temperature setup.
• Auto Defrost programs – dedicated defrost settings use time and power stages to thaw foods more evenly than manual defrosting.
• Integrated temperature probe – monitors internal food temperature so you can cook roasts and poultry to precise doneness without opening the door.
• Gliding Rack – ball‑bearing rack slides out smoothly, allowing safer access for basting, turning, or checking heavy dishes.
• Heavy‑duty oven racks – sturdy racks support large roasts and heavy cookware for everyday and holiday cooking.
• Multiple rack positions (6 levels) – flexible rack placement lets you optimize heat exposure and cook multiple dishes at once.

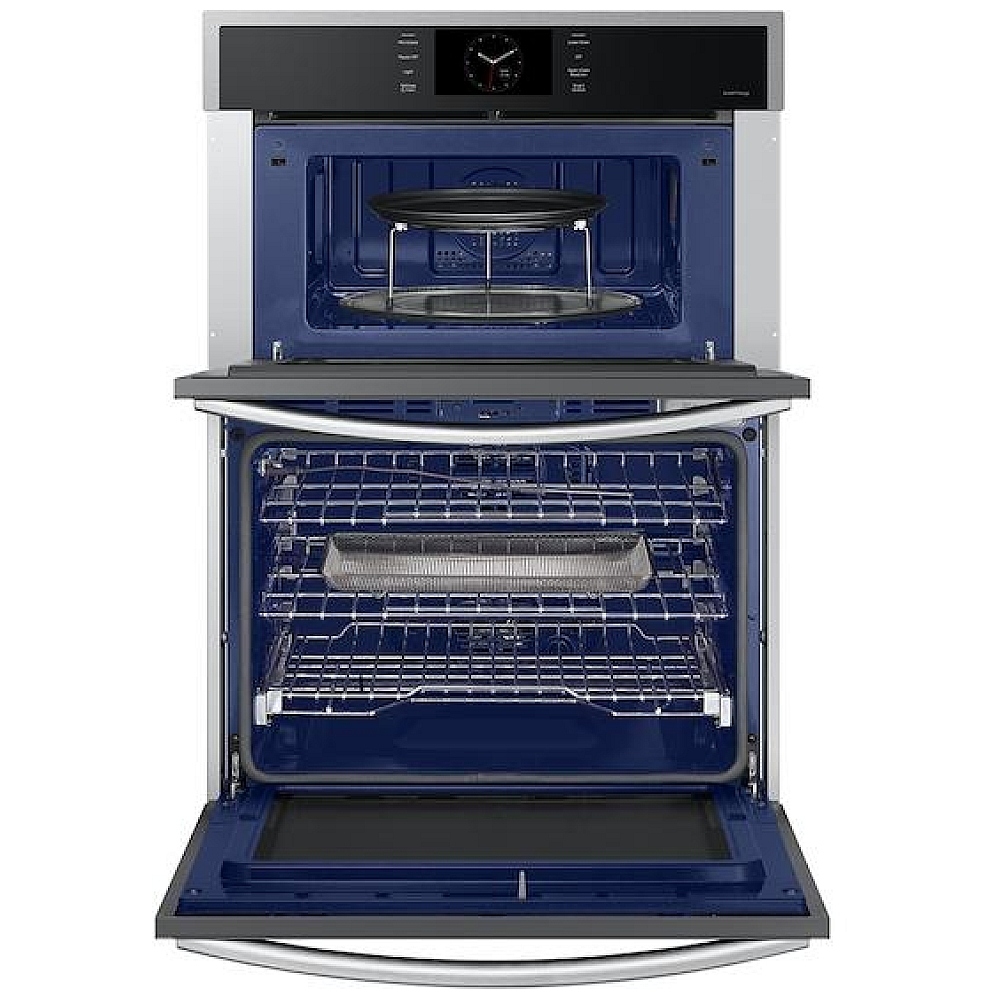

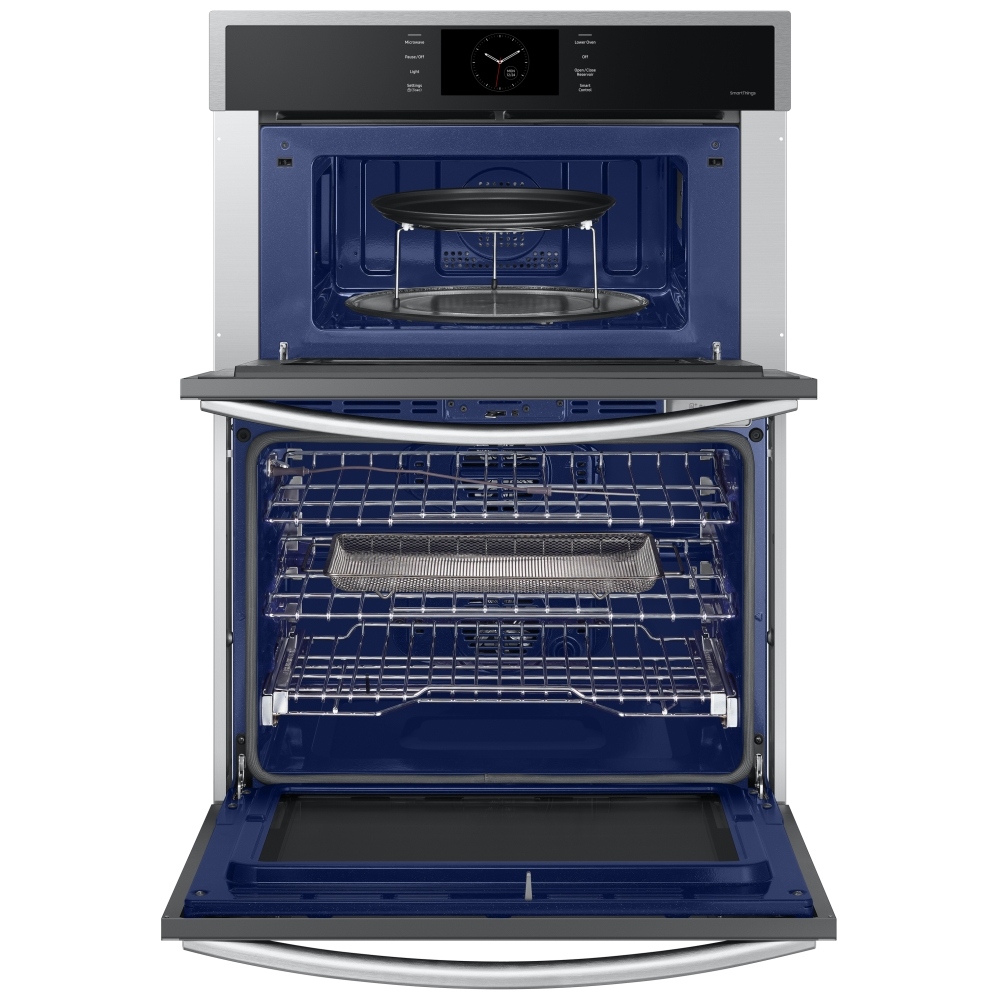

• Included Air Fry tray – perforated tray is designed to maximize air circulation around food for better crisping in Air Fry mode.
• Included Crusty Plate – specialized plate in the microwave helps crisp the bottom of pizzas, pastries, and frozen foods.
• 1.9 / 5.1 cu. ft. total capacity (7.0 cu. ft.) – upper 1.9 cu. ft. convection microwave plus 5.1 cu. ft. lower oven provide ample space for multi‑course meals.

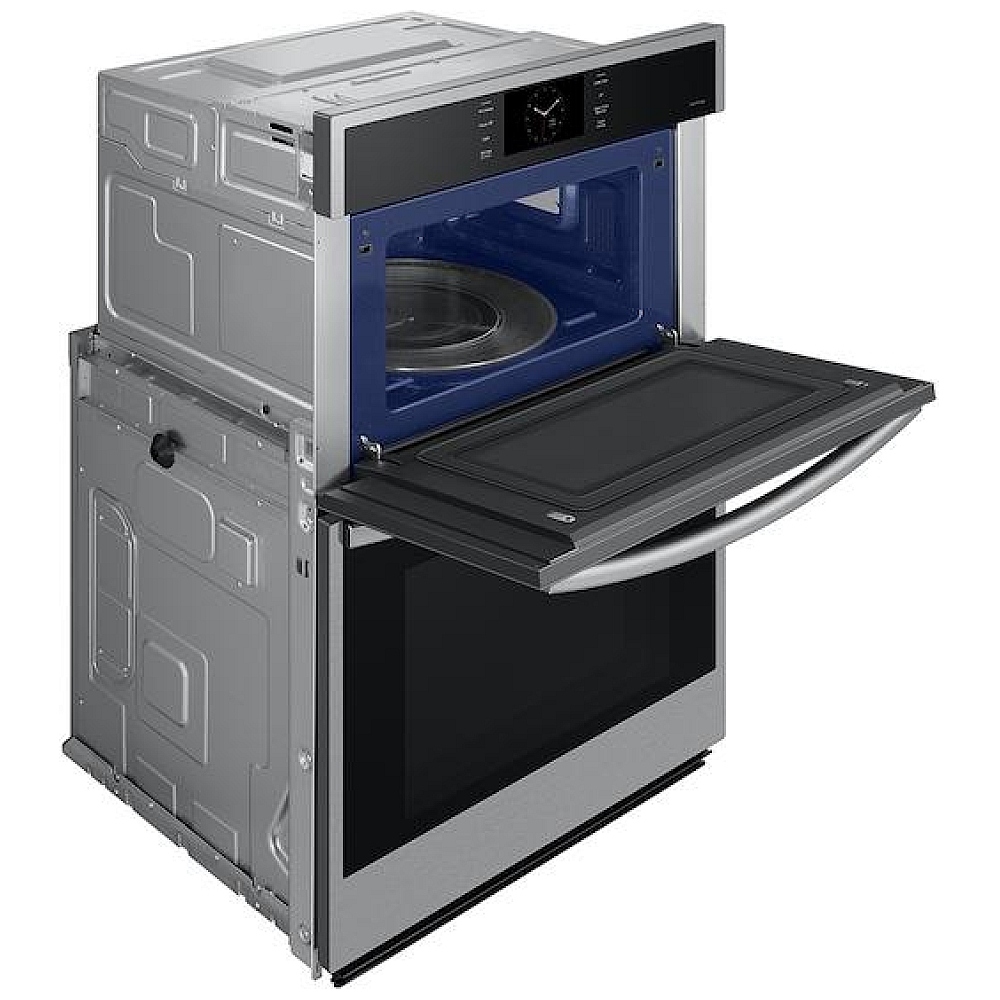

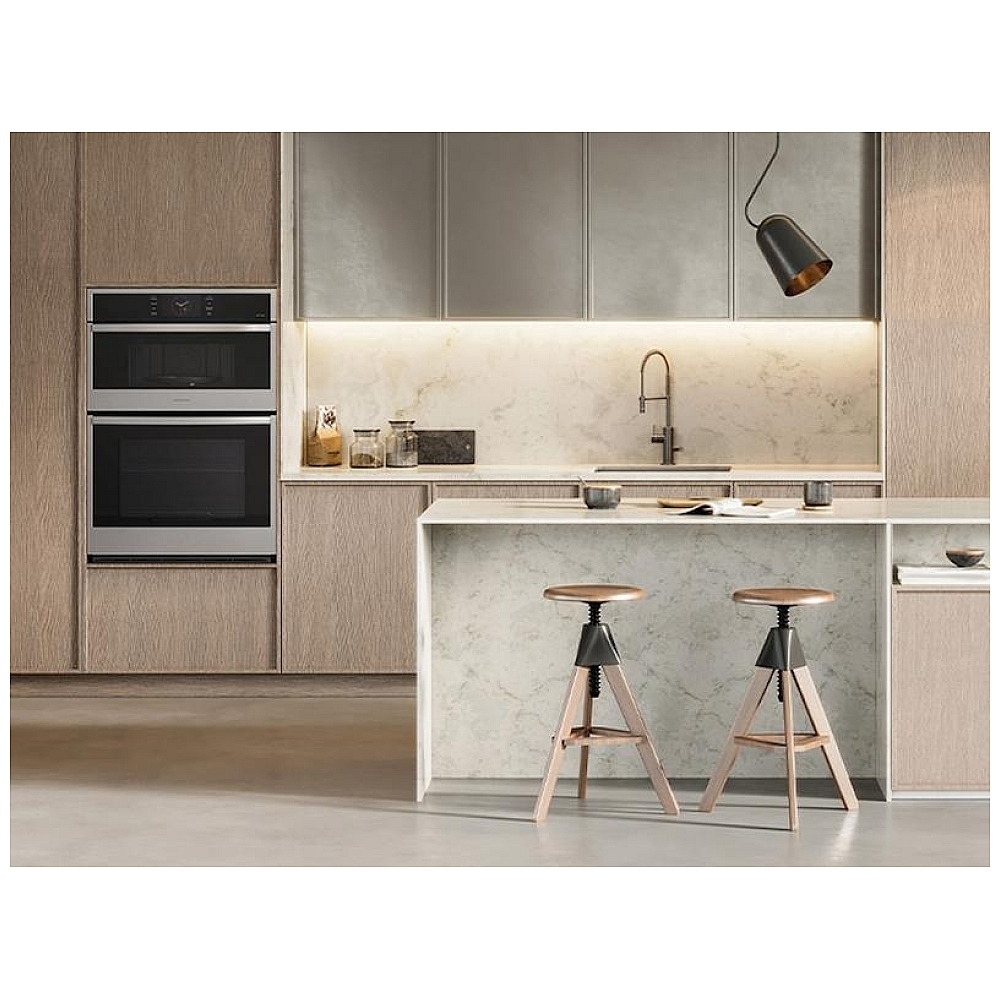

• Built‑in combination design – integrates a microwave and full‑size wall oven in a single 30″ built‑in unit to save space and streamline your cooking center.
• Stainless steel finish – modern stainless exterior coordinates with other kitchen appliances and resists everyday fingerprints and smudges.
• Drop‑down door design – traditional oven‑style doors provide wide access to the cavity for loading and unloading large dishes.
• Hidden bake element – conceals the lower heating element for a smooth interior that’s easier to wipe clean.
• Ceramic enamel interior (microwave) – durable, scratch‑resistant cavity surface is easier to clean than standard painted interiors.
• Halogen and LED interior lighting – bright multi‑source lighting lets you check food doneness without opening the door.
• Digital touch controls – flat, touch‑sensitive panel offers precise control and a sleek, easy‑to‑wipe surface.
• Ice Blue display color – distinctive blue display provides clear visibility of time, temperature, and mode selections.
• Kitchen Timer – built‑in timer tracks cooking or prep tasks independently of oven operation.
• Delay Start / Delay Bake – schedules the oven to begin cooking later, so meals can be ready when you are.
• Clock with 12/24‑hour option – allows you to choose your preferred time format for the display.
• Sound on/off setting – lets you mute or enable audible alerts and key tones to suit your household.
• Warming mode – gently holds cooked food at serving temperature without overcooking.
• Top‑mounted interior light position – overhead lighting improves visibility across all rack levels.
• Electric fuel type – provides consistent, even heat and precise temperature control for baking and roasting.
• 240 V, 60 Hz power – designed for standard North American 240‑volt wall oven installations.
• High‑output bake and broil elements – 3000 W bake and 4400 W broil elements deliver strong, responsive heating performance.
• 7.0 cu. ft. 6‑Series configuration – part of Samsung’s 6‑Series lineup, offering a balance of premium features and value.
• 30″ nominal width – fits standard 30‑inch wall oven cutouts for easier replacement or new installation.
• Standard cutout dimensions – designed to fit common cabinetry openings, simplifying planning for remodels or new kitchens.
• One‑year parts and labor warranty – provides manufacturer coverage for defects in materials and workmanship during the first year of ownership.
Manufacturer’s Warranty: 1 year
Canadian model: NQ70CG600DSRAA
Canadian UPC: 887276757605
EAN: 0887276757605
