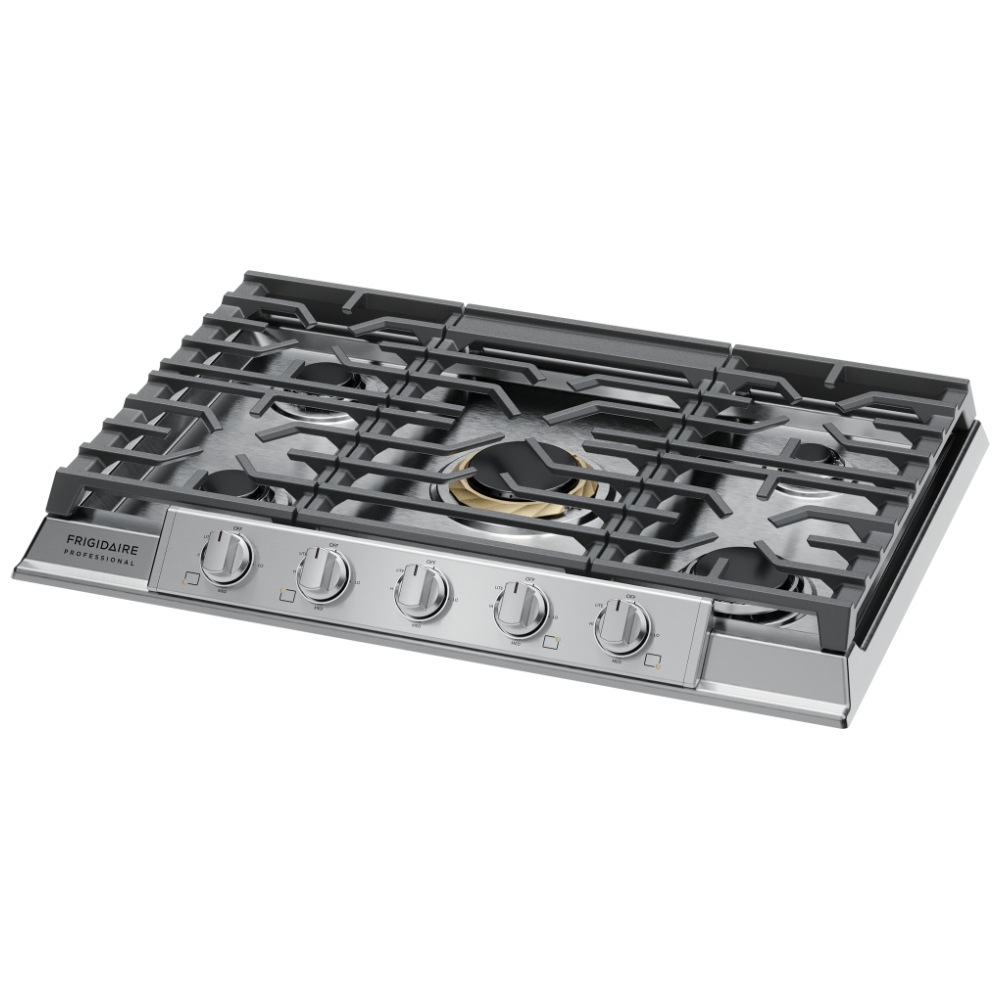

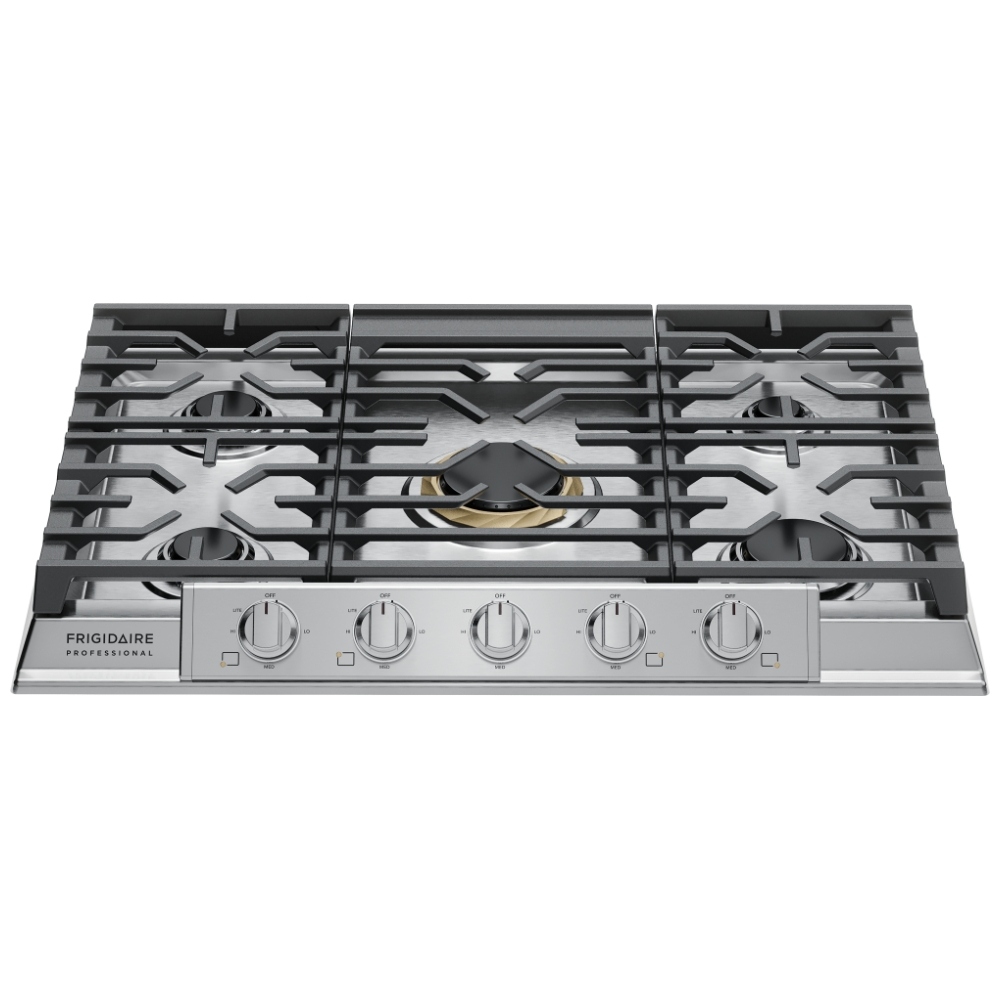

Frigidaire Professional PCCG3080AS Gas Cooktop,
30 inch Exterior Width, 5 Burners, 18,000 BTU Highest Burner, Stainless Steel colour
| Specification | Value |
|---|---|
| Product Line | Gas Cooktop |
| Series | Frigidaire Professional |
| Model | PCCG3080AS |
| Fuel Type | Natural Gas |
| Power Type | NG |
| Installation Type | Built-In / Drop-In |
| Size | 30″ |
| Width | 30 inches |
| Depth | 21 inches |
| Height | 2 7/16 inches (2.44 inches) |
| Width (cm) | 76.2 cm |
| Depth (cm) | 53.34 cm |
| Height (cm) | 6.19 cm |
| Cutout Height | 7 1/2 inches |
| Minimum Cutout Width | 27 1/4 inches |
| Maximum Cutout Width | 29 5/16 inches |
| Minimum Cutout Depth | 19 inches |
| Maximum Cutout Depth | 20 inches |
| Appliance Fit Width | 30 inches |
| Appliance Fit Width (cm) | 76 cm |
| Color | Stainless Steel |
| Color/Finish Name | Stainless Steel |
| Color Family | Stainless Steel |
| Cooking Surface Type | Gas |
| Cooktop Surface | Stainless Steel |
| Cooktop Surface Style | Burner Grate |
| Grate Material | Cast Iron |
| Grate Quantity | 3 |
| Grate Style | Continuous |
| Burner Type | Sealed |
| Sealed Burners | Yes |
| Total Number of Burners | 5 |
| Number of Elements/Burners | 5 |
| Right Front Element Burner | 12,000 BTU |
| Right Rear Element Burner | 5,000 BTU |
| Left Front Element Burner | 9,500 BTU |
| Left Rear Element Burner | 9,500 BTU |
| Center Front Element Burner | 18,000 BTU |
| Maximum Burner BTU Rating | 18,000 BTU |
| Gas Cooktop – Burner BTU Rating (Summary) | 1 x 5,000 BTU; 2 x 9,500 BTU; 1 x 12,000 BTU; 1 x 18,000 BTU |
| Ignition Type | Electronic |
| Gas Cooktop – Ignition Type | Electronic |
| Gas Cooktop – Sealed Burners | Yes |
| Gas Cooktop – Burner Grates | Yes |
| Gas Cooktop – Bridge Burner | No |
| Gas Cooktop – Removable Burner Caps | No |
| Backlit Knobs | Yes (LED backlit) |
| Control Location | Front |
| Front Control Design | Yes |
| Cooktop Features | Continuous Grate, Dishwasher Safe Grates, Simmer Element, LP Convertible |
| Dishwasher Safe Grates | Yes |
| LP Conversion Kit Included | Yes |
| LP Convertible | Yes |
| Installed Over a Wall Oven | Yes (approved over Frigidaire electric wall ovens) |
| Downdraft Ventilation | No |
| Wi‑Fi Connected | No |
| Sabbath Mode | No |
| Outdoor Approved | No |
| Commercial Use Approved | No |
| Energy Star Rated | No |
| Minimum Circuit Required | 5 Amps |
| Voltage Rating | 120 V |
| Gas Supply Connection Location | Top Right |
| Power Supply Connection Location | Top Right |
| Power Cord Included | Yes |
| Frigidaire Fit Promise | Yes |
| Right to Repair | Available |
| Product Weight | 63 lbs (28.58 kg) |
| Warranty – Parts | 1 Year |
| Warranty – Labor | 1 Year |
| ADA Compliant | Yes |
| CSA Listed | Yes |
| UL Listed | Yes |
| Prop 65 Label | Yes (Cancer and Reproductive Harm warning) |
One of the standout features of the PCCG3080AS is its premium continuous cast‑iron grate system, which spans edge‑to‑edge so you can slide heavy pots and pans smoothly from one burner to another without lifting. These durable grates, along with the burner caps, are dishwasher‑safe, a convenience not always found on comparable gas cooktops and a major time‑saver when cleaning up after big cooking sessions. The front‑center control layout keeps all the action within easy reach, so you don’t have to reach over hot cookware to adjust the flame, and the professional‑style knobs feature backlit LED illumination that clearly indicates when a burner is on, adding both a safety cue and a high‑end visual touch.
Installation is made easier with the Frigidaire® Fit Promise, which helps ensure this 30‑inch cooktop will fit your existing countertop cutout of the same width and configuration, reducing the likelihood of costly modifications when replacing an older unit. Finished in modern stainless steel, the Frigidaire Professional PCCG3080AS balances robust performance with thoughtful details like ADA‑compliant design and simple, intuitive controls, making it an excellent upgrade for cooks who want a reliable, easy‑to‑clean gas cooktop that looks as good as it performs.

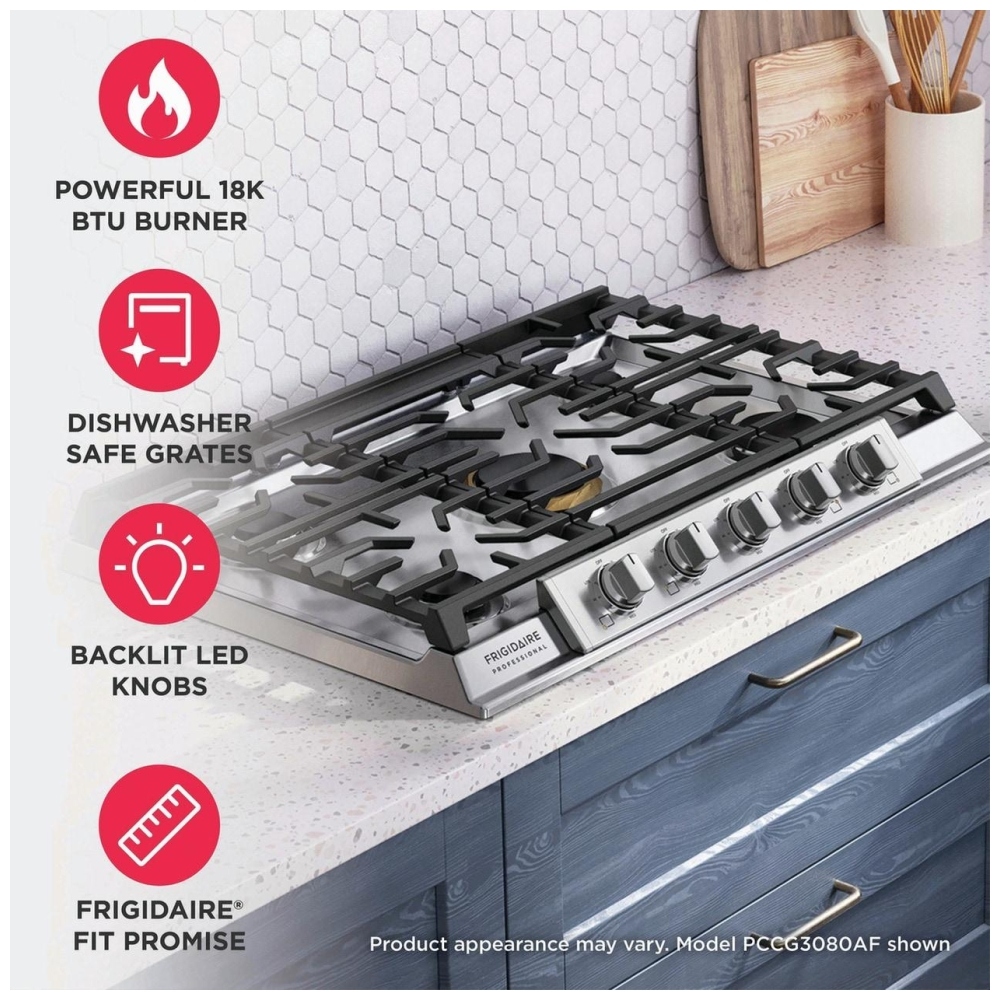

• Frigidaire® Fit Promise – guarantees your new 30″ Frigidaire Professional gas cooktop will fit your existing countertop cutout of the same width and configuration, or Frigidaire will reimburse eligible cabinet modification costs (via mail‑in rebate).
• Five‑burner cooktop – offers one 5,000 BTU simmer burner, two 9,500 BTU burners, one 12,000 BTU burner, and one powerful 18,000 BTU burner so you can handle everything from delicate sauces to high‑heat searing at the same time.

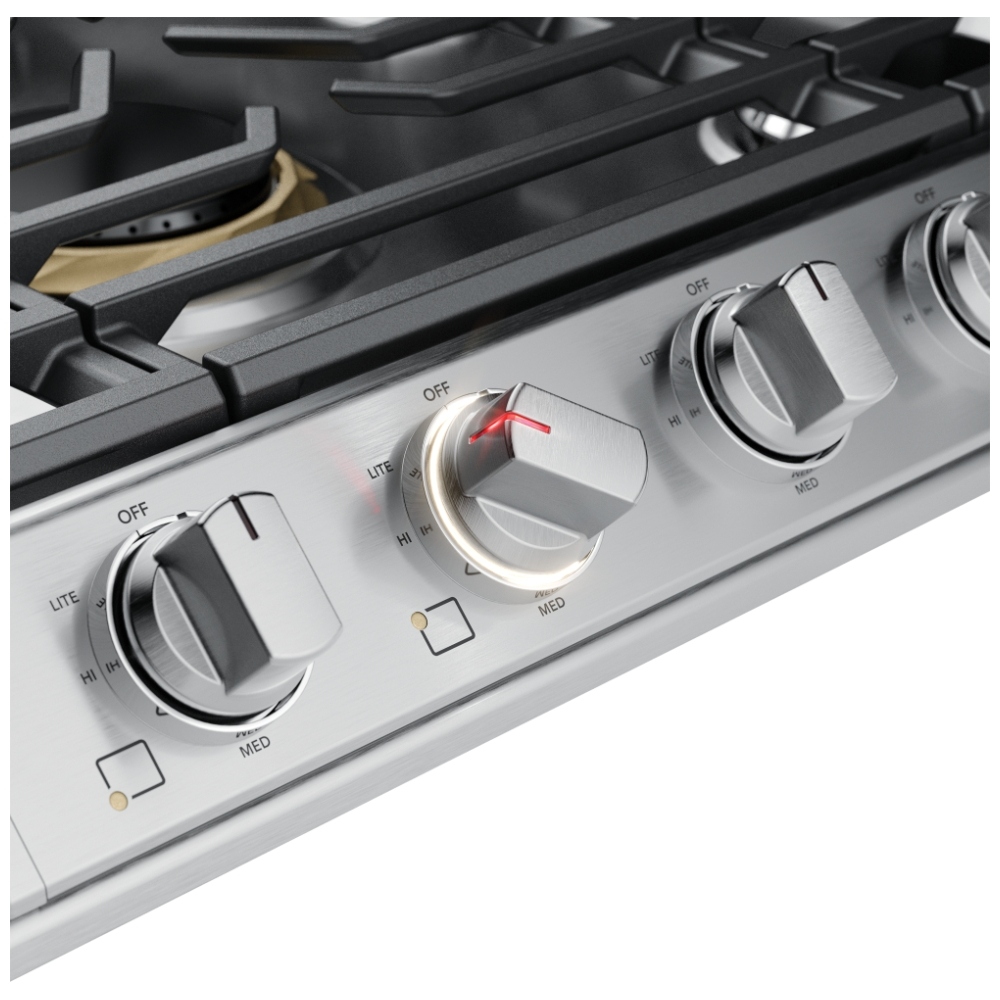

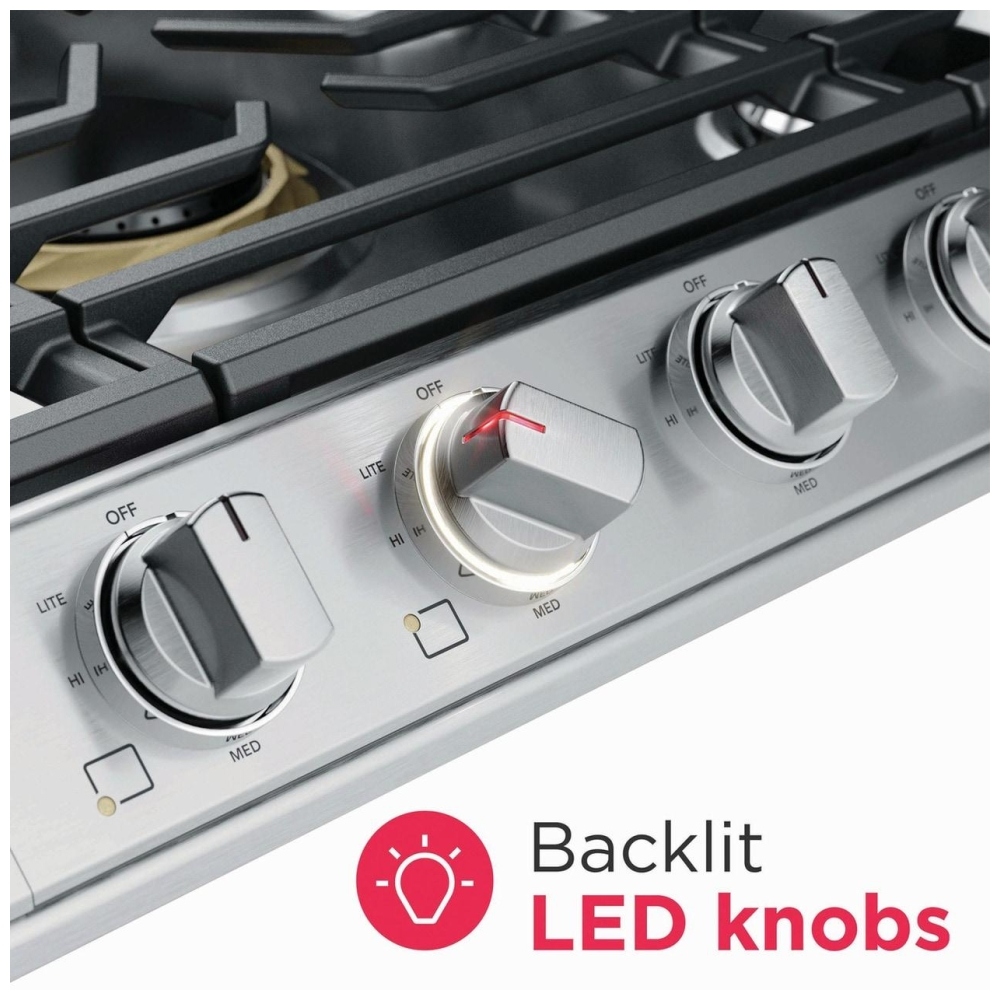

• Backlit LED knobs – illuminate when a burner is on, making it easy to see active burners at a glance and enhancing both safety and style.

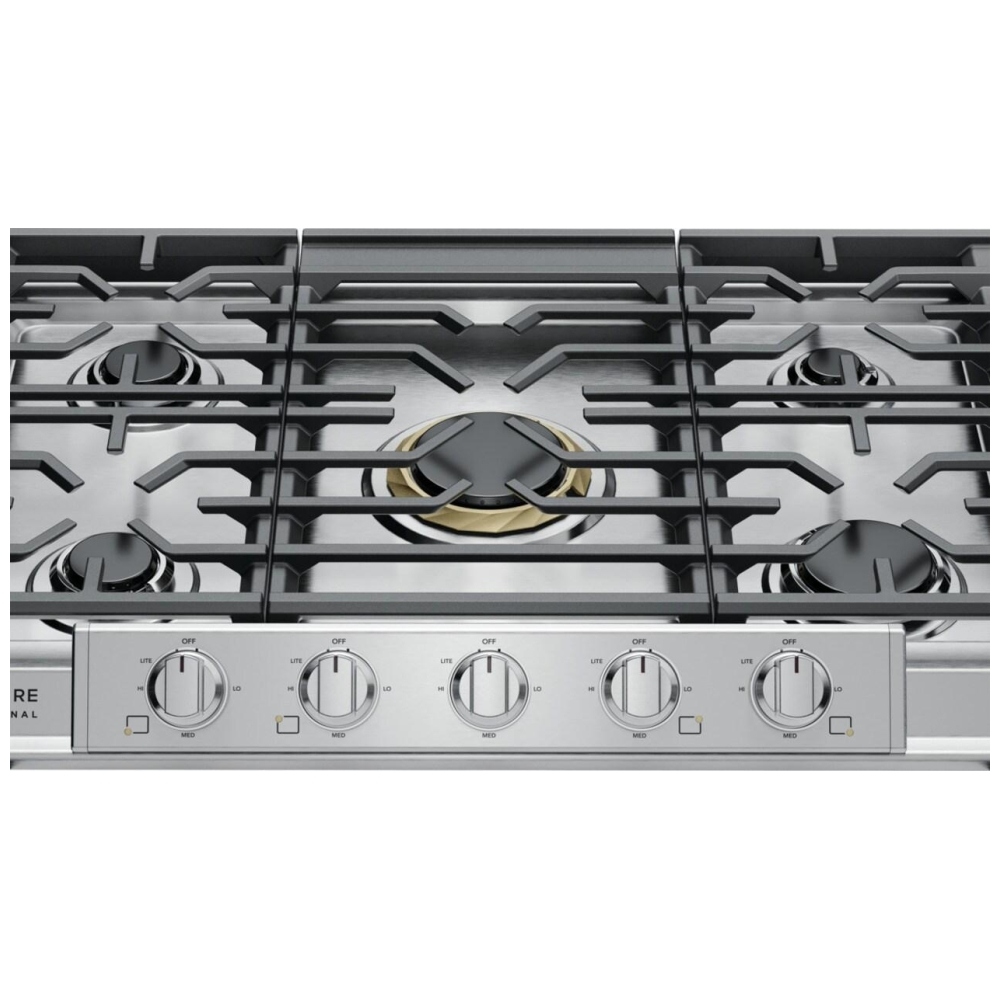

• Front control design – places the knobs at the front of the cooktop so you can adjust temperatures without reaching over hot pots and pans.

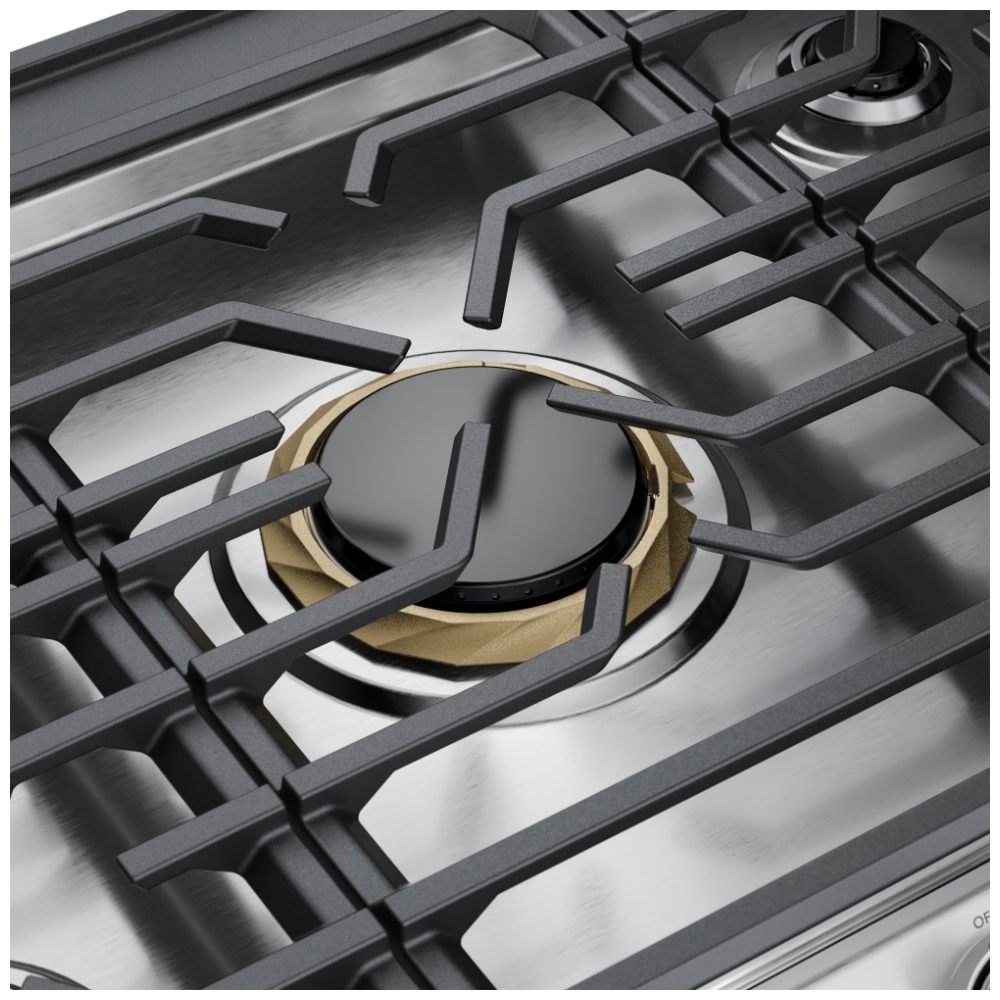

• Continuous cast‑iron grates – edge‑to‑edge grates let you slide heavy pots and pans smoothly across the surface without lifting.

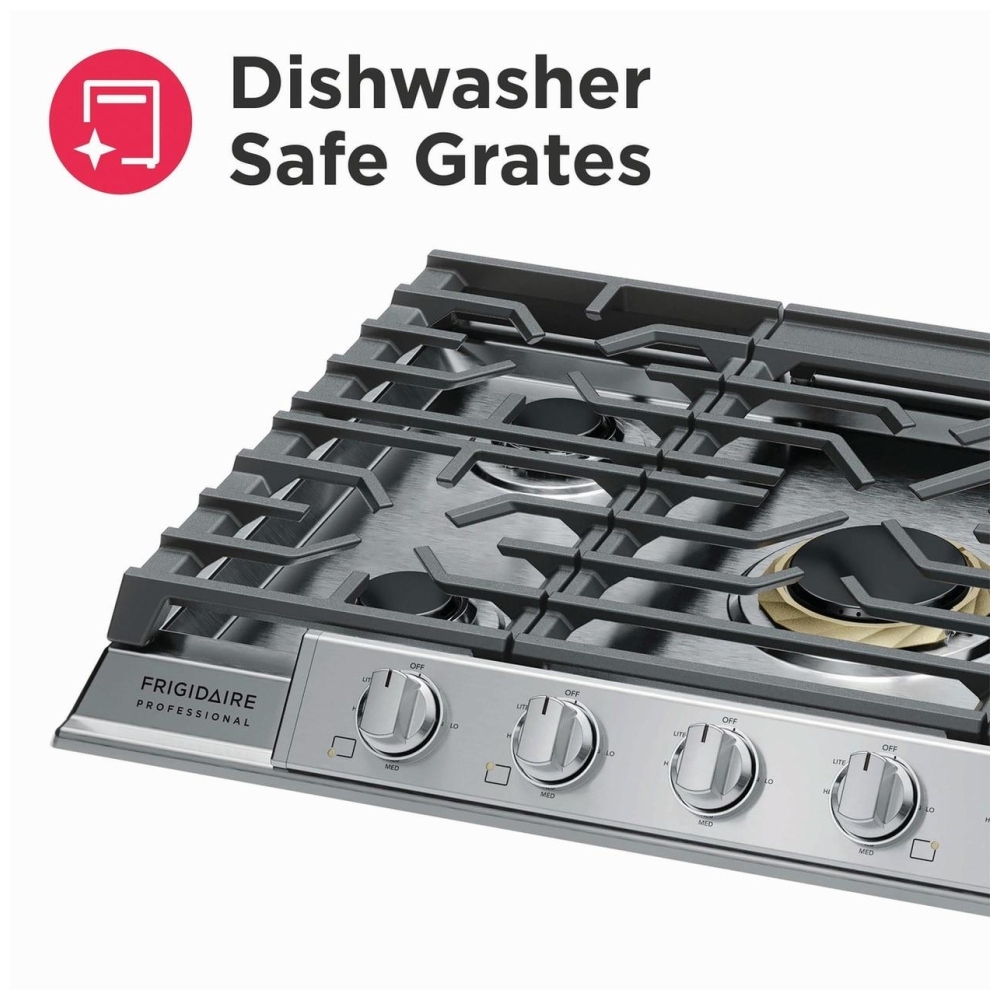

• Dishwasher‑safe grates and burner caps – removable cast‑iron grates and burner caps can be cleaned in the dishwasher for easier maintenance.
• Sealed gas burners – help contain spills on the cooktop surface, making cleanup quicker and protecting burner components.
• 30″ built‑in design – fits a standard 30‑inch cooktop cutout, ideal for most kitchen layouts and remodels.
• Compatible over Frigidaire wall ovens – approved for installation above Frigidaire electric wall ovens to create a coordinated built‑in cooking station.
• Natural gas ready with LP conversion option – ships set up for natural gas and can be converted for use with liquid propane (LP) using an optional conversion kit.
• Stainless steel finish – professional‑style stainless surface coordinates with other Frigidaire Professional appliances and resists everyday wear.
• Five‑burner flexibility for entertaining – multiple burner sizes let you simmer sauces, boil pasta, and sear proteins simultaneously when cooking for family or guests.
• Low‑BTU simmer burner – dedicated 5,000 BTU burner provides gentle heat for melting chocolate, simmering soups, and preparing delicate dishes without scorching.

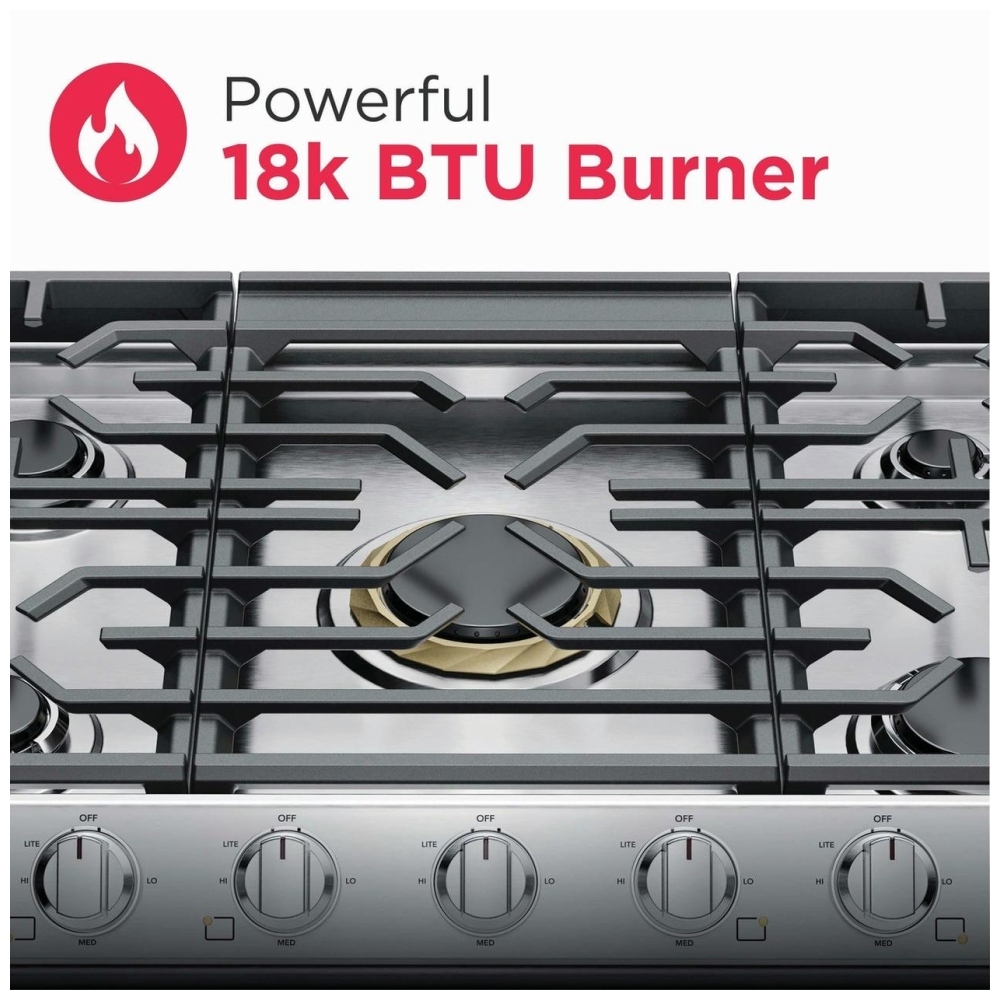

• High‑output 18,000 BTU power burner – delivers intense heat for rapid boiling, stir‑frying, and high‑temperature searing.
• Mid‑range multi‑purpose burners – 9,500–12,000 BTU burners are ideal for everyday tasks like sautéing, pan‑frying, and cooking side dishes.
• ADA compliant design – meets applicable accessibility guidelines when properly installed, helping make controls and cooking surface easier to reach and operate.
• Electronic ignition – provides reliable burner lighting and typically re‑ignites automatically if a flame goes out.
• Compact height profile – low 2.44″ overall height allows for a sleek, nearly flush appearance with many countertop installations.
• Standard 120V power connection – uses a common household electrical connection for ignition and lighting, simplifying installation.
• Ideal for built‑in remodels – combination of Frigidaire® Fit Promise, standard 30″ width, and flexible cutout dimensions helps reduce the need for countertop changes during upgrades.
Manufacturer’s Warranty: 1 year
Canadian model: PCCG3080AS
Canadian UPC: 012505516689
EAN: 0012505516689
