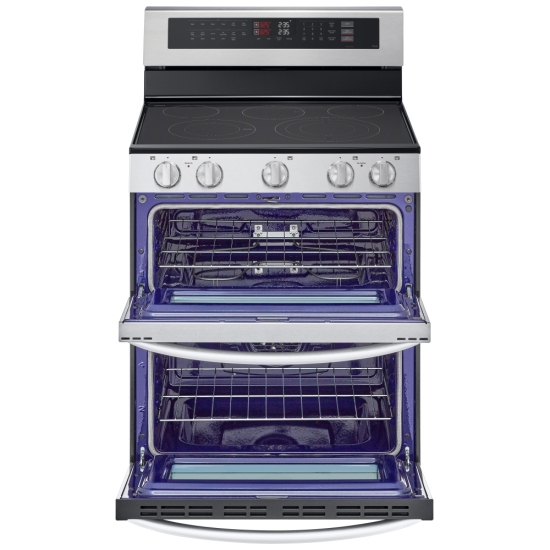

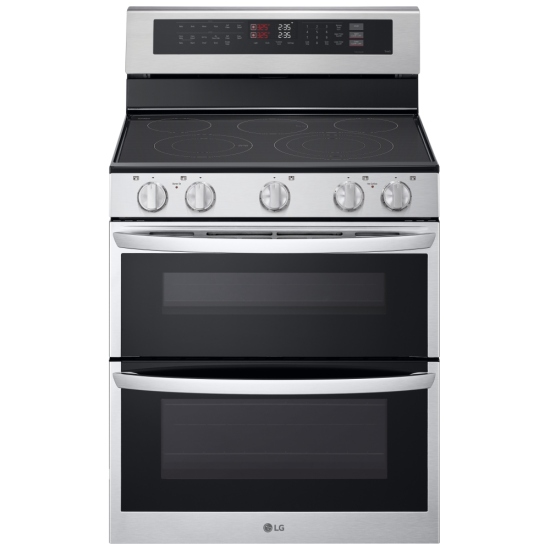

LG LDEL7324SE Electric Range,
7.3 cu. ft. Capacity, 30 inch Exterior Width, True Convection, 5 Burners, Yes, Self Clean, Double Oven, 3,200 W Highest Element, Stainless Steel colour, EasyClean®, Probake Convection®, SmoothTouch®, ThinQ Care™, ThinQ UP™, ThinQ® Technology, UltraHeat™ Element SmoothTouch®
| Specification | Value |
|---|---|
| Model | LDEL7324SE |
| Product Type | Electric Double Oven Freestanding Range |
| Fuel Type | Electric |
| Range Type | Freestanding |
| Cooktop Type | Smoothtop, Radiant, Ceramic Glass |
| Color / Finish | Stainless Steel |
| Handle Type | Curved Bar |
| Oven Door | WideView™ Window |
| Total Capacity | 7.3 cu ft |
| Upper Oven Capacity | 3.0 cu ft |
| Lower Oven Capacity | 4.3 cu ft |
| Width | 29.94 inches (approx. 30 in nominal) |
| Depth (cabinet / body) | 29.25 inches |
| Depth Without Handle | 26.88–26.84 inches (approx. 26 27/32 in) |
| Depth With Handle | 29.25 inches |
| Height (overall) | 46.47 inches (46 15/32 in) |
| Height to Cooking Surface | 36 inches |
| Cabinet Width (installation) | 30 inches |
| Shipping Dimensions (W x H x D) | 32.5 in x 51 in x 30.5 in |
| Product Weight | ≈186.5–187 lb |
| Shipping Weight | ≈212.5 lb |
| Finish Family | Stainless Steel |
| Number of Ovens | Double Oven |
| Number of Burners / Elements | 5 |
| Center Element Size / Wattage | 7 in – 100 W (warming zone) |
| Left Front Element Size / Wattage | 9 in / 6 in – 3200 W UltraHeat™ (dual) |
| Left Rear Element Size / Wattage | 6 in – 1200 W |
| Right Front Element Size / Wattage | 12 in – 3000 W / 9 in – 2200 W / 6 in – 1100 W (triple) |
| Right Rear Element Size / Wattage | 6 in – 1200 W |
| Hot Surface Indicator Light | Yes |
| Cooktop Surface | Glass Top, Radiant |
| UltraHeat™ Element | 3.2 kW (left front) |
| Specialty Zones | Dual concentric, triple concentric, warming zone |
| Oven Type | Double Oven, Electric |
| Convection Type | ProBake Convection® (lower oven) |
| Air Fry | Yes |
| Air Sous Vide | Yes |
| Self Clean | Yes (both ovens) |
| EasyClean® | Yes (10‑minute cycle) |
| Oven Modes | Bake, Broil, Warm, Pizza, Self Clean, EasyClean®, Remote Start, Delayed Timed Cook, Timed Cook |

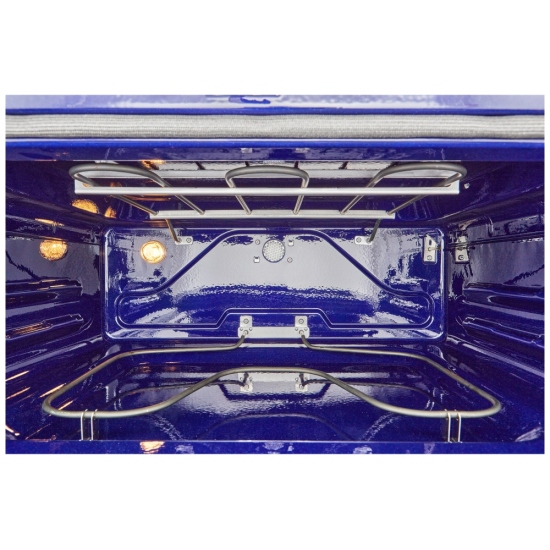

| Broil Element (Lower Oven) | 3800 W / 6‑pass |
| Convection Element (Lower Oven) | 3800 W / 6‑pass |
| Lower Oven Rack Positions | 4 |
| Total Rack Positions | 6 |
| Number of Oven Racks | 3 |
| Oven Interior Dimensions (Lower) W x H x D | 24 13/16 in x 14 1/4 in x 19 15/16 in |
| Oven Interior Dimensions (Upper) W x H x D | 24 13/16 in x 10 13/16 in x 19 13/16 in |
| Controls – Oven | SmoothTouch™ Glass Controls |

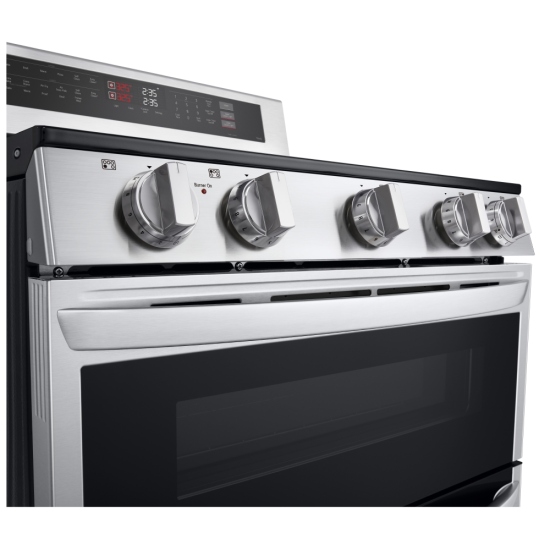

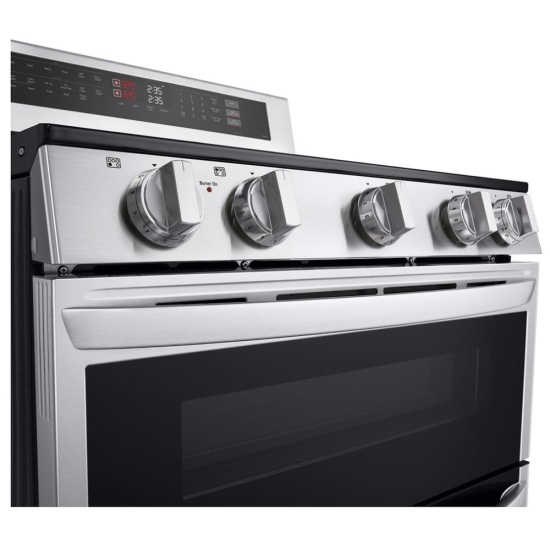

| Controls – Cooktop | Front control knobs |
| Display | LED display |
| Clock | 12‑hour or 24‑hour |
| Temperature Units | Fahrenheit / Celsius |
| Automatic Safety Shut‑Off | Yes (after 12 hours) |
| Sabbath Mode | Yes |
| Door Lock | Yes |
| Accessories – Standard Racks | 3 |
| Accessories – Air Fry Tray | No (tray not included) |
| Accessories – Cooktop Cleaner | Yes |
| Accessories – Scouring Pad | No |
| Accessories – Temperature Probe | No |
| Smart Connectivity | Wi‑Fi Enabled, ThinQ® app compatible |
| Smart Features | Remote monitoring and control, ThinQ Care™ alerts, ThinQ UP™ features, SmartDiagnosis™, app and voice control (Alexa / Google Assistant via Wi‑Fi) |
| Energy Star® Certified | Yes |
| Annual Energy Consumption | ≈195 kWh/year (ENERGY STAR listing) |
| Voltage | 240 V |
| Required Power Supply (Circuit) | 40 A minimum branch circuit |
| Amp Rating at 208 V | ≈55.3 A |
| Amp Rating at 240 V | ≈63.3 A |
| kW Rating at 208 V | ≈11.5 kW |
| kW Rating at 240 V | ≈15.2 kW |
| Hidden Bake Element | Yes (per Canadian retail listings) |
| Safety Features | Controls lock, door lock, hot surface indicator, automatic shutoff |
| ADA Compliant | No |
| Outdoor Approved | No |
| Commercial Use Approved | No |
| UPC | 048231347297 |
| Warranty (Canada / US typical) | 1 year parts and labor (select promotions may extend via ThinQ® app registration) |
| Market Availability Date | Approx. March 15, 2024 |

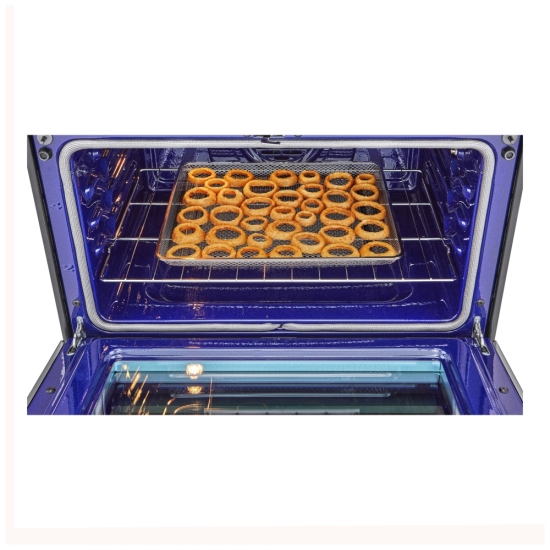

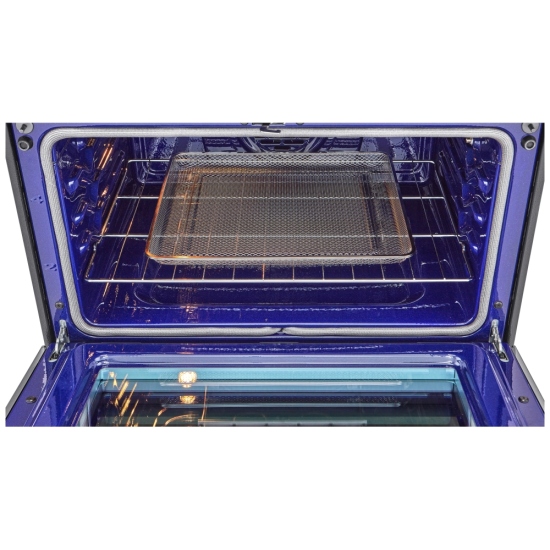

• Air Fry function – uses high‑speed hot air circulation to create crispy favorites like wings and fries with little to no added oil and no preheat needed, saving counter space by eliminating a separate air fryer.
• Air Sous Vide technology – gently circulates low, consistent heat around vacuum‑sealed foods to lock in moisture, flavor, and nutrients for restaurant‑quality meats, fish, and vegetables.
• UltraHeat™ 3.2kW triple element – powerful 3‑in‑1 front burner rapidly boils water yet turns down to a true simmer, with adjustable ring sizes to match different pan diameters.
• Dual and triple expandable elements – 2‑in‑1 and 3‑in‑1 radiant elements let you switch between small and large cooking zones so each pot or pan gets the right heat and coverage.
• EasyClean® oven cycle – low‑heat, chemical‑free cleaning that uses water and a special enamel interior to loosen light soils in about 10 minutes for quick wipe‑away maintenance.
• Self Clean cycle – high‑temperature deep‑clean option for tackling heavy, baked‑on residues in either oven cavity without harsh oven cleaners.
• SmoothTouch® glass controls – sleek, touch‑sensitive control panel provides intuitive operation and wipes clean easily for a modern, clutter‑free look.
• ThinQ® smart connectivity – built‑in Wi‑Fi lets you monitor and control the range remotely, receive ThinQ Care™ maintenance alerts, and get new ThinQ UP™ feature updates over time.
• Voice assistant compatibility – works with Google Assistant and Alexa for hands‑free control such as adjusting oven temperature, checking remaining time, or turning the oven off.
• Smart Diagnosis™ support – transmits diagnostic data to LG customer support via the ThinQ app to help troubleshoot issues more quickly and reduce service visits.
• Hood / OTR / Cooktop Sync – coordinates with compatible LG ventilation to sync fan and light settings with cooktop activity for a more integrated cooking experience.
• ENERGY STAR® certified performance – meets strict efficiency standards to help reduce energy consumption and operating costs compared with conventional electric ranges.

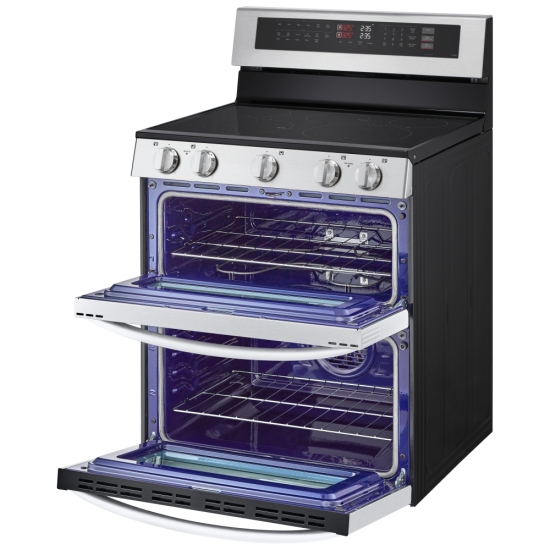

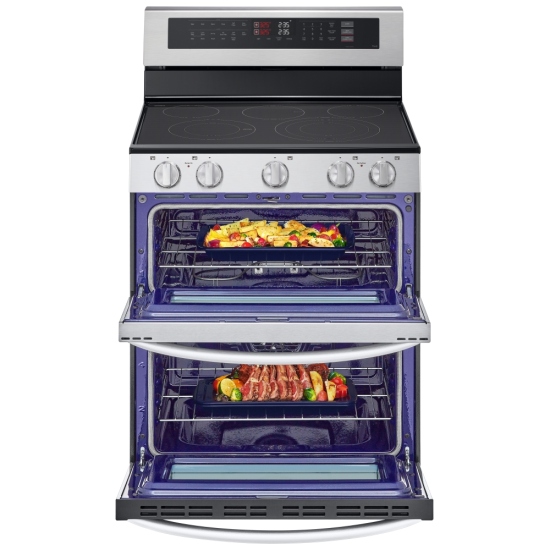

• 7.3 cu. ft. total double‑oven capacity – combines a 3.0 cu. ft. upper oven and 4.3 cu. ft. lower oven to handle multiple dishes or large roasts and baking sheets at once.

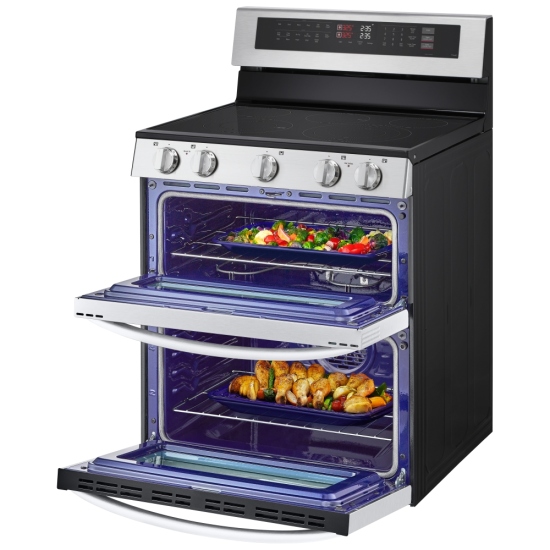

• Independent upper and lower ovens – cook different dishes at different temperatures simultaneously, ideal for entertaining, holiday meals, or weekly meal prep.

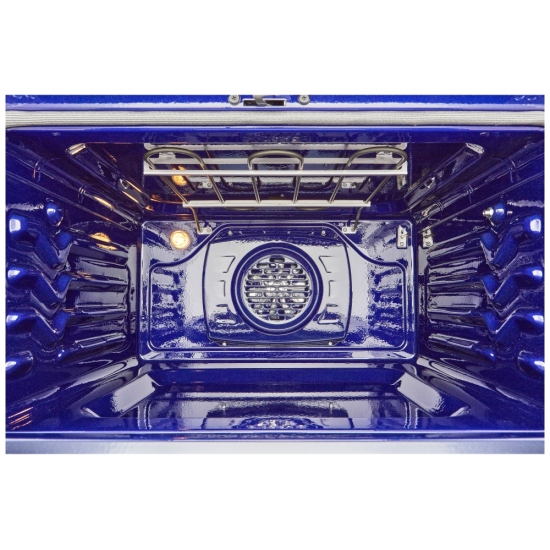

• Lower oven ProBake Convection® modes – dedicated convection bake and convection roast settings optimize fan speed and heat distribution for evenly browned results.
• Air Fry and Air Sous Vide in lower oven – specialty modes are located in the larger cavity, giving extra space for big batches of crispy snacks or sous‑vide entrées.

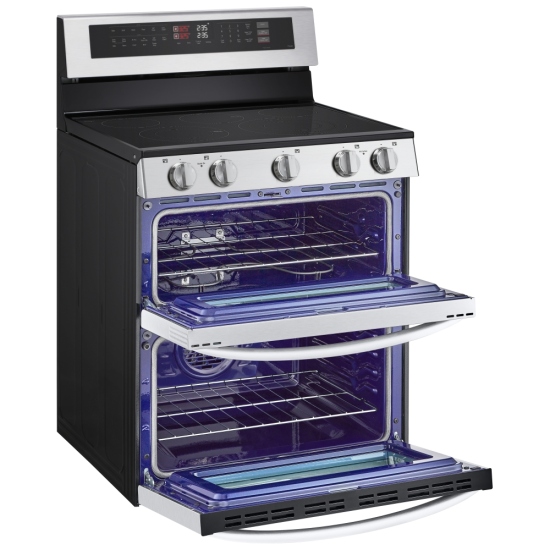

• Multiple lower‑oven rack positions – four rack levels in the lower oven and additional positions in the upper oven provide flexible placement for tall roasts or multi‑rack baking.
• Upper oven quick‑access design – smaller top oven heats faster for everyday baking, broiling, and reheating without using the full lower cavity.
• Specialized oven modes – includes Bake, Broil, Warm, Pizza, Proof, Frozen Meal, Timed Cook, Delayed Start, and Remote Start to match a wide range of recipes and schedules.

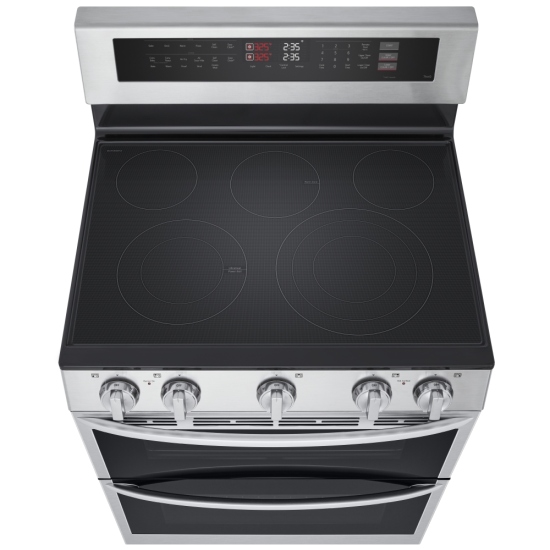

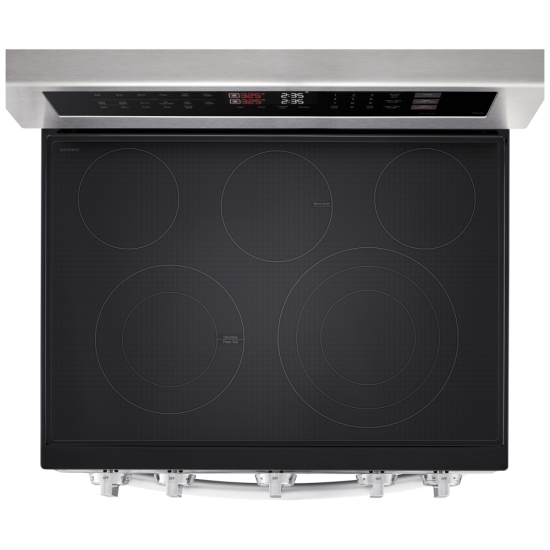

• Radiant ceramic glass cooktop – smooth, modern surface with five elements provides fast, even heating and is easy to wipe clean after spills.
• Five cooking elements with warming zone – four primary burners plus a low‑watt center element keep sauces and sides warm without overcooking.
• High‑power front elements – front burners deliver up to 3,900W (boost) for rapid boiling, searing, and stir‑frying when maximum heat is needed.
• True simmer capability – precise low‑heat control on the UltraHeat™ element helps prevent scorching delicate sauces, chocolate, or custards.
• Hot surface indicator lights – dedicated LEDs stay illuminated while the glass top is still hot to the touch, helping prevent accidental burns.
• WideView™ oven window – large viewing window lets you check cooking progress in the lower oven without opening the door and losing heat.
• Interior oven lighting – bright lights in each cavity improve visibility so you can monitor browning and doneness at a glance.
• Automatic 12‑hour shut‑off – safety feature turns the ovens off after extended use to reduce the risk of overheating or forgotten cookware.
• Control lock function – disables the control panel to help prevent unintended changes from children, pets, or accidental touches.
• Storage drawer – integrated lower drawer provides convenient space for baking sheets, pans, and accessories, freeing up cabinet storage.
• Fahrenheit / Celsius selection – allows you to choose your preferred temperature scale for easier recipe conversion.
• 12‑hour or 24‑hour clock display – customizable time format to match user preference and improve at‑a‑glance readability.
• Digital timer and kitchen clock – built‑in timer tracks cooking durations precisely and doubles as a central kitchen time display.
• Stainless steel exterior finish – durable, contemporary look that coordinates with other stainless appliances and resists everyday wear.
• Curved bar handle design – ergonomic oven door handles provide a comfortable grip and add a premium design accent.
• Adjustable leveling legs – allow fine‑tuning of range height and leveling for proper installation on uneven floors.
• Freestanding installation style – fits standard 30‑inch range openings and can be installed between cabinets or at the end of a run.
• Radiant surface “on” indicators – visual cues confirm when elements are active, improving safety and energy awareness.
• Convection conversion feature – automatically adjusts traditional recipe temperatures and times for optimal convection cooking results.
• Timed Cook and Delayed Start – schedule the oven to start and stop automatically, useful for busy households and precise baking.
• Warm mode in both ovens – keeps finished dishes at serving temperature without overcooking while you finish other courses.
• Pizza mode – tailors heat distribution for crisp crusts and evenly melted toppings.
• Proof mode – maintains ideal low temperatures for proofing bread dough directly in the oven.
• Remote monitoring and alerts – ThinQ® app notifications let you know when preheat is complete, timers finish, or cleaning cycles end.
• ThinQ Care™ maintenance insights – usage tracking and alerts help you schedule cleaning and identify potential issues early.
• ThinQ UP™ upgradability – supports future software enhancements so the range can gain new smart features over its lifetime.
• Active cooling system – helps manage exterior temperatures and protect electronics during extended high‑heat cooking or self‑clean cycles.
• LED display – clear, energy‑efficient readout shows temperatures, modes, and timer information at a glance.
• Energy‑efficient operation – designed to reduce annual energy consumption while still delivering high performance on both cooktop and ovens.
Manufacturer’s Warranty: 1 year
Canadian model: LDEL7324SE
Canadian UPC: 048231347297
EAN: 0048231347297
