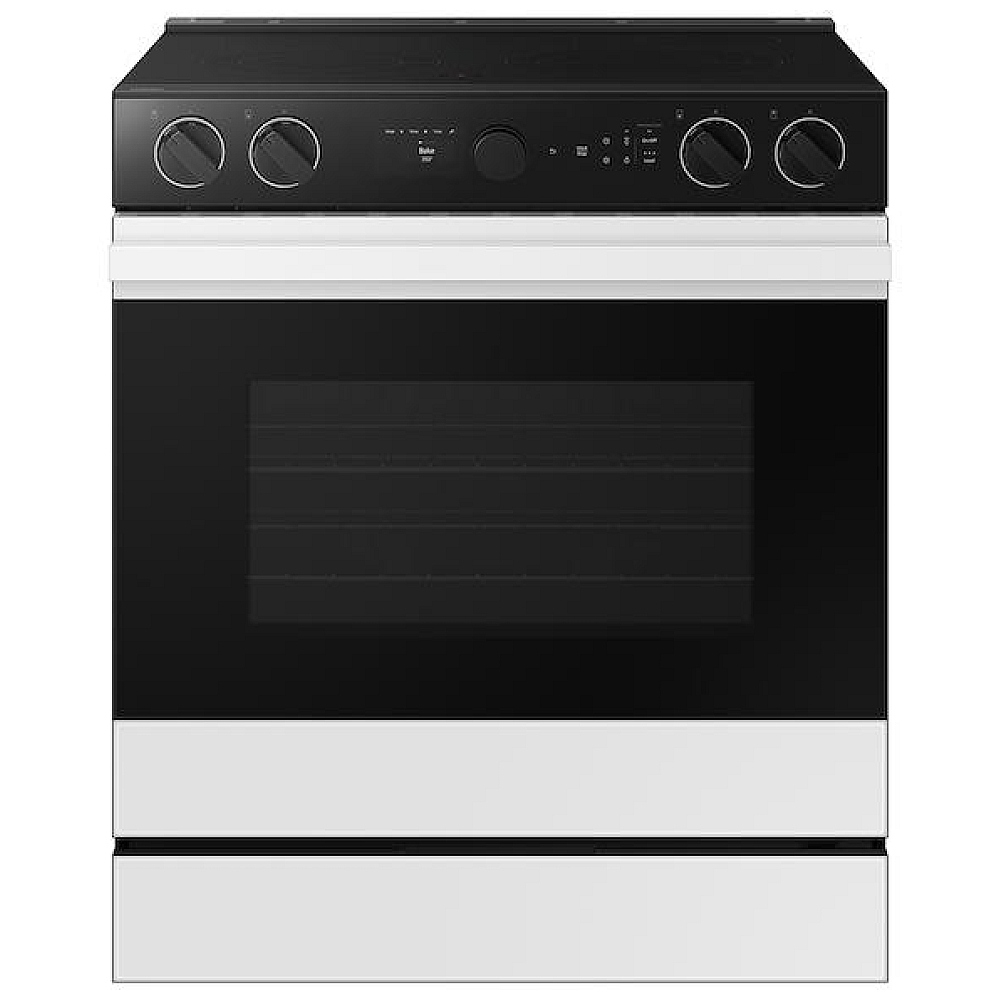

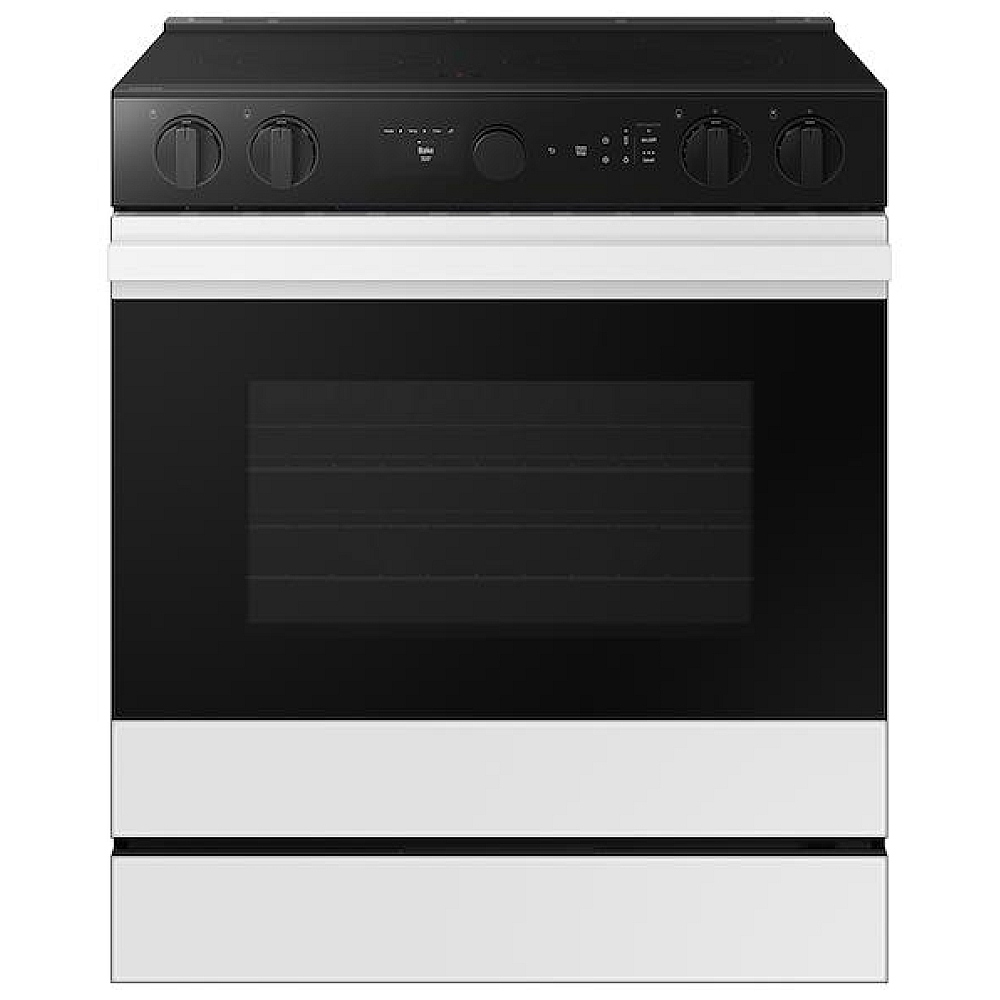

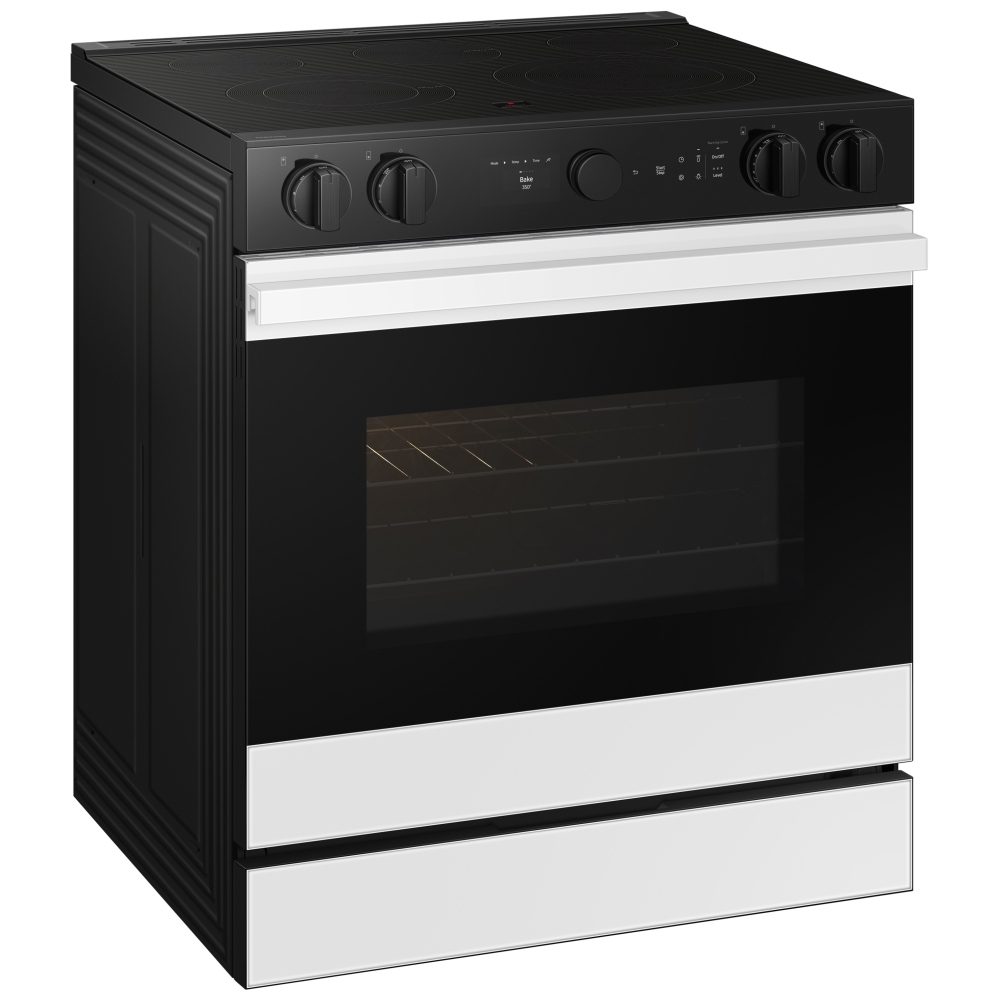

Samsung NSE6DB870012AC Electric Range,
6.3 cu. ft. Capacity, 30 inch Exterior Width, Convection, 5 Burners, Storage Drawer, Yes, Self Clean, 3,600 W Highest Element, White Glass: colour True European Convection, Air Sous Vide, Smart Dial, Temperature Probe.
| Specification | Value |
|---|---|
| Model | NSE6DB870012AC |
| Series Name | Bespoke |
| Fuel Type | Electric |
| Type | Slide-In Electric Range |
| Installation Type | Slide-in |
| Capacity | 6.3 Cu Ft |
| Drawer Capacity | 0.9 Cu Ft |
| Width | 29 15/16 inches |
| Height | 36 1/4 ~ 37 inches |
| Depth | 27 7/8 inches |
| Net Size (W x H x D) | 29 15/16 in x 36 1/4 ~ 37 in x 27 7/8 in |
| Net Size (W x H x D) (mm) | 761 x 921.2 ~ 939.8 x 707.8 mm |
| Gross Size (W x H x D) | 33 1/16 in x 41 1/8 in x 30 5/16 in |
| Cooktop Type | Radiant Smoothtop / Ceramic Glass |
| Cooktop Frame | Black (Glass) |
| Number of Burners / Elements | 5 |
| Right Front Burner Size | 6″/9″/12″ |
| Right Front Burner Power | 3000 W |
| Left Front Burner Size | 6″/9″ Express Boil |
| Left Front Burner Power | 3600 W (Express Boil) |
| Right Rear Burner Size | 6″ |
| Right Rear Burner Power | 1200 W |
| Left Rear Burner Size | 6″ |
| Left Rear Burner Power | 1200 W |
| Center Burner Size | 6″ Warming Zone |
| Center Burner Power | 100 W (Warming Center) |
| Number of Cooking Zones | 5 elements |
| Booster | No |
| Hot Surface Indicator | Yes |
| Oven Type | Single Cavity |
| Convection | True Convection |
| Convection Cooking Technology | True Convection with fan |
| Bake (Single) | 175°F (80°C) – 550°F (285°C) |
| Variable Broil (Low-High) (Single) | Low – High |
| Convection Bake (Single) | 175°F (80°C) – 550°F (285°C) |
| Convection Roast (Single) | 175°F (80°C) – 550°F (285°C) |
| Bake Element Power | 3000 W |
| Broil Element Power | 4200 W |
| Convection Heater Element Power | 800 W |
| Oven Capacity | 6.3 Cu Ft |
| Number of Ovens | 1 |
| Number of Rack Positions | 7 |

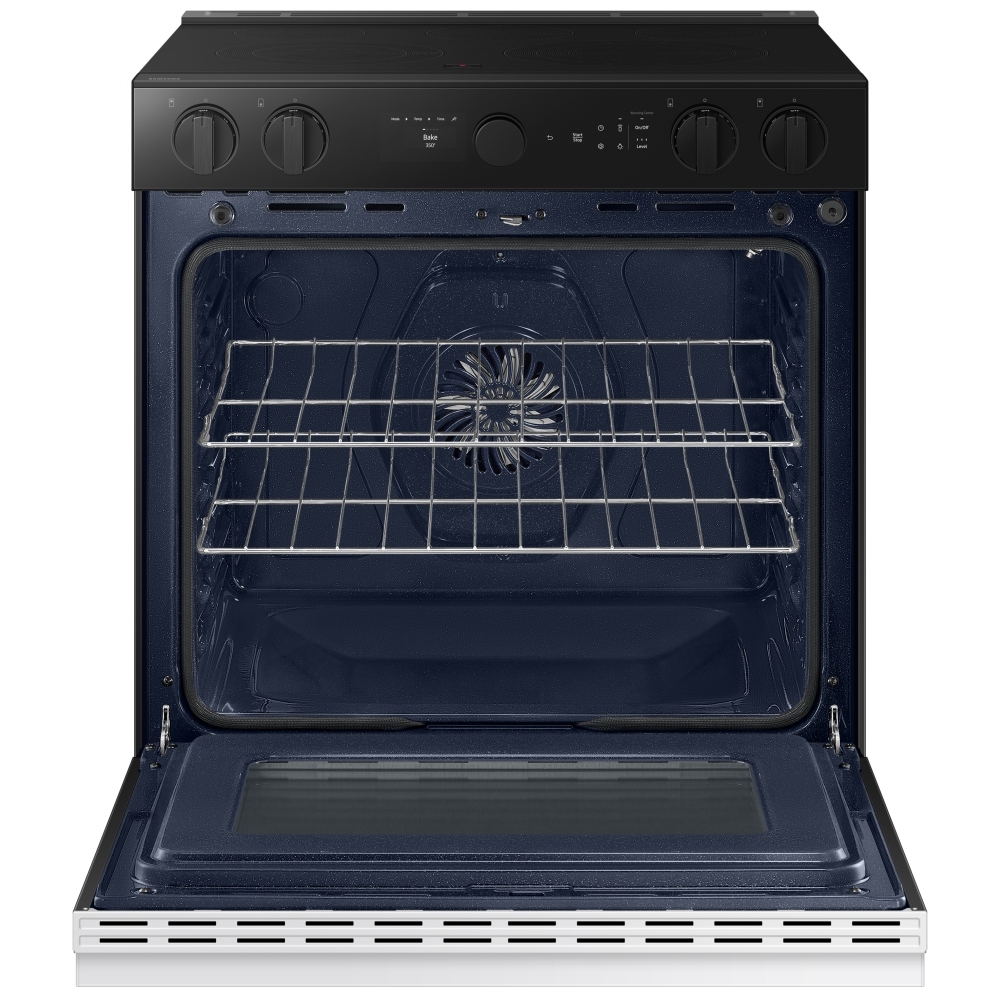

| Number of Racks | 3 (2 wire racks + 1 Air Fry tray) |
| Wire Racks | 2 |

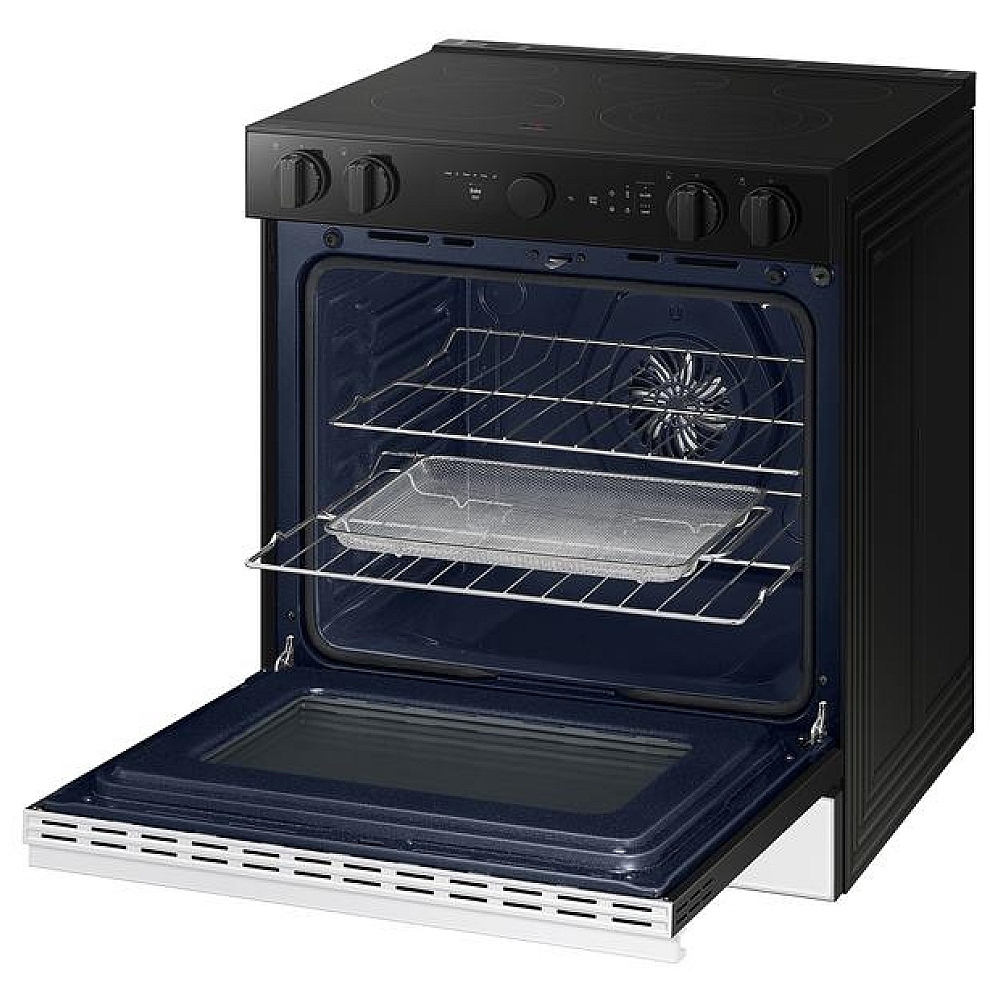

| Air Fry Tray | Yes |
| Gliding Rack | No |
| Drawer Type | Storage |
| Drawer Capacity | 0.9 Cu Ft |
| Door Type | Single Door (Full Glass) |
| Soft Closing Door | No |
| Interior Light Type | Standard Incandescent |
| Interior Light Position | 1 Incandescent 40W / Back |
| Light On/Off | Yes |
| Colour | White |
| Manufacturer Colour / Finish | White Glass |
| Oven Colour | White Glass |
| Handle Type | Metal |
| Popular Widths | 30-in |
| Range Size | 30 in (76.2 cm) |
| Installation Height Range | 36.25 in (min) to 37 in (max) |
| Net Weight | 170.2 lbs (77.2 kg) |
| Shipping Weight | 189.8 lbs (86.1 kg) |
| Power Cord Included | Yes (varies by retailer; check local requirements) |
| Control Type (Oven) | Electronic Touch + Smart Dial |
| Control Type (Cooktop) | Knob |
| Display Type | 2.25″ Mono LCD |
| Display Colour | White |
| Oven Control Type | Electronic |
| Lights Control | Oven light touch pad |
| Smart Oven Camera | Yes (Oven Camera Inside) |
| Smart Compatible | Yes |
| Wi-Fi Embedded | Yes |
| Wi-Fi Connectivity | Yes |
| App Connectivity | SmartThings App Support (Android & iOS) |
| Voice Controlled | Yes (via compatible smart assistants through SmartThings) |
| Air Fry | Yes |
| Air Sous Vide | Yes |
| Convection Vegetable | Yes |
| Download Cooking Mode | Yes (via SmartThings) |
| Self Clean | Yes |
| Steam Clean | Yes |
| Hidden Bake Element | Yes |
| Keep Warm Setting | Yes |
| Keep Warm (Oven Function) | Yes |
| Bread Proof / Proofing | Yes |
| Favorite Cook | Yes |
| Healthy Cook | No |
| Easy Cook | No |
| Time Bake | Yes |
| Clock | Yes |
| Kitchen Timer | Yes |
| Numeric Pad | No |
| Child Safety Lock | Yes |
| Child Lock (general) | Yes |
| Sound On/Off | Yes |
| Clock System Option | 12H / 24H selectable |
| Delay Start | Yes |
| Sabbath Mode | Yes (Star-K Certified) |
| Star-K Certified | Yes |
| ADA Compliant | No |
| Number of Oven Rack Positions | 7 |
| Single/Double Oven | Single |
| Warming Drawer | No (storage drawer only) |
| Meat Probe | Yes |
| Anti-Tip Device | Yes |
| Divider | No |
| Safety Listing | CSA safety listing |
| Number of Ovens | 1 |
| Number of Burners (Retail Listings) | 5 |
| Number of Oven(s) (Retail Listings) | 1 |
| Appliance Care | Self and Steam Clean |
| Manufacturer’s Warranty | 1 year |
| Warranty | 1-year limited |
| UPC | 887276821573 |
| EAN | 0887276821573 |

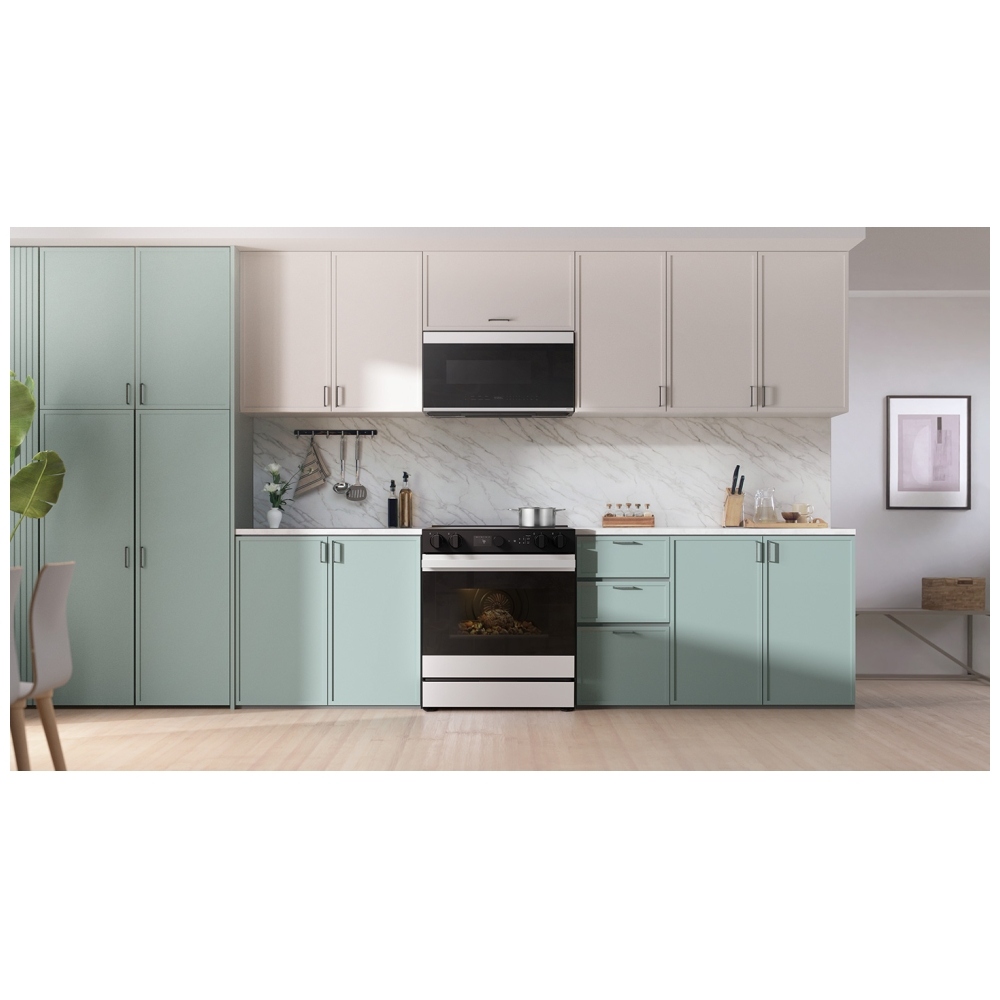

• BESPOKE design with premium colour options – coordinates with other Samsung Bespoke appliances for a modern, built‑in look that complements contemporary kitchens.
• SmartThings™ connectivity – lets you monitor, preheat, and adjust oven settings from your smartphone, plus receive alerts and energy‑usage insights when connected to Wi‑Fi.
• Smart Oven Camera Inside – built‑in camera allows you to visually check cooking progress in real time from the SmartThings app without opening the door and losing heat.

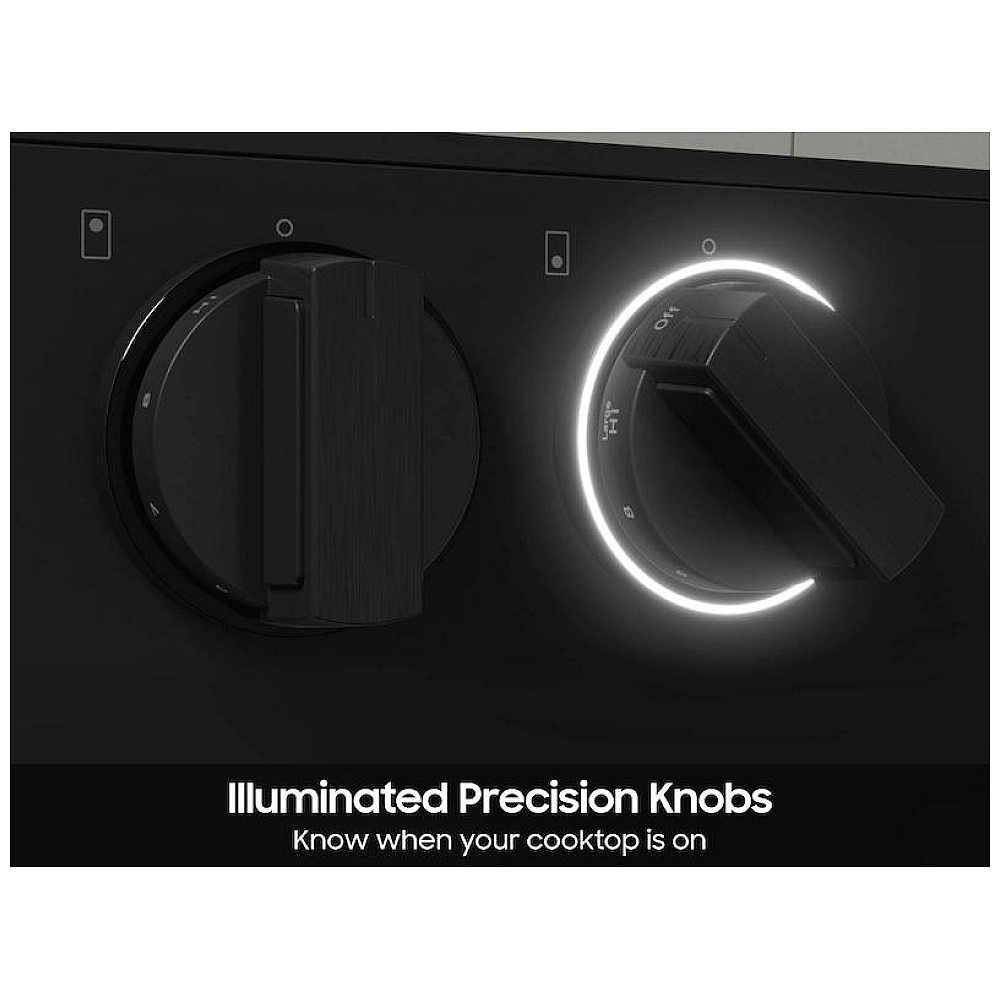

• Ambient Edge Lighting™ illuminated knobs – precision knobs glow to show burner status at a glance and can provide customizable mood lighting when the range is not in use.
• Wi‑Fi embedded smart range – enables remote control, status monitoring, and software‑driven features such as downloadable cooking modes and notifications.
• Voice assistant compatibility (Bixby, Alexa, Google) – supports hands‑free control of basic oven functions using popular voice assistants when connected to Wi‑Fi.
• Air Sous Vide mode – uses precise, controlled heat and airflow to lock in moisture and flavour for gourmet‑style results on meats, fish, and vegetables.
• Air Fry function – circulates hot air to create crispy, “fried‑like” textures using little or no added oil, for healthier versions of favourites like fries and wings.

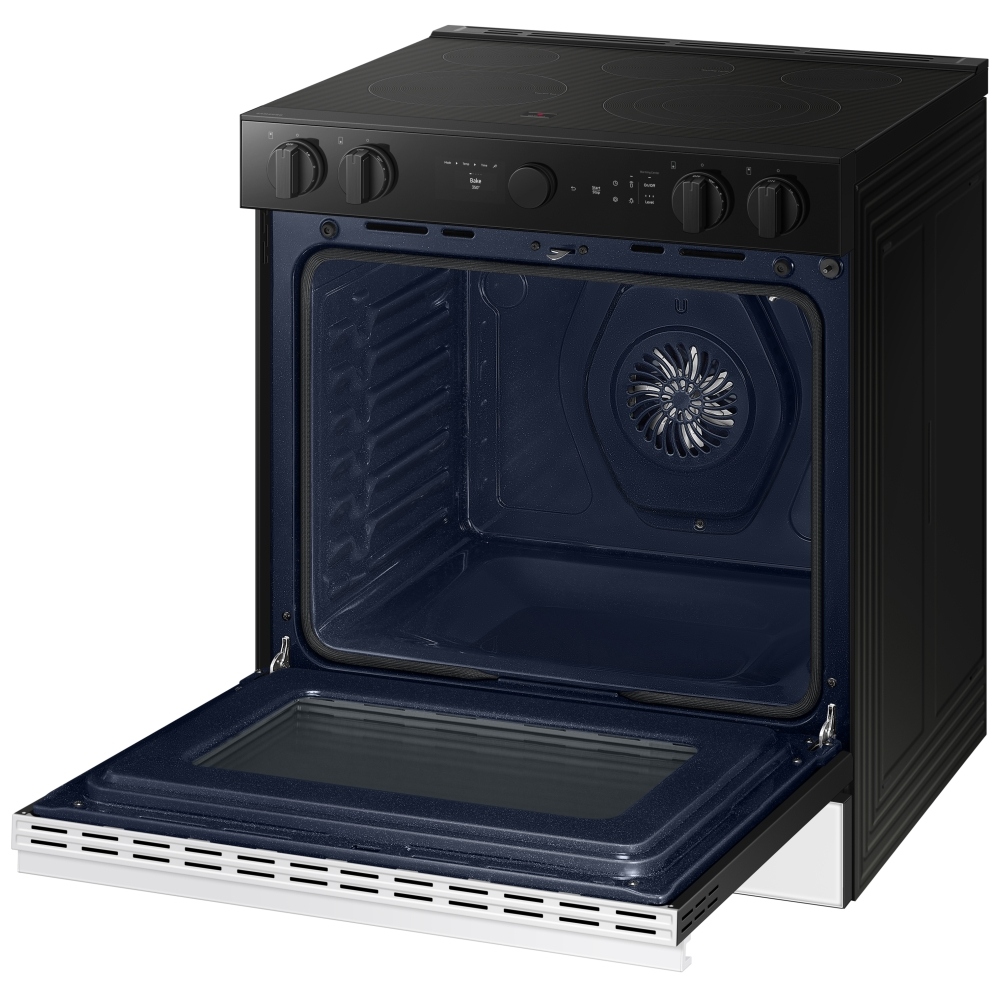

• True Convection / Convection+ cooking – additional heating element and fan circulate hot air for faster, more even baking and roasting than conventional radiant ovens.
• Convection Vegetable mode – optimizes temperature and airflow to quickly roast vegetables to a crispy exterior while preserving natural flavour and texture.
• 3.6 kW Express Boil™ electric cooktop element – delivers very high heat for rapid boiling and searing, yet can be turned down to a gentle simmer for sauces and chocolate.

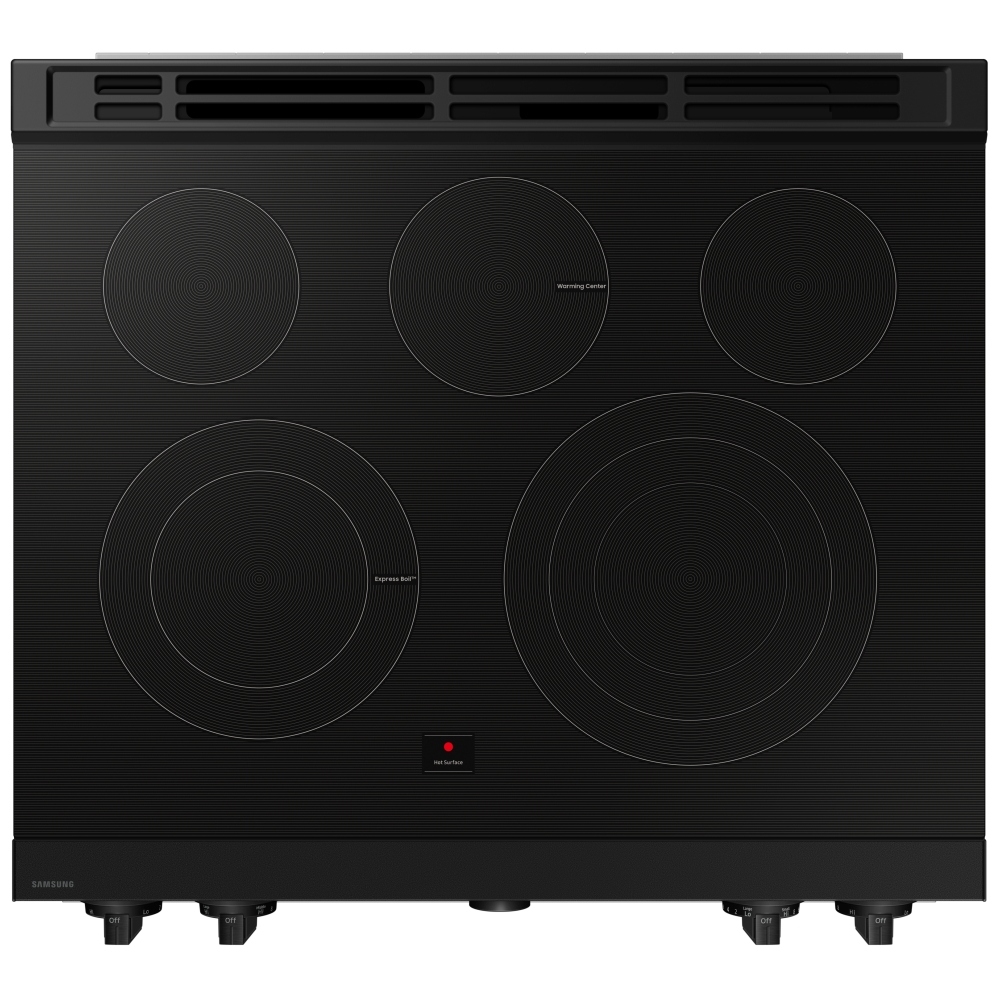

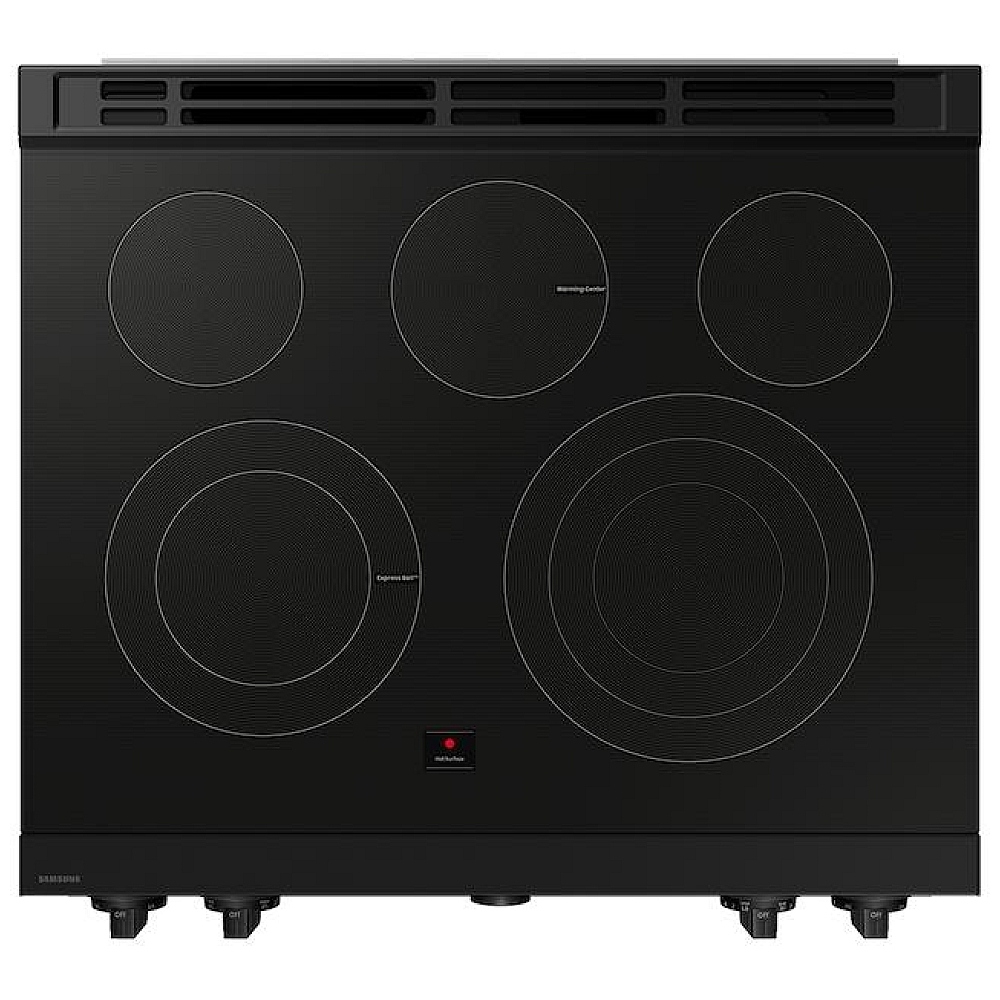

• 5‑element smoothtop cooking surface – provides multiple radiant elements so you can cook with several pots and pans at once.
• Flexible element sizing – dual and/or multi‑ring elements accommodate a variety of pan diameters for better heat coverage and energy efficiency.
• Front control slide‑in design – installs flush with countertops for a built‑in appearance and keeps controls conveniently located at the front of the range.
• Recessed, minimalist handle design – low‑profile handle and clean lines create a sleek, modern aesthetic that blends with custom cabinetry.
• Fingerprint Resistant finish (on applicable colours) – special coating helps resist smudges and fingerprints so the exterior stays cleaner with less wiping.
• Oven window with interior lighting – large viewing window and bright light make it easy to check food without opening the door.
• Self Clean cycle – uses high heat to burn off baked‑on grease and food residue, reducing the need for harsh chemical oven cleaners.
• Steam Clean option – short, low‑temperature steam cycle loosens light soils so they can be wiped away quickly with minimal scrubbing.
• Download Cooking Mode feature – lets you send preset modes such as “Pizza,” “Spare Ribs,” or “Brownies” from the SmartThings app directly to the oven for automatic time and temperature settings.
• Hot surface and burner‑on indication – visual indicators and illuminated knobs help you see when the cooktop is active or still hot to the touch for added safety.
• Large storage drawer – provides convenient space beneath the oven for storing baking sheets, pans, and other cookware.
• Even heat distribution for baking – oven design and convection system help minimize hot and cold spots for more consistent results on cookies, cakes, and casseroles.
• Multiple rack positions – adjustable oven racks allow flexible placement for tall roasts, multi‑rack baking, or broiling close to the element.
• Timer and delay‑start functions – enable you to schedule cooking to start or stop at set times to better coordinate meals.
• High‑visibility LCD control display – 2.25″ screen with intuitive messaging makes it easy to confirm modes, temperatures, and remaining time at a glance.
• Child safety features – control‑lock style functions help prevent unintended changes to settings by children or during cleaning.
• Smooth ceramic glass cooktop surface – flat surface simplifies moving pots between elements and wipes clean more easily than coil burners.
• Slide‑in 30″ fit – designed to fit standard 30‑inch range cutouts for straightforward replacement of an existing freestanding or slide‑in range.
• Bespoke colour coordination – matching finishes and styling allow the range to integrate seamlessly with other Samsung Bespoke refrigerators, dishwashers, and hoods.
• Energy‑efficient electric operation – electric oven and cooktop provide precise temperature control and can be paired with many modern ventilation and energy‑management systems.
Manufacturer’s Warranty: 1 year
Canadian model: NSE6DB870012AC
Similar to USA model: NSE6DB870012
Canadian UPC: 887276821573
Similar to USA UPC: 887276817255
EAN: 0887276821573
