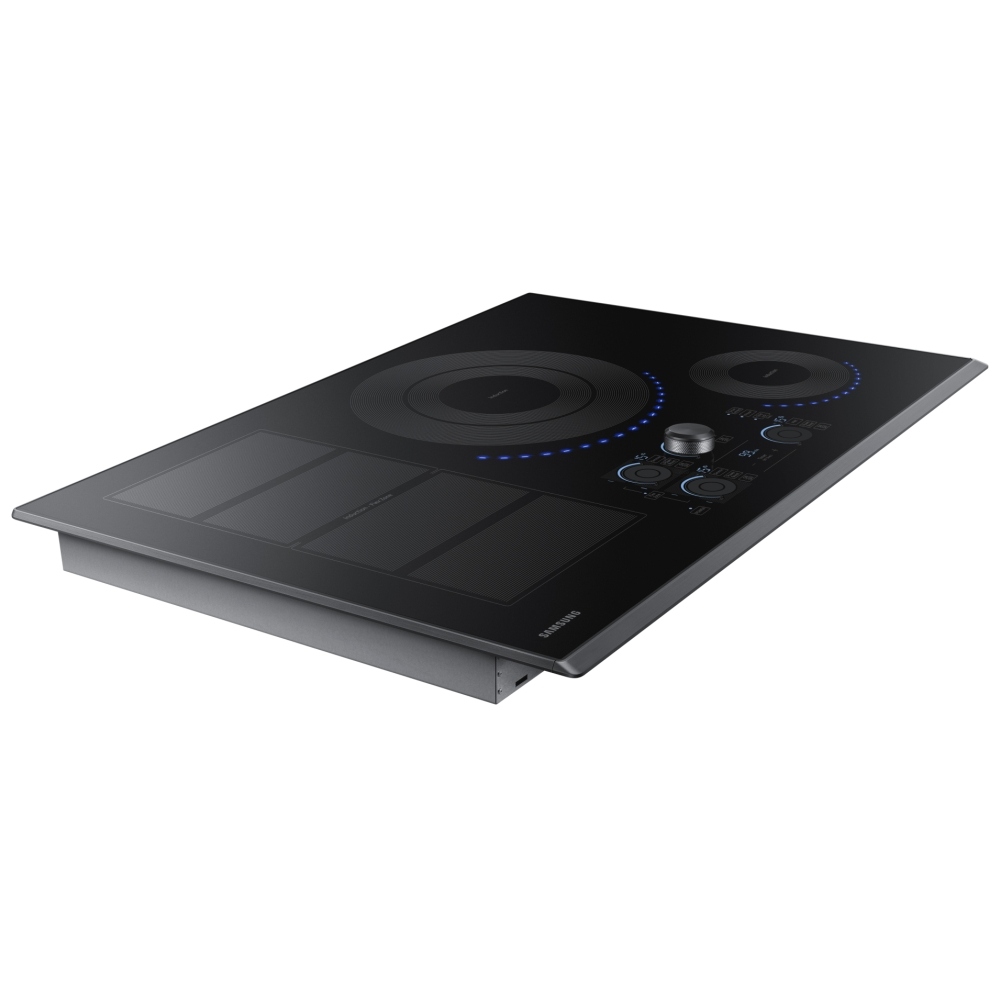

Samsung NZ30K7880UG – NZ30K7880UG/AA Induction Cooktop,
30 inch Exterior Width, 4 Burners, 3,600 W Highest Element, Black Stainless Steel colour Virtual Flame,Magnetic Knob + Digital Touch, FlexZone
| Specification | Value |
|---|---|
| Product Type | Induction Cooktop |
| Fuel Type | Electric |
| Color | Fingerprint Resistant Matte Black Stainless Steel / Black Stainless Steel |
| Model Number | NZ30K7880UG / NZ30K7880UG/AA |
| Width | 30 inches |
| Depth | 21.25 inches |
| Height (US) | 4 inches |
| Height (Canada) | 4.25 inches |
| Product Dimensions (W x H x D) | 30″ W x 4″ H x 21 1/4″ D |
| Product Weight (US) | 49.8 lbs |
| Product Weight (Canada) | 51.14 lbs (23.2 kg) |
| Shipping Dimensions (W x H x D) | 34″ W x 7.31″ H x 25″ D (approx. 868 x 215 x 636 mm) |
| Shipping Weight | 60.8 lbs |
| Cut-Out Width | 28.5 inches (28 1/2″) |
| Cut-Out Depth | 19.57–19.58 inches (19 4/7″ approx.) |
| Cut-Out Height | 4 inches |
| Cut-Out Width (cm) | 72.39 cm |
| Cut-Out Depth (cm) | 49.73 cm |
| Nominal Width | 30 inches |
| Appliance Fit Width | 30 inches (76.2 cm) |
| Cooktop Type | Smoothtop Induction |
| Total Number of Elements / Cooking Zones | 4 |
| Total Power | 8.6 kW |
| Left Front Element | Flex Zone, 1,800 W (Boost 2,600 W) |
| Left Rear Element | Flex Zone, 1,800 W (Boost 2,600 W) |
| Right Front Element | 6″ with Virtual Flame™, 1,400 W (Boost 1,800 W) |
| Right Rear Element | 7″/11″ with Virtual Flame™, 3,600 W (Boost 4,800 W) |
| Flex Zone Size | Approx. 7 11/16″ x 15 3/4″ |
| Number of Elements/Burners (some retailers) | Listed as 5 (includes Flex Zone counting method) |
| Virtual Flame™ | Yes (LED surface lights simulate gas flame) |
| Flex Zone | Yes (large flexible cooking area) |
| Power Boost | Yes (on all elements) |
| Heat Settings | 15 heat settings |
| Melt Mode | Yes (low, even temperatures for melting/tempering) |
| Simmer Control | Yes (even, consistent simmer) |
| Hot Surface Indicator | Residual Heat Indicator |
| Sync / Residual Heat Control | Residual Heat Indicator (per zone) |
| Controls Type | Touch Control with Removable Magnetic Knob (Digital-Analog Controls) |
| Control Location | Front |
| Control Lock / Child Lock | Yes |
| Display | Digital display |
| Surface Material | Glass Ceramic / Glass-Top |
| Fingerprint Resistant Finish | Yes |
| Wi-Fi Connectivity | Yes (Smart compatible, Smart Home Wi-Fi) |
| Bluetooth Connectivity | Yes (hood connection; cooktop can sync with compatible Samsung hood) |
| Smart Features | Remote monitoring via smartphone app; Wi-Fi capable |
| ADA Compliant (US) | Yes |
| ADA Compliant (Canada) | No (per several Canadian retailers) |
| Energy Star Certified | No |
| Commercial Use Approved | No |
| Voltage | 240 V |
| Frequency | 60 Hz |
| Amperage | 40–45 A (commonly listed as 45 A on spec sheets) |
| Ignition Type | Automatic Electronic (for induction electronics) |
| Hood Recommended | Yes |
| Downdraft Ventilation | No |
| Cooktop Features (common retailer listings) | Digital display, dual element, melting burner, simmer element, hot surface indicator light, door/child lock, Wi-Fi capable, smudge-proof / fingerprint resistant finish |
| Glass Ceramic Surface | Yes |
| Installation | Can be installed over a single wall oven (check cut-out and clearance requirements) |
| Manufacturer Warranty (US) | 1 year parts & labor; 5 year cooktop (glass/induction) limited |
| Awards | J.D. Power Awards (listed on some spec sheets) |
• Flex Zone™ / FlexCook Zone – large bridged cooking area on the left side that combines two elements to accommodate oversized or uniquely shaped pots and pans.
• Bluetooth® connected cooktop-to-hood – wirelessly syncs with compatible Samsung range hoods so fan and lights can turn on and adjust automatically with the burners.
• Wi‑Fi Connectivity with SmartThings app support – lets you remotely monitor the cooktop, set timers, and receive alerts from a compatible smartphone or tablet.
• Fingerprint Resistant Black Stainless Steel finish – resists smudges and fingerprints to help the cooktop frame and trim stay looking clean with less wiping.• Digital‑Analog Controls with movable magnetic knob – offers a removable analog knob plus glass touch controls so you can choose your preferred control style and remove the knob for easy cleaning.
• Induction cooking technology – uses electromagnetic energy to directly heat compatible cookware for fast response, precise temperature control, and improved energy efficiency.
• 30″ built‑in design – standard 30‑inch width cooktop designed for seamless installation into countertops and over compatible single wall ovens.
• Four induction cooking zones – includes two left Flex Zone elements plus 6″ and 7″/11″ right‑side elements to handle a wide range of pan sizes and cooking tasks.
• 7″/11″ dual right‑rear element with up to 4,800 W Boost – delivers high power for rapid boiling or searing, with a dual‑size design to match different pan diameters.
• 6″ right‑front element with Boost – smaller burner ideal for saucepans and everyday cooking, with extra power available for faster heating when needed.
• 15 power levels – fine‑grained heat settings from low to high for precise simmering, sautéing, boiling, and searing.
• Power Boost function on all elements – temporarily increases power output on a selected zone to significantly reduce boiling and preheat times.
• Simmer/Melt function – maintains very low, stable heat to gently simmer sauces or melt delicate foods like chocolate and butter without scorching.
• Residual Heat Indicator lights – shows which cooking zones are still hot after use so you can avoid accidental contact and use remaining heat efficiently.
• Child Safety Lock / Control Lock – disables the control panel to prevent children or pets from accidentally turning on the cooktop or changing settings.
• Safety Shutoff – automatically turns off a cooking zone if it has been left on too long or if no settings changes are detected for an extended period.
• Auto Pan Detection – senses when compatible cookware is present and only activates the element when a suitable pan is correctly positioned.
• Small Utensil Detection – helps prevent activation when small metal objects (like cutlery) are placed on the surface instead of proper cookware.
• High‑temperature limit protection – monitors internal temperatures and reduces power or shuts off zones if overheating is detected.
• Pause function – temporarily reduces all active zones to a low power level with one touch, then restores previous settings when you resume.
• Kitchen timer – built‑in countdown timer to track cooking durations without needing a separate timer device.
• Sound on/off option – allows you to mute or enable audible beeps from the controls according to your preference.
• Glass ceramic cooking surface – smooth, flat black glass top that is easy to wipe clean and provides a modern, integrated appearance.
• Easy‑clean control area – flush touch controls and removable magnetic knob allow quick cleaning of spills across the entire surface.
• Hot surface indicator icons – clearly marked symbols on the glass show which zones were in use and may still be hot.
• ADA compliant design – front‑center controls, smooth surface, and accessible operation help meet applicable accessibility guidelines.
• Smart compatible appliance – integrates with Samsung smart home ecosystem for status monitoring and potential automation routines.
• Black Stainless frame styling – coordinates with other Samsung Black Stainless Steel kitchen appliances for a cohesive look.
• 240 V, 60 Hz, 8.6 kW total power – high overall power capacity to support multiple active zones and Boost mode simultaneously (within electrical limits).
• Standard 30″ cutout fit – designed to fit common 30‑inch cooktop cutout dimensions for easier replacement of existing units.
• Approx. 49.8 lb product weight – sturdy construction that supports heavy cookware while remaining manageable for installation.
• Manufacturer warranty coverage – includes limited warranty on parts and labor, with extended coverage on the induction cooktop surface (terms vary by region and retailer).
Manufacturer’s Warranty: 1 year
Canadian model: NZ30K7880UG
Canadian UPC: 887276183435
EAN: 0887276183435
